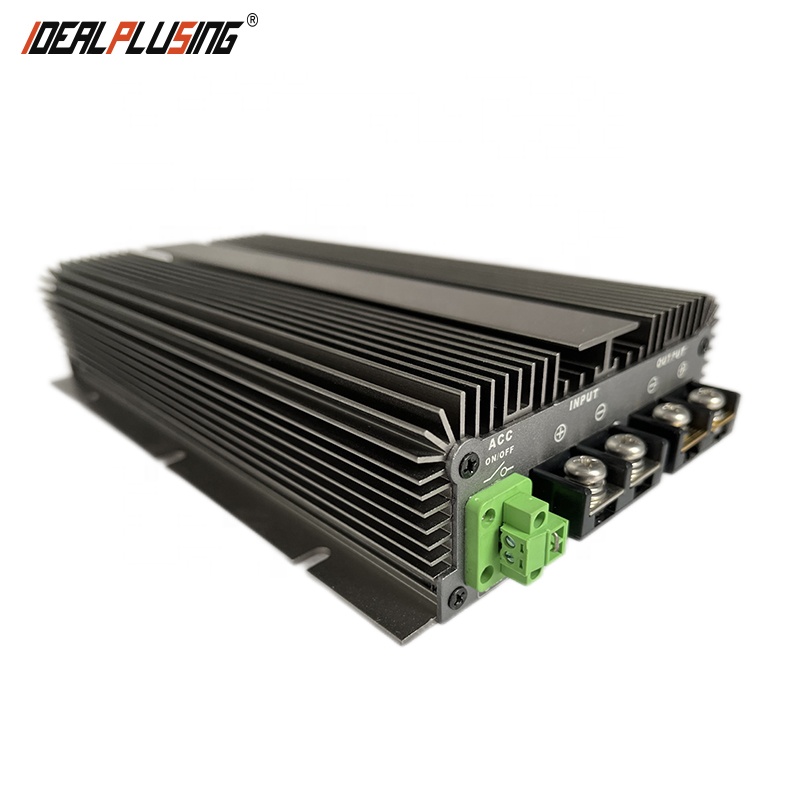

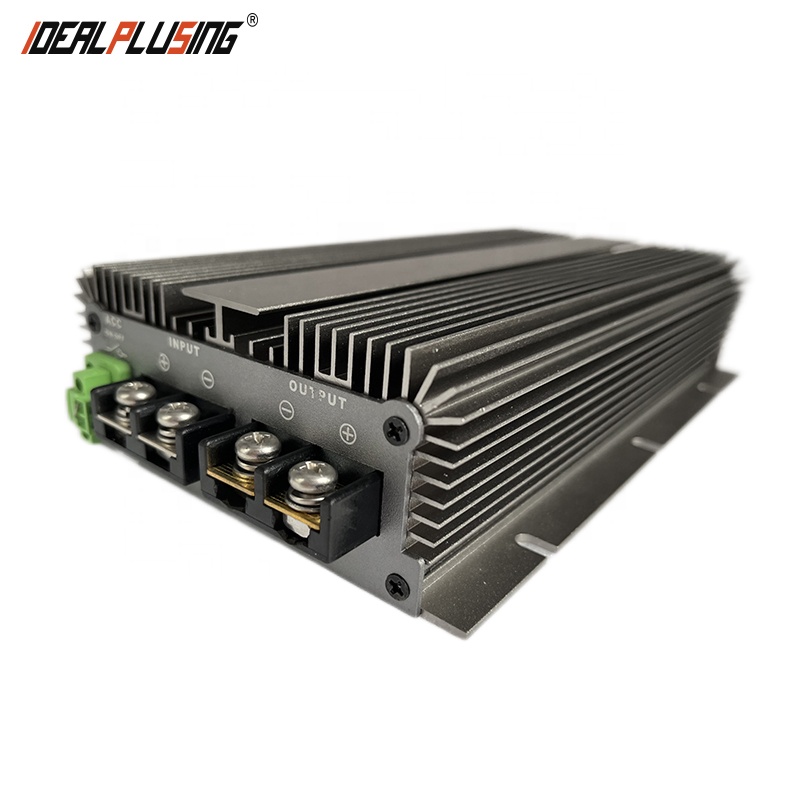

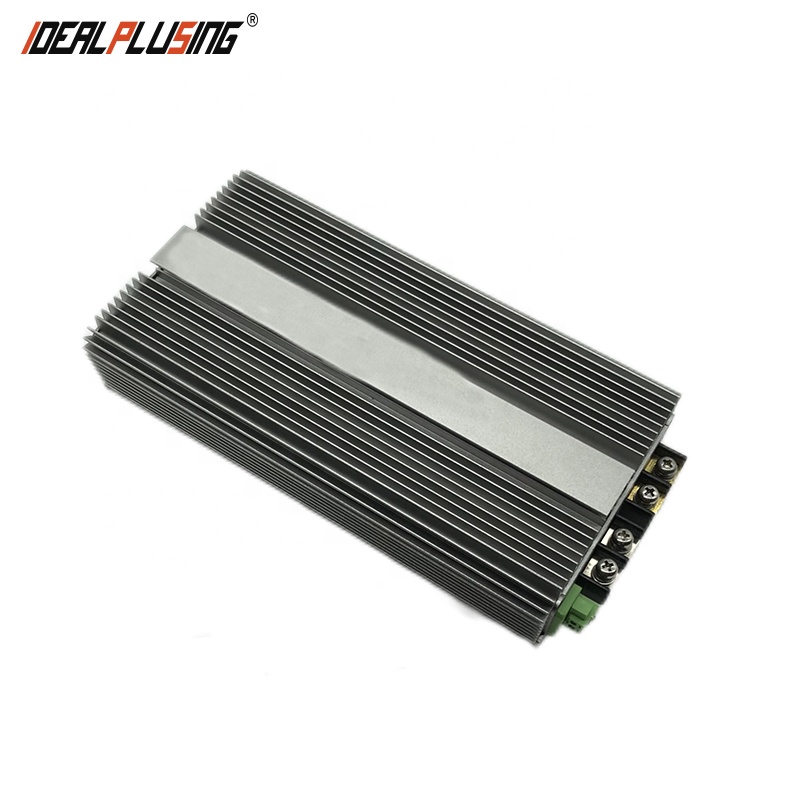

With 12.5V Low Voltage protection 12V 24V to 58V Dc to Dc Step up boost Battery Charger for 48V Life-po4 RVs Auxiliary Battery
Product Description
With 12.5V low voltage protection 12V 24V to 58V dc to dc step up boost battery charger for 48V Life-po4 RVs Auxiliary battery
12.5V Low Voltage Protection
Boost Step-Up Charging
High Efficiency (92%)
IP65 Waterproof Rating
| Specifications & Parameters | |
|---|---|
| Type | Non-Isolate |
| Model | IPS-DTD1224S5820 |
| INPUT | |
| Rate Volts | 12/24VDC |
| Volts range | 12/24VDC Battery |
| OUTPUT | |
| Efficiency | 92% |
| Output volts | 58VDC |
| Output current | 20A |
| Rated Power | 1160W |
| OTHERS | |
| Working Temp | -40°c ~ +80°c |
| Waterproof rating | IP65 |
| Machine size | 220*130*50MM |
| NW | 2.6KG |
| Cooling way | Free air convection |
| Certifications | CE, RoHS |
| Customize | Support |
| Sample order | Support |
| OEM & ODM | Support |
| Package | White & colorful package optional |

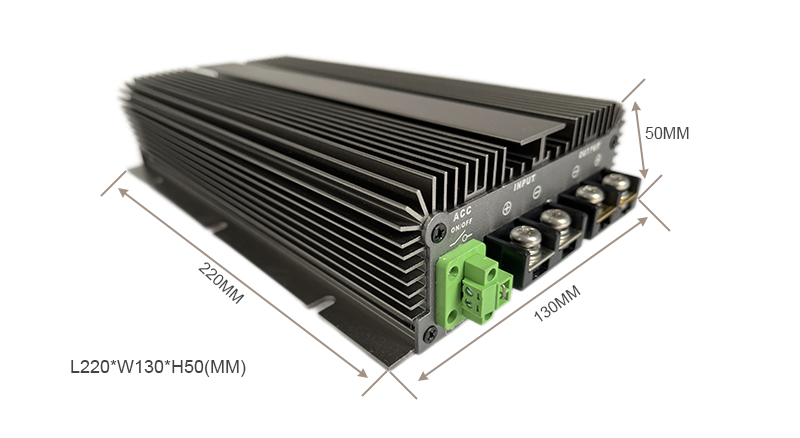

Dimension & Attribute
Frequently Asked Questions
Q1: What is the main purpose of this step-up battery charger?
A1: This step-up boost battery charger is designed to charge 48V LiFePO4 RV auxiliary batteries using a 12V or 24V DC input source.
Q2: How does the 12.5V low voltage protection function work?
A2: The built-in 12.5V low voltage protection ensures that the input source battery is protected from over-discharging when the input voltage drops too low.
Q3: Is this charger suitable for outdoor or harsh environments?
A3: Yes, the charger features an IP65 waterproof rating and operates within a wide temperature range of -40°C to +80°C, making it highly durable.
Q4: What are the primary specifications of the output power?
A4: The charger delivers an output voltage of 58VDC with a rated output current of 20A, providing a total rated power of 1160W at a conversion efficiency of 92%.
Q5: How is the heat dissipated during operation?
A5: It utilizes free air convection cooling to dissipate heat efficiently without the need for active cooling fans.
Q6: Do you support customization or OEM/ODM orders?
A6: Yes, we fully support customizations, sample orders, as well as OEM and ODM services to meet your specific requirements.
