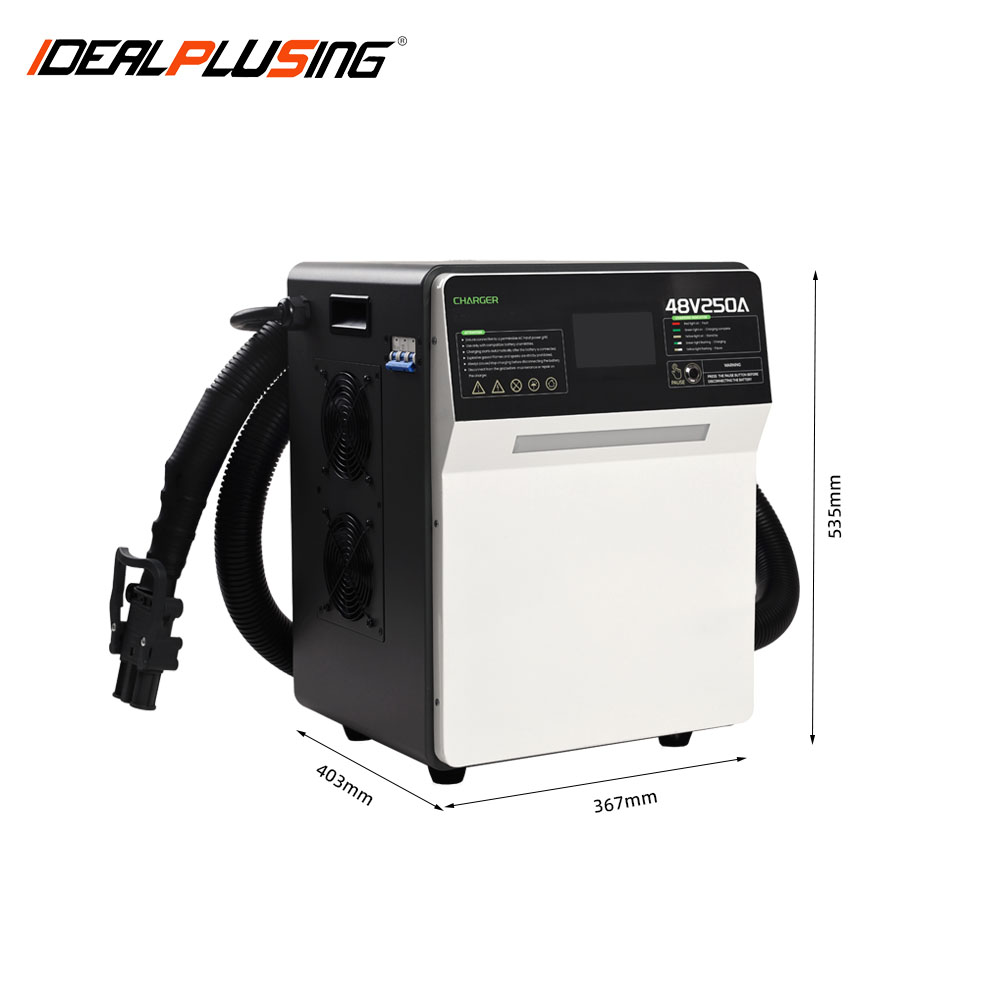

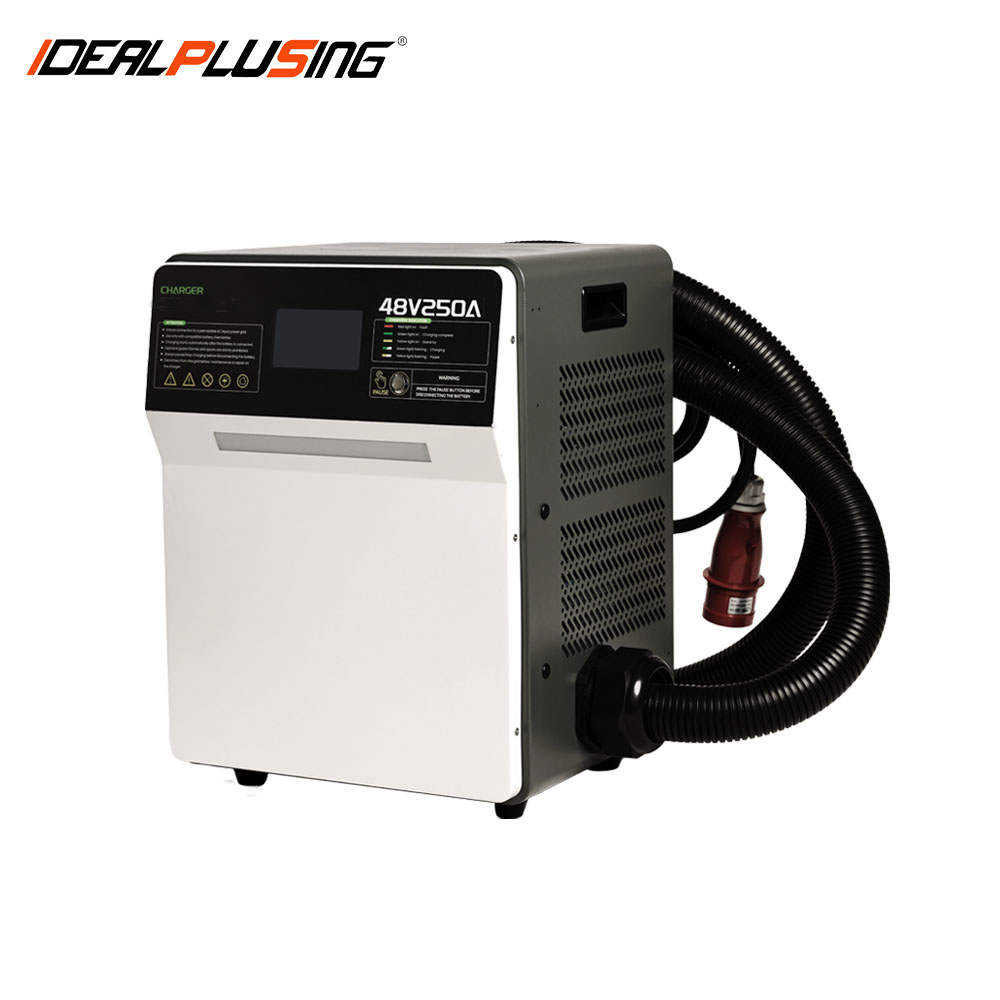

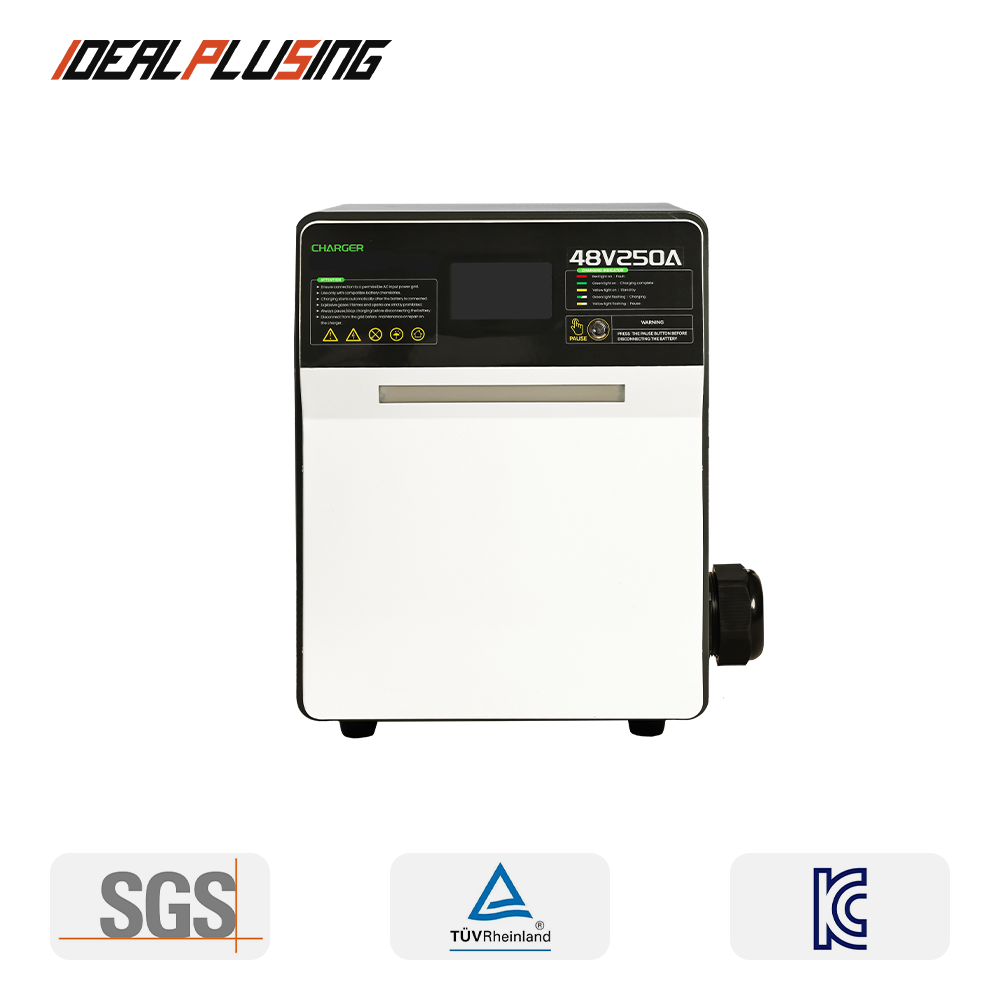

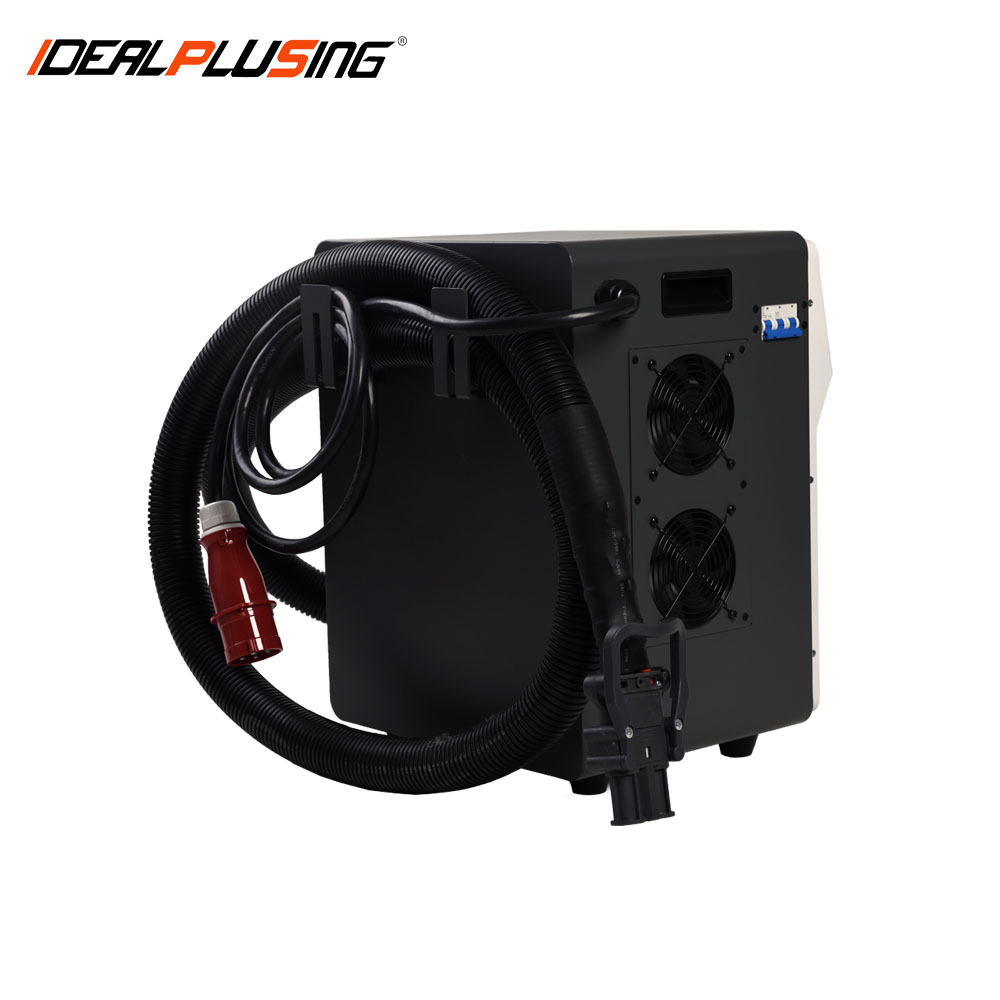

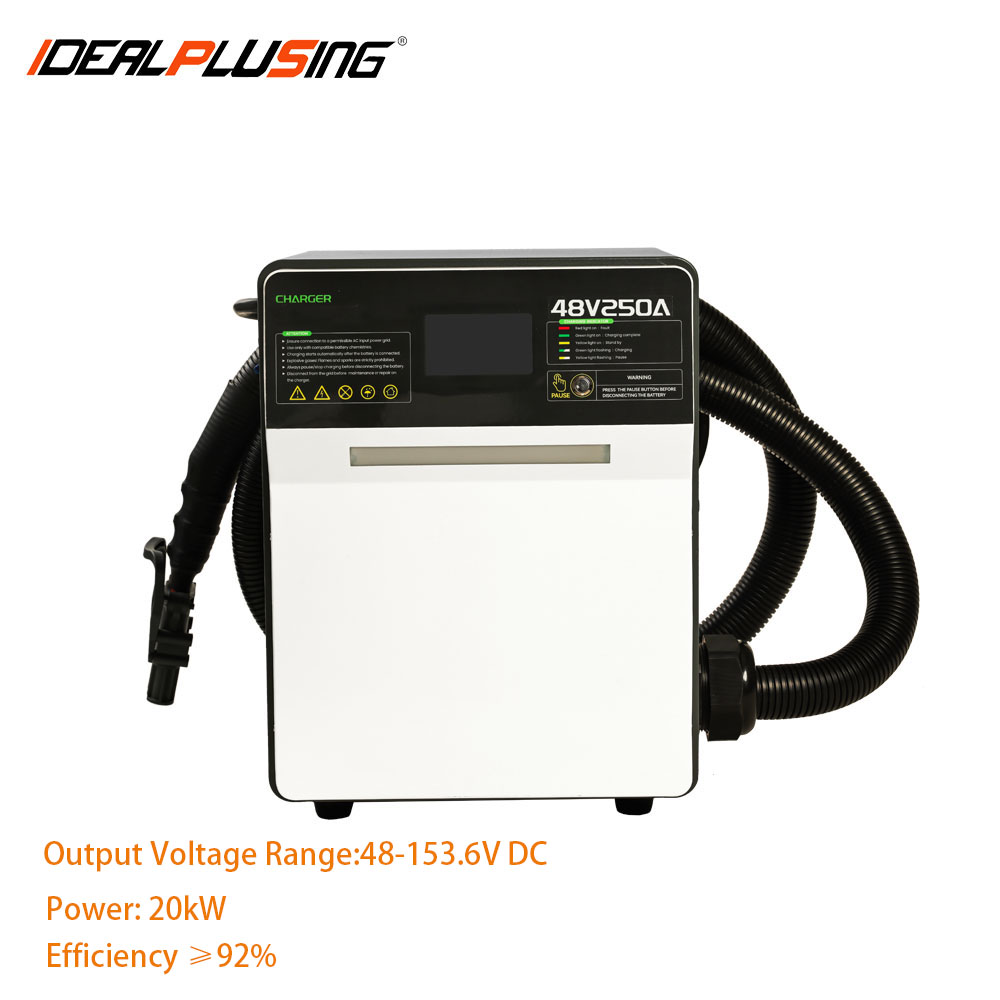

IDEALPLUSING Smart Li-ion Charger Fast Charging 48-153.6VDC 250A 20KW for Lithium Ion Battery Packs
Product Description
Smart Li-ion Charger Fast Charging 48-153.6VDC 250A 20KW for Lithium Ion Battery Packs
⚠️ Friendly Reminder
Prices shown are for reference only. Final transaction prices are quoted based on actual needs, quantity, and market conditions. These online prices are for preliminary budget reference only.
Product Advantages
⚡
CHB Series
High Efficiency & Energy Saving / Touchscreen Display / Intelligent Control / Charging Protection / Modular Design / Wide-Voltage Charging
🛡️
OB Series
High Efficiency & Energy Saving / Charging Visualization / Safety Protection / Vehicle Emergency Charging / IP65 High Protection Rating
Product Description
1
Real-time display of voltage, current, battery level, and fault codes for intuitive operation.
2
Automatically identifies battery type (lead-acid/lithium) and status to match the optimal charging curve.
3
Integrated power module with flexible configuration, facilitating system maintenance while reducing costs.
4
Supports wide input and output voltage ranges to accommodate various grid conditions and battery requirements.
Specifications (14KW Series)
| Model | IPS-CHB36200 | IPS-CHB48200 | IPS-CHB80150-1 |
|---|---|---|---|
| Input Power | ≤9.5KW | ≤11.8KW | ≤14.4KW |
| Rated Output Voltage | 36VDC | 48VDC | 80VDC |
| Rated Output Current | 200A | 200A | 150A |
| Battery Type | Lead-Acid / Lithium | ||
| Efficiency | ≥92% | ||
| IP Rating | IP20 / IP54 (Optional) | ||
Specifications (20KW Series)
| Model | IPS-CHB48250 | IPS-CHB48300 | IPS-CHB80200 |
|---|---|---|---|
| Input Power | ≤15.8KW | ≤18.8KW | ≤19.2KW |
| Rated Output Voltage | 48VDC | 48VDC | 80VDC |
| Rated Output Current | 250A | 300A | 200A |
Hot Selling Models
IPS-OB1215
12VDC, 15A | 216W
IPS-OB4815
48VDC, 15A | 810W
IPS-OB6013
60VDC, 13A | 889W
IPS-OB2436
24VDC, 36A | 1036W
IPS-OB8010
80VDC, 10A | 900W
IPS-OB7225
72VDC, 25A | 2070W
Detailed Product Images
Component Integration Advantage
Our battery chargers integrate most components into the power module, achieving a higher degree of integration, a simpler structure, fewer potential failure points, and lower costs.
Application Scope
Full Model List Reference
| Series | Model | AC Input | Rated Output | Size (MM) |
|---|---|---|---|---|
| OB-900W | IPS-OB1215 | 1 Ph 100-240V | 12V 15A | 127*123*98 |
| OB-2200W | IPS-OB4835 | 1 Ph 100-240V | 48V 35A | 284*168*90 |
| OB-6600W | IPS-OB48100 | 3 Ph 380V | 48V 100A | 392*215*120 |
| CHB-14KW | IPS-CHB48200 | 3 Ph 380V/480V | 48V 200A | 403*367*535 |
| CHB-30KW | IPS-CHB80300 | 3 Ph 380V/480V | 80V 300A | 402*366*681 |
Frequently Asked Questions
Q1. Can I have a sample order?
Yes, sample orders are acceptable to test and check quality for the first cooperation.
Q2. What about the lead time?
Most models are in stock. Sample lead time after receiving payment is typically 1-3 working days.
Q3. Do you have any MOQ limit?
We offer a low MOQ; 1 piece for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
We often ship by DHL, UPS, FedEx, or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping are also optional.
Q5. Is it acceptable to print my logo on the product?
Yes. Please inform us formally before production and confirm the design based on our sample.
Q6. Do you offer a guarantee for the products?
Yes, we offer a 1-year warranty for all power supply products.
