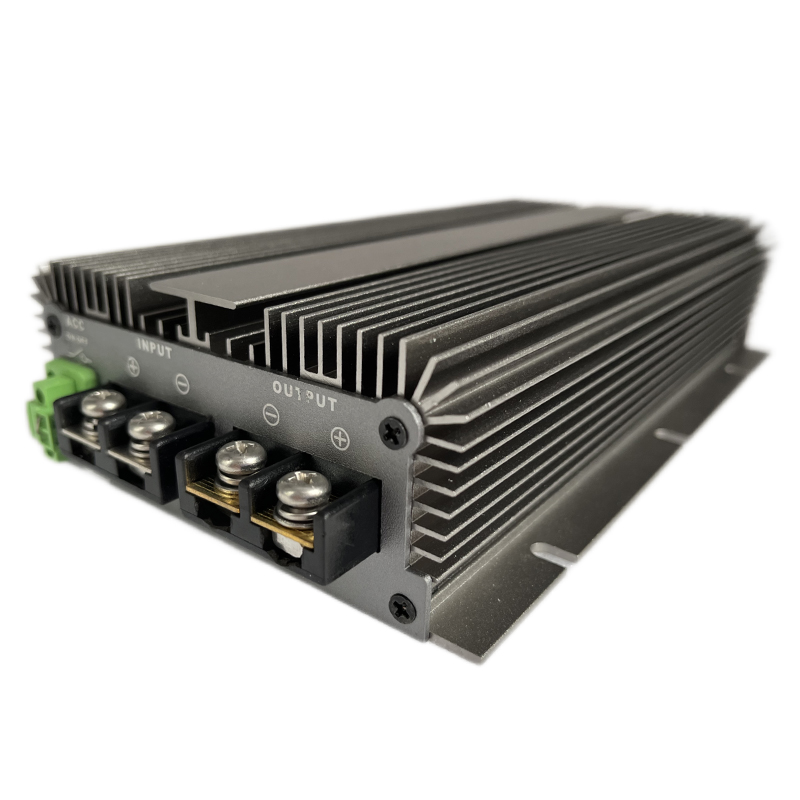

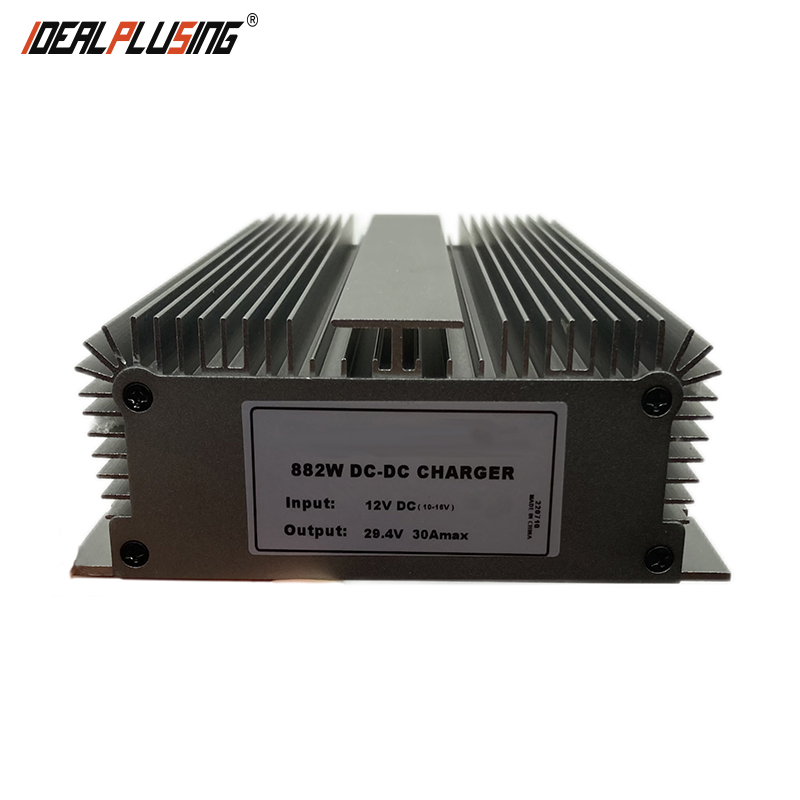

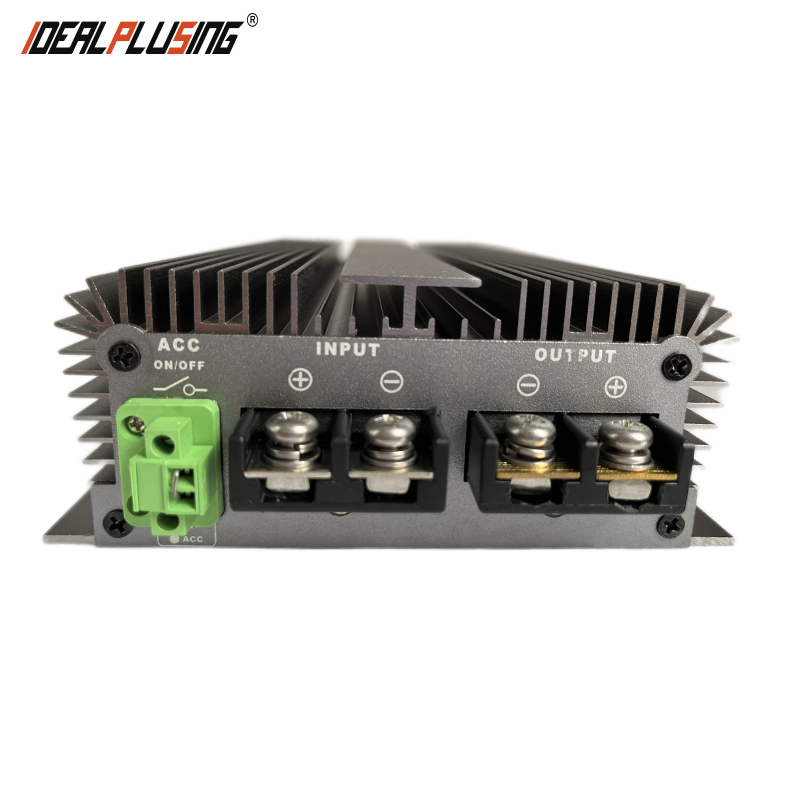

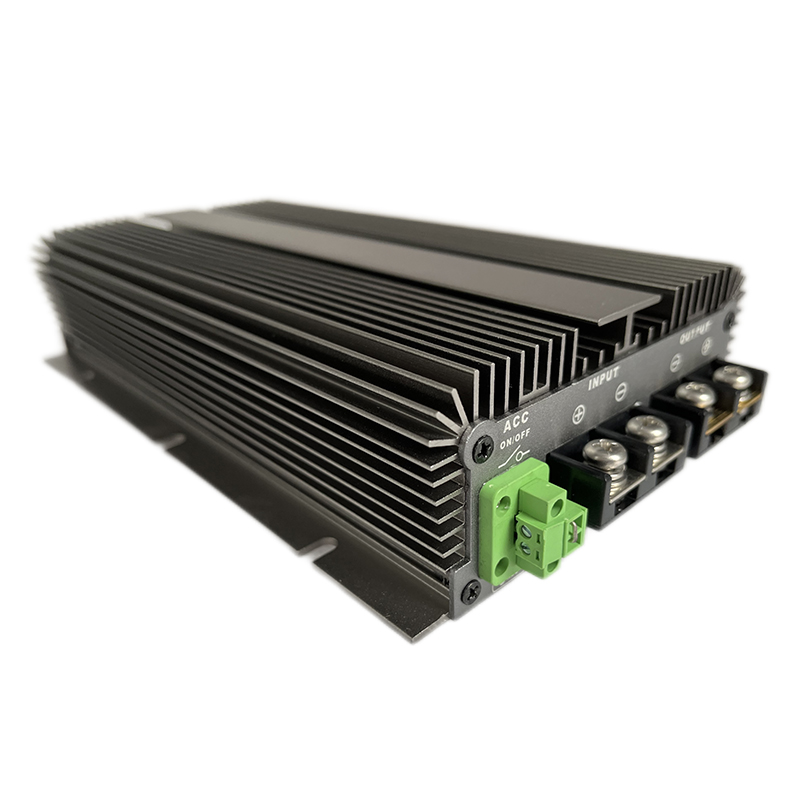

12v 24v 36v 48v to 48v 56v 58v 5a 10a 20a 30a 60a Dc Dc Step up Converter Power Supply 48v Dc Battery Charger Boost Regulator
Product Description
We focus on the research and development, sales and service of DC to DC power supply module, AC to DC rectifier module, DC to AC inverter, AC power supply, DC power supply, LED power supply, charger, rectifier system and other fields, to provide personalized, efficient, reliable and cost-effective power supply solutions for all industries.
We are not only selling products. What we want to give our customers the right power supply solution, giving a better quotation solution with the right items.
We specialize in customizing DC-DC converters to meet your specific requirements. With customized input and output voltage and current, our offerings range from 1V to 1000V DC and 1A to 1000A.
We provide both isolated and non-isolated converter design options. If you cannot find the right specification to meet your requirement, contact us now. It will not cost you anything to inquire, but it may be a great opportunity for both of us! Our dedicated team endeavors to respond within one hour.
✔ Design meeting RoHS / CE
✔ High efficiency: 93%
✔ Isolated between input and output
✔ Internal capacitor: NCC & NICHICON (high reliability)
✔ 100% full load burn-in test
✔ Over load, Over temperature and Over voltage protections
✔ Waterproof level IP65 / IP67
✔ 12 months warranty
| Parameter | Details |
|---|---|
| Type | Isolate / Non-isolate |
| Model | IPS-DTDB3-1224S5610 |
| Input Voltage | Base on model |
| Output Voltage | Customizable |
| Output Current | Customizable |
| Material of shell | Aluminum / Plastic |
| Waterproof Level | IP67 |
IPS-DTD30-60S1210
Input: 30-60VDC | Output: 12V 10A (120W)
IPS-DTD20-100S122
Input: 20-100VDC | Output: 12V 2A (24W)
IPS-DTD15-40S1210
Input: 15-40VDC | Output: 12V 10A (120W)
1. Protection Standards: All buck-boost and step-up/step-down products come standard with output overcurrent, short-circuit, input undervoltage, and chip overheating protection.
2. Inductive Loads: For inductive loads (coils, magnetic valves, speakers, etc.) and motor applications, we recommend using a power supply that is 3-5 times the rated power of the load.
3. Isolated vs Non-Isolated: The worst consequence of a non-isolated buck power supply is that high input voltage may pass directly to the output end. For precious loads, isolated products are highly recommended for improved safety.

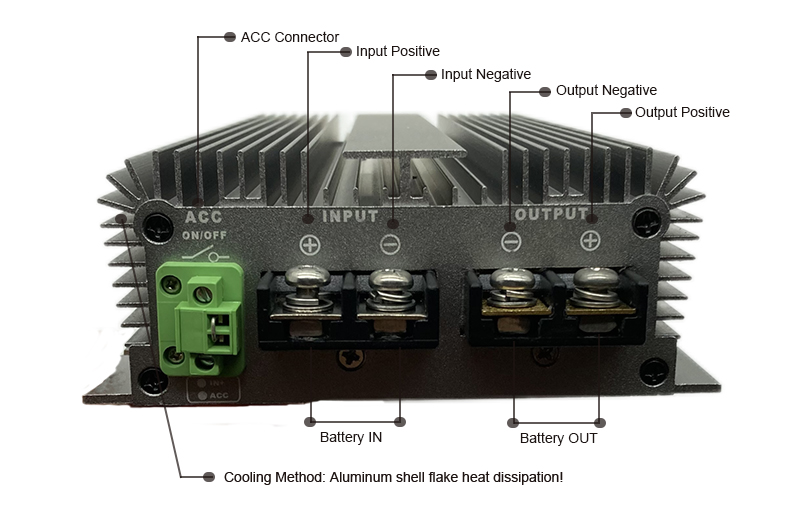

4. Installation: To prevent current backflow and anti-reverse connection, diodes should be added. Isolated product negative poles (ground) cannot be shared; input and output must be used separately.
Frequently Asked Questions
What is the difference between isolated and non-isolated converters?
Isolated converters have an electrical barrier between the input and output, protecting the load from high voltage surges at the input. Non-isolated converters share a common ground and are typically smaller and more efficient, but offer less protection for precious loads.
Can I get a customized voltage or current range?
Yes, we specialize in customization. We can provide DC-DC converters ranging from 1V to 1000V DC and 1A to 1000A based on your specific application requirements.
Are these power supplies waterproof?
Most of our modules feature IP65 or IP67 waterproof ratings, making them suitable for outdoor use and harsh environments. The hard gel encapsulation ensures durability and moisture resistance.
What kind of protections are built-in?
Our products come standard with multiple protection layers, including output overcurrent, short-circuit protection, input undervoltage protection, and thermal shutdown (overheating protection).
What is the warranty period for your products?
All our standard power supply modules and converters come with a 12-month warranty from the date of purchase, ensuring long-term reliability for your projects.
How fast can I get a technical response?
Our dedicated technical team endeavors to respond to all inquiries within one hour during business periods to ensure your project timeline stays on track.
