Factory Customized Voltage High-quality 12V to 56V DC to DC Step up Dc Charger 20A With the Function of Charging
Product Description
Factory Customized Voltage High-quality 12V TO 56V DC TO DC Step Up DC Charger 20A With Charging Function
📦 Product Model Links
| Available DC DC Converter Models | |
| 5V-12V-12A | 12/24V-12V-10A |
| 48V-12V-10A | 48V-12V-100A |
| 72V-12V-8A | 120V-12V-20A |
| 12V-48V-40A | 12V-24V-3A |
| 48V-24A-125A | 12V-24V-150A |
| 80V-24V-30A | 18~36V-28V-20A |
| 12V-56-5A | 12V-56V-20A |
| 24V-48V-50A | 48V-48V-30A |
| 220V-48V-50A | 220V-110V-20A |
📊 Dimension & Attribute
| For RV charging, can charge 48V lead-acid battery | |
| Product Name | 12V to 56V dc dc converter with charging |
| Type | Non-Isolate |
| Model | IPS-DTDC12S5620 |
| INPUT | |
| Input rated voltage | 12VDC |
| Input voltage range | 10-16VDC |
| OUTPUT | |
| Conversion Efficiency | 96% |
| Output voltage | 56VDC |
| Output current | 20A |
| Output rated power | 1120W |
| OTHERS | |
| Ripple (full load) | < 50mV |
| Working Temp | -40°c ~ +80°c |
| Waterproof rating | IP65 |
| Protections | Over-temperature |

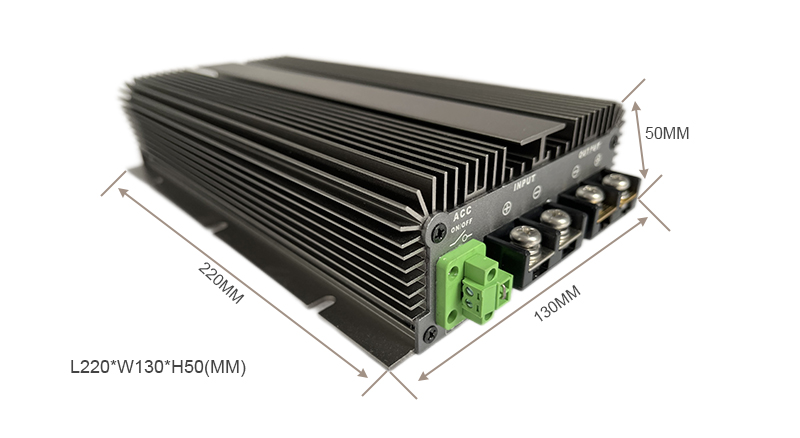

| Machine size | 220*130*50(MM) |
| NW | 2500G |
| Certifications | CE, RoHS |
| OEM & ODM | Support |
🔍 Product Overviews
🛠️ Customize Others

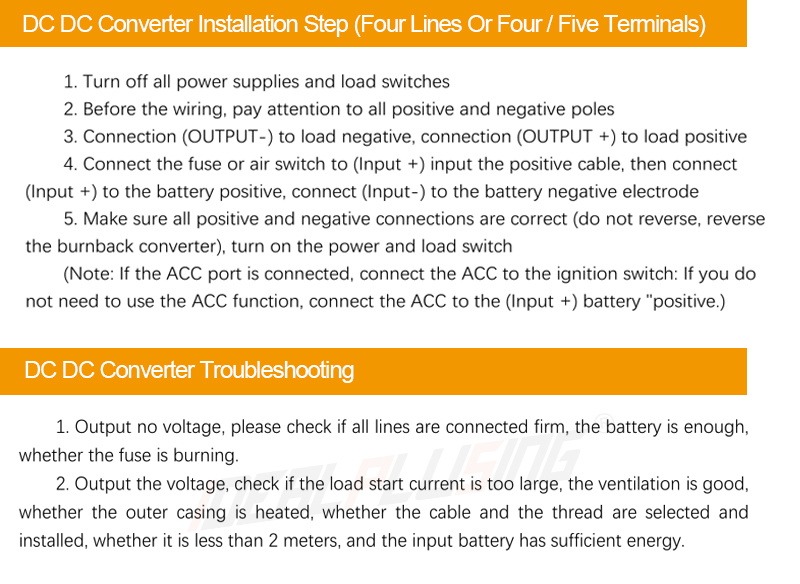

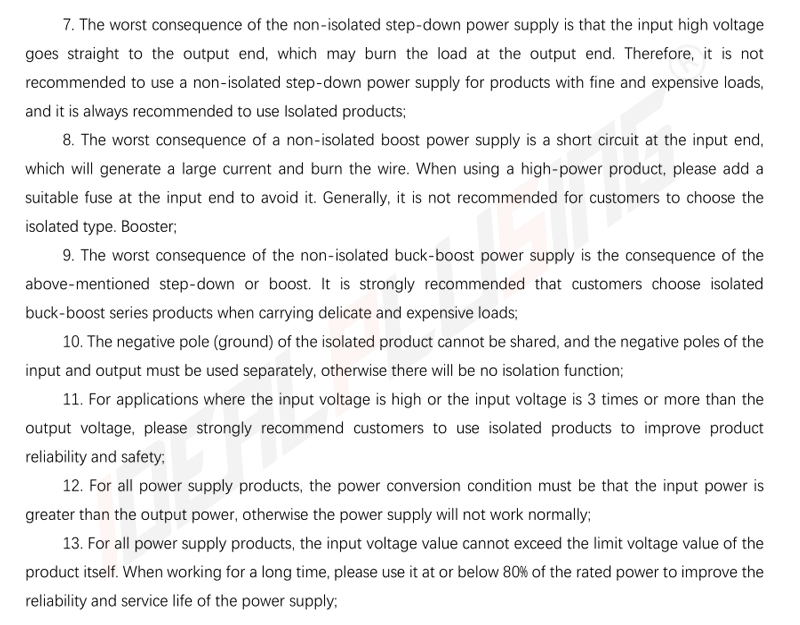

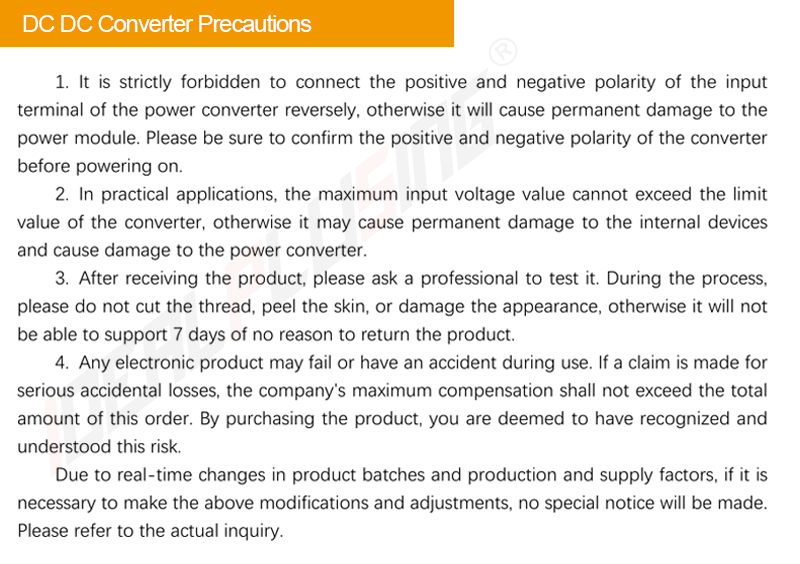

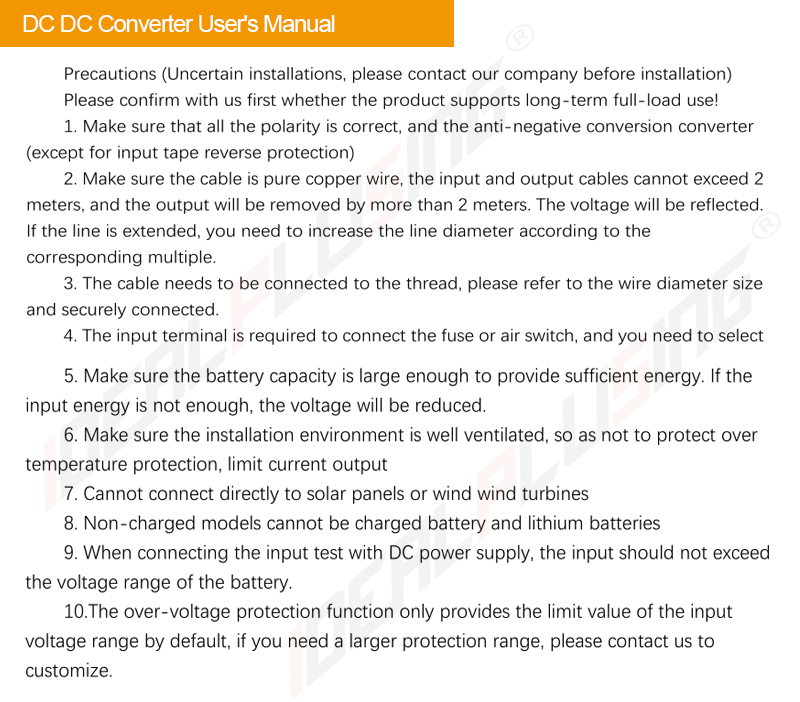

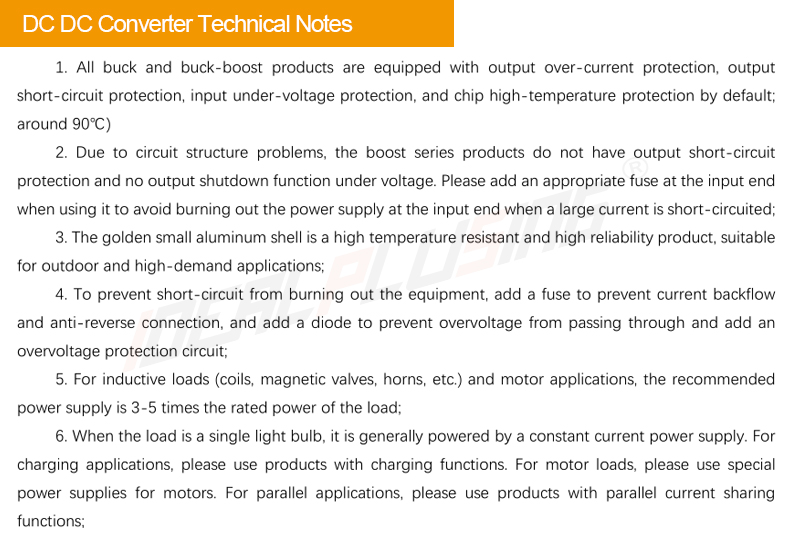

📖 Instructions
❓ FAQ
Can this converter be used for RV battery charging?
Yes, this 12V to 56V DC-DC converter is specifically designed for RV charging applications and is capable of charging 48V lead-acid batteries.
What is the conversion efficiency of this device?
The device features a high conversion efficiency of up to 96%, ensuring minimal energy loss during the voltage step-up process.
Is the unit waterproof for outdoor use?
Yes, it has an IP65 waterproof rating, making it resistant to dust and low-pressure water jets, suitable for various environments.
What safety protections are included?
The converter includes integrated over-temperature protection to prevent damage during high-load operations or in extreme ambient temperatures.
Do you offer customization or OEM services?
Yes, we fully support sample orders, customization, and both OEM & ODM services to meet specific technical requirements.
What is the cooling method for this converter?

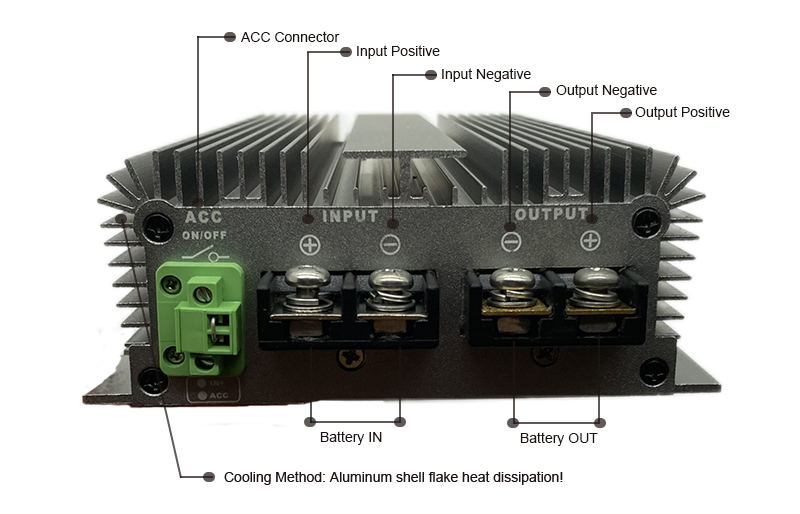

The unit utilizes free air convection for cooling, which allows it to operate reliably within a temperature range of -40°C to +80°C.
