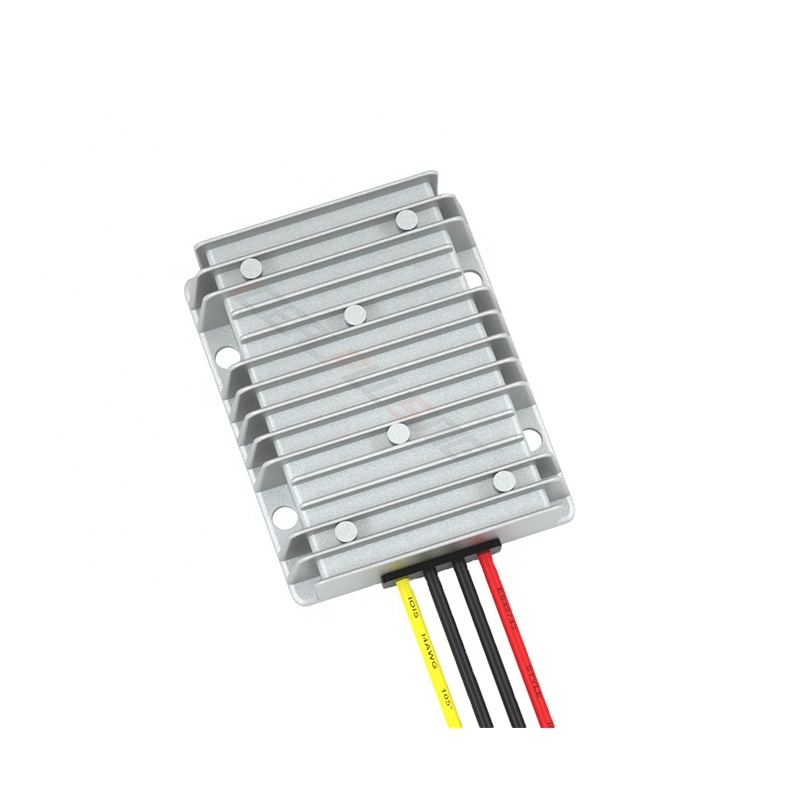

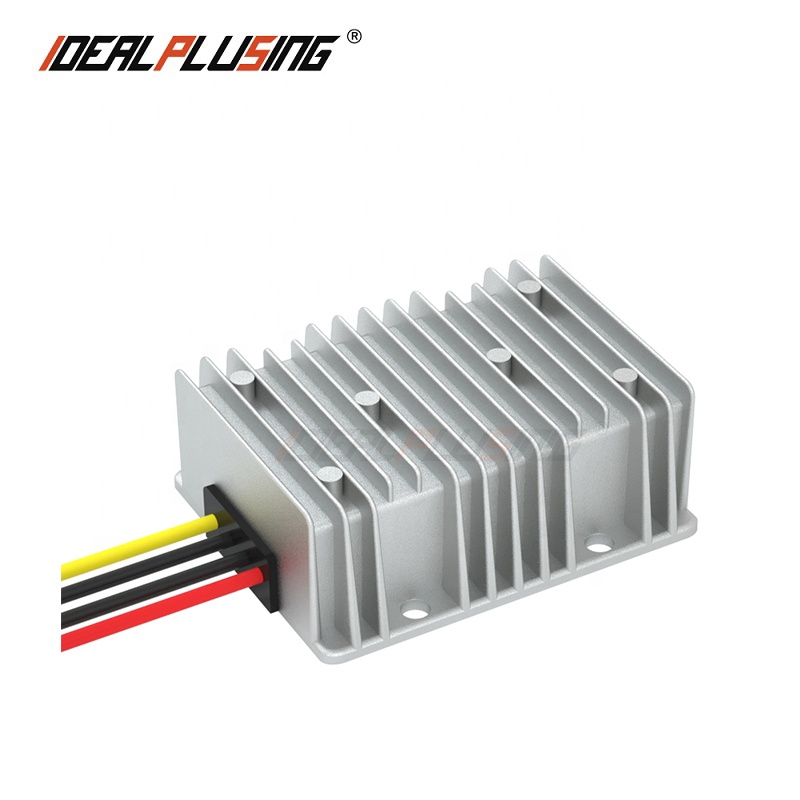

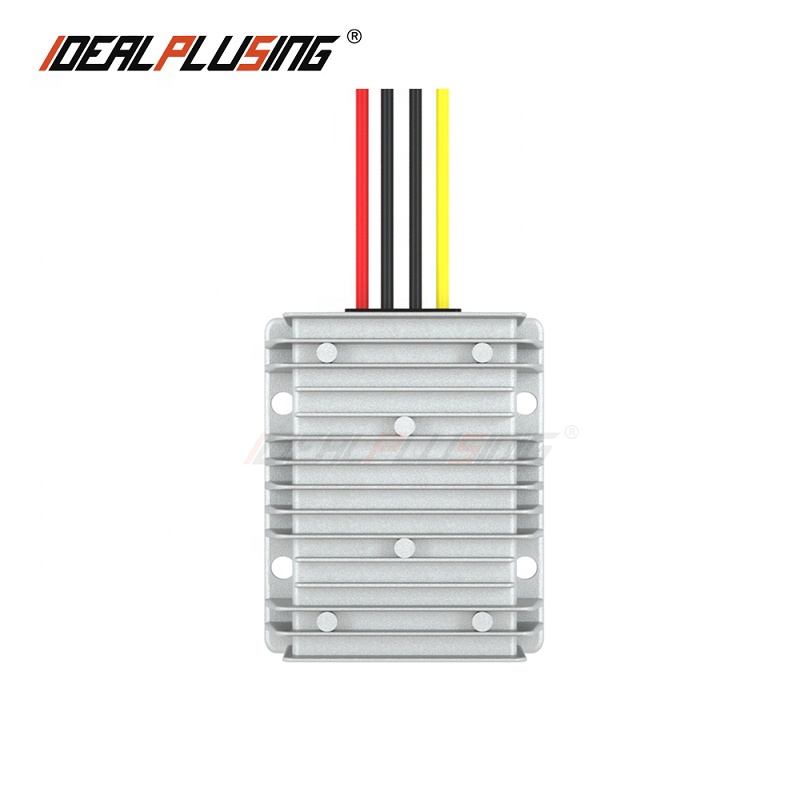

Factory Customized Dc Converter 18-36v to 28v 20a 560w Dc Charger Converter With the Function of Charging 24V Battery
Product Description
🛠️ Product Overview & Features
Factory Customized DC Converter: High-performance 18-36V to 28V 20A 560W DC Charger Converter, specifically designed with functions for charging 24V batteries.
DC/DC converters are essential voltage management components that effectively output fixed voltages. Our range includes Boost, Boost & Buck, and Buck types, utilizing PWM and PFM control for high efficiency, low noise, and minimal power consumption across various load conditions.
🎯 Customized Solutions
We focus on the research, development, and service of DC to DC power supply modules, AC to DC rectifier modules, DC to AC inverters, and battery chargers. Our goal is to provide personalized, efficient, and cost-effective power solutions for all industries.
Customization Scope:
• Voltage Range: 1V to 1000V DC
• Current Range: 1A to 1000A
• Design Options: Both Isolated and Non-isolated converters available.
📊 Technical Specifications
| Parameter | Details |
|---|---|
| Brand | OEM/Customized |
| Type | Non-isolated / Isolated |
| Input Voltage | Based on specific model |
| Output Voltage | Based on specific model |
| Waterproof Level | IP67 |
| Shell Material | Aluminum |
🚀 Hot Selling Models
IPS-DTD30-60S1210
Non-Isolate DC DC Converter
IPS-DTD20-100S122
Non-Isolate DC DC Converter
IPS-DTD15-40S1210
Non-Isolate DC DC Converter
IPS-DTD50-60S488
Step Down Converter
IPS-DTD50-60S488
Efficient Power Module
IPS-DTD48S1240
High Power DC DC
📋 Product Range Summary
| Type | Typical Models | Input Voltage | Output Voltage |
|---|---|---|---|
| Boost | IPS-DTD12S24** | 12V | 24V |
| Buck | IPS-DTD24S12** | 24V | 12V |
| Charger | IPS-DTDYC* | 10-36V | 12.6/29.4V |
| High Power | Rack Mount Series | 24/48/110V | 48/110/220V |
💡 Application & Safety Instructions
- Protections: standard with output overcurrent, short-circuit, and input undervoltage protection. Large power supplies include overheating protection (approx. 90°C).
- Inductive Loads: For coils, magnetic valves, and motors, recommended power supply should be 3-5 times the rated load power.
- Safety Tip: Non-isolated buck power supplies carry a risk of passing high input voltage to the output end if a fault occurs. For precious loads, isolated products are strongly recommended.
- Isolated Products: Input and output negative poles must not be shared to maintain isolation effects.
- Reverse Protection: It is advised to add fuses and diodes to prevent large currents from damaging input sources during short circuits or reverse connections.
📸 Product Gallery
❓ Frequently Asked Questions
Q1: Can the DC-DC converters be customized for specific requirements?
A: Yes, we specialize in customizing converters with specific input/output voltages (1V-1000V) and currents (1A-1000A) to meet your project needs.
Q2: What is the difference between Isolated and Non-isolated converters?
A: Isolated converters provide a physical barrier between input and output, protecting the load from high-voltage pass-through. Non-isolated converters are generally more efficient and compact but lack this safety barrier.
Q3: Are these products waterproof for outdoor use?
A: Most of our standard aluminum-cased converters are rated at IP67, making them highly resistant to water and dust, suitable for outdoor and harsh industrial environments.
Q4: What kind of protection features are included?
A: Our converters typically include overcurrent protection, short-circuit protection, input undervoltage protection, and chip overheating protection.
Q5: How should I choose a converter for a motor or inductive load?
A: For inductive loads like motors or solenoids, it is recommended to use a power supply with a rated power 3-5 times higher than the starting power of the load to handle current surges.
Q6: Do you provide converters with battery charging functions?
A: Yes, we offer specific DC-DC battery chargers for Lithium (3S/7S), LiFePO4 (4S/8S/12S), and Lead Acid batteries with tailored charging curves.
