DC BOOST Converter 12V to 56V 5A DC-DC Step up Voltage Regulator Reducer, 280W Car Power Supply
Product Description
📋 Dimension & Attribute
| Parameter of 12V to 56V 5A DC DC Converter | |
|---|---|
| Product Name | 12V to 56V 5A dc dc converter |
| Type | Non-Isolate |
| Model | IPS-DTD12S565 |
| INPUT | |
| Input rated voltage | 12VDC |
| Input voltage range | 10-16VDC |
| OUTPUT | |
| Conversion Efficiency | 96% |
| Output voltage | 56VDC |
| Output current | 5A |
| Output rated power | 280W |
| Output peak power | 125% |
| OTHERS | |
| Voltage regulation | < 1% |
| Load regulation | < 2% |
| Ripple (full load test) | < 50mV |
| No-load current | < 20mA |
| Working Temperature | -40°c ~ +80°c |
| Waterproof rating | IP65 |
| Protections | Over-load, Over-current, Over-temperature, Short-circuit, Over-voltage optional |

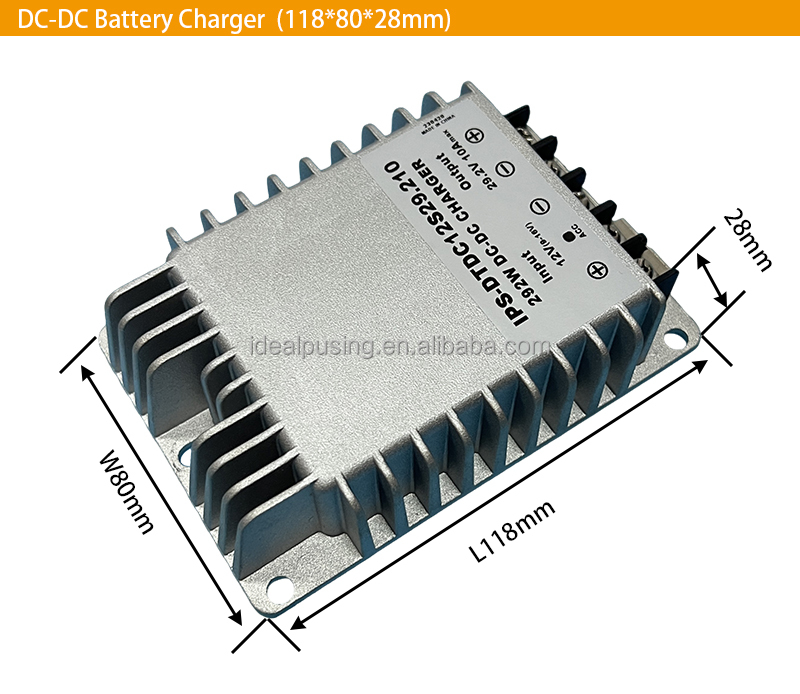

| Machine size | 118*80*28(MM) |
| NW | 1000G |
| Cooling way | Free air convection |
| Certifications | CE, RoHS |
| Customize | Support |
| Sample order | Support |
| OEM & ODM | Support |
| Package | White & colorful package optional |
⚡ DC DC Charging Series
| Serial | Model | Size | Input Voltage | Output Voltage | Output Current | Application |
| #1 | IPS-DTD12S14.510 | 118*80*28MM | 12V(9-35VDC) | 14.5VDC | 10A | for 12V lead-acid/iron lithium |
| #2 | IPS-DTD12S14.530 | 150*130*50MM | 12V(10-16VDC) | 14.5VDC | 30A | for 12V lead-acid/iron lithium |
| #3 | IPS-DTD12S14.540 | 220*130*50MM | 12V(10-16VDC) | 14.5VDC | 40A | for 12V lead-acid/iron lithium |
| #4 | IPS-DTD12S14.550 | 220*130*50MM | 12V(10-16VDC) | 14.5VDC | 50A | for 12V lead-acid/iron lithium |
| #5 | IPS-DTD24S54.620 | 220*130*50MM | 24V(20-32VDC) | 54.6VDC | 20A | for 56V lead-acid batteries |
| #6 | IPS-DTD12S565 | 118*80*28MM | 12V(10-16VDC) | 56VDC | 5A | for 56V lead-acid batteries |
| #7 | IPS-DTD12S5610 | 150*130*50MM | 12V(10-16VDC) | 56VDC | 10A | for 56V lead-acid batteries |
| #8 | IPS-DTD12S5620 | 220*130*50MM | 12V(10-16VDC) | 56VDC | 20A | for 56V lead-acid batteries |
| #9 | IPS-DTD12S5610 | 150*130*50MM | 12V(10-32VDC) | 56VDC | 10A | for 56V lead-acid batteries |
| #10 | IPS-DTD8-36S12.610 | 74*74*32 MM | 8~36VDC | 12.6VDC | 10A | for 12V lithium battery |
| #11 | IPS-DTD8-36S12.620 | 100*80*39MM | 8~36VDC | 12.6VDC | 20A | for 12V lithium battery |
| #12 | IPS-DTD8-36S13.88 | 74*74*32 MM | 8~36VDC | 13.8VDC | 8A | for 12V battery |
| #13 | IPS-DTD8-36S13.820 | 100*80*39MM | 8~36VDC | 13.8VDC | 20A | for 12V battery |
| #14 | IPS-DTD9-36S278 | 100*80*39MM | 9~36VDC | 27VDC | 8A | for 24V lithium battery |
| #15 | IPS-DTD18-36S2720 | 100*80*39MM | 18~36VDC | 27VDC | 20A | for 24V lithium battery |
| #16 | IPS-DTD9-36S288 | 100*80*39MM | 9~36VDC | 28VDC | 8A | for 24V battery |
| #17 | IPS-DTD18-36S2820 | 100*80*39MM | 18~36VDC | 28VDC | 20A | for 24V battery |
🏭 Factory Display
❓ Frequently Asked Questions
Q1: Can this converter charge any type of battery?
This specific model is designed primarily for charging 56V lead-acid batteries. Please refer to our charging series table for lithium battery alternatives.
Q2: What is the waterproof rating of this device?
The converter has an IP65 waterproof rating, making it resistant to dust and low-pressure water jets, suitable for various environments.
Q3: How does the cooling system work?
It utilizes free air convection for cooling, ensuring stable performance within a working temperature range of -40°C to +80°C.
Q4: Are there built-in safety protections?
Yes, it includes integrated protections against over-load, over-current, over-temperature, and short-circuits. Over-voltage protection is also available as an option.
Q5: Is customization supported for specific voltage requirements?
We fully support OEM and ODM services. Customizations for input/output specifications and packaging are available upon request.
Q6: What is the typical conversion efficiency?
The device features high conversion efficiency of up to 96%, minimizing energy loss during the voltage boost process.
