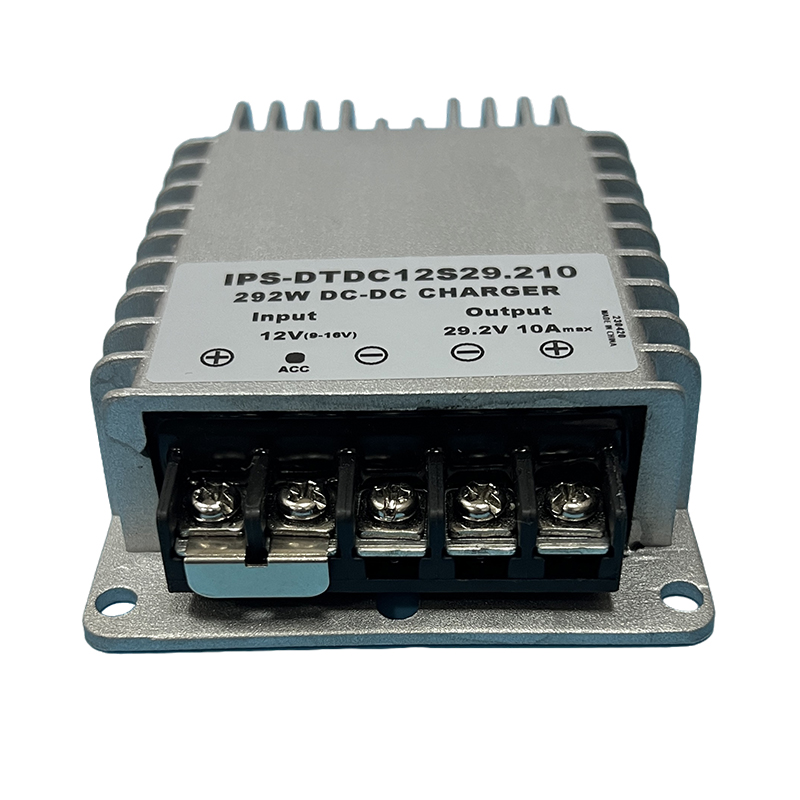

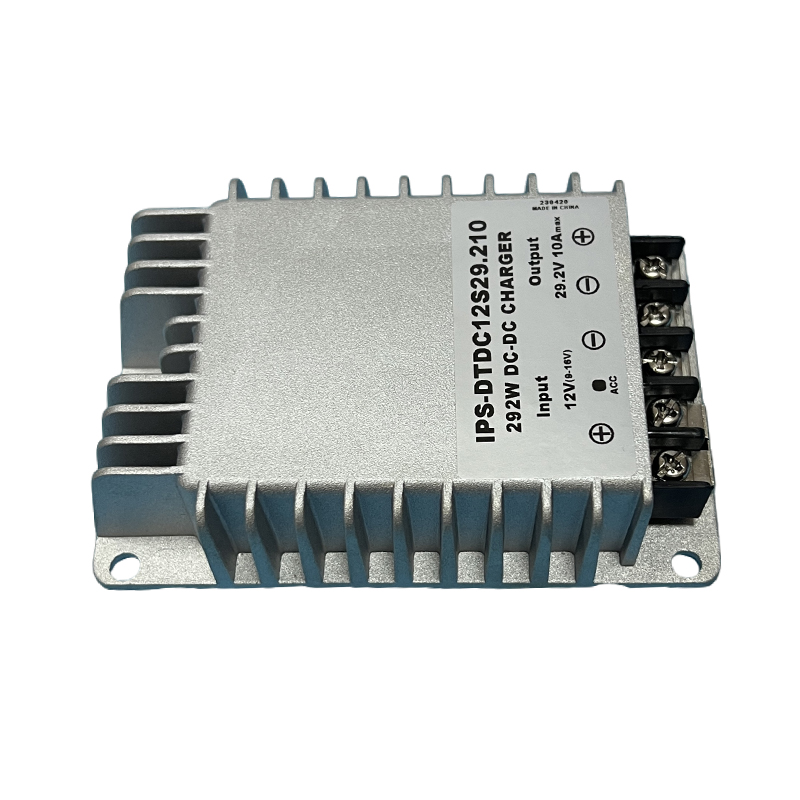

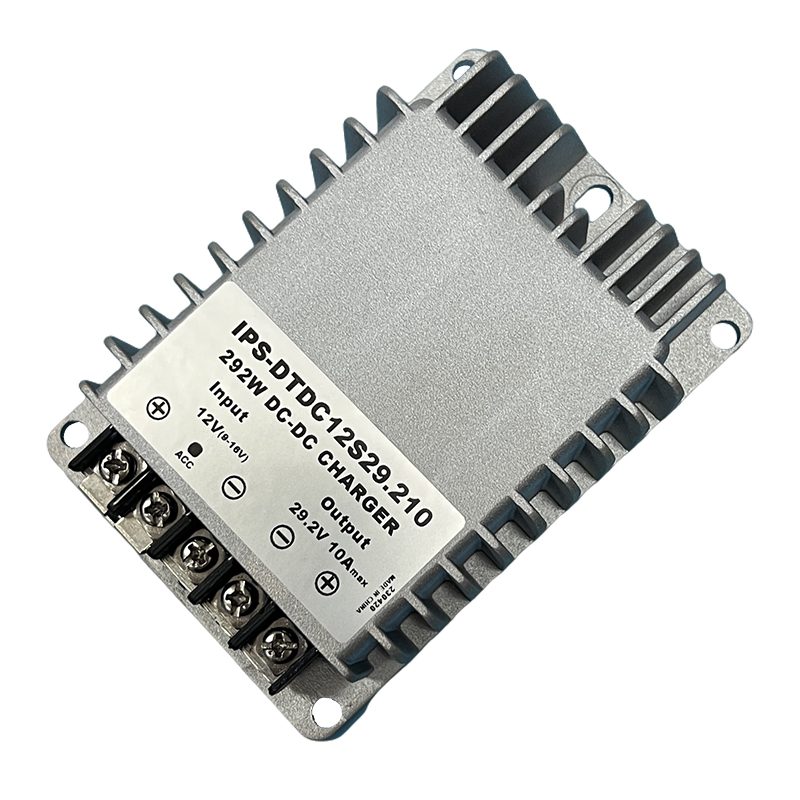

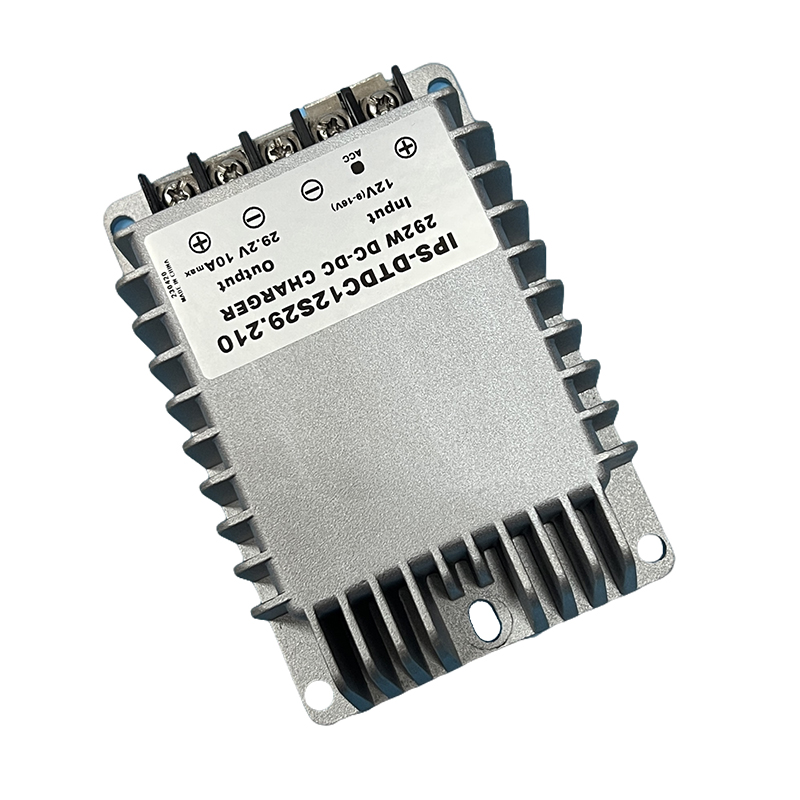

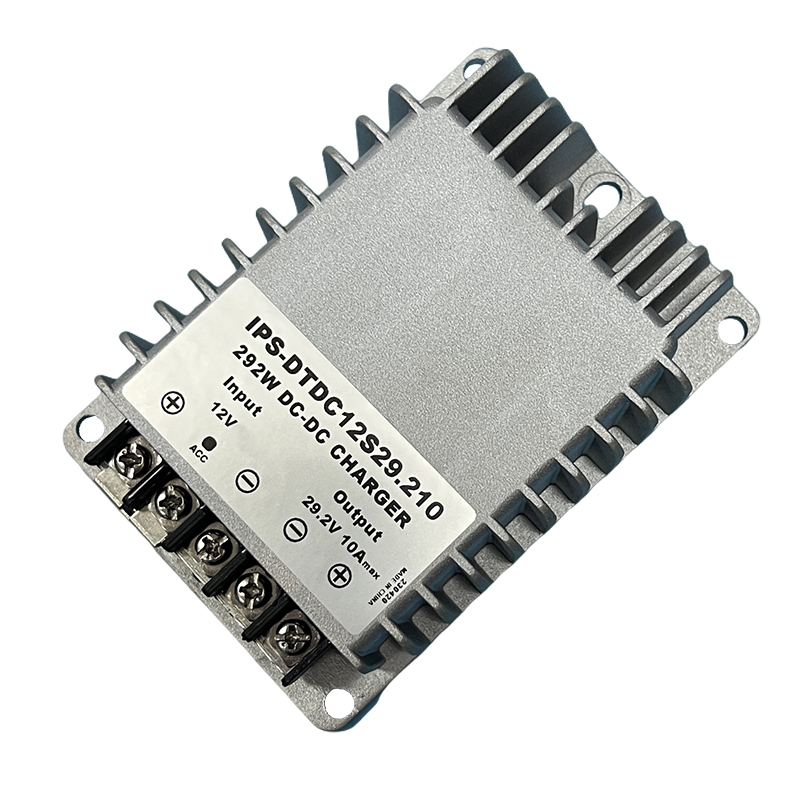

DC to DC Battery Charger 12V to 29.2VDC 24V 28V 10A Step up Booster Charger Lithium Battery Converter Charger Electric Car
Product Description
DC To DC Battery Charger 12V to 29.2VDC (10A Step Up Booster)
✓
Intelligent charging management chip with constant current/voltage and automatic shutdown when full.
✓
Supports both lead-acid and lithium batteries to effectively reduce battery damage.
✓
High-power output with 98% charging efficiency and automatic buck-boost technology.
✓
Equipped with high-end brand capacitors and magnetic ring inductors for long service life.
✓
Durable die-cast aluminum shell designed for enhanced heat dissipation and easy installation.
✓
Passed rigorous long-term anti-aging and factory inspection tests.
The DC-DC series battery charger is the most effective way to charge auxiliary or household batteries from alternator/starter batteries. It is compatible with various alternator types and provides optimized charging for AGM, gel, and lithium deep-cycle batteries. With its 3-level charging system and electronic protection, it ensures automatic and safe operation for RVs, commercial vehicles, ships, and yachts.
- Multi-Battery Compatibility: Optimized for 12V Lithium and Lead-acid batteries.
- Intelligent Protection: Built-in overvoltage, over-temperature, and reverse polarity protection.
- Integrated Solution: Combines battery isolation and charger functions in one unit.
- Rugged Design: Compact structure that remains strong under all environmental conditions.
- Full Charge Capacity: 3-level charging logic ensures your battery reaches 100% capacity.
| Model | IPS-DTDC12S29.210 |
| Rated Input Voltage | 12VDC |
| Input Voltage Range | 9-16VDC |
| Output Voltage | 29.2VDC |
| Rated Charging Current | 10A |
| Max Rated Output Power | 292W |
| Battery Type | Lithium / Lead-acid battery |
| Efficiency | ≤ 90% |
| Idle Power Consumption | ≤ 0.4A |
| Operational Temperature | -20°C ~ +50°C |
| Humidity | < 95% Non-condensing |
| Dimension (W*H*L) | 118*80*28MM |
| Net Weight | 500G |
| Gross Weight | 800G |
What types of batteries can this DC-DC charger support?
This charger is compatible with a wide variety of 12V batteries, including Lithium (LiFePO4) and various lead-acid batteries such as AGM, Gel, and deep-cycle batteries.
Is the output voltage stable during operation?
Yes, the charger features automatic buck-boost technology and an intelligent management chip to ensure a stable output voltage of 29.2VDC even if the input voltage fluctuates between 9V and 16V.
Does the unit provide protection against electrical faults?
Absolutely. It includes several intelligent protection functions: overvoltage protection, ultra-temperature protection, and reverse polarity protection to safeguard both the charger and your batteries.
How efficient is the charging process?
The product is designed for high performance, with a charging efficiency reaching up to 98%, ensuring minimal energy loss during the voltage conversion process.
Where can this charger be installed?
Due to its compact and rugged die-cast aluminum shell, it is perfect for use in automobiles, RVs, commercial vehicles, ships, yachts, and industrial or outdoor equipment.
What is the advantage of the 3-level charging method?
The 3-level charging system (constant current, constant voltage, and automatic shutdown) ensures that your auxiliary battery is charged safely and reaches 100% capacity without the risk of overcharging.
