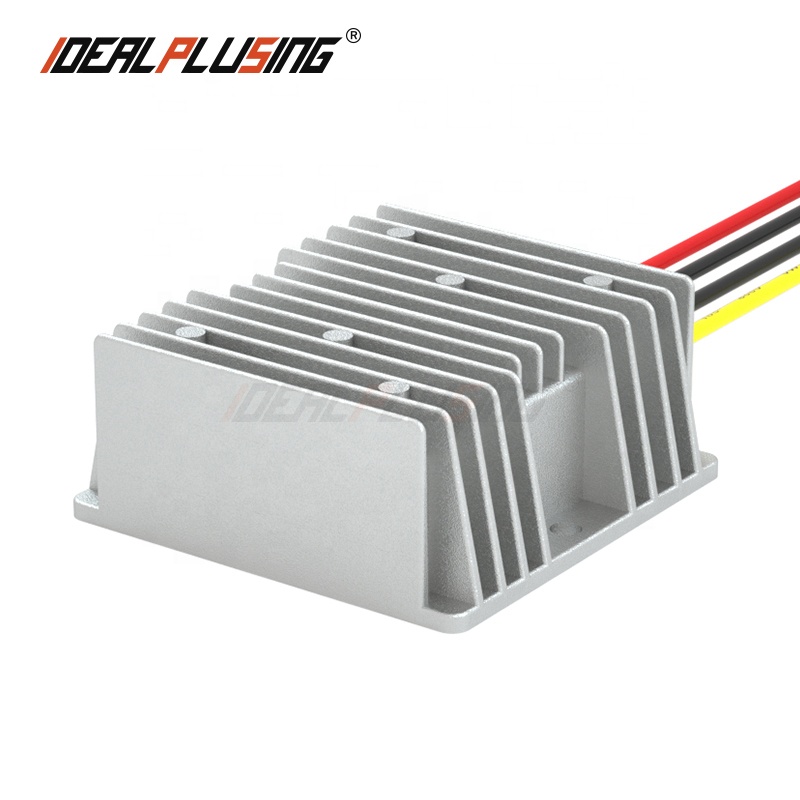

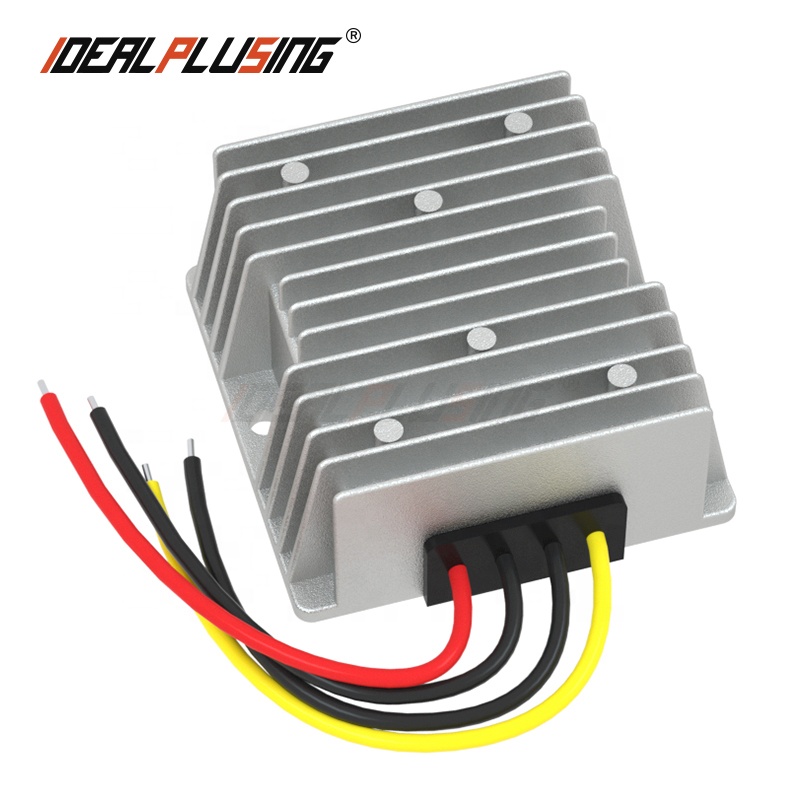

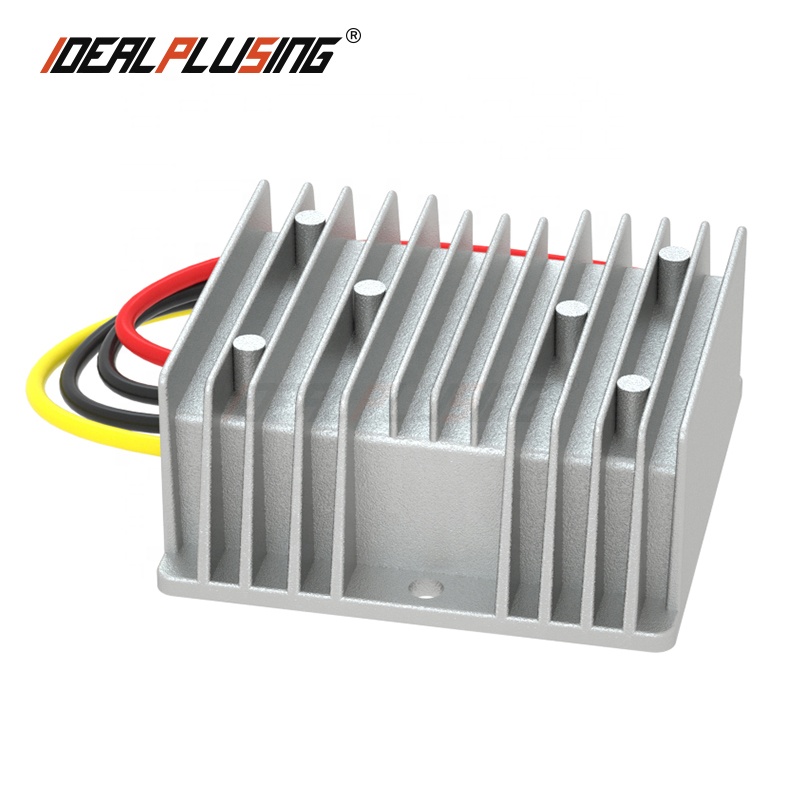

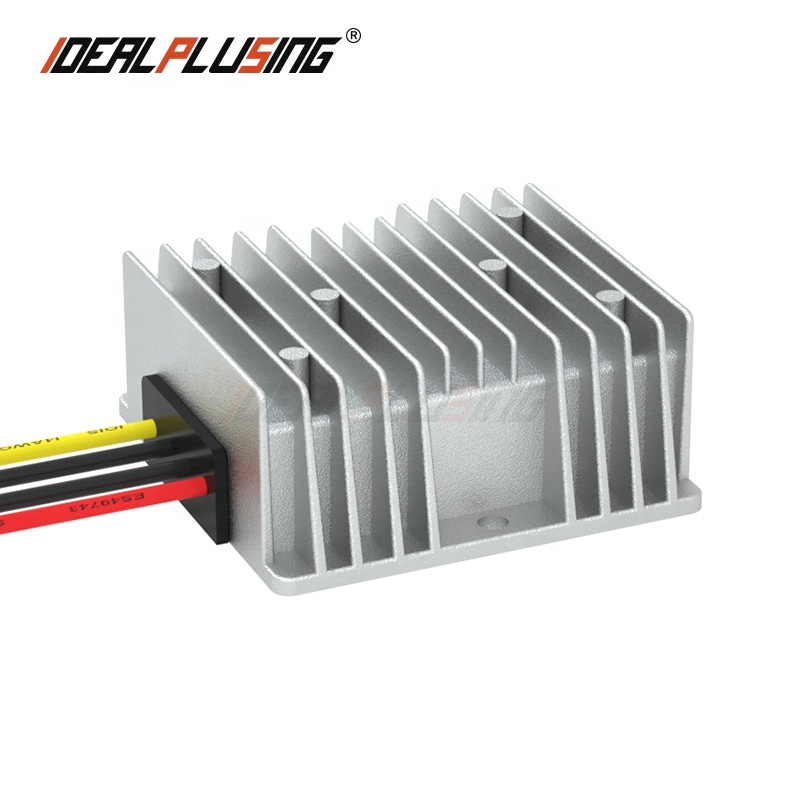

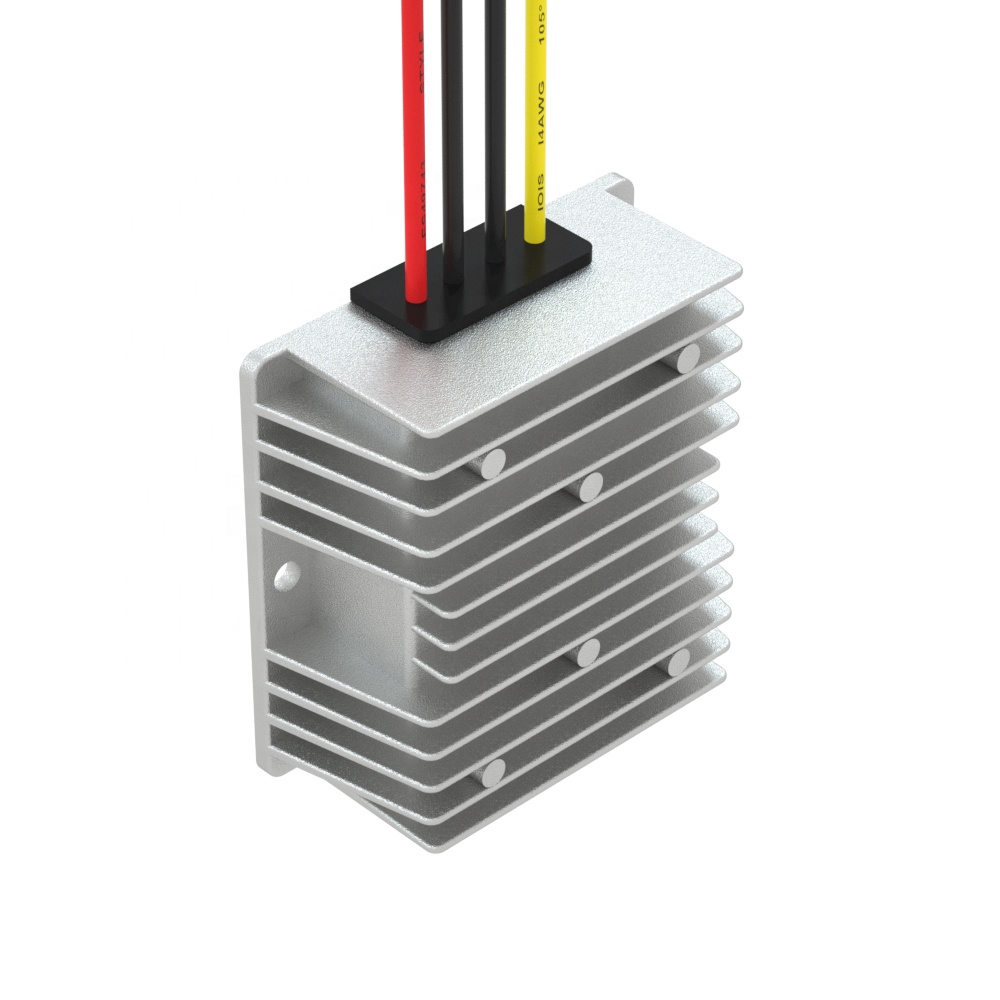

DEALPLUSING Hot Selling Non-isolated Design DC DC Converter Charger 10-36V 12V24V to 14.6V 5A 73W with CE
Product Description
🔥 Hot Selling Step Down DC/DC Converters
| NO | DC Input Range to DC Output | NO | DC Input Range to DC Output |
|---|---|---|---|
| #1 | 30~120VDC to 12VDC 20A 240W | #7 | 50~90VDC to 48VDC 30A 1440W |
| #2 | 20~60VDC to 12VDC 5A 60W | #8 | 30~60VDC to 24VDC 30A 720W |
| #3 | 30~60VDC to 24VDC 20A 480W | #9 | 15~32VDC to 19VDC 10A 190W |
| #4 | 30~60VDC to 13.8VDC 10A 138W | #10 | 30~60VDC to 12VDC 30A 360W |
| #5 | 30~60VDC to 12VDC 10A 120W | #11 | 30~90VDC to 24VDC 20A 480W |
| #6 | 30~60VDC to 12VDC 50A 600W | #12 | 30~60VDC to 13.8VDC 60A 828W |

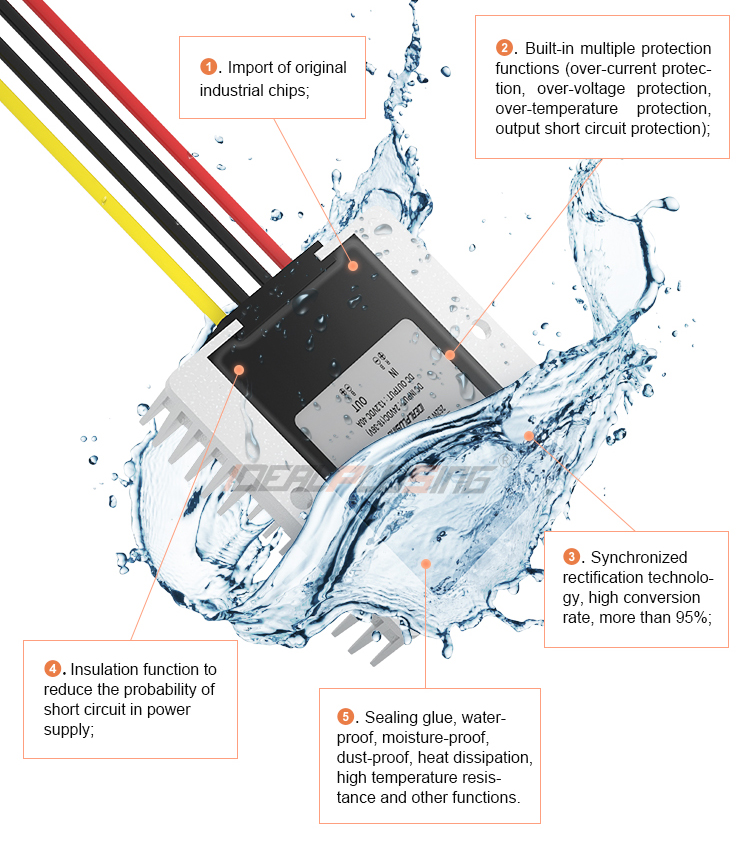

⭐ Key Features
Design meeting RoHS / CE Standards
High efficiency: 93%
Non-isolated between input and output
Internal capacitor: NCC & NICHICON (high reliability)
100% full load burn-in test
Over load, Over temperature and Over voltage protections
Waterproof level IP67
12 Months warranty
🚀 Main Applications
Trucks
Forklifts
Buses
Logging Vehicles
Electromotor
Telecommunications
Boat & Yacht
LED Marketplaces
📊 Product Specifications
| Type | NON-Isolated |
| Model | IPS-DTDYC1224S14.65 |
| DC Voltage INPUT | |
| Input Voltage rate | 12/24VDC |
| Input Voltage range | 10~36VDC |
| DC Voltage & Current Output | |
| Output Voltage rate | 14.6VDC |
| Output Current | 5A |
| Output Rate Power | 73W |

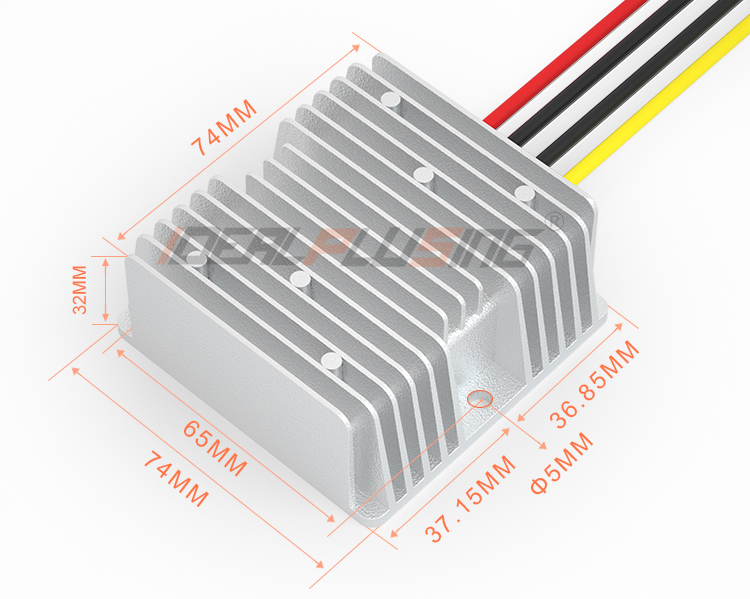

| Converter Size | 74*74*32(MM) |
| Net Weight | 300G |
| Application | Support battery charging |
| Environmental & Protections | |

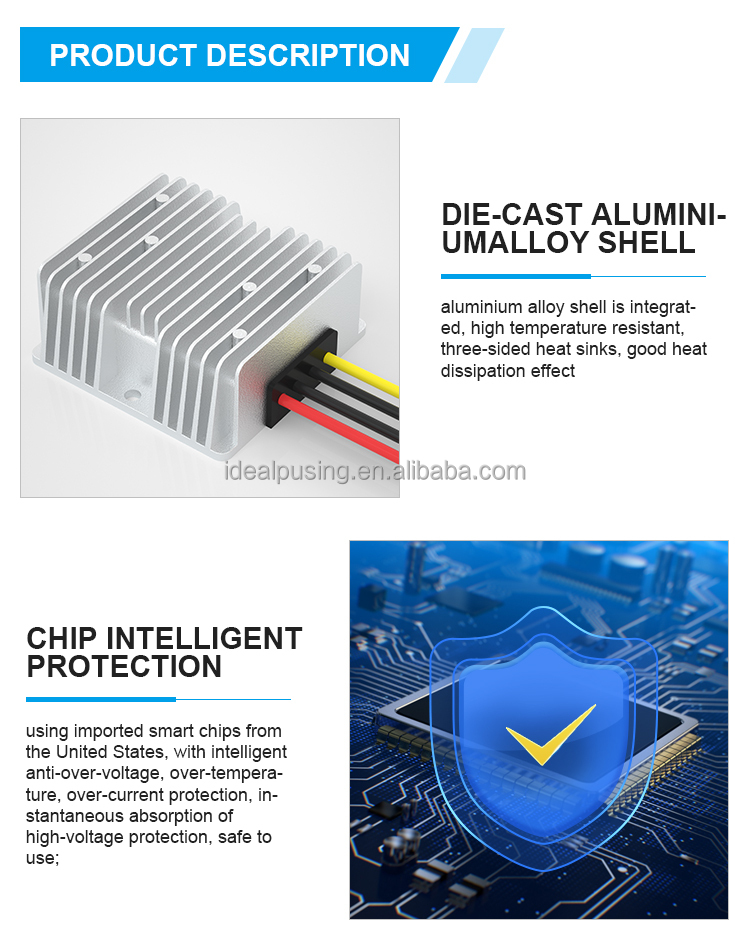

| Material of shell | Aluminum case |
| Working temp | -20~80℃ |
| Efficiency | 93% |
| Waterproof Level | IP67 |
| Protection function | Overcurrent, Overvoltage, Undervoltage, Over-temperature |

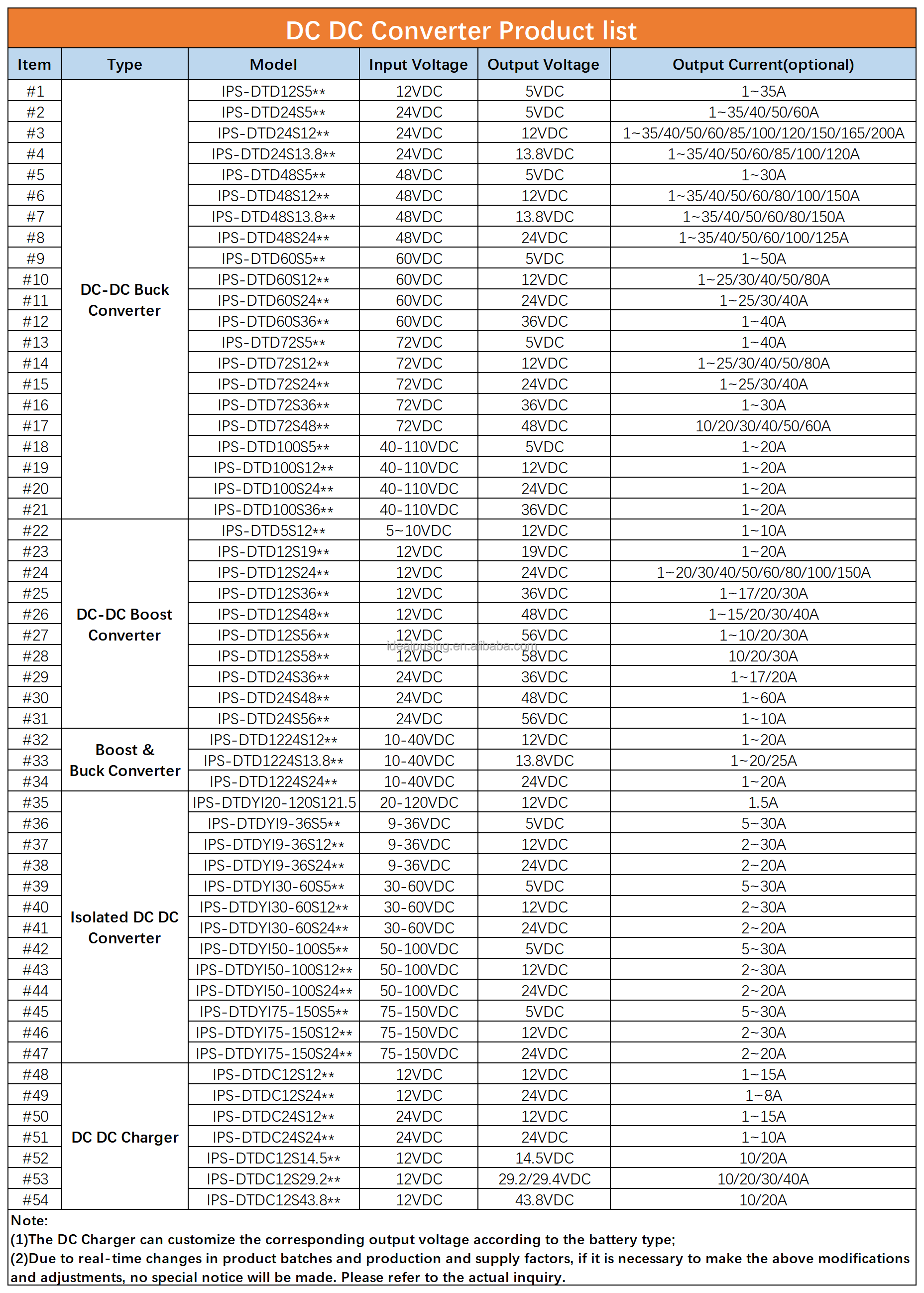

📋 DC Model List
💡 Recommended Products

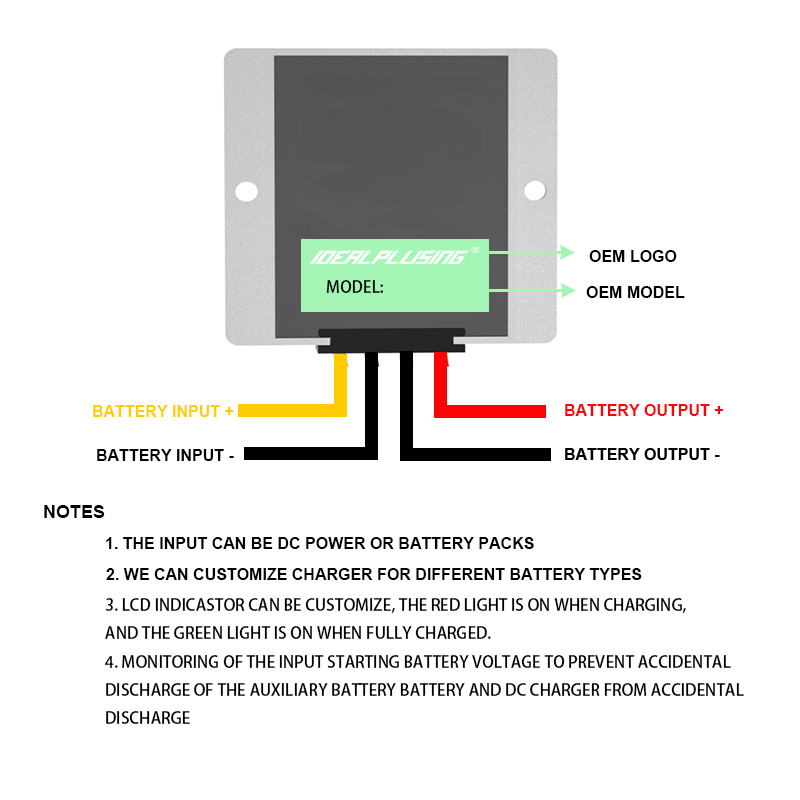

📝 Installation Notes & Wiring
❓ Frequently Asked Questions
Q1 What is the conversion efficiency of these DC/DC converters?
These converters feature a high efficiency rating of approximately 93%, ensuring minimal energy loss during voltage step-down.
Q2 Are these units waterproof and suitable for outdoor use?
Yes, the units are designed with an IP67 waterproof level and utilize an aluminum shell, making them highly durable for various environments.
Q3 What safety protections are built into the device?
The converters include comprehensive protection functions: overcurrent protection, overvoltage protection, undervoltage protection, and over-temperature protection.
Q4 Can I use this converter to charge a battery?
Yes, this specific model (14.6V output) is designed to support battery charging applications.
Q5 Does the converter provide electrical isolation?
No, these specific models are non-isolated DC/DC converters, meaning there is a common ground between the input and output.
Q6 What kind of internal components are used?
The converters utilize high-reliability internal capacitors from reputable brands like NCC and NICHICON to ensure long-term stability.
