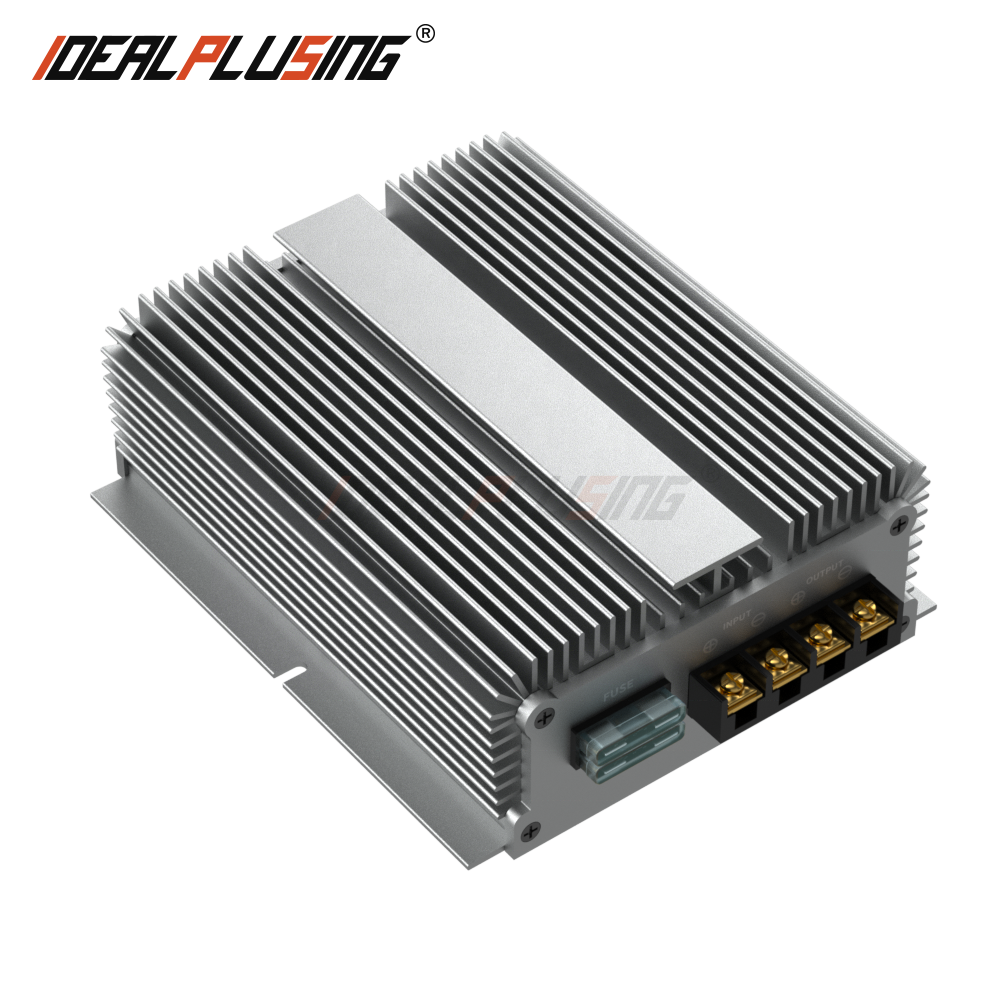

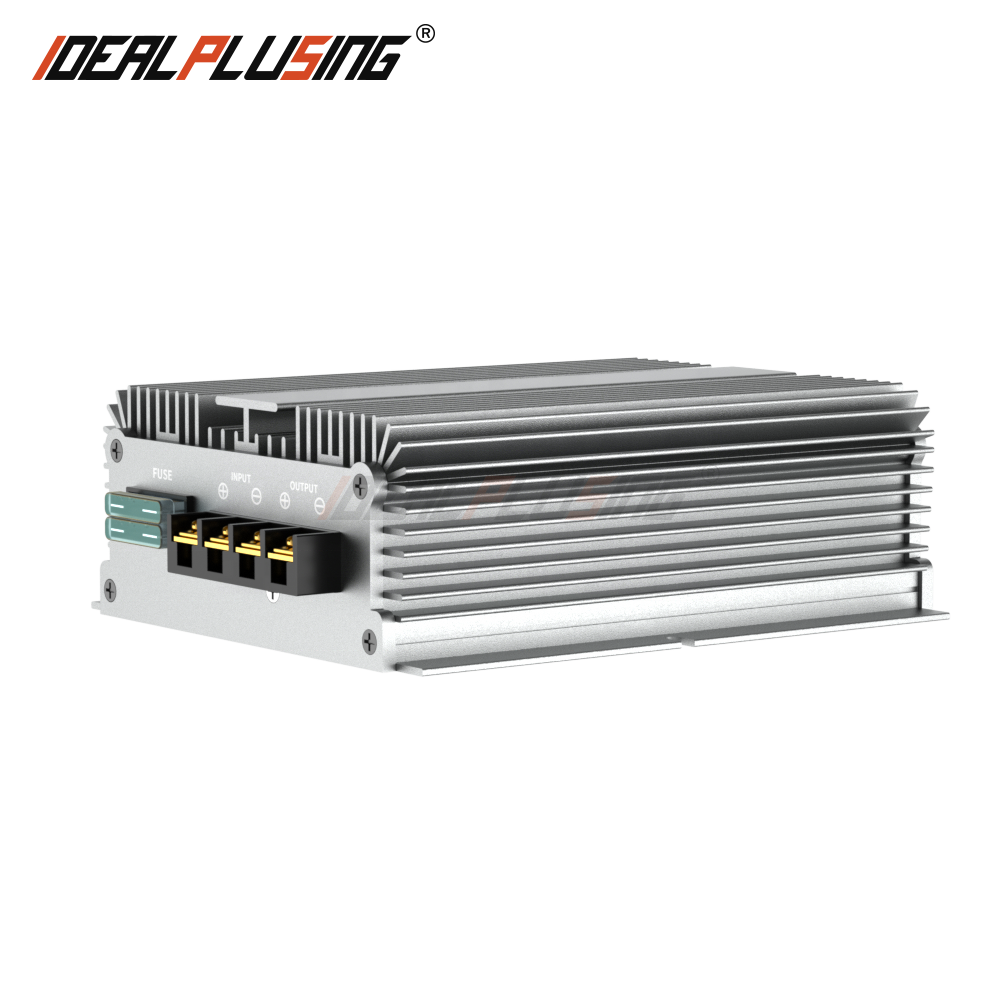

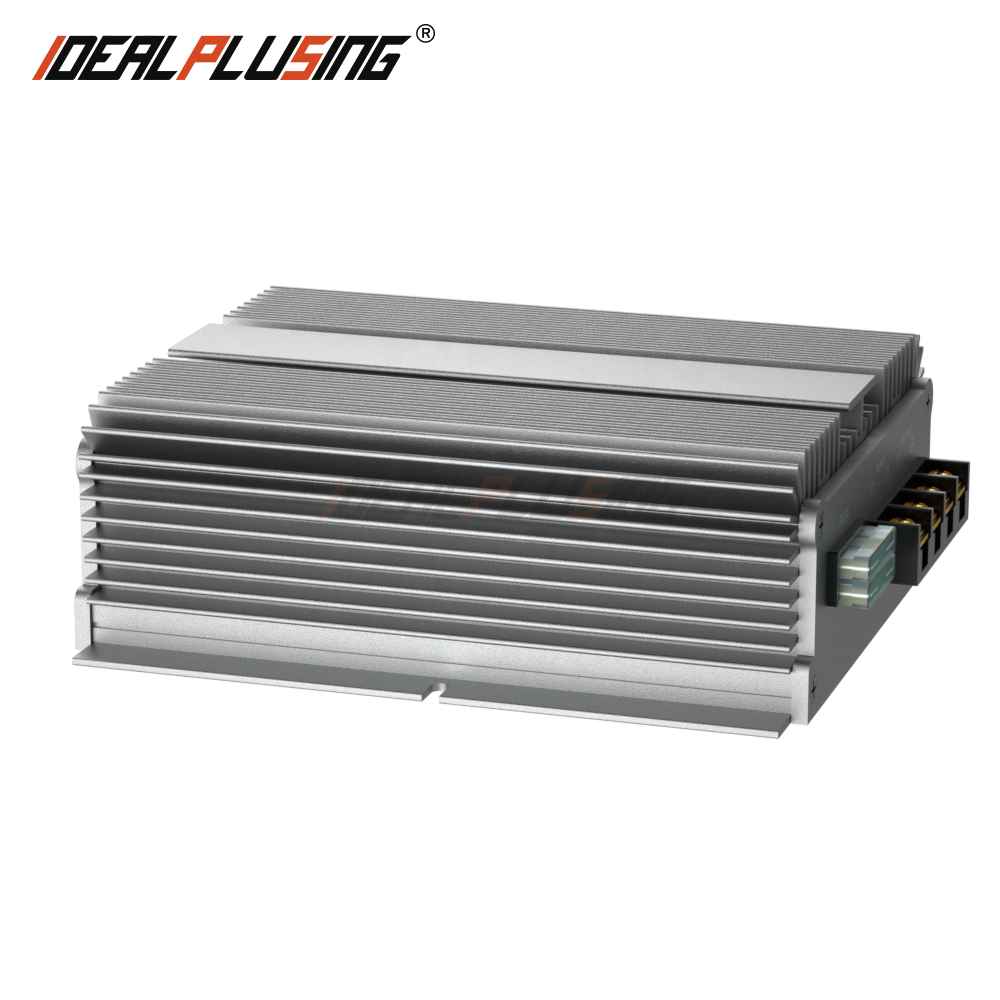

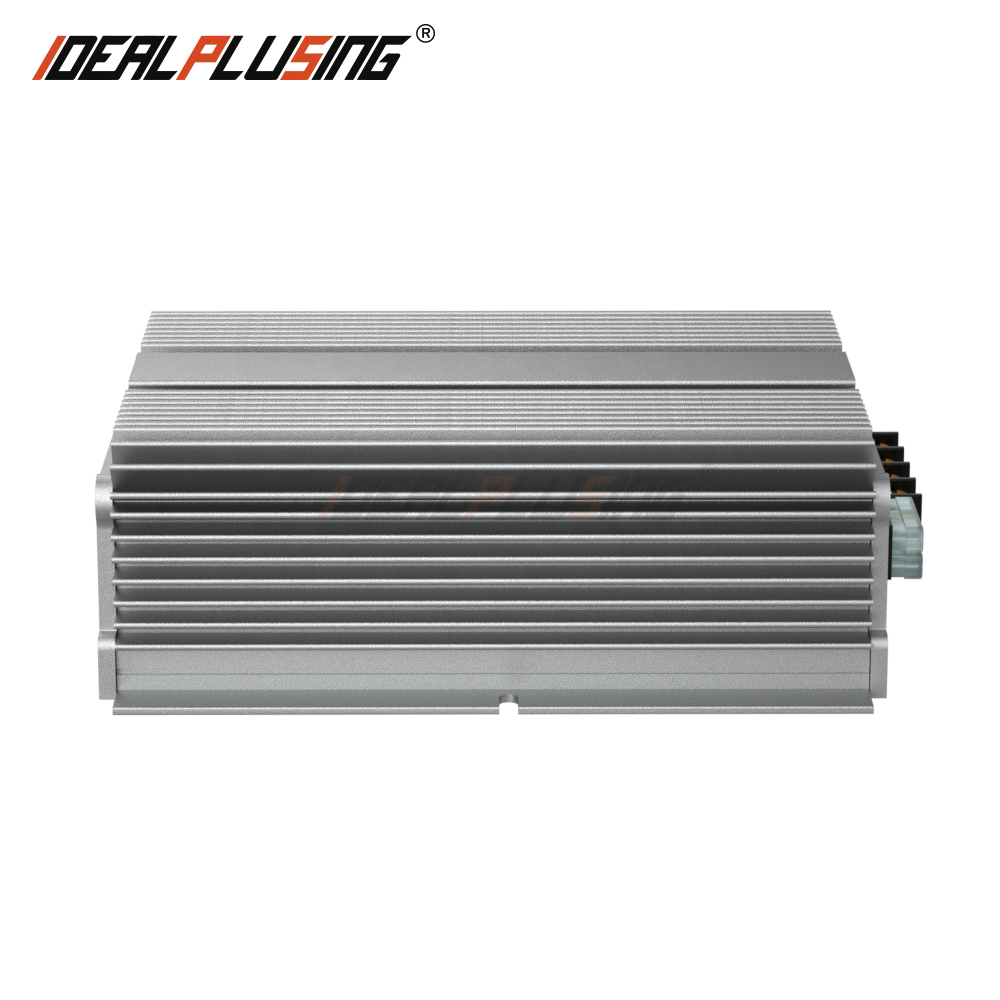

12V to 56V 10A 560W High Voltage Adjustable Switching Power Supply DC DC Charger
Product Description

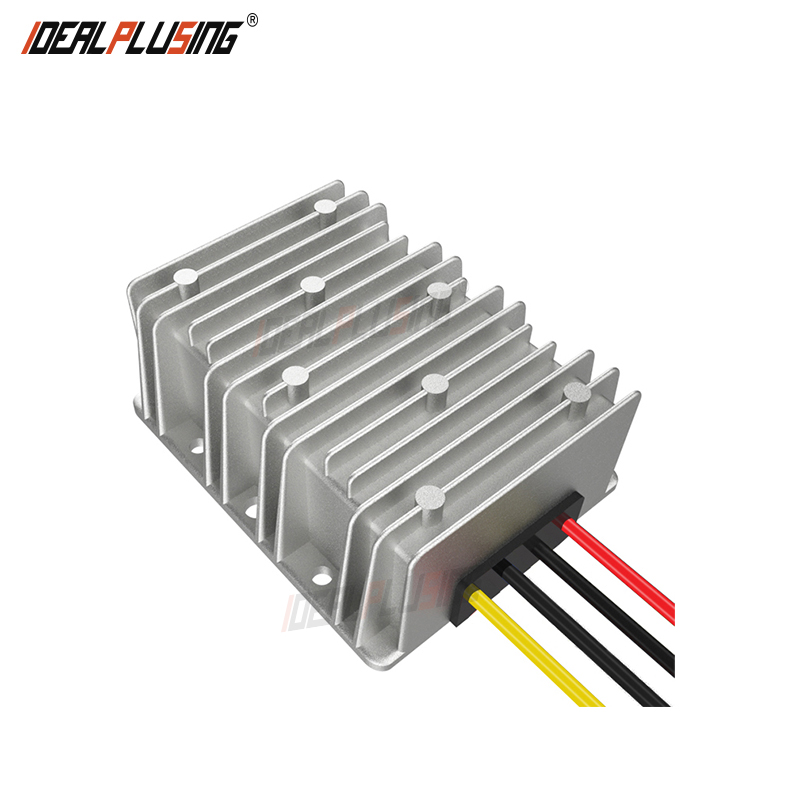

12V to 56V 10A 560W High Voltage Adjustable Switching Power Supply DC DC Charger
A DC/DC converter is a voltage converter which can effectively output fixed voltage after converting input voltage. These converters are divided into three categories: Boost type, boost & buck type, and buck type. PWM control provides high efficiency with low noise, while PFM control offers low power consumption for long-term use under small loads. Currently, DC-DC converters are widely used in mobile phones, digital cameras, portable media players, and various industrial applications.
1
Specializing in customized DC-DC converters to meet specific voltage and current requirements.
2
Customized input and output voltage ranges from 1V to 1000V DC and currents from 1A to 1000A.
3
Providing both isolated and non-isolated converter design options for personalized, efficient, and reliable solutions.
| Parameter | Details |
|---|---|
| Type | Non-isolate |
| Model | IPS-DTD12S5610 |
| Input Voltage | 10-32VDC |
| Output Voltage | 56VDC |
| Output Current | 10Amps |
| Output Power | 560Watts |
| Shell Material | Aluminum |
| Size | 150*130*50MM |
| Waterproof Level | IP67 |
| Application | RV - Rechargeable - 48V lead-acid battery charges when started. |
IPS-DTD30-60S1210
IPS-DTD20-100S122
IPS-DTD15-40S1210
IPS-DTD50-60S488
IPS-DTD50-60S488B

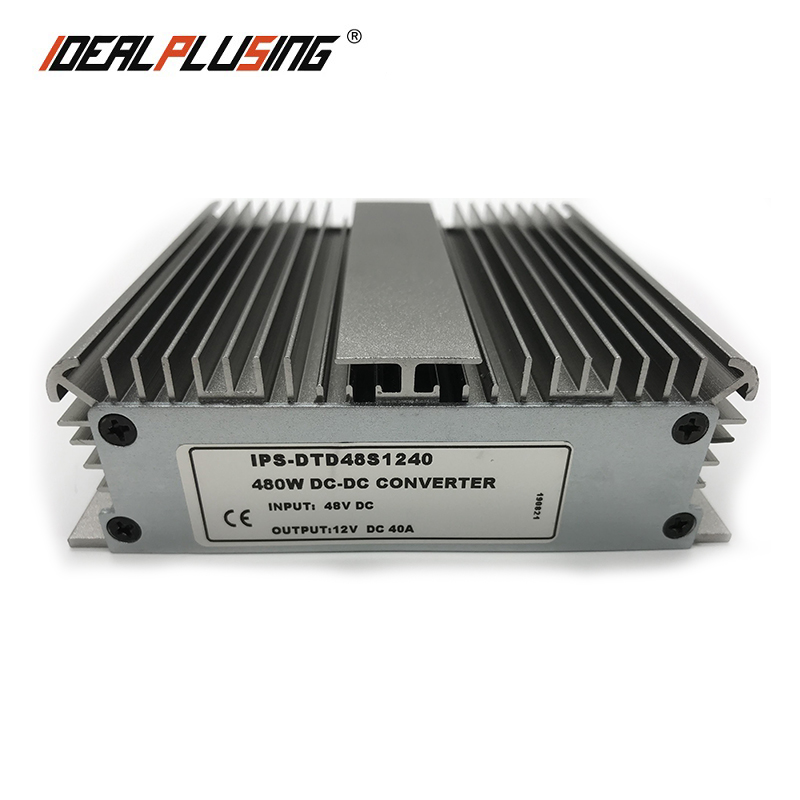

IPS-DTD48S1240
• Comprehensive Protection: All buck-boost and step-up/step-down products come standard with output overcurrent, short-circuit, input undervoltage, and chip overheating protection.
• Inductive Loads: For inductive loads (coils, magnetic valves, speakers) and motor applications, it is recommended to use a power supply 3-5 times the rated power of the load.
• Isolated vs Non-Isolated: Non-isolated buck power supplies carry a risk of high input voltage passing to the output if a failure occurs. Isolated products are strongly recommended for precious loads to improve safety.
• Battery Charging: For charging applications, please choose products specifically designed with charging functions. Isolated power supplies support negative voltage input and can output positive or negative voltage.
• Inductive Environment: High-power products should have appropriate fuses added at the input end to prevent wiring damage during short circuits.
Frequently Asked Questions
What is the difference between PWM and PFM control in these converters?
PWM (Pulse Width Modulation) control type provides high efficiency and excellent output voltage ripple/noise performance. PFM (Pulse Frequency Modulation) control is advantageous for low power consumption during long-term use, especially under small loads.
When should I choose an isolated DC-DC converter over a non-isolated one?
Isolated converters are highly recommended when carrying precious loads or when the input voltage is three times or more than the output voltage. They prevent high input voltage from directly passing to the output, ensuring maximum safety for your equipment.
Do these power supplies include short-circuit protection?
Most buck-boost and step-down products include standard short-circuit protection. However, due to circuit structures, some step-up series products do not. We recommend adding appropriate fuses at the input end for these models.
How do I select a converter for motor or inductive load applications?
For inductive loads such as motors, magnetic valves, or speakers, we recommend using a power supply that is 3 to 5 times the rated power of the load to handle start-up surges.
Are these DC-DC converters waterproof?
Many of our models, such as the IPS-DTD12S5610, feature an IP67 waterproof rating and aluminum shells, making them suitable for outdoor and high-demand environments.
Can these units be used to charge batteries?
Yes, we offer specific DC-DC battery charger models. When choosing a product for charging applications, ensure you select a model with integrated charging functions.
