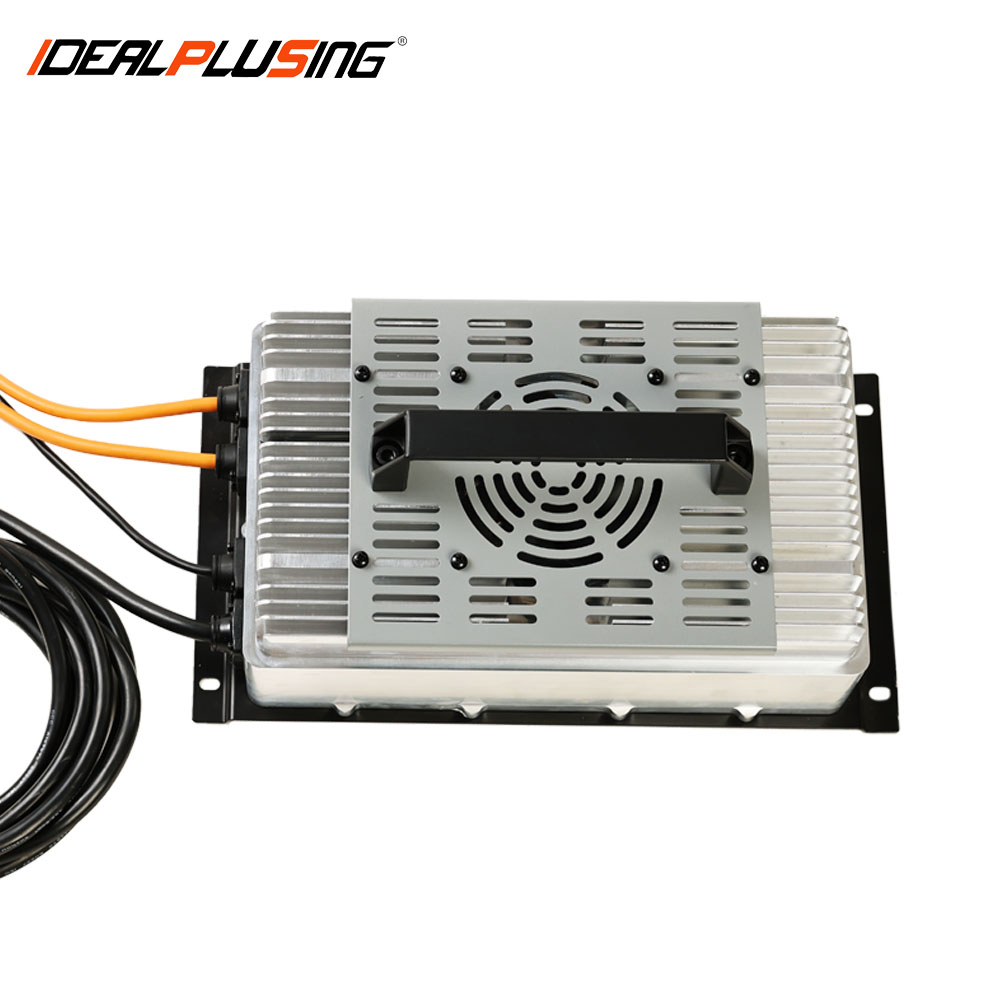

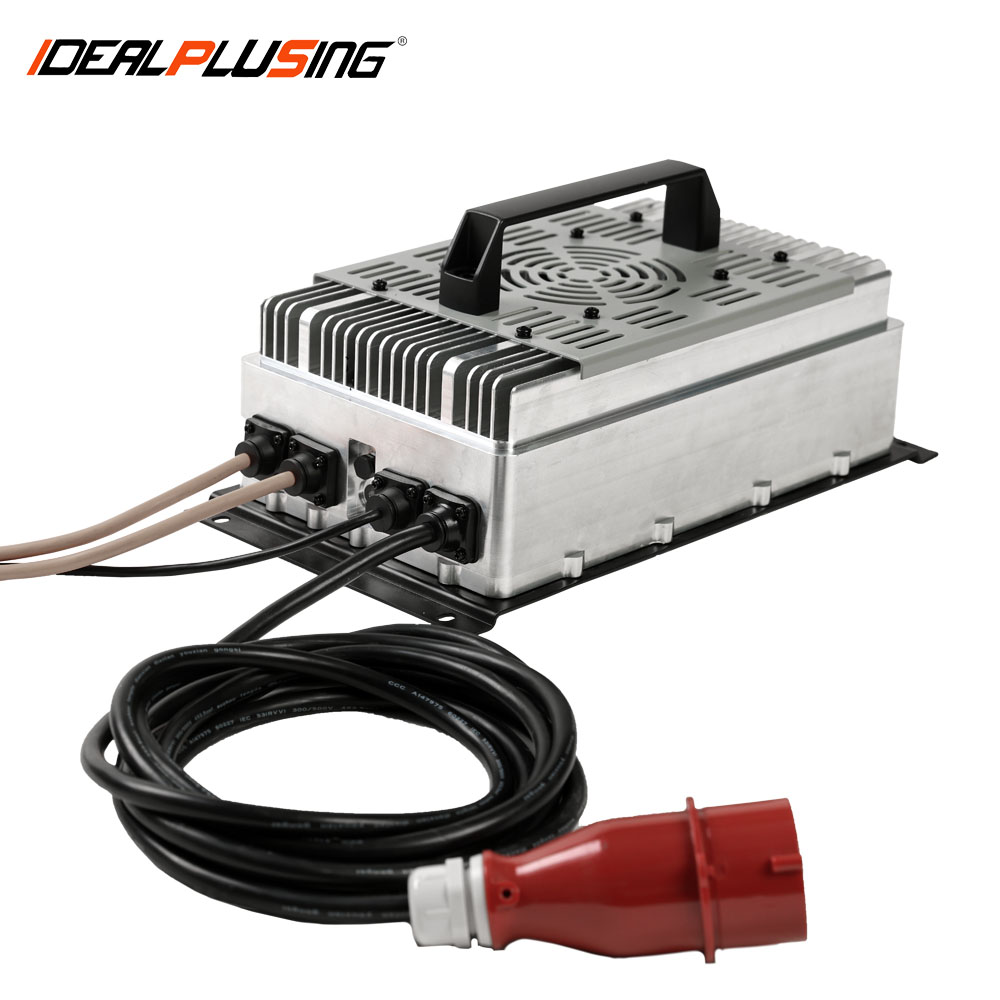

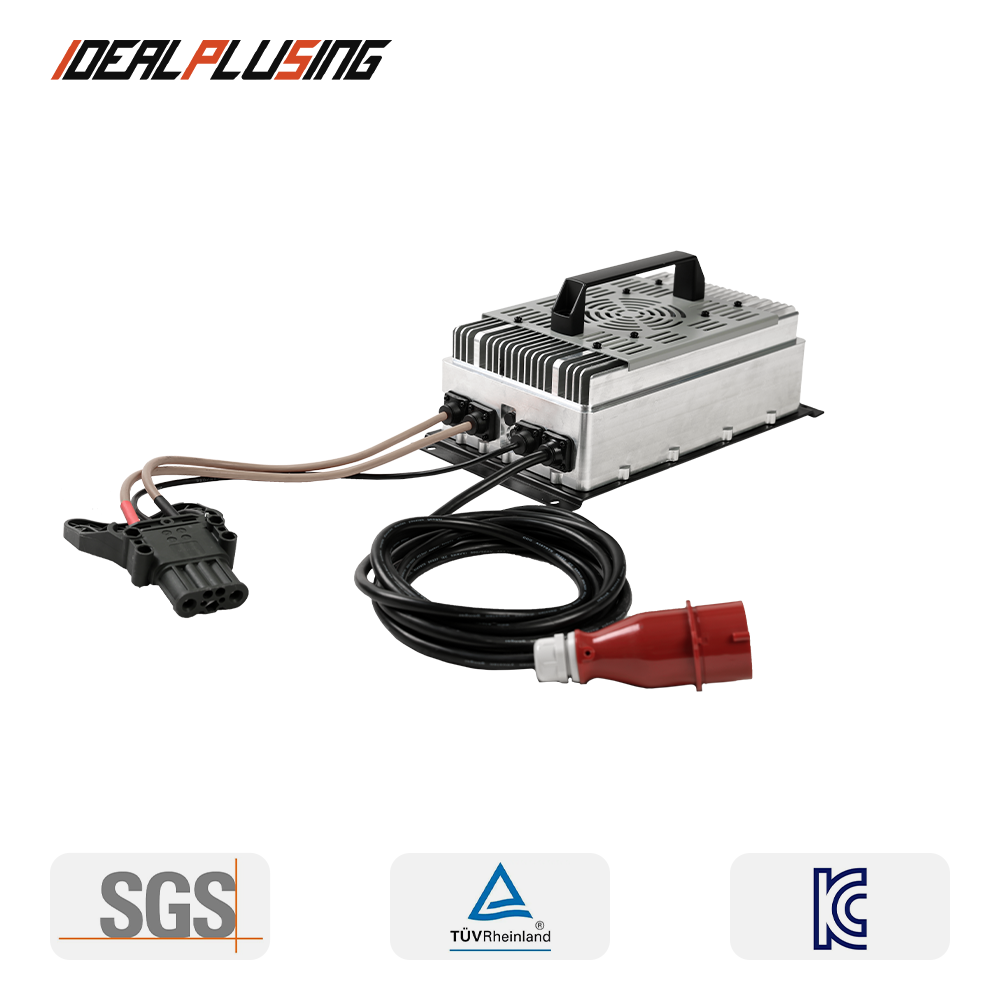

IDEALPLUSING Industrial Grade Heavy Duty Charger Rectifier Fast Charging 48VDC 6600W for Forklift Telecom 6.6kW Power System
Product Description
Industrial Grade Heavy Duty Charger Rectifier Fast Charging 48VDC 6600W for Forklift Telecom Power System
💡
Friendly Reminder: The prices shown are for reference only. The final transaction price will be recalculated based on your actual needs, purchase quantity, and market conditions. These prices are for preliminary budget reference and do not constitute a final commitment.
📦Product Description
📊
Real-time status indication for charging in progress, full charge, and fault conditions.
🔌
Easy connection, suitable for factory sites, outdoor campsites, and temporary work sites.
🛡️
Full protection: Overcurrent, overtemperature, short circuit, reverse connection, and overvoltage.
🏗️
Industrial design: Integrated die-cast housing with potting sealing, waterproof, dustproof (IP67), and shock-resistant.
📋Specifications
| 1200W & 2200W Series Comparison | ||||
|---|---|---|---|---|
| Specifications | 1200W IPS-OB4820 | 1200W IPS-OB6015 | 2200W IPS-OB4835 | 2200W IPS-OB6030 |
| Rated Output Voltage | 48V | 60V | 48V | 60V |
| Rated Output Current | AC220V/20A | AC220V/15A | AC220V/35A | AC220V/30A |
| DC Output Range | 36Vdc~60Vdc | 42Vdc~72Vdc | 36Vdc~60Vdc | 42Vdc~72Vdc |
| IP Rating | IP67 | |||
| Battery Type | Lead-Acid / Lithium | |||
| Heavy Duty 3300W & 6600W Series | |||
|---|---|---|---|
| Specifications | 3300W IPS-OB4850 | 6600W IPS-OB48100 | 6600W IPS-OB9660 |
| AC Voltage | Single Phase 100-240V | Three Phase 380V | Three Phase 380V |
| Rated Output Power | 2700W | 5400W | 6480W |
| Conversion Efficiency | ≥92% | ≥94% | ≥94% |

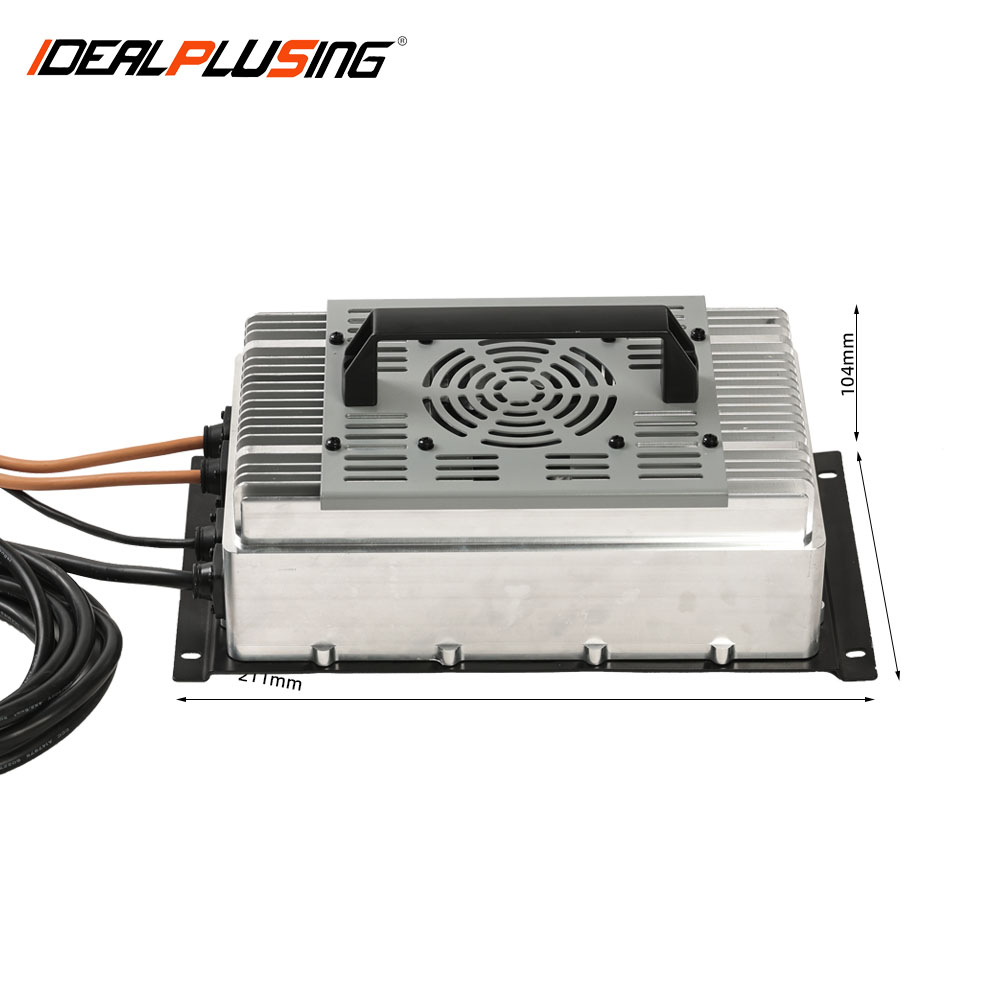

| Machine Dimension | L348*W211*H104(mm) | L392*W215*H120(mm) | L392*W215*H120(mm) |
🔥Hot Selling Models
IPS-OB1215
DC OUT: 12VDC, 15A
Rated Power: 216W
IPS-OB4815
DC OUT: 48VDC, 15A
Rated Power: 810W
IPS-OB6013
DC OUT: 60VDC, 13A
Rated Power: 889W
IPS-OB2436
DC OUT: 24VDC, 36A
Rated Power: 1036W
IPS-OB48100
DC OUT: 48VDC, 100A
Rated Power: 5400W
IPS-CHB153.6150
DC OUT: 153.6VDC, 150A
Rated Power: 26KW
🔍Detail Images

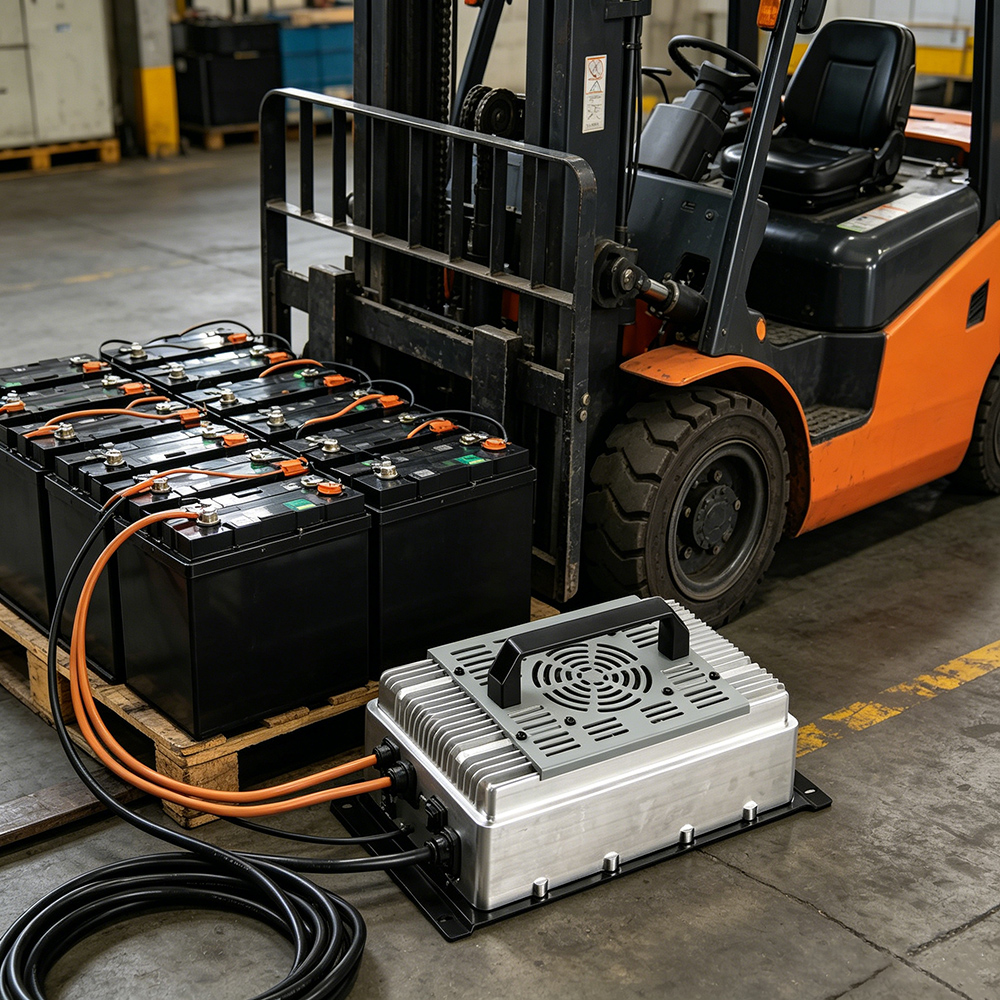

🌐Application Scope
📈Model Overview
| No. | Model | Output Voltage | Output Current | Power | Size (mm) |
|---|---|---|---|---|---|
| 1 | IPS-OB1215 | 12V | 15A | 216W | 127*123*98 |
| 12 | IPS-OB4820 | 48V | 20A | 1080W | 282*128*80 |
| 19 | IPS-OB24100 | 24V | 100A | 2880W | 348*211*104 |
| 24 | IPS-OB48100 | 48V | 100A | 5400W | 392*215*120 |
| 39 | IPS-CHB8065 | 80V | 65A | 5700W | 365*293*433 |
| 57 | IPS-CHB48300 | 48V | 300A | 17.28KW | 403*367*535 |
| 68 | IPS-CHB153.6150 | 153.6V | 150A | 26KW | 402*366*681 |
🚀About Professional Power Solutions
We focus on research, development, and service of DC to DC modules, AC to DC rectifiers, inverters, and high-performance chargers. We provide personalized, efficient, and cost-effective power supply solutions for industries including logistics, telecommunications, and industrial manufacturing. Our goal is to provide the right power supply solution with the best quotation for your specific needs.
Frequently Asked Questions (FAQ)
1. What battery types are compatible with these chargers?
Our industrial chargers are fully compatible with both Lead-Acid and Lithium battery systems. The charging protocols can be customized based on your specific battery requirements.
2. Is the charger suitable for outdoor use?
Yes, our chargers feature an integrated die-cast housing with a potting sealing process, achieving an IP67 rating. This makes them waterproof, dustproof, and shock-resistant, ideal for harsh industrial and outdoor environments.
3. What safety protections are included?
The system includes comprehensive protection against overcurrent, overtemperature, short circuits, reverse connection, undervoltage, and overvoltage, featuring real-time temperature monitoring.
4. Can I customize the output plugs and communication protocols?
Absolutely. We offer customized DC output plugs and communication protocols (such as CAN bus) to ensure the charger integrates perfectly with your existing equipment.
5. What is the typical conversion efficiency of these units?
Our chargers are designed for high efficiency, typically reaching ≥92% to ≥94% depending on the specific series, which helps reduce energy waste and heat generation.
6. Does the charger support both 110V and 220V input?
Many of our single-phase models support a wide input range of 100-240V AC. However, high-power models (like the 6600W series) typically require a Three-Phase 380V input for optimal performance.
