Good Quality 10-16V Input Dc Charger 12v to 48V Lead-acid Battery Charger Dc Dc 56v Charger 5A Converter
Product Description
Good quality 10-16V Input dc charger 12v to 48V lead-acid battery charger dc dc 56v charger 5A Converter
1 PRODUCT INTRODUCTION
1. Intelligent charging management chip; constant current and constant voltage, automatic shutdown when full.
2. Meet the charging characteristic requirements of lead-acid/lithium batteries, and effectively reduce battery damage.
3. High-power output and fast charging; automatic buck-boost; stable output voltage; charging efficiency 98%.
4. Imported high-end brand capacitors; high-power magnetic ring inductors; ensure product power and service life.
5. Die-cast aluminum shell, durable and easy to install. Enhanced heat dissipation for large heat loads.
6. All products have undergone long-term anti-aging tests and factory inspections.
7. Widely used in automobiles, motorcycles, industrial equipment, and outdoor equipment.
8. Compact and rugged; easily installed on RVs, commercial vehicles, ships, and yachts.
2 INTRODUCTION
| # | Description |
| 1 | DC-DC series battery charger is the most effective way to charge auxiliary or household batteries from alternator/starter batteries. |
| 2 | DC-DC is compatible with a variety of alternator types and provides correct charging for AGM, immersion, gel, and deep circulating batteries. |
| 3 | With a three-level charger and electronic protection, car owners can be sure batteries are charging automatically in the best way. |
| 4 | Compact and rugged vehicles can be easily installed on RVs, commercial vehicles, ships, yachts, and more. |
3 KEY FEATURE
| 1 | Compatible with a variety of 12V batteries: Lithium / lead-acid battery. |
| 2 | Intelligent protection functions include overvoltage, ultra temperature, and reverse polarity. |
| 3 | It integrates battery isolation and battery charger functions. |
| 4 | Compact structure, but strong under all conditions. |
| 5 | The 3-level battery charger makes your battery power reach 100%. |
4 MAIN SPECIFICATION
| Model | IPS-DTDC12S565 |
| Rated input voltage | 12VDC |
| Input voltage range | 10-16VDC |
| Output voltage | 56VDC |
| Rated charging current | 5A |
| Max rated output power | 280W |
| Apply Battery type | Lithium / lead-acid battery |
| Efficiency | ≤90% |
| Idle power consumption | ≤0.4A |
| Operational temperature | -20°C~+50°C |
| Humidity | <95% Non-condensing |
| Dimension (W*H*L) | 118*80*28MM |
| Net Weight | 500G |
| Gross Weight | 800G |

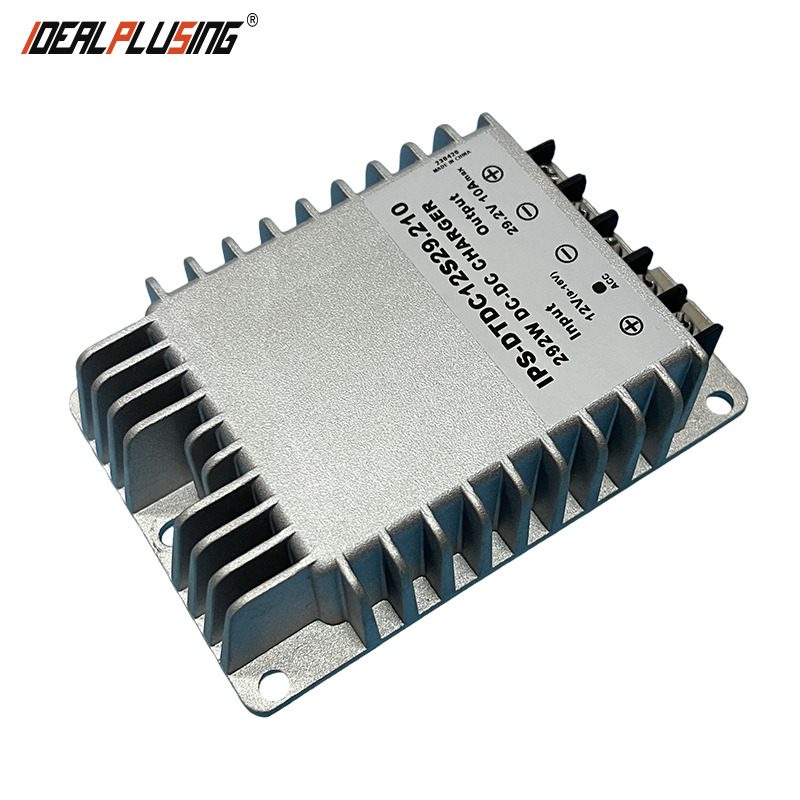

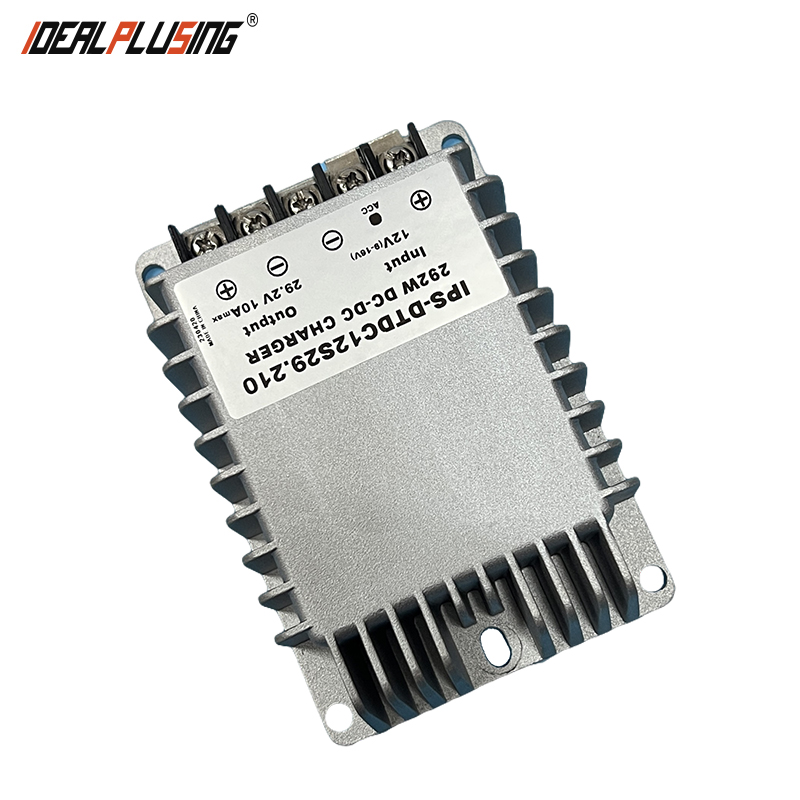

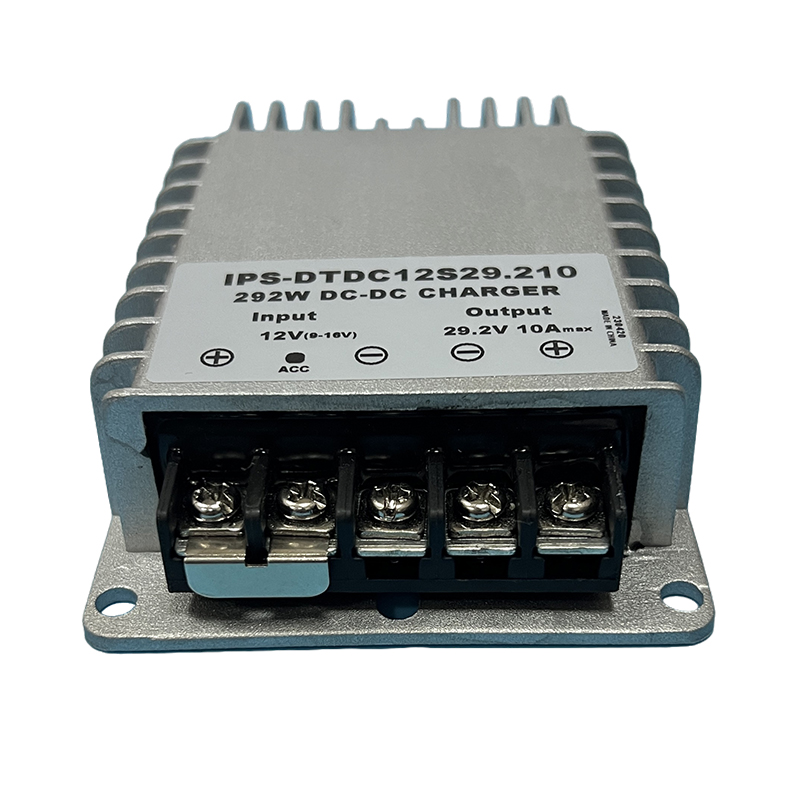

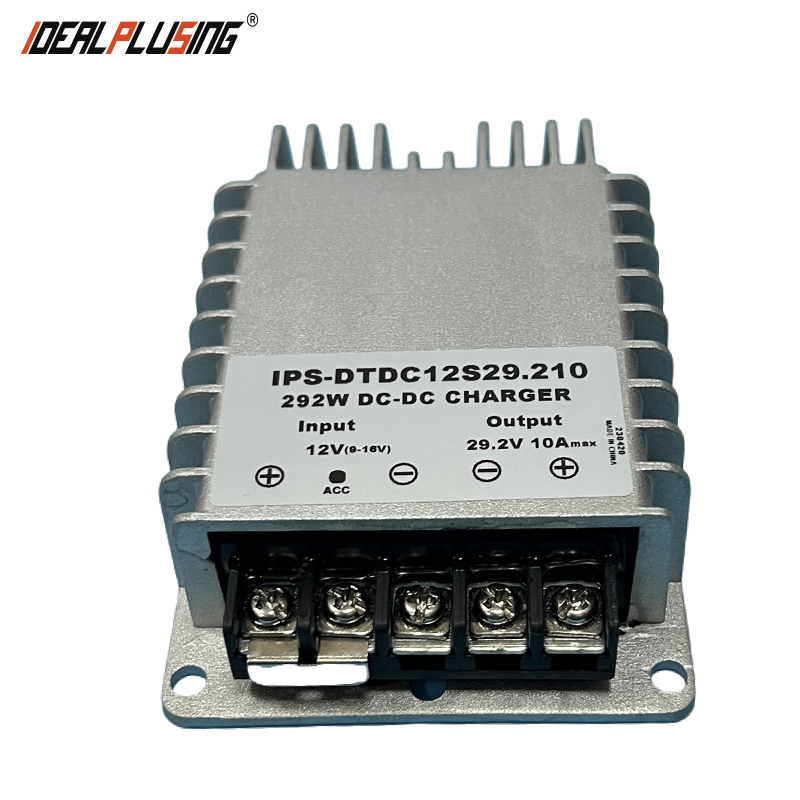

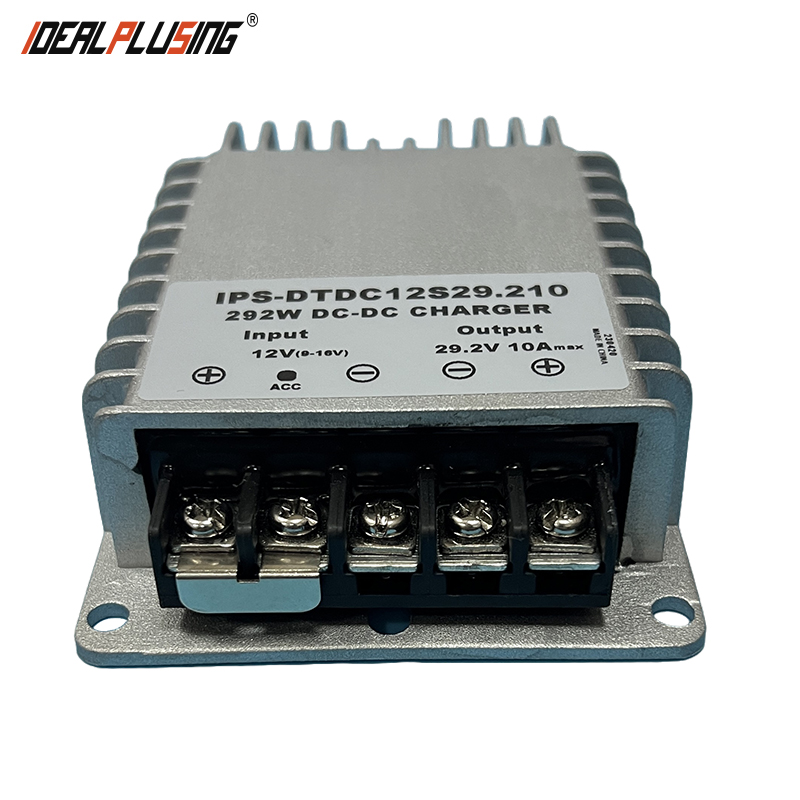

PRODUCT SHOW
OUR FACTORY
Frequently Asked Questions
What types of batteries is this charger compatible with?
This DC-DC charger is compatible with a wide variety of 12V batteries, including Lithium, Lead-acid, AGM, Gel, and deep circulating batteries.
What is the input voltage range for this device?
The charger operates within a rated input voltage range of 10VDC to 16VDC, making it ideal for 12V vehicle systems.
Does the charger include safety protection features?
Yes, it features intelligent protection functions such as overvoltage protection, ultra-temperature protection, and reverse polarity protection to ensure safe operation.
How efficient is the charging process?
The device utilizes an intelligent charging management chip with automatic buck-boost technology, achieving a high charging efficiency of up to 98% under optimal conditions.
Is the housing durable for marine or RV environments?
Absolutely. It features a die-cast aluminum shell that is rugged, durable, and designed for easy installation on RVs, commercial vehicles, ships, and yachts.
What happens when the battery is fully charged?
The intelligent 3-level charging management ensures constant current and constant voltage, with an automatic shutdown feature once the battery is full to prevent overcharging.
