Smart Fast Charging Lithium DC Power Supply Battery Charger Industrial Grade High Efficiency 24VDC 72VDC 2200W for Battery Packs
Product Description

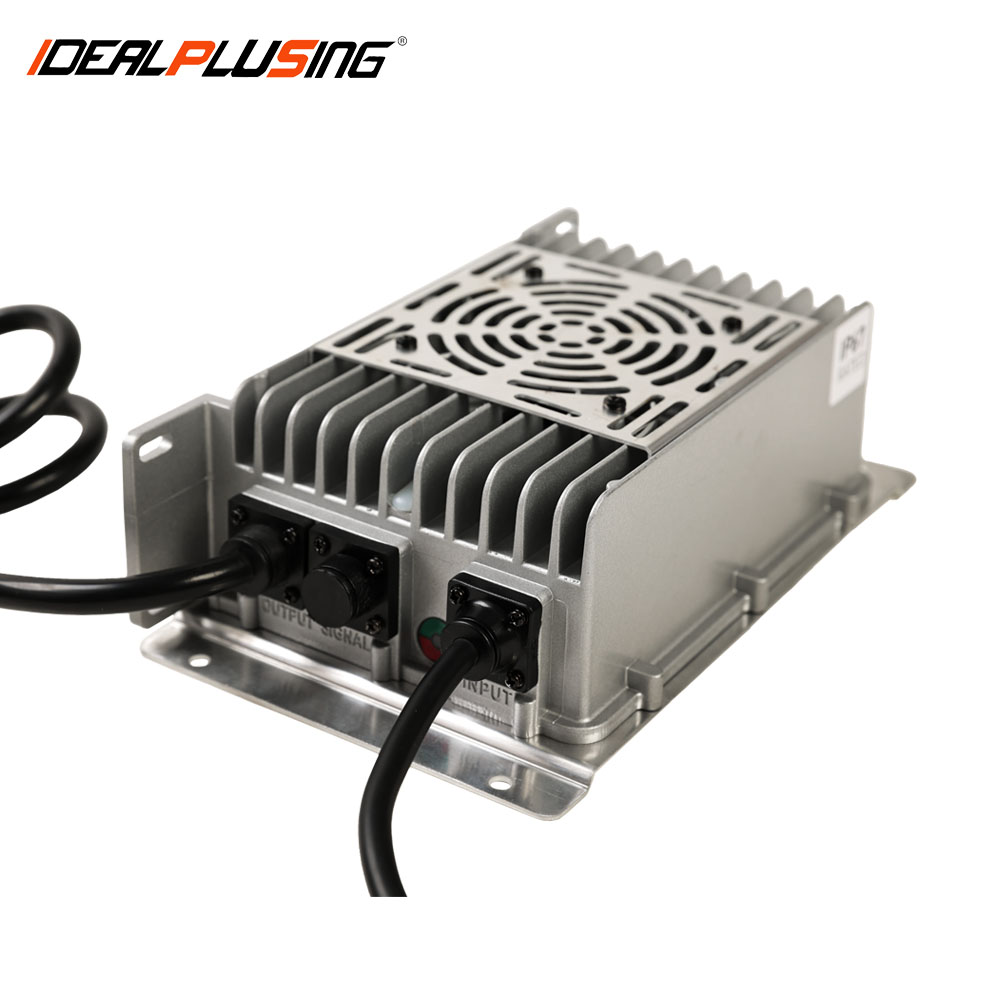

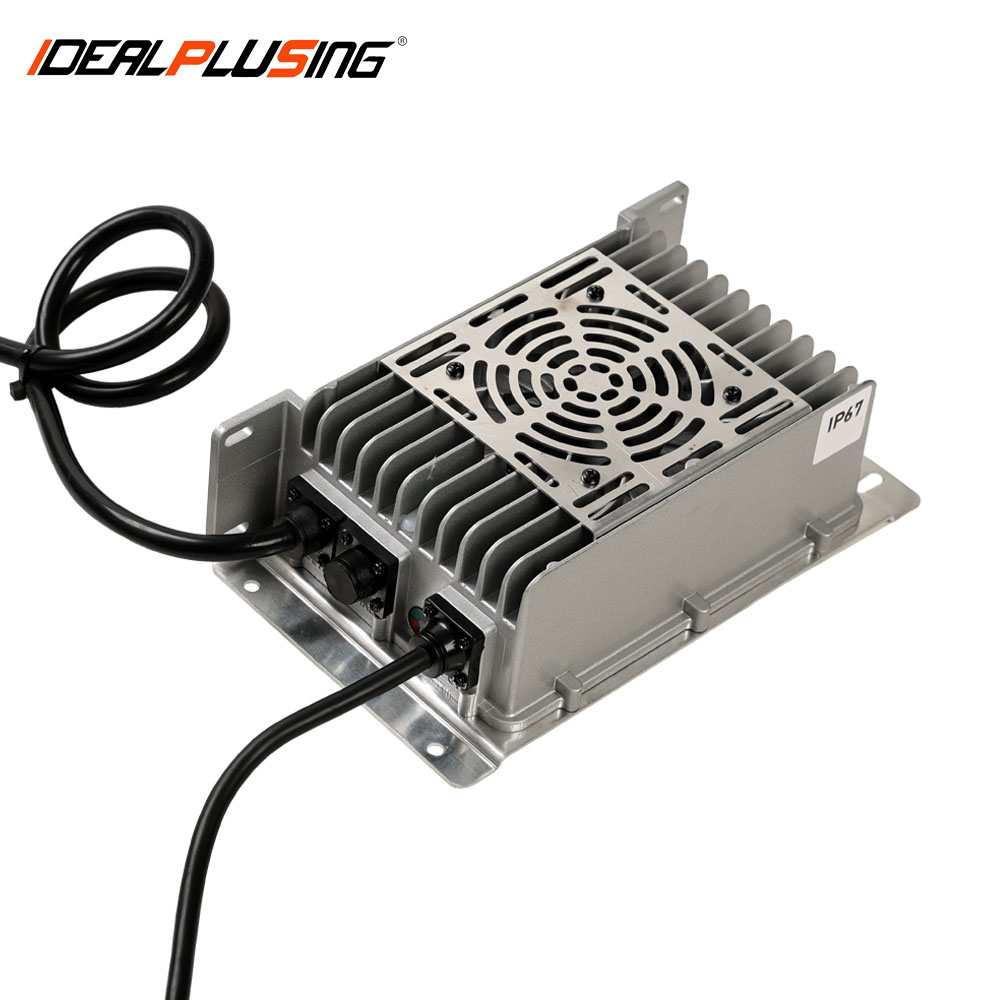

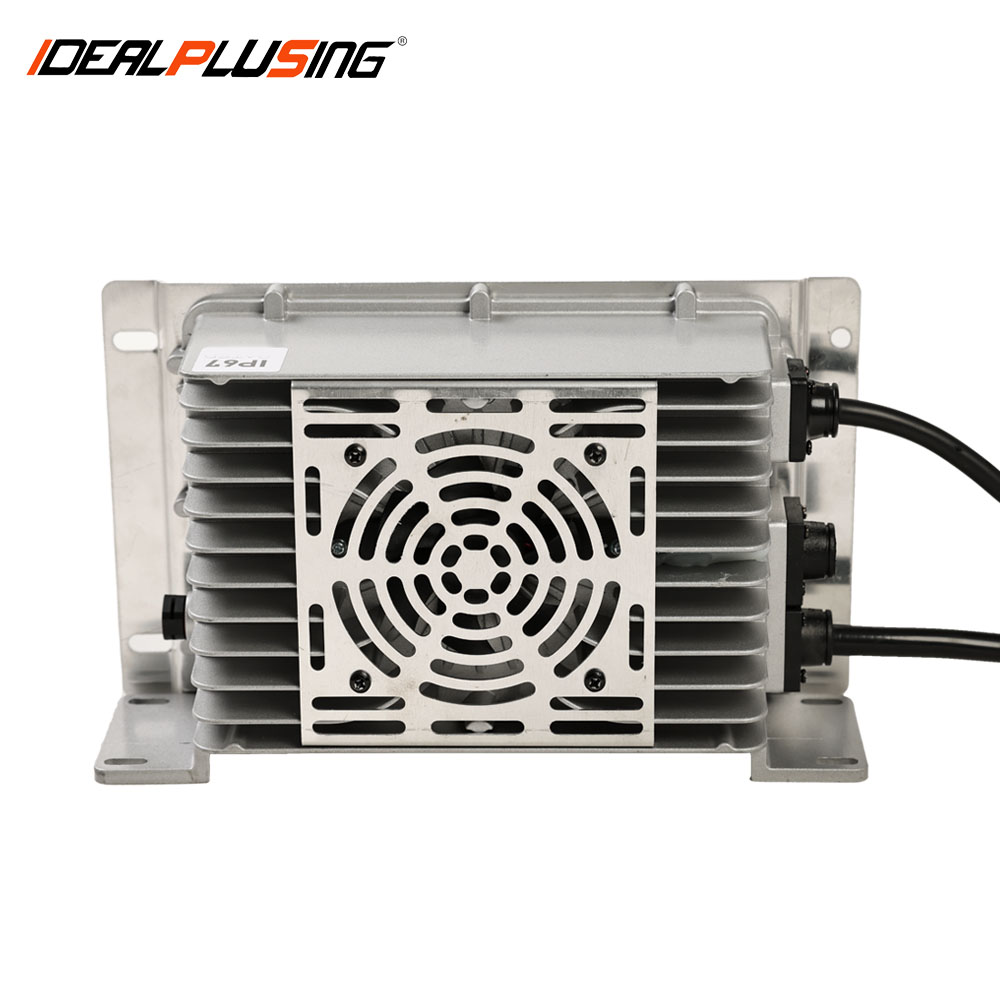

Smart Fast Charging Lithium DC Power Supply Battery Charger Industrial Grade High Efficiency 24VDC 72VDC 2200W for Battery Packs
Friendly Reminder
Dear Customer: The prices shown on this page are for reference only. The final transaction price will be recalculated and quoted by our sales staff based on your actual needs, purchase quantity, and market conditions. The online prices are for your preliminary budget reference only and do not constitute a final transaction commitment. We always adhere to the principle of integrity and avoid price misrepresentation. Thank you for your understanding and trust.
Product Description
1
Real-time status indication for charging in progress, full charge, fault conditions, etc.
2
Easy connection, suitable for various scenarios such as factory sites, outdoor campsites, temporary work sites, enabling flexible charging.
3
Overcurrent, overtemperature, short circuit, reverse connection, under voltage, and overvoltage protection, with real-time temperature monitoring and dynamic current regulation.
4
Integrated die-cast housing + potting sealing process. Strong environmental adaptability with waterproof, dustproof, and shock-resistant features, suitable for harsh industrial environments and complex operating conditions.
Specifications
| 1200W Series Specifications | ||||
|---|---|---|---|---|
| Model | IPS-OB2430 | IPS-OB4820 | IPS-OB6015 | IPS-OB8010 |
| Input Current(Max) | ≤9.5A | ≤8.9A | ≤9A | ≤9.9A |
| Input power | ≤948W | ≤1185W | ≤1126W | ≤988W |
| Rated output voltage | 24V | 48V | 60V | 80V |
| Rated output current | 30A | AC110V/15A, AC220V/20A | AC110V/12A, AC220V/15A | 10A |
| Rated output power | 864W | 1080W | 1026W | 900W |
| DC output voltage | 18Vdc~30Vdc | 36Vdc~60Vdc | 42Vdc~72Vdc | 62Vdc~92Vdc |
| Battery Type | Lead-Acid/Lithium | |||
| Cooling mode | Air cooling | |||
| AC Voltage | Single Phase 100-240V | |||
| Conversion Efficiency | ≥92% | |||
| Power factor | ≥0.99 | |||
| AC Plug | Industrial/L+N+PE | |||
| IP Rating | IP67 | |||
| Protocol / Output plug | Customized | |||
| Ambient Temperature | -20℃ ~ 50℃ | |||
| Dimension / Weight | L282*W128*H80(MM) / 3Kg | |||
| 2200W Series Specifications | ||||
|---|---|---|---|---|
| Model | IPS-OB2450 | IPS-OB4835 | IPS-OB6030 | IPS-OB7225 |
| Input Current(Max) | ≤8.8A | ≤11.5A | ≤12.5A | ≤12.6A |
| Input power | ≤1581W | ≤2075W | ≤2253W | ≤2272W |
| Rated output voltage | 24V | 48V | 60V | 72V |
| Rated output current | AC110V/30A, AC220V/50A | AC110V/20A, AC220V/35A | AC110V/15A, AC220V/30A | AC110V/13A, AC220V/25A |
| Rated output power | 1440W | 1890W | 2052W | 2070W |
| DC output voltage | 18Vdc~30Vdc | 36Vdc~60Vdc | 42Vdc~72Vdc | 56Vdc~84Vdc |
| Battery Type / Cooling | Lead-Acid/Lithium / Air cooling | |||
| AC Voltage / Efficiency | Single Phase 100-240V / ≥92% | |||
| IP Rating / Power Factor | IP67 / ≥0.99 | |||

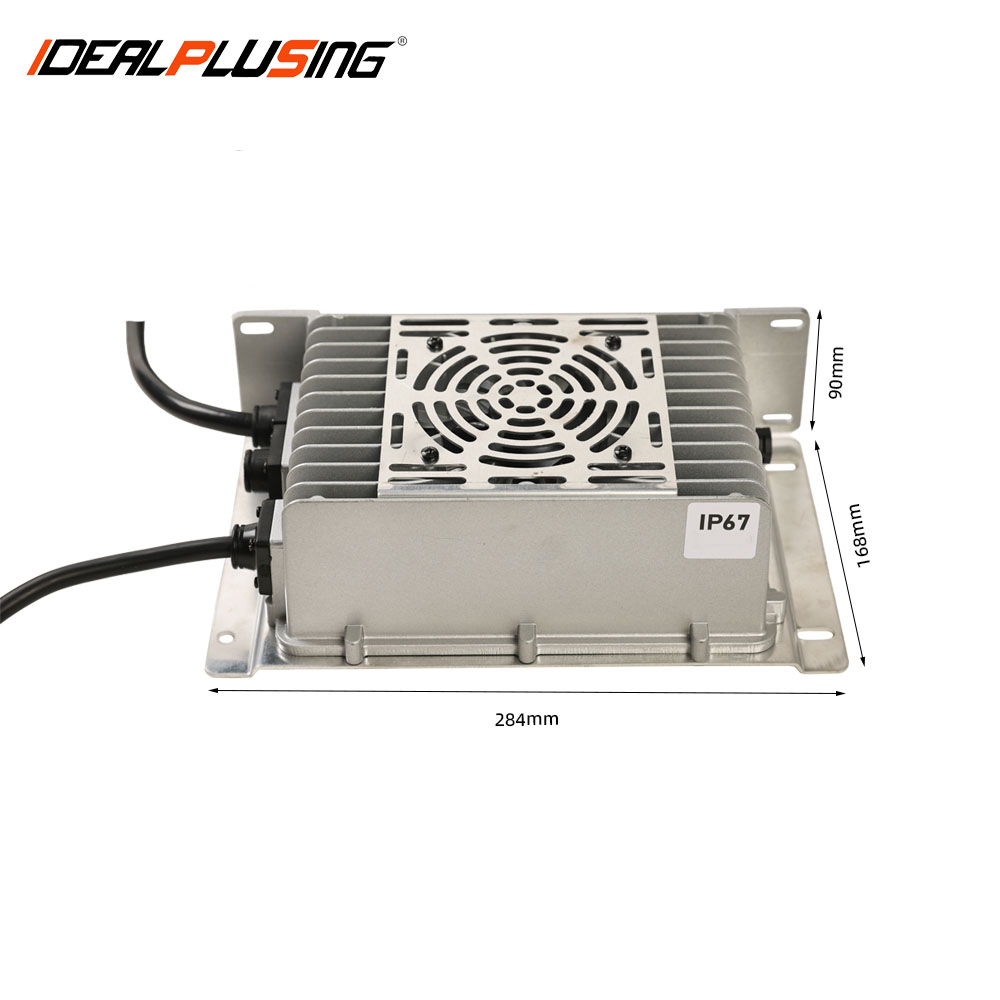

| Dimension / Weight | L284*W168*H90(MM) / 5Kg | |||
| 3300W Series Specifications | |||
|---|---|---|---|
| Model | IPS-OB24100 | IPS-OB3670 | IPS-OB4850 |
| Input Current(Max) | ≤17.6A | ≤18.4A | ≤16.1A |
| Input power | ≤3162W | ≤3320W | ≤2901W |
| Rated output voltage | 24V | 36V | 48V |
| Rated output current | AC110V/50A, AC220V/100A | AC110V/35A, AC220V/70A | AC110V/25A, AC220V/50A |
| Rated output power | 2880W | 3024W | 2700W |
| DC output voltage | 18Vdc~30Vdc | 28Vdc~45Vdc | 36Vdc~60Vdc |
| Model (Sub) | IPS-OB7235 | IPS-OB9630 | - |
| Input Current / Power | ≤17.3A / ≤3114W | ≤19.3A / ≤3481W | - |
| Rated output volt/current | 72V / AC110V/20A, AC220V/40A | 96V / AC110V/15A, AC220V/30A | - |
| DC output voltage range | 56Vdc~84Vdc | 75Vdc~111Vdc | - |
| Battery Type / Cooling | Lead-Acid/Lithium / Air cooling | ||
| AC Voltage / IP Rating | Single Phase 100-240V / IP67 | ||
| Dimension / Weight | L348*W211*H104(MM) / 10Kg | ||
| 6600W Series Specifications | |||
|---|---|---|---|
| Model | IPS-OB48100 | IPS-OB8070 | IPS-OB9660 |
| Input Current(Max) | ≤10.4A | ≤12.1A | ≤12.4A |
| Input power | ≤5802W | ≤6769W | ≤6963W |
| Rated output voltage | 48V | 80V | 96V |
| Rated output current | 100A | 70A | 60A |
| Rated output power | 5400W | 6300W | 6480W |
| DC output voltage | 36Vdc~60Vdc | 63Vdc~94Vdc | 75Vdc~111Vdc |
| AC Voltage / Efficiency | Three Phase 380V / ≥94% | ||
| Power Factor / Plug | ≥0.94 / Industrial/3PH+PE | ||
| IP Rating / Noise | IP67 / <65dB | ||
| Dimension / Weight | L392*W215*H120(MM) / 16Kg | ||
| Internal Component Comparison | ||
|---|---|---|
| IDEALPLUSING | Manufacturers A | Manufacturers B |
| Power Module | Power Module | Power Module |
| Display | Display | Display |
| Main Power Switch | Main Power Switch | Main Power Switch |
| - | Control Transformer | System Power Supply |
| - | Industrial Control Auxiliary Power Supply | AC Contactor |
| - | Control Mainboard | Control Mainboard |
| - | Data Acquisition Board | Capacitor Board |
| - | DC Contactor | DC Contactor |
| - | Fuse | Fuse |
| - | ...... | ...... |
Note: Our battery chargers integrate most components into the power module, thereby achieving a higher degree of integration, a simpler structure, fewer potential failure points, and lower costs.
Hot Selling Models
IPS-OB1215 Battery Charger
AC IN: 1 phase 220VAC±15% 50/60HZ
DC OUT: 12VDC, 15A
Rated output power: 216W
IPS-OB4815 Battery Charger
AC IN: 1 phase 220VAC±15% 50/60HZ
DC OUT: 48VDC, 15A
Rated output power: 810W
IPS-OB6013 Battery Charger
AC IN: 1 phase 220VAC±15% 50/60HZ
DC OUT: 60VDC, 13A
Rated output power: 889W
IPS-OB2436 Battery Charger
AC IN: 1 phase 220VAC±15% 50/60HZ
DC OUT: 24VDC, 36A
Rated output power: 1036W
IPS-OB8010 Battery Charger
AC IN: 1 phase 220VAC±15% 50/60HZ
DC OUT: 80VDC, 10A
Rated output power: 900W
IPS-OB7225 Battery Charger
AC IN: 1 phase 220VAC±15% 50/60HZ
DC OUT: 72VDC, 25A
Rated output power: 2070W
IPS-OB3670 Battery Charger
AC IN: 1 phase 220VAC±15% 50/60HZ
DC OUT: 36VDC, 70A
Rated output power: 3024W
IPS-OB48100 Battery Charger
AC IN: 3 phase 380VAC±15% 50/60HZ
DC OUT: 48VDC, 100A
Rated output power: 5400W
IPS-CHB2450 Battery Charger
AC IN: 1 phase 220VAC±15% 50/60HZ
DC OUT: 24VDC, 50A
Rated output power: 1440W
IPS-CHB24100 Battery Charger
AC IN: 1 phase 220VAC±15% 50/60HZ
DC OUT: 24VDC, 100A
Rated output power: 2880W
IPS-CHB8065 Battery Charger
AC IN: 1 phase 220VAC±15% 50/60HZ
DC OUT: 80VDC, 65A
Rated output power: 5700W
IPS-CHB9660 Battery Charger
AC IN: 3 phase 380VAC±15% 50/60HZ
DC OUT: 96VDC, 60A
Rated output power: 7000W
IPS-CHB48300 Battery Charger
AC IN: 3 phase 380VAC±15% 50/60HZ
DC OUT: 48VDC, 300A
Rated output power: 17.28W
IPS-CHB80250 Battery Charger
AC IN: 3 phase 220VAC±15% 50/60HZ
DC OUT: 80VDC, 250A
Rated output power: 21.9KW
IPS-CHB153.6150 Battery Charger
AC IN: 3 phase 380VAC±15% 50/60HZ
DC OUT: 153.6VDC, 150A
Rated output power: 26KW

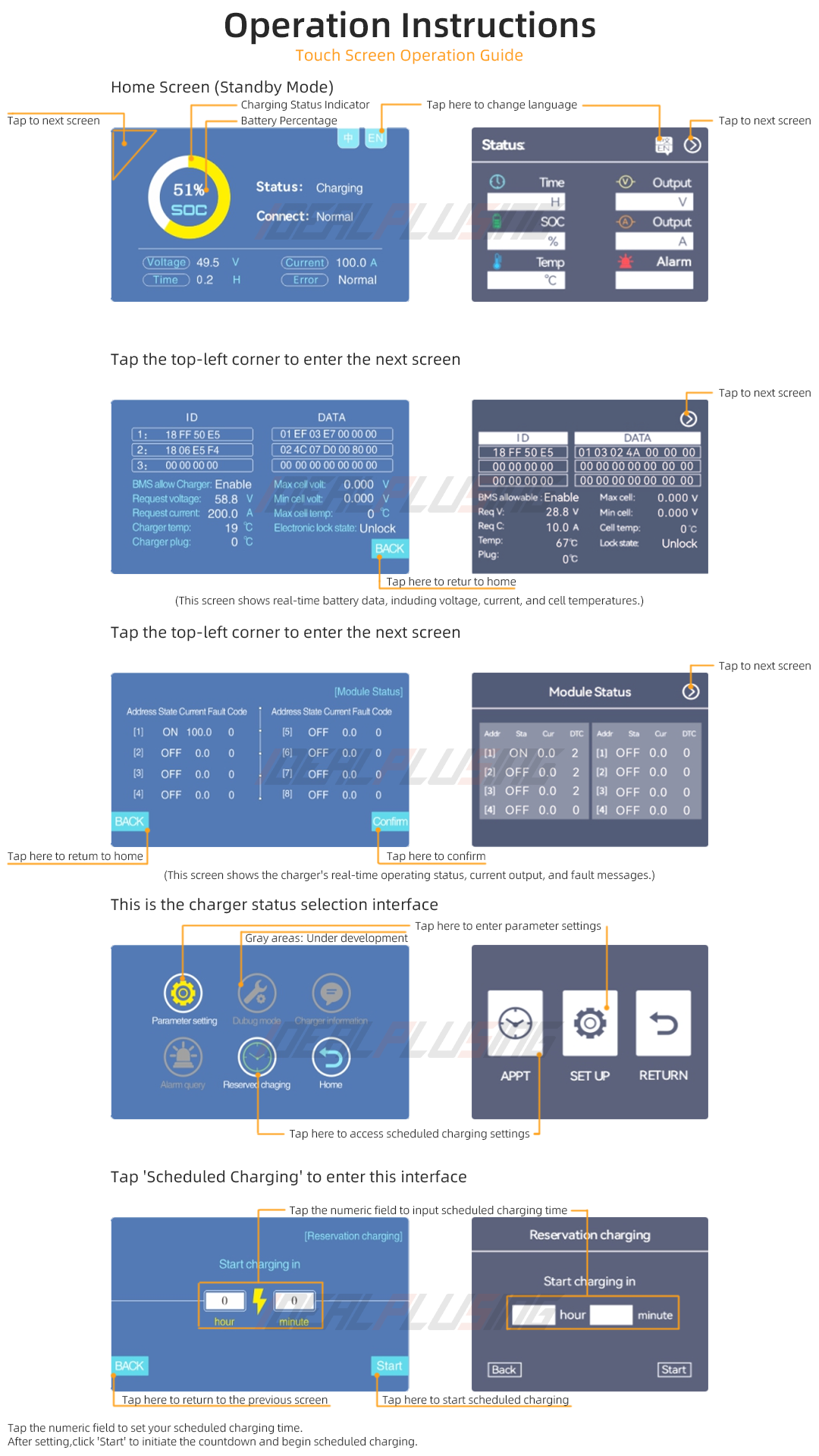

Details Images
Application Scope

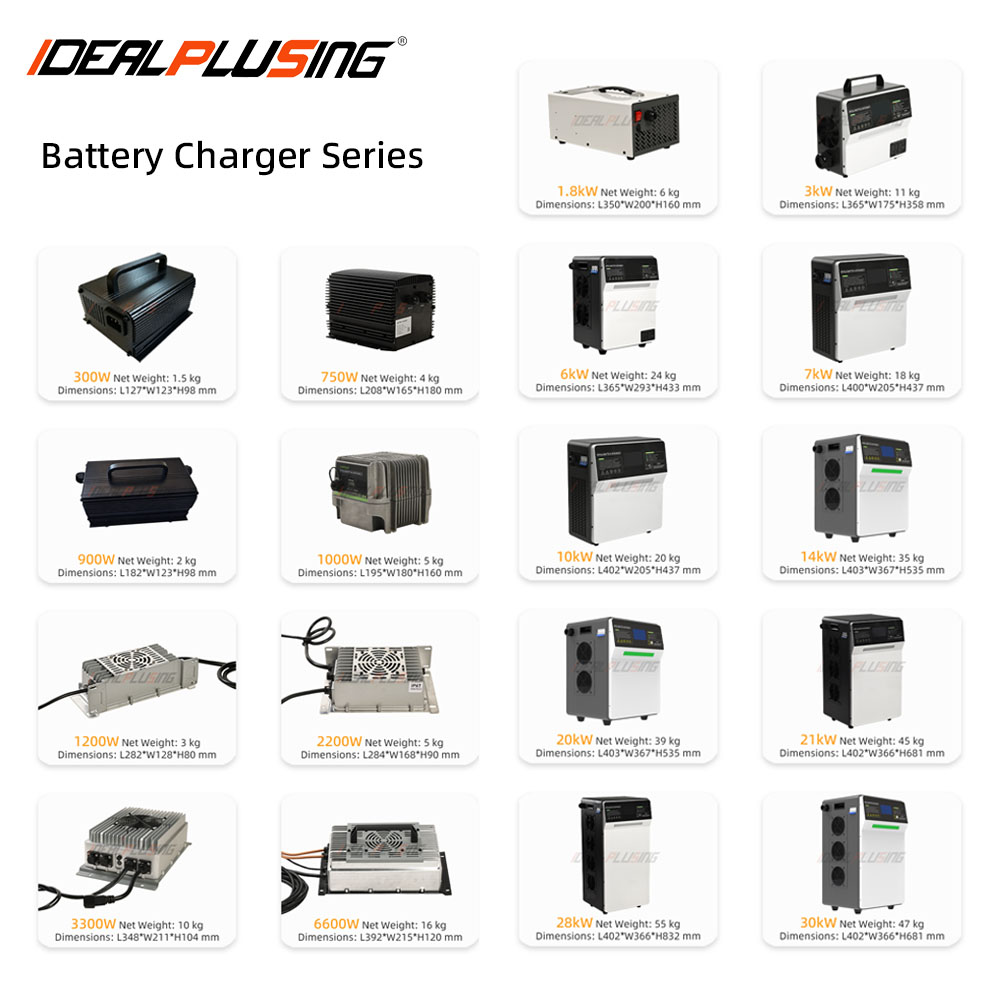

Model list
| Complete Power Series Model Matrix | |||||||
|---|---|---|---|---|---|---|---|
| NO | Model | AC Input Voltage | Rated Output Volt | Rated Output Current | Rated Output Power | Net Weight | Size (MM) |
| IPS-OB-Series-300W | |||||||
| 1 | IPS-OB1215 | 1 Phase 100-240V | 12V | 15A | 216W | 1.5KG | 127*123*98 |
| 2 | IPS-OB2410 | 1 Phase 100-240V | 24V | 10A | 288W | 1.5KG | 127*123*98 |
| 3 | IPS-OB485 | 1 Phase 100-240V | 48V | 5A | 288W | 1.5KG | 127*123*98 |
| IPS-OB-Series-750W | |||||||
| 4 | IPS-OB2425 | 1 Phase 100-240V | 24V | 25A | 720W | 4KG | 208*165*180 |
| 5 | IPS-OB4815 | 1 Phase 100-240V | 48V | 15A | 810W | 4KG | 208*165*180 |
| IPS-OB-Series-900W | |||||||
| 6 | IPS-OB2430 | 1 Phase 100-240V | 24V | 30A | 864W | 2KG | 182*123*98 |
| 7 | IPS-OB4815-1 | 1 Phase 100-240V | 48V | 15A | 810W | 2KG | 182*123*98 |
| 8 | IPS-OB6013 | 1 Phase 100-240V | 60V | 13A | 889W | 2KG | 182*123*98 |
| IPS-OB-Series-1000W | |||||||
| 9 | IPS-OB2436 | 1 Phase 180-240V | 24V | 36A | 1036W | 5KG | 195*180*160 |
| 10 | IPS-OB4818 | 1 Phase 180-240V | 48V | 18A | 972W | 5KG | 195*180*160 |
| IPS-OB-Series-1200W | |||||||
| 11 | IPS-OB2430-1 | 1 Phase 100-240V | 24V | 30A | 864W | 3KG | 282*128*80 |
| 12 | IPS-OB4820 | 1 Phase 100-240V | 48V | AC110V/15A, AC220V/20A | 1080W | 3KG | 282*128*80 |
| 13 | IPS-OB6015 | 1 Phase 100-240V | 60V | AC110V/12A, AC220V/15A | 1026W | 3KG | 282*128*80 |
| 14 | IPS-OB8010 | 1 Phase 100-240V | 80V | 10A | 900W | 3KG | 282*128*80 |
| IPS-OB-Series-2200W | |||||||
| 15 | IPS-OB2450 | 1 Phase 100-240V | 24V | AC110V/30A, AC220V/50A | 1440W | 5KG | 284*168*90 |
| 16 | IPS-OB4835 | 1 Phase 100-240V | 48V | AC110V/20A, AC220V/35A | 1890W | 5KG | 284*168*90 |
| 17 | IPS-OB6030 | 1 Phase 100-240V | 60V | AC110V/15A, AC220V/30A | 2052W | 5KG | 284*168*90 |
| 18 | IPS-OB7225 | 1 Phase 100-240V | 72V | AC110V/13A, AC220V/25A | 2070W | 5KG | 284*168*90 |
| IPS-OB-Series-3300W | |||||||
| 19 | IPS-OB24100 | 1 Phase 100-240V | 24V | AC110V/50A, AC220V/100A | 2880W | 10KG | 348*211*104 |
| 20 | IPS-OB3670 | 1 Phase 100-240V | 36V | AC110V/35A, AC220V/70A | 3024W | 10KG | 348*211*104 |
| 21 | IPS-OB4850 | 1 Phase 100-240V | 48V | AC110V/25A, AC220V/50A | 2700W | 10KG | 348*211*104 |
| 22 | IPS-OB7235 | 1 Phase 100-240V | 72V | AC110V/20A, AC220V/40A | 2898W | 10KG | 348*211*104 |
| 23 | IPS-OB9630 | 1 Phase 100-240V | 96V | AC110V/15A, AC220V/30A | 3240W | 10KG | 348*211*104 |
| IPS-OB-Series-6600W | |||||||
| 24 | IPS-OB48100 | 3 Phase 380V | 48V | 100A | 5400W | 16KG | 392*215*120 |
| 25 | IPS-OB8070 | 3 Phase 380V | 80V | 70A | 6300W | 16KG | 392*215*120 |
| 26 | IPS-OB9660 | 3 Phase 380V | 96V | 60A | 6480W | 16KG | 392*215*120 |
| IPS-CHB-Series-1.8KW | |||||||
| 27 | IPS-CHB2450 | 1 Phase 220V | 24V | 50A | 1440W | 6KG | 350*200*160 |
| 28 | IPS-CHB2460 | 1 Phase 220V | 24V | 60A | 1728W | 6KG | 350*200*160 |
| 29 | IPS-CHB4830 | 1 Phase 220V | 48V | 30A | 1728W | 6KG | 350*200*160 |
| 30 | IPS-CHB6025 | 1 Phase 220V | 60V | 25A | 1825W | 6KG | 350*200*160 |
| 31 | IPS-CHB7220 | 1 Phase 220V | 72V | 20A | 1752W | 6KG | 350*200*160 |
| IPS-CHB-Series-3KW | |||||||
| 32 | IPS-CHB24100 | 1 Phase 100-240V | 24V | 100A | 2880W | 11KG | 365*175*358 |
| 33 | IPS-CHB3650 | 1 Phase 100-240V | 36V | 50A | 2160W | 11KG | 365*175*358 |
| 34 | IPS-CHB4850 | 1 Phase 100-240V | 48V | 50A | 2880W | 11KG | 365*175*358 |
| 35 | IPS-CHB7235 | 1 Phase 100-240V | 72V | 35A | 3066W | 11KG | 365*175*358 |
| IPS-CHB-Series-6KW | |||||||
| 36 | IPS-CHB24150 | 1 Phase 100-240V | 24V | 150A | 4320W | 24KG | 365*293*433 |
| 37 | IPS-CHB24200 | 1 Phase 100-240V | 24V | 200A | 5760W | 24KG | 365*293*433 |
| 38 | IPS-CHB48100 | 1 Phase 100-240V | 48V | 100A | 5760W | 24KG | 365*293*433 |
| 39 | IPS-CHB8065 | 1 Phase 100-240V | 80V | 65A | 5700W | 24KG | 365*293*433 |
| IPS-CHB-Series-7KW | |||||||
| 40 | IPS-CHB36100 | 3 phase 380V/480V | 36V | 100A | 4320W | 18KG | 400*205*437 |
| 41 | IPS-CHB48100-1 | 3 phase 380V/480V | 48V | 100A | 5700W | 18KG | 400*205*437 |
| 42 | IPS-CHB48100-2 | 3 phase 380V/480V | 48V | 100A | 5700W | 18KG | 400*205*437 |
| 43 | IPS-CHB8070 | 3 phase 380V/480V | 80V | 70A | 6500W | 18KG | 400*205*437 |
| 44 | IPS-CHB9660 | 3 phase 380V/480V | 96V | 60A | 7000W | 18KG | 400*205*437 |
| 45 | IPS-CHB115.250 | 3 phase 380V/480V | 115.2V | 50A | 6500W | 18KG | 400*205*437 |
| IPS-CHB-Series-10KW | |||||||
| 46 | IPS-CHB48150 | 3 phase 380V/480V | 48V | 150A | 8.6KW | 20KG | 402*205*437 |
| 47 | IPS-CHB80100 | 3 phase 380V/480V | 80V | 100A | 8.7KW | 20KG | 402*205*437 |
| 48 | IPS-CHB96100 | 3 phase 380V/480V | 96V | 100A | 10.8KW | 20KG | 402*205*437 |
| 49 | IPS-CHB153.650 | 3 phase 380V/480V | 153.6V | 50A | 8.6KW | 20KG | 402*205*437 |
| IPS-CHB-Series-14KW | |||||||
| 50 | IPS-CHB36200 | 3 phase 380V/480V | 36V | 200A | 8.64KW | 35KG | 403*367*535 |
| 51 | IPS-CHB48200 | 3 phase 380V/480V | 48V | 200A | 10.8KW | 35KG | 403*367*535 |
| 52 | IPS-CHB80150-1 | 3 phase 380V/480V | 80V | 150A | 13.1KW | 35KG | 403*367*535 |
| 53 | IPS-CHB80150-2 | 3 phase 380V/480V | 80V | 150A | 13.1KW | 35KG | 403*367*535 |
| 54 | IPS-CHB115.2100 | 3 phase 380V/480V | 115.2V | 100A | 13KW | 35KG | 403*367*535 |
| 55 | IPS-CHB153.670 | 3 phase 380V/480V | 153.6V | 70A | 12.1KW | 35KG | 403*367*535 |
| IPS-CHB-Series-20KW | |||||||
| 56 | IPS-CHB48250 | 3 phase 380V/480V | 48V | 250A | 14.4KW | 39KG | 403*367*535 |
| 57 | IPS-CHB48300 | 3 phase 380V/480V | 48V | 300A | 17.28KW | 39KG | 403*367*535 |
| 58 | IPS-CHB80200 | 3 phase 380V/480V | 80V | 200A | 17.5KW | 39KG | 403*367*535 |
| 59 | IPS-CHB96200 | 3 phase 380V/480V | 96V | 200A | 21.6KW | 39KG | 403*367*535 |
| 60 | IPS-CHB153.6100 | 3 phase 380V/480V | 153.6V | 100A | 17KW | 39KG | 403*367*535 |
| IPS-CHB-Series-21KW | |||||||
| 61 | IPS-CHB48250-1 | 3 phase 220V | 48V | 250A | 14.4KW | 45KG | 402*366*681 |
| 62 | IPS-CHB48300-1 | 3 phase 220V | 48V | 300A | 17.2KW | 45KG | 402*366*681 |
| 63 | IPS-CHB80150 | 3 phase 220V | 80V | 150A | 13KW | 45KG | 402*366*681 |
| IPS-CHB-Series-28KW | |||||||
| 64 | IPS-CHB80250 | 3 phase 220V | 80V | 250A | 21.9KW | 55KG | 402*366*832 |
| IPS-CHB-Series-30KW | |||||||
| 65 | IPS-CHB80250-1 | 3 phase 380V/480V | 80V | 250A | 21.9KW | 47KG | 402*366*681 |
| 66 | IPS-CHB80250-2 | 3 phase 380V/480V | 80V | 250A | 21.9KW | 47KG | 402*366*681 |
| 67 | IPS-CHB80300 | 3 phase 380V/480V | 80V | 300A | 26.2KW | 47KG | 402*366*681 |
| 68 | IPS-CHB153.6150 | 3 phase 380V/480V | 153.6V | 150A | 26KW | 47KG | 402*366*681 |
Company Profile
IDEALPLUSING, we focus on the research and development, sales and service of D C to D C power supply module, A C to D C rectifier module, D C to A C inverter, A C power supply, D C power supply, L E D power supply, charger, rectifier system and other fields, to provide personalized, efficient, reliable and cost-effective power supply solutions for all industries. We are not only selling products. What we want to give our customers the right power supply solution, giving a better quotation solution with the right items. Together, let's make it much better.
Frequently Asked Questions (FAQ)
1. What battery types are compatible with your industrial DC power supply chargers?
Our smart battery chargers are highly versatile and fully compatible with both industrial-grade Lead-Acid and Lithium battery packs (including LiFePO4 and Li-ion options).
2. How does the integrated potting sealing process benefit harsh environment applications?
The combination of an integrated die-cast housing and a full potting sealing process provides an outstanding IP67 protection rating. This ensures robust waterproof, dustproof, and shock-resistant performance perfect for demanding factory and outdoor sites.
3. What built-in safety protections are integrated into these battery chargers?
Every charger features real-time diagnostic systems protecting against overcurrent, overtemperature, output short circuits, reverse polarity connection, undervoltage, and overvoltage, along with dynamic current regulation.
4. Can I request customized protocols and custom output plugs?
Yes. Both communication protocols and output power plug types can be fully customized during the design phase to match your specific system architecture and application requirements.
5. Why are the prices on your specification page listed as reference only?
Final pricing depends heavily on specific technical customization requirements, order quantities, material market indexes, and configuration needs. Our team ensures transparent, honest recalculations based on your exact quote requests.
6. What is the efficiency rating of these high-power industrial series chargers?
Our standard series models achieve an exceptional conversion efficiency rating of ≥92%, while our heavy-duty industrial series (such as the 6600W range) delivers a premium conversion efficiency of ≥94% with power factors up to ≥0.99.
