Waterproof 12v or 24v to 14.5v 8a Boost Module Converter Charger 12vdc to 14.5vdc 8amp for Charging Lithium Battery
Product Description

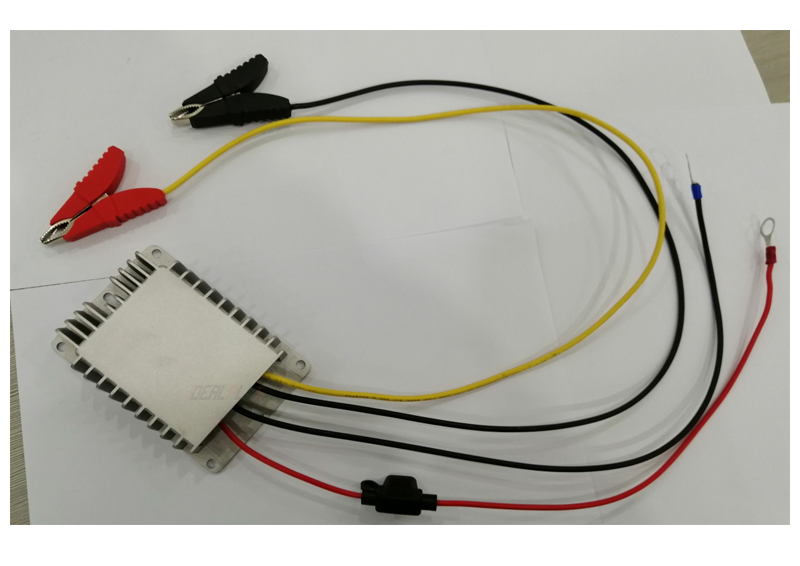

Waterproof 12V/24V to 14.5V 8A Boost Module Converter Charger
High-efficiency power solution for Lithium Battery Charging
Key Features
✔️
Design meeting RoHS/CE standards
🔋
Specifically for Lithium Battery Charging
⚡
100% full stable output current
🛡️
100% burn-in test & full rated power
💎
Non-isolated between input and output
📅
12 months comprehensive warranty
Technical Specifications
| IPS-DTD12S14.58 Parameter Details | |
|---|---|
| INPUT | |
| Input Rated Voltage | 12VDC |
| Input Voltage Range | 8~36VDC |
| Input Cable | 40CM port with ring terminal (10MM) |
| OUTPUT | |
| Output Voltage | 14.5VDC |
| Output Current | 8A |
| Output Rated Power | 116W |
| Output Cable | 60CM interface with heavy battery clip |
| OTHERS | |
| Efficiency | 94% |
| Ripple and Noise | 150(mVp-p) |
| Working Temperature | -40°C ~ +80°C |
| Waterproof Rating | IP65 |
| Protections | Over-current, Over-voltage, Over-temperature, Shutdown, Short-circuit, Reverse Polarity |
| Machine Size | 118*80*28 (MM) |
| Cooling | Free air convection |
Customization Range
| Type | Voltage Convert | Output Current Options |
|---|---|---|
| Boost DC-DC | 5V to 12V | 1/2/3/5/8/10A |
| Boost DC-DC | 12V to 24V | 1/2/3/5/8/10/15/20/30/40A |
| Boost DC-DC | 12V to 48V | 1/2/3/4/5/8/10/15/20A |
| Buck DC-DC | 24V to 12V | 1/2/3/5/8/10/15/20/30/40/60A |
| Buck DC-DC | 48V to 24V | 5/8/10/12/15/18/20A |
| Auto Buck-Boost | 12V to 12V | 1/2/3/4/6/8/10/12A |
Factory & Production Display

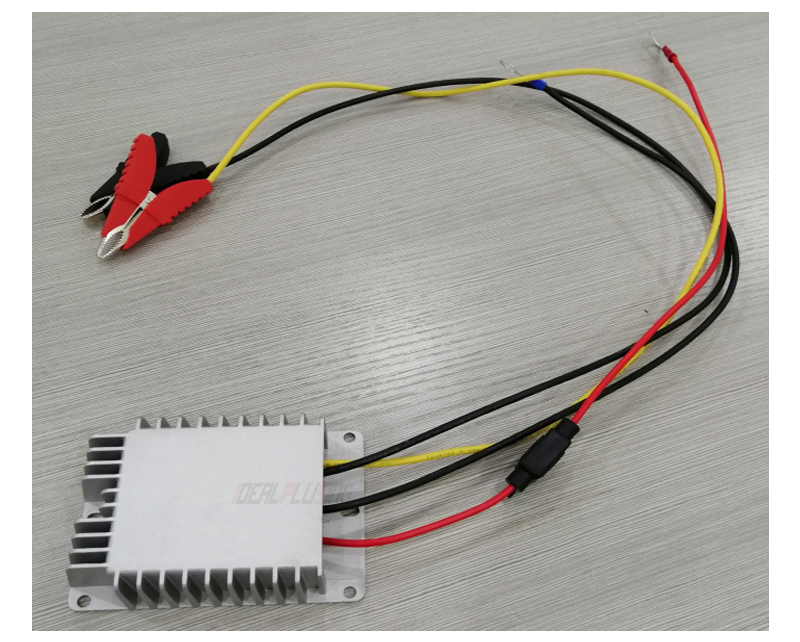

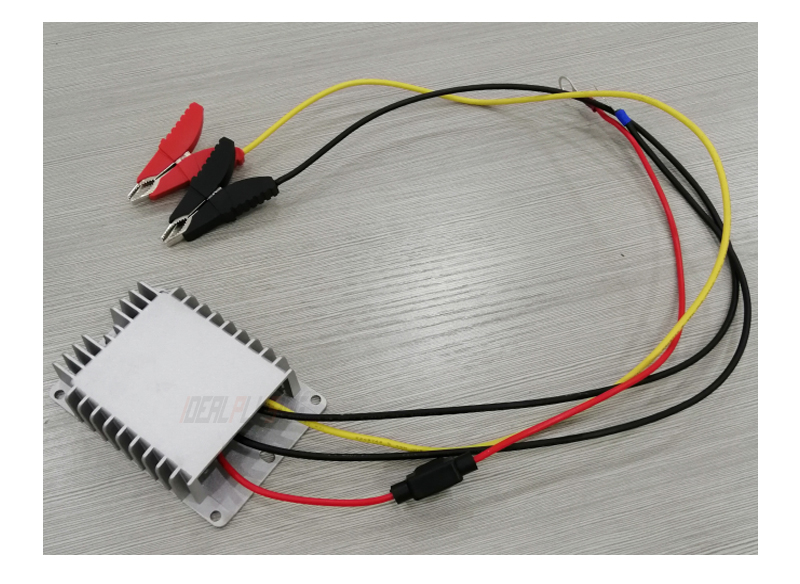

Product Detailed View
Frequently Asked Questions
❓ Q1. Can I have a sample order?
Yes, sample order is acceptable to test and check quality for the first cooperation.
❓ Q2. What about the lead time?
Most models are in stock. Sample lead time after receiving payment is 1-3 working days.
❓ Q3. Do you have any MOQ limit?
Low MOQ, 5 pieces for sample checking is available.
❓ Q4. How do you ship the goods and how long does it take to arrive?
We often ship by DHL, UPS, FedEx, or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping are also optional.
❓ Q5. Is it acceptable to print my logo on the product?
Yes. Please inform us formally before our production and confirm the design based on our sample.
❓ Q6. Do you offer a guarantee for the products?
Yes, we offer a 1-year warranty for all power supplies.
