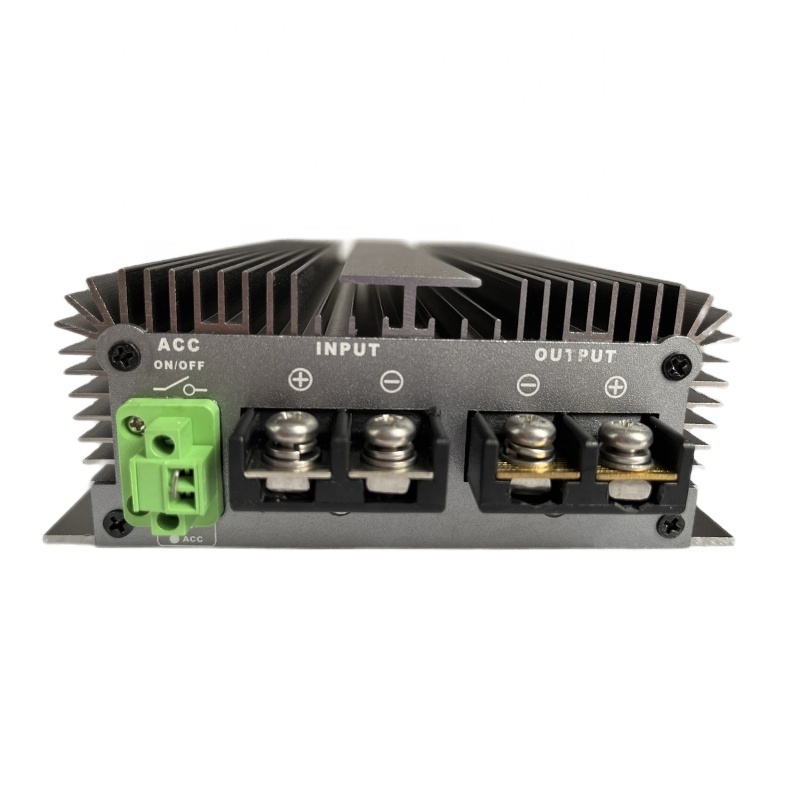

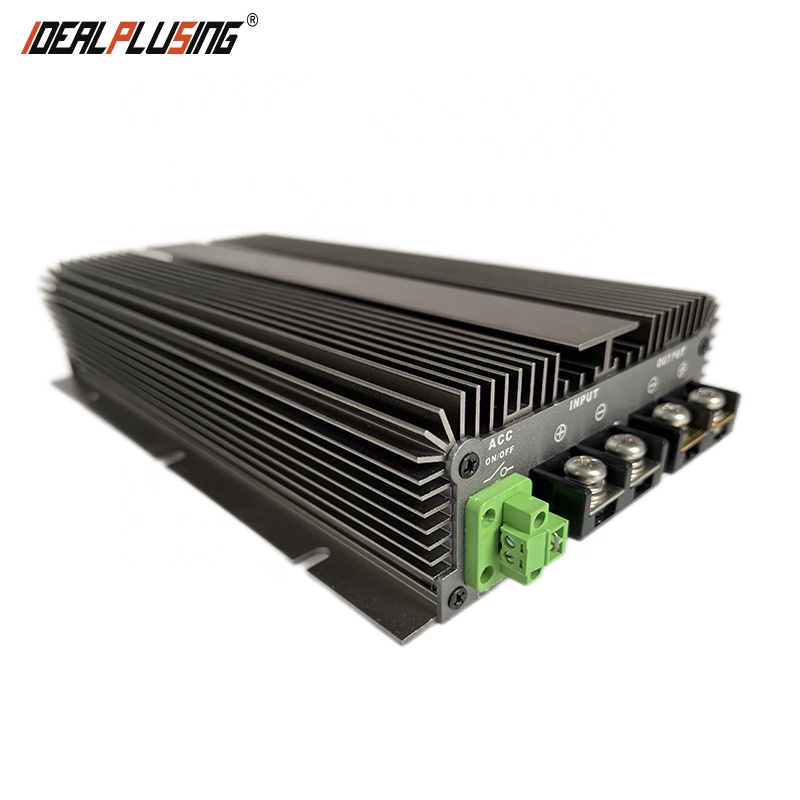

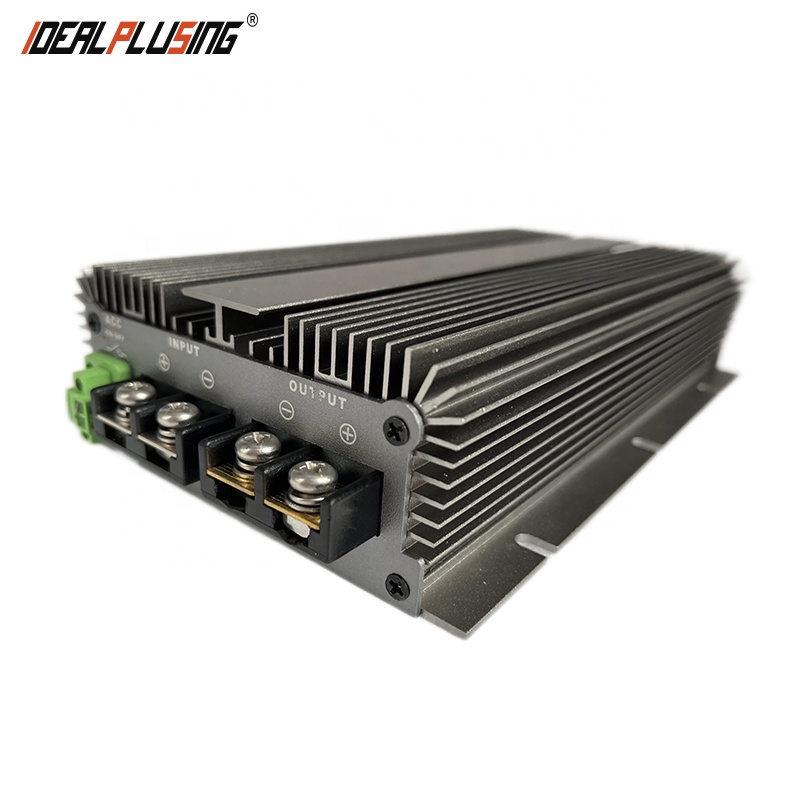

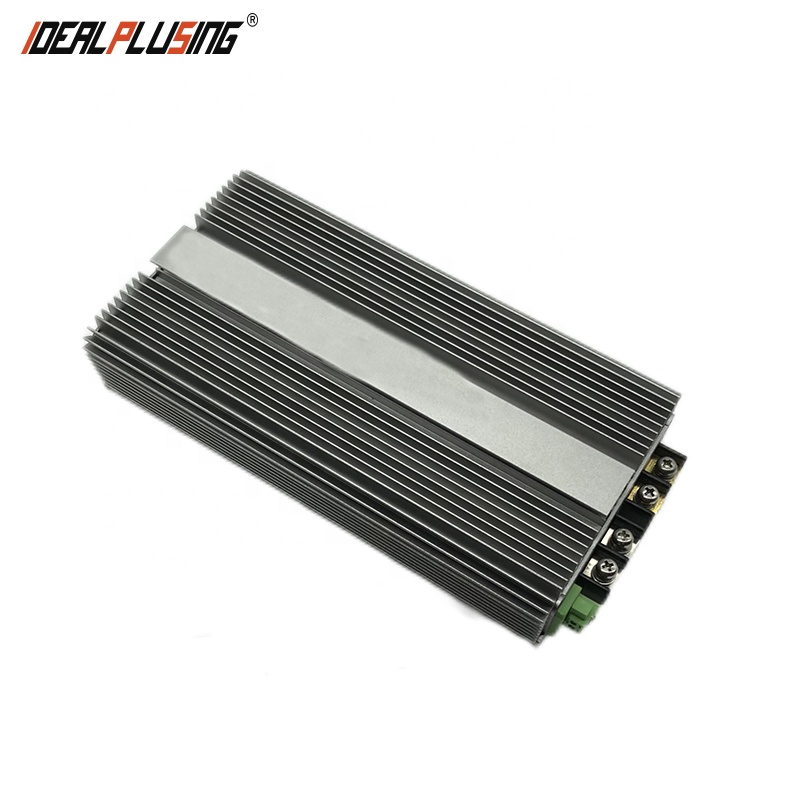

Factory Sales Waterproof IP67 24V to 48V 10A 480W DC to DC Converter Charger with CE Rohs for Car/Bus/Truck/Radio
Product Description
🔥 Hot Selling Step Down DC/DC Converters
| NO | DC Input Range to DC Output | NO | DC Input Range to DC Output |
| #1 | 30~120VDC to 12VDC 20A 240W | #7 | 50~90VDC to 48VDC 30A 1440W |
| #2 | 20~60VDC to 12VDC 5A 60W | #8 | 30~60VDC to 24VDC 30A 720W |
| #3 | 30~60VDC to 24VDC 20A 480W | #9 | 15~32VDC to 19VDC 10A 190W |
| #4 | 30~60VDC to 13.8VDC 10A 138W | #10 | 30~60VDC to 12VDC 30A 360W |
| #5 | 30~60VDC to 12VDC 10A 120W | #11 | 30~90VDC to 24VDC 20A 480W |
| #6 | 30~60VDC to 12VDC 50A 600W | #12 | 30~60VDC to 13.8VDC 60A 828W |
⚙️ Main Features
✅Design meeting RoHS / CE
🚀High efficiency: 93%
🔗Non-isolated between input and output
💎Internal capacitor: NCC & NICHICON
🛡️100% full load burn-in test
⚡Over load, temperature and voltage protections
💧Waterproof level IP67
📅12 Months warranty
📱 Applications
- Trucks
- Forklifts
- Buses
- Logging Vehicles
- Electromotor
- Telecommunications
- Boat & Yacht
- LED Marketplaces
📋 Technical Specifications
| Type | NON-Isolated |
| Model | IPS-DTD24S4810 |
| DC Voltage Input | |
| Input Voltage rate | 24VDC |
| Input Voltage range | 10~32VDC |
| DC Voltage & Current Output | |
| Output Voltage rate | 48VDC |
| Output Current | 10A |
| Output Rate Power | 480W |
| Converter Size | 150*130*50(MM) |
| Efficiency | 93% |
| Waterproof Level | IP67 |
| Protection function | Overcurrent, Overvoltage, Undervoltage, Over-temperature |
📊 DC Model List
⭐ Recommended Products
📝 Product Details & Notes
❓ Frequently Asked Questions
What is the waterproof rating of these converters?
All our high-performance converters feature an IP67 waterproof level, making them suitable for harsh environments like marine and outdoor automotive use.
Do these units support battery charging?
Yes, our DC/DC converters are designed to support battery charging applications with stable voltage and current output.
What is the efficiency of the DC to DC conversion?
The converters achieve a high efficiency of up to 93%, ensuring minimal energy loss and reduced heat generation.
What safety protections are integrated?
The units include full protection against overcurrent, overvoltage, undervoltage, and over-temperature to ensure long-term reliability.
Can I customize the current output?
Yes, we allow customization for currents ranging from 1A to 30A. Please note that size and weight may vary depending on the current rating.
What certification standards do these products meet?
Our designs meet RoHS and CE standards, utilizing high-quality internal capacitors from NCC and NICHICON for maximum reliability.
