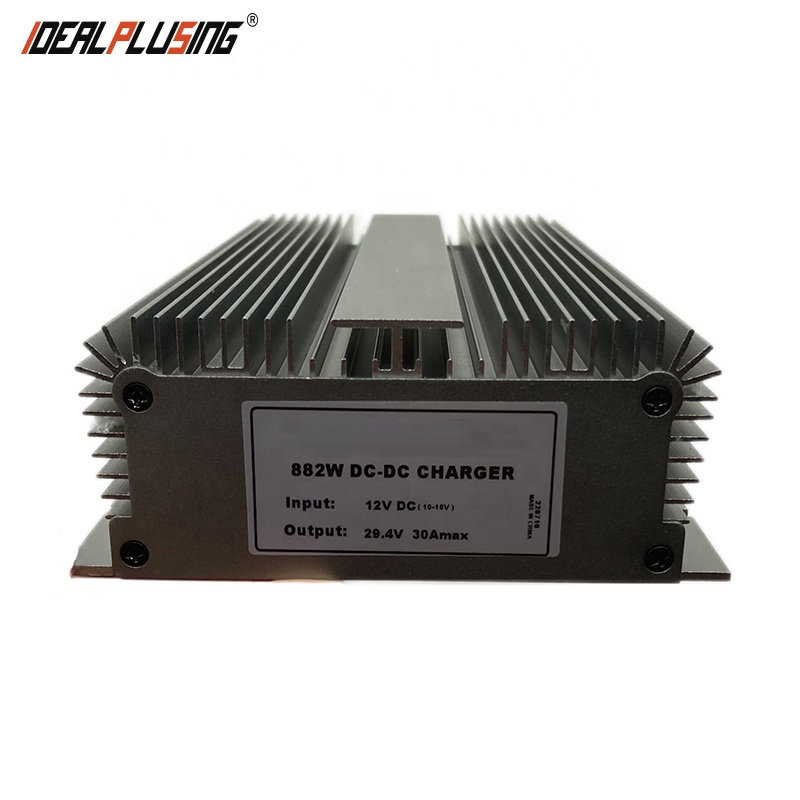

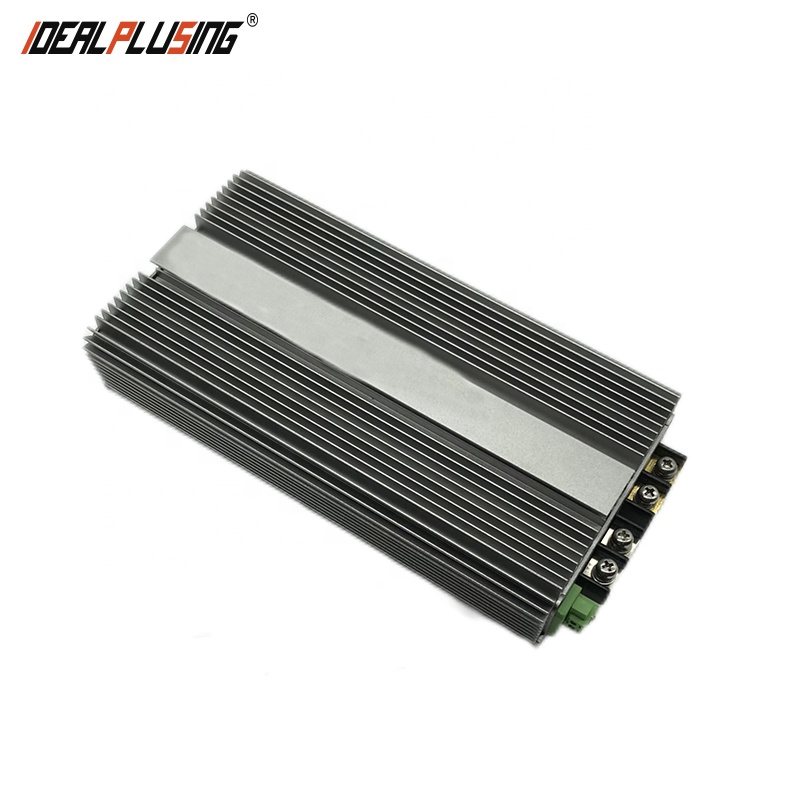

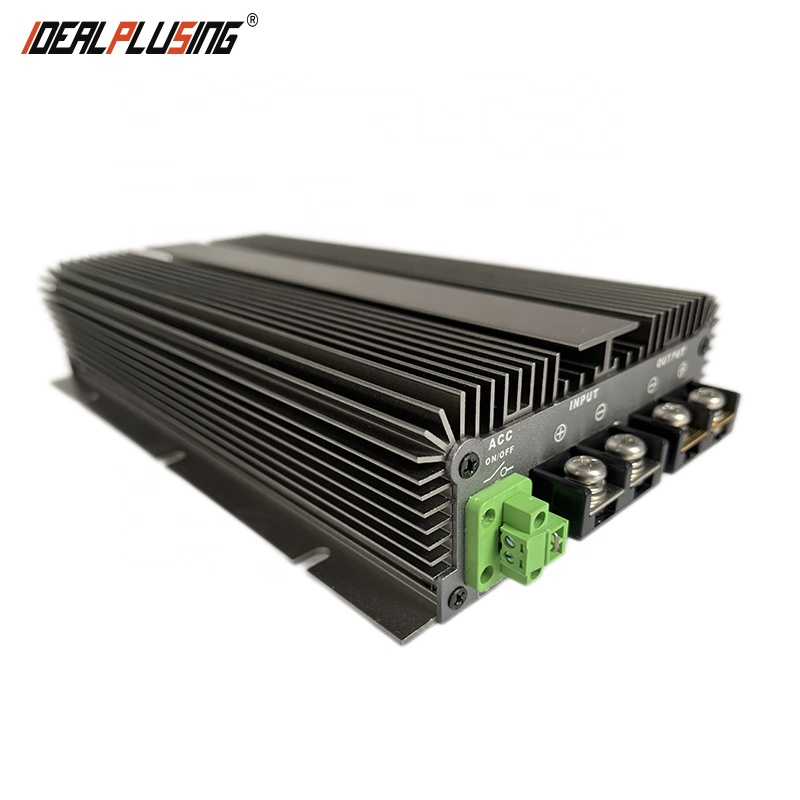

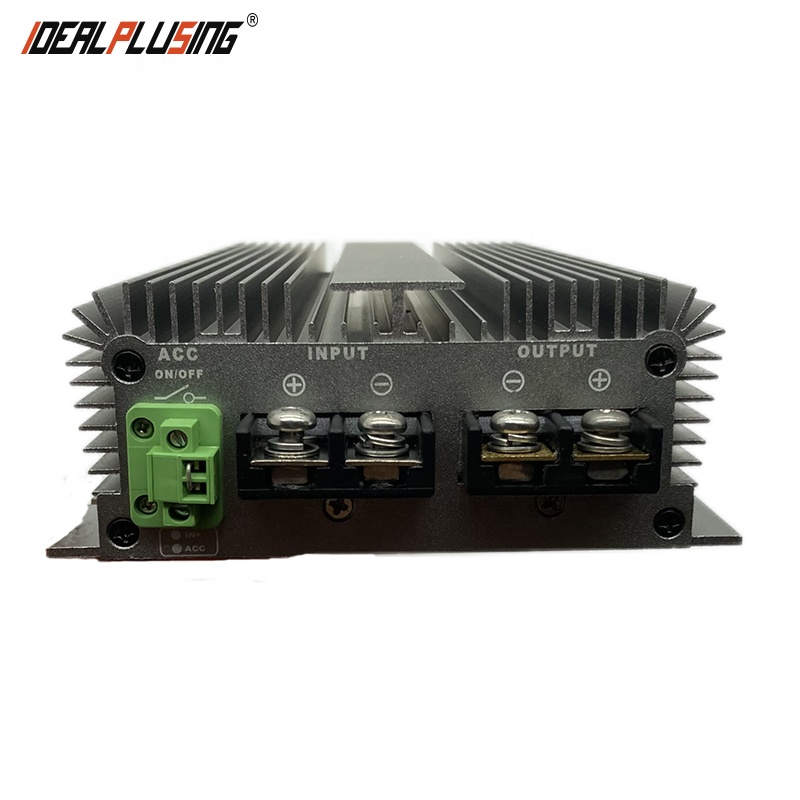

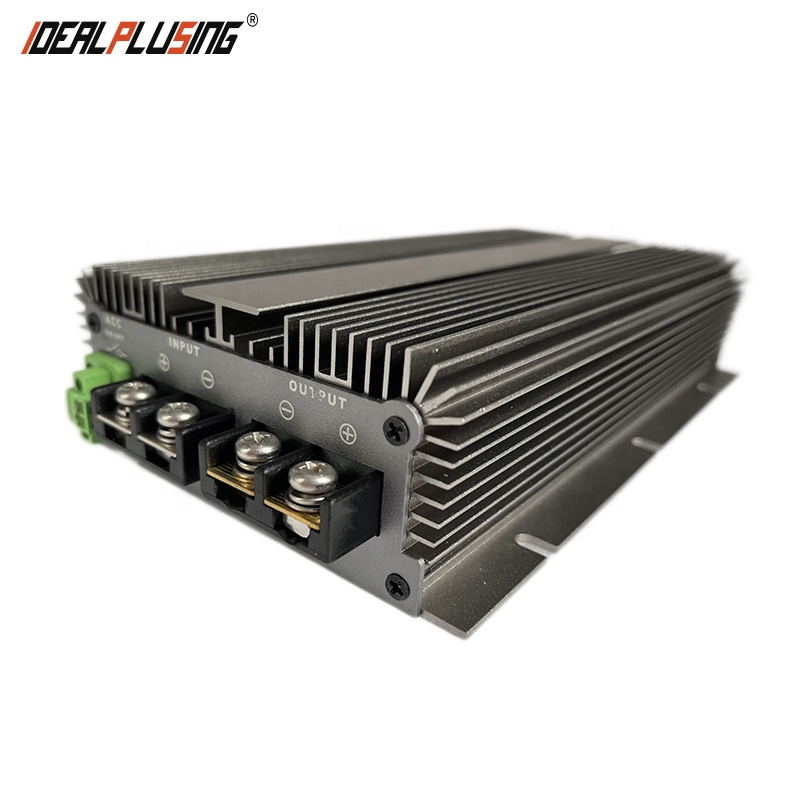

Waterproof Step up Converter Lifepo4 12V 24V to 56V Boost DC to DC Battery Charger 30A Use for RV Charging
Product Description
Waterproof Step Up Converter LifePo4 12V 24V to 56V Boost DC to DC Battery Charger 30A
⚡
High Efficiency
92% Conversion Rate
🛡️
Waterproof IP65
Resistant to Dust & Water
🔋
Boost Charging
Designed for RV/LifePo4
| TECHNICAL SPECIFICATIONS | ||
|---|---|---|
| Product Type | Non-Isolate Step-Up Converter | |
| Input Voltage | 12V/24VDC Battery Range | |
| Efficiency | 92% | |
| Output Volts | 56VDC | 58VDC |
| Output Current | 30A | 30A |
| Rated Power | 1680W | 1740W |
| Voltage Regulation | < 1% | |
| Load Regulation | < 2% | |
| Ripple | < 50mV | |
| Working Temp | -40°C ~ +80°C | |
| Machine Size | 220 * 156 * 65 (MM) | |
| Net Weight | 3.5 KG | |
| Cooling | Free Air Convection | |
| Certifications | CE, RoHS | |
Dimension & Attributes Showcase
Frequently Asked Questions
What is the input voltage range for this converter?
This step-up converter is compatible with 12V and 24V DC battery systems.
Is this unit suitable for outdoor use?
Yes, it features an IP65 waterproof rating, making it resistant to water and dust ingress.
What cooling method does the device use?
The converter utilizes free air convection for cooling, ensuring reliable operation within a temperature range of -40°C to +80°C.
What is the conversion efficiency of this boost charger?
The device achieves a high efficiency of approximately 92%.
Can this converter be used for LifePo4 batteries?
Absolutely, it is specifically designed for use with LifePo4 batteries, commonly used in RV charging applications.
Does the device support customization?
Yes, customization is supported to meet specific application requirements.
