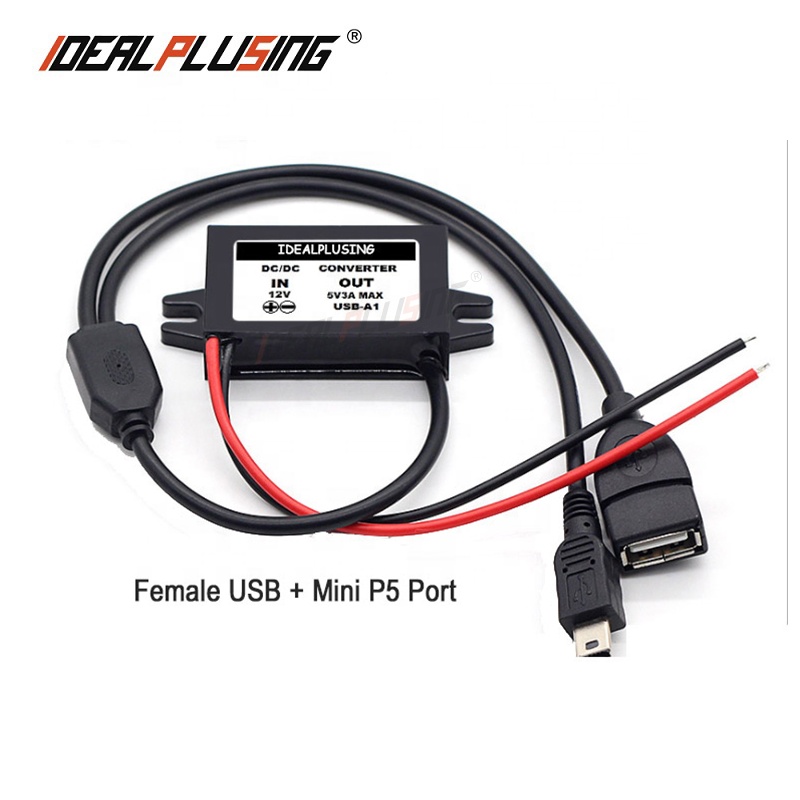

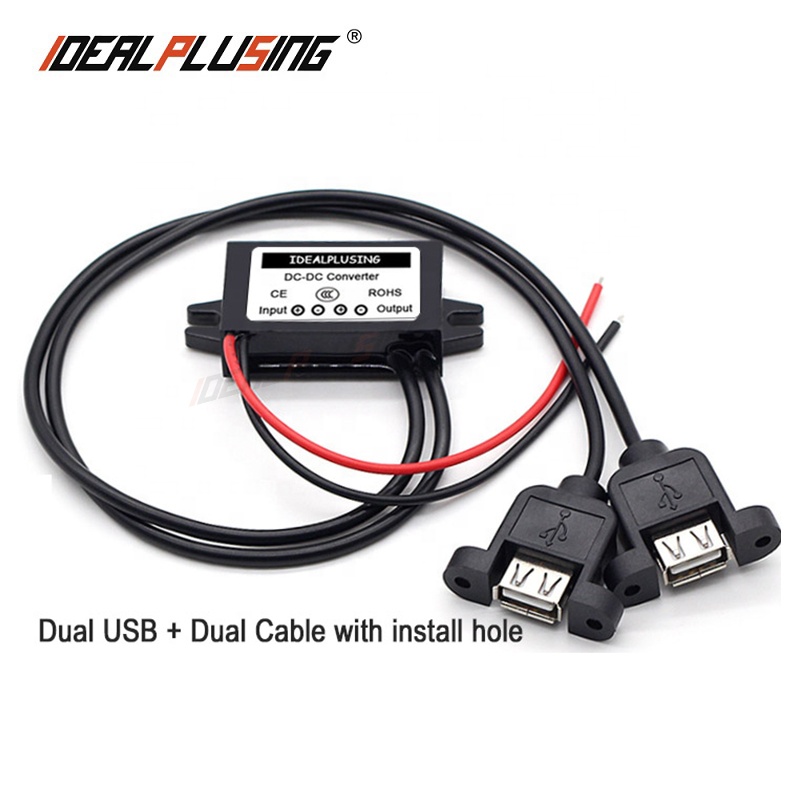

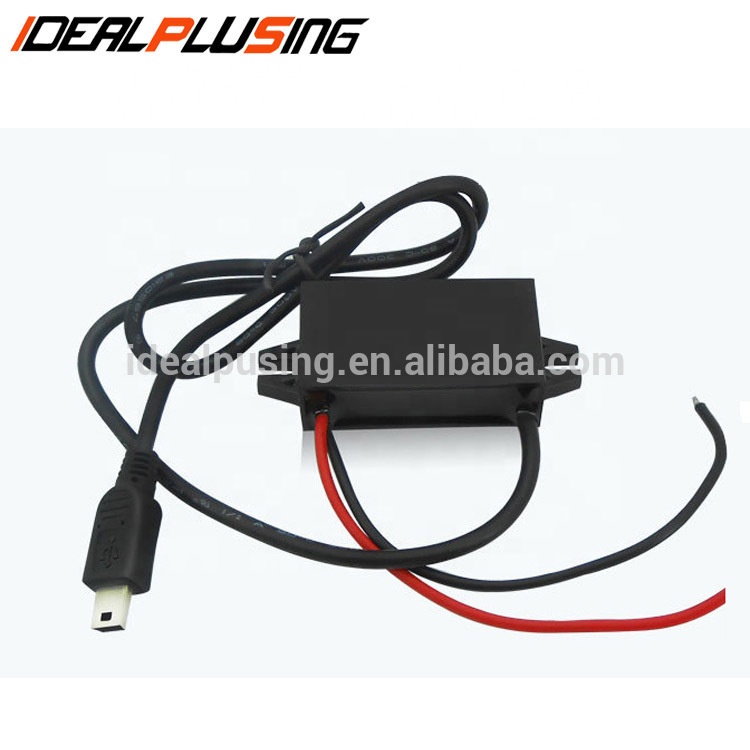

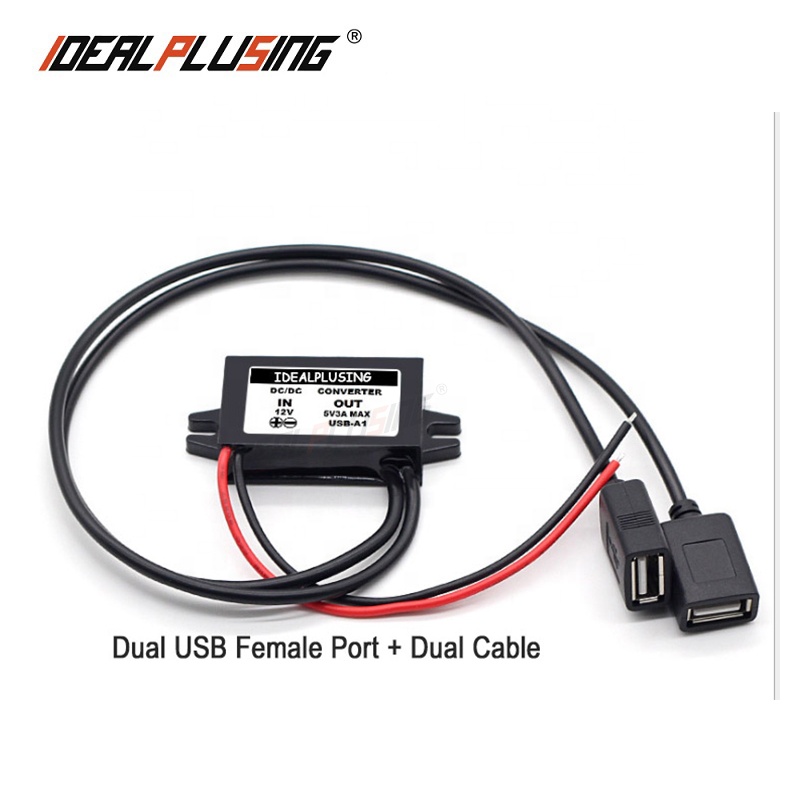

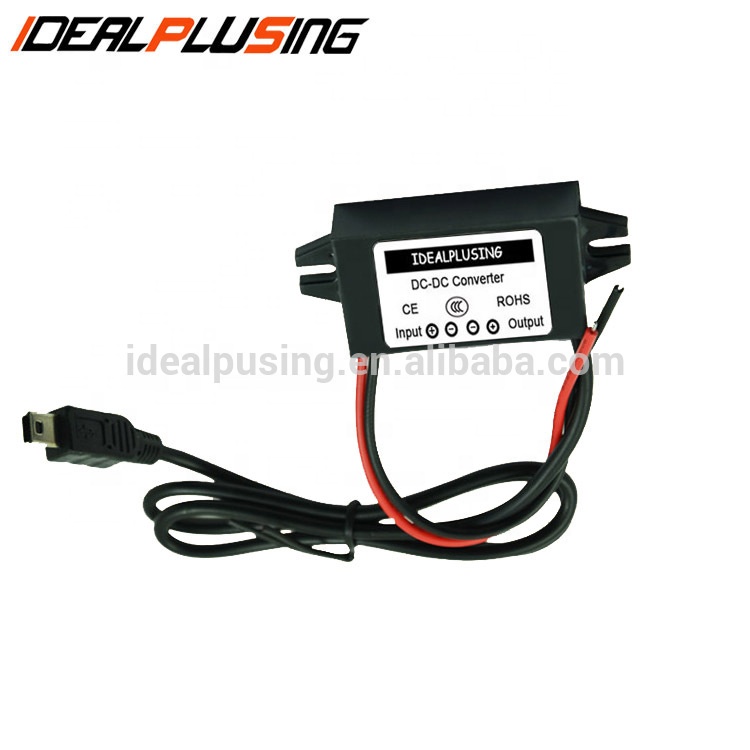

12v 24v to 5V DC DC Step Down Voltage Converter 3A 15W Mini USB Port Car Power Supply Charger for iPhone Samsung
Product Description
12v 24v to 5V DC DC Step Down Voltage Converter 3A 15W Mini USB Port Car Power Supply Charger
| Parameters | Details |
|---|---|
| Product Name | 12v 24v voltage converter |
| Model | IPS-DTD1224S53 |
| Input rated voltage | 12/24V DC |
| Input voltage range | 8-40 V DC |
| Conversion Efficiency | 96% |
| Output voltage | 5VDC |
| Output current | 3Amps (1-3A) |
| Output rated power | 15Watts |
| Output peak power | 125% |
| Voltage regulation | < 1% |
| Load regulation | < 2% |
| Ripple (full load test) | < 50mV |
| No-load current | < 20mA |
| Working Temperature | -40°c ~ +80°c |
| Waterproof rating | IP 68 |
| Protections | Over-load, Over-current, Over-temperature, Short-circuit, Over-voltage |

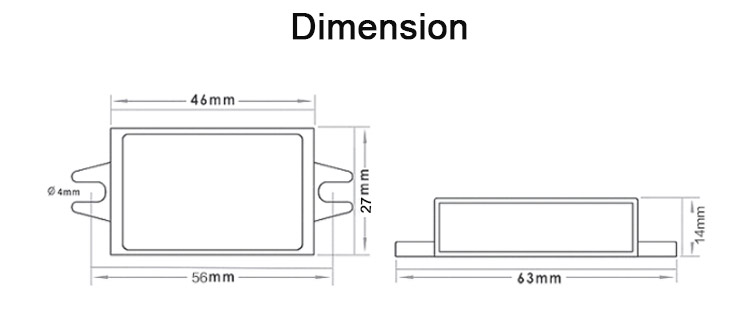

| Machine size | 46*27*14mm |
| Weight | 30g |
| Cooling way | Free air convection |
| Certifications | CE, RoHS |
📍 Navigation, Driving recorder, CCTV Camera
🚜 Electric motors, fans, Trucks, Golf Carts, Forklifts
📺 LED Car display, DVD, LED lights, Audio
☀️ Solar Power System, Photovoltaic energy
| Type | Voltage Conversion | Output Current Options |
|---|---|---|
| Boost DC-DC | 5v to 12v / 12v to 24v/48v | 1A to 40A |
| Buck DC-DC | 24v/36v/48v/60v to 5v/12v/24v | 1A to 85A |
| Auto Buck-Boost | 12v to 12v / 24v to 24v | 1A to 12A |
Q1. Can I have a sample order for testing?
Yes, we welcome sample orders to test and check the quality of the voltage converter.
Q2. What is the typical lead time for orders?
Most models are in stock. Sample lead time is usually 1-3 working days after receiving payment.
Q3. Do you have a Minimum Order Quantity (MOQ)?
We offer a low MOQ; even 5-10 pieces for sample checking is available.
Q4. How are the goods shipped and how long does it take?
We typically ship via DHL, UPS, FedEx, or TNT, which takes 3-5 days. Airline and sea shipping are also optional.
Q5. Is it possible to print a custom logo on the product?
Yes. Please inform us formally before production and confirm the design based on our sample.
Q6. What is the warranty period for the power supplies?
We offer a 1-year warranty for all power supply products.
