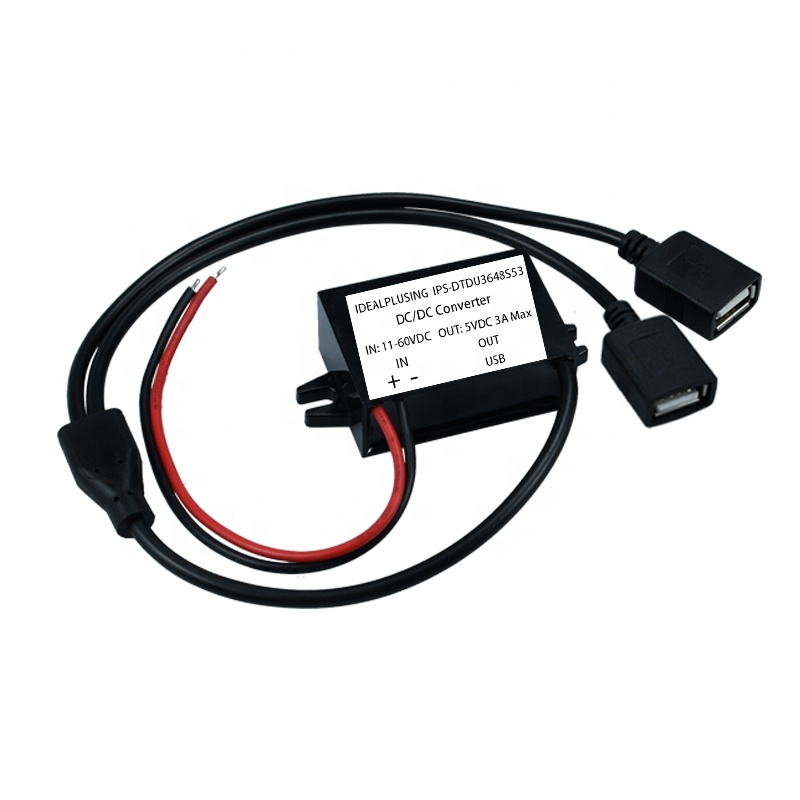

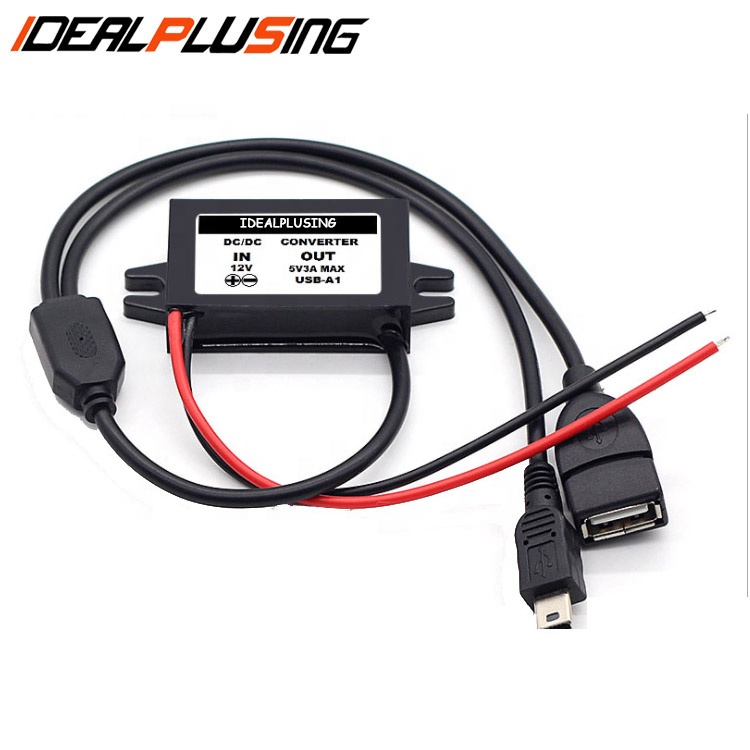

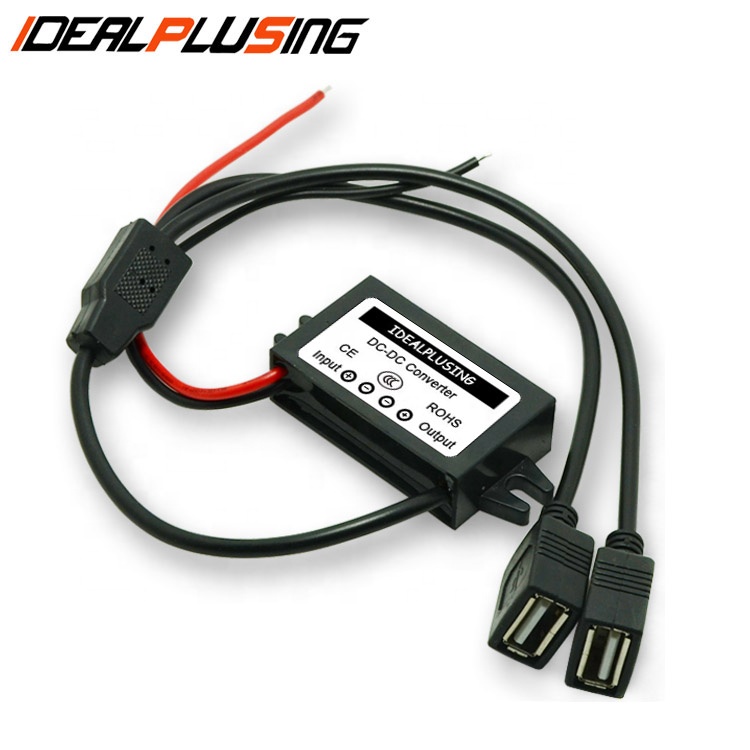

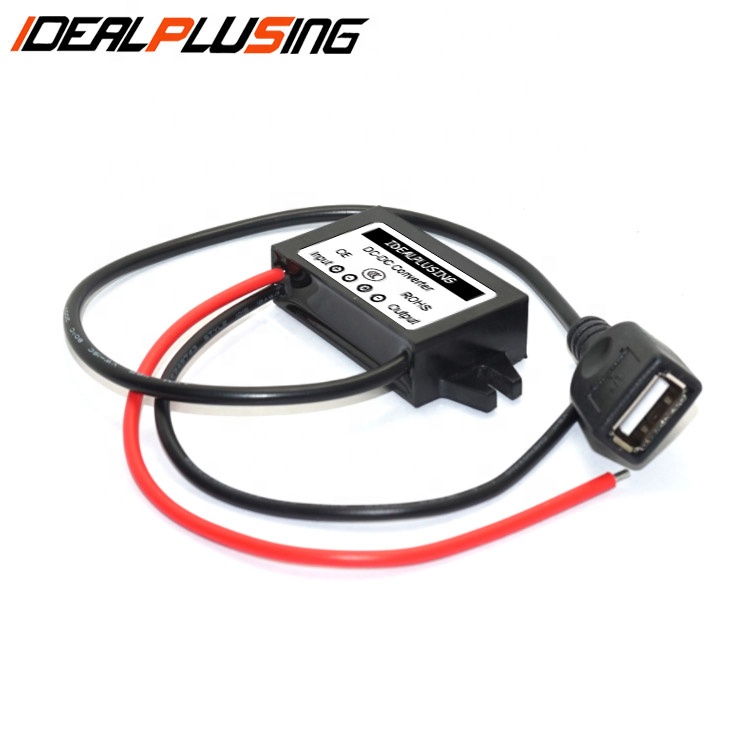

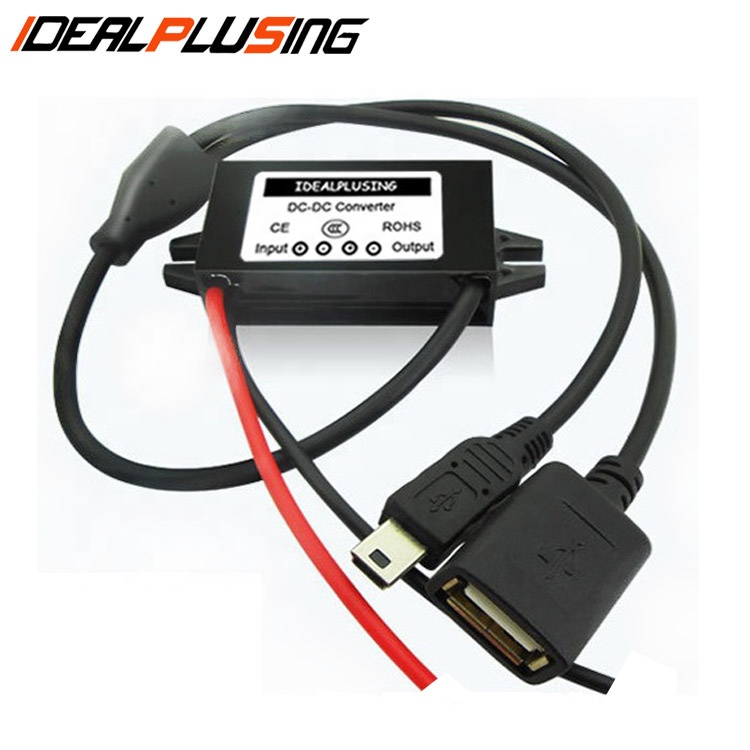

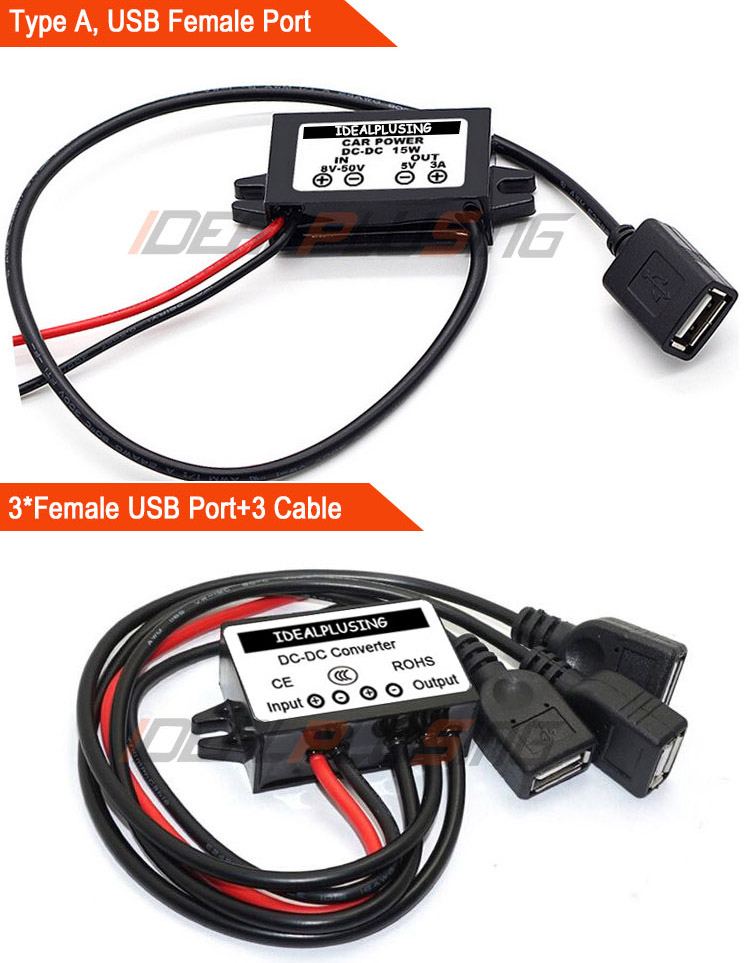

Factory Customization Waterproof IP67 Dc 90v to 5v Converter 3a 15w 1/2 Female USB+Female USB Buck Module Dc-dc Converter
Product Description
Factory Customization Waterproof IP67 DC 90V to 5V Converter 3A 15W 1/2 Female USB Buck Module DC-DC Converter
✔ 100% full power & stable current output
✔ 100% Imported components
✔ Wide input voltage from 8~35Vdc
✔ 100% waterproof & anti-shock protection
✔ Ultra compact size, light weight
✔ Industry grade power supply with USB output, efficiency up to 96%
✔ Certificates: CE/RoHS
✔ Waterproof level: IP68
✔ Plastic shell, epoxy potting, cooling by free air convection
✔ Protections: Over-current, Over-voltage, Over-temperature
✔ Over-load and Short-circuit Auto-recovery
✔ Non-Isolated Module with 100,000 hours lifetime
✔ Constant Voltage Design
| Parameter of Power Supply with USB Output | |
|---|---|
| Product Name | Power supply with USB output |
| Type | Non-Isolate |
| Model | IPS-DTDU90S53 |
| INPUT | |
| Input rated voltage | 90VDC |
| Input voltage range | 30-90VDC |
| OUTPUT | |
| Conversion Efficiency | 96% |
| Output voltage | 5VDC |
| Output current | 3A |
| Output rated power | 15W |
| Output peak power | 125% |
| OTHERS | |
| Voltage regulation | < 1% |
| Load regulation | < 2% |
| Ripple (full load test) | < 50mV |
| No-load current | < 20mA |
| Working Temperature | -40°c ~ +80°c |
| Waterproof rating | IP65 |
| Protections | Over-load, Over-current, Over-temperature, Short-circuit, Over-voltage |
| Machine size | 46*32*18(MM) |
| NW | 75G |
| Cooling way | Free air convection |
| Certifications | CE, RoHS |
| Customize / Sample order | Support |
| OEM & ODM | Support |
What is the input voltage range for this DC-DC converter?
The converter supports a wide input voltage range from 30VDC to 90VDC, with a rated input of 90VDC.
How efficient is the power conversion?
The module achieves a high conversion efficiency of up to 96%, ensuring minimal energy loss and reduced heat generation.
Is this buck module truly waterproof?
Yes, it features an IP65/IP68 waterproof rating with epoxy potting and a plastic shell, providing 100% waterproof and anti-shock protection.
What kind of built-in protections does it offer?
It includes multiple safety protections: over-load, over-current, over-temperature, short-circuit, and over-voltage protection with auto-recovery.

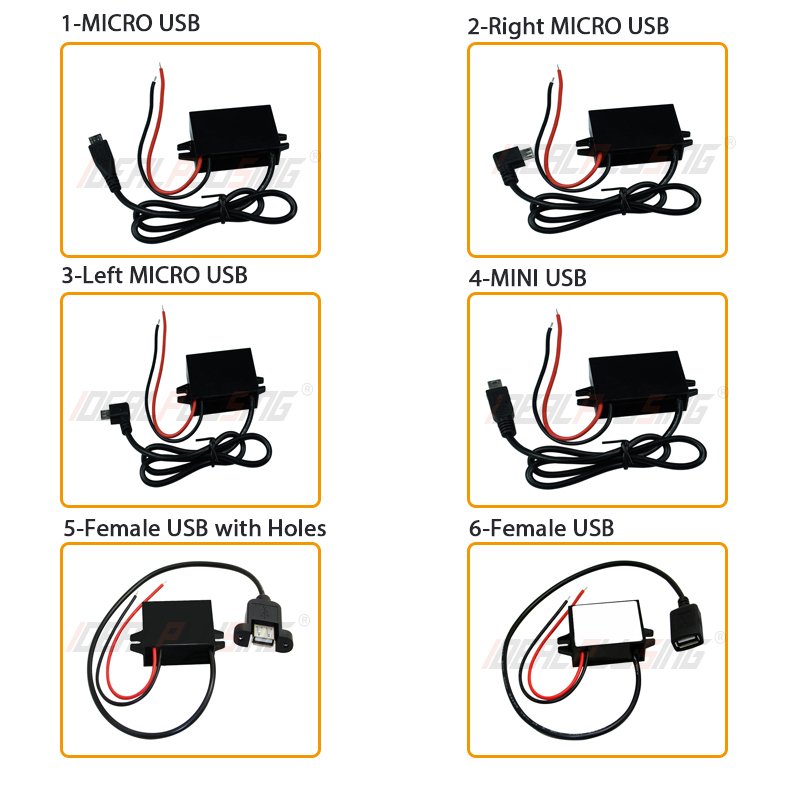

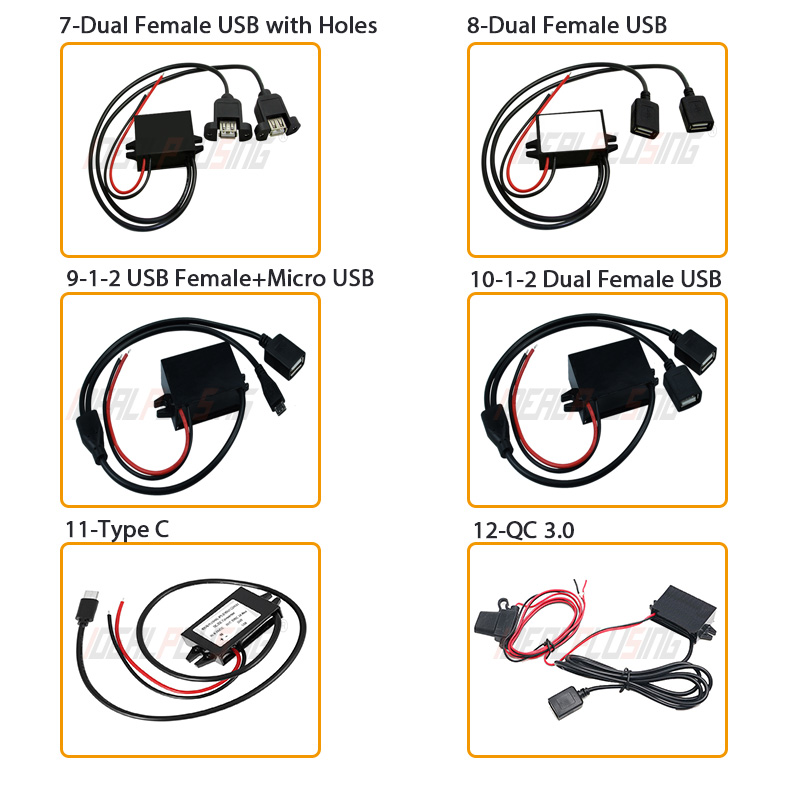

Can the output interface be customized?
Yes, we support customization for various output interfaces, including 1/2 Female USB, and different cable lengths or connector types.
What is the operating temperature range?
The industry-grade power supply is designed to work reliably in extreme environments from -40°C to +80°C.
