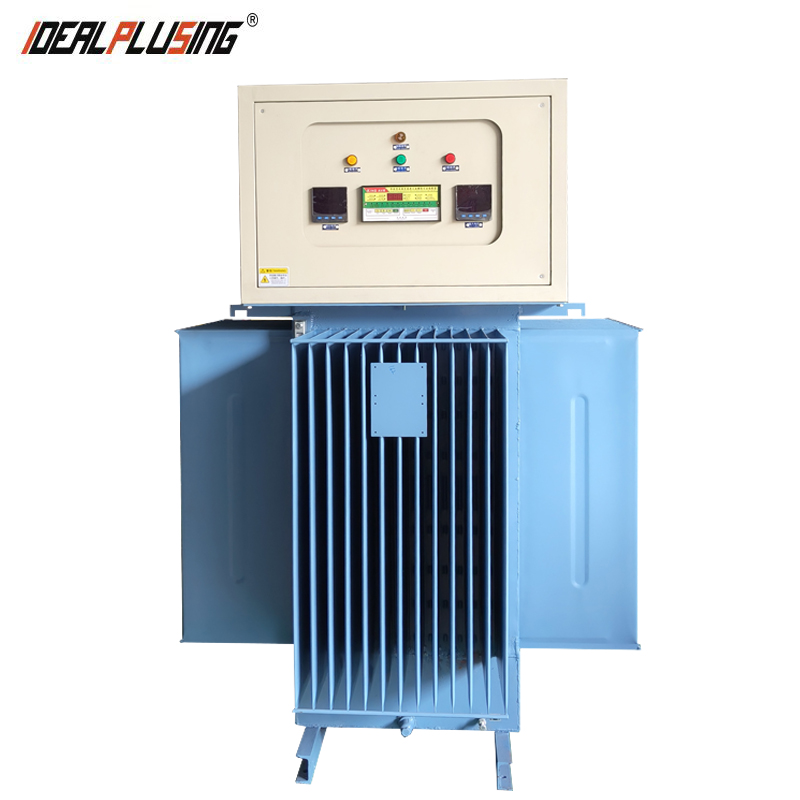

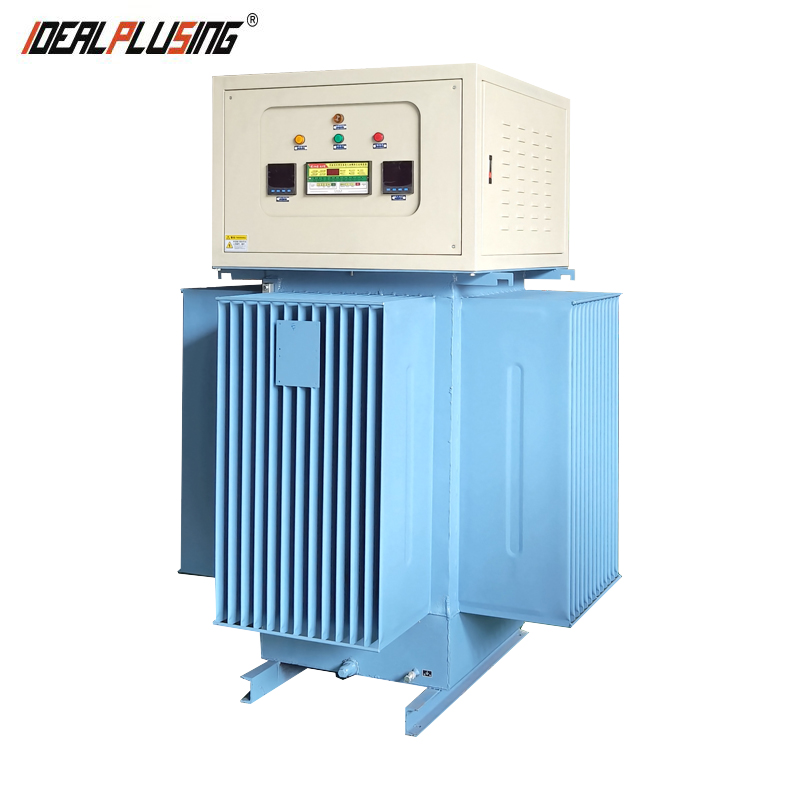

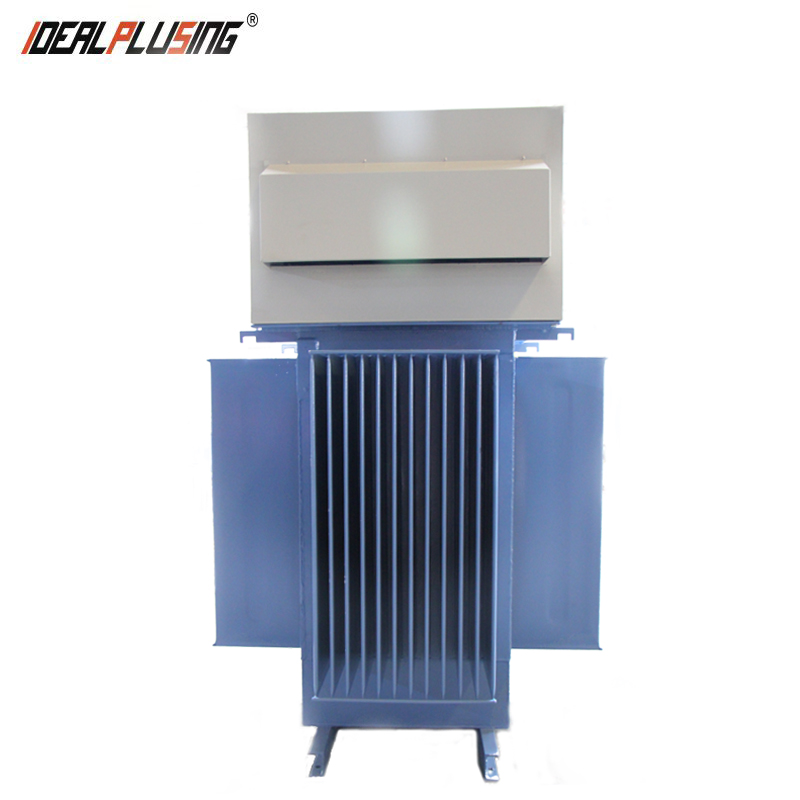

2500kva 380v 3800v Voltage Stabilizer 3 Phase Oil Cooled Voltage Regulator
Product Description
Product Description
| Model NO. | IPS-32500 | Specification | Customize |
|---|---|---|---|
| Iron Core Shape | R | Origin | China |
| Transport Package | Wooden Box | ||
Output Power Options
100KVA, 150KVA, 200KVA, 250KVA, 300KVA, 350KVA, 400KVA, 500KVA, 600KVA, 800KVA, 1000KVA, 1250KVA, 1600KVA, 2000KVA, 2500KVA, 3000KVA, 4000KVA, 5000KVA
Our Service & Requirements
Customization Service: We specialize in customizing Oil-Immersed Induction Voltage stabilizers to meet your specific requirements. Offerings range up to 5000KVA. Our dedicated team endeavors to respond within one hour to all inquiries.
Working Environment:
Use site: Indoor (outdoor can be customized), no vibration, bumps, no gas, steam, chemical deposition that seriously affects insulation, dust, dirt, or other explosive and corrosive media.
Process Excellence:
- Exquisite appearance, easy to move with forklift.
- Fuel tank: Baosteel cold-rolled steel plate corrugated tank.
- Surface treatment: Phosphating + PZ 660 primer + powder coating (RAL 7032).
Technical Specifications
| Model | IPS-32500 | ||
|---|---|---|---|
| Input | Rated Voltage | Three-phase 380VAC | |
| Regulation Range | ± 15% | ||
| Frequency | 50 Hz/60Hz | ||
| Output | Rated Voltage | Three-phase 380VAC | |
| Accuracy | ±1-5% Adjustable | ||
| Response Time | ≤1-10s Adjustable | ||
| Load Current | 3800A | ||
| Capacity | 2500KVA | ||
| Efficiency | ≥97% or above | ||
| Protection | Level | IP67 | |

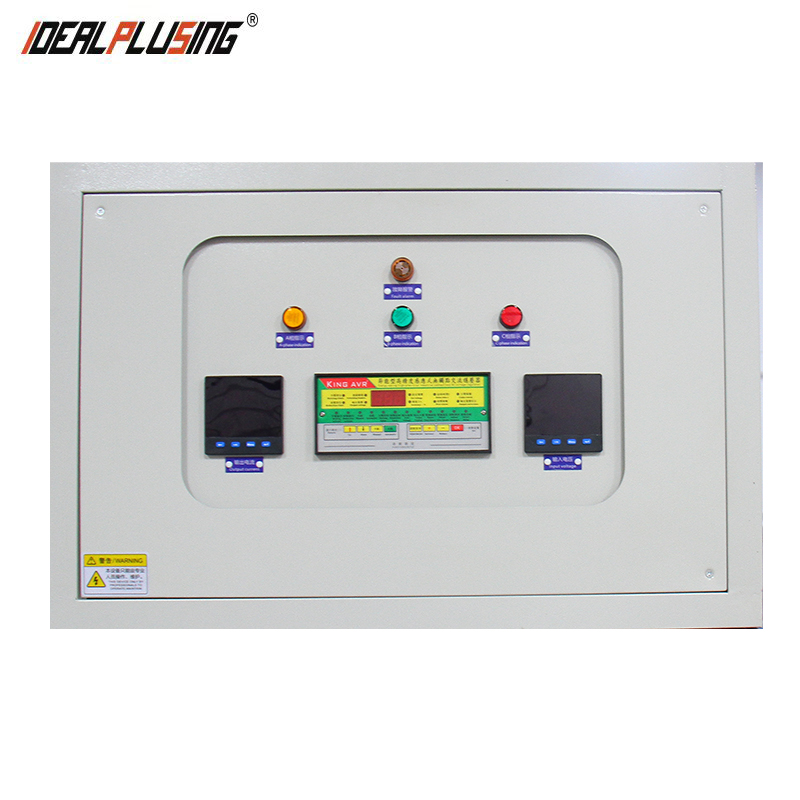

| Abnormal Alarm | Over/under voltage, phase loss, sound & light alarm | ||
| Dimensions | 1600*1600*2300 (MM) | ||
| Weight (Approx.) | 5500KG | ||
Hot Selling Models
Model: IPS-3200
Capacity: 200KVA | Current: 304A
Input: 3-Phase 480VAC | Output: 380VAC
Protection: IP67 | Cooling: Oil-immersed self-cooling
Weight: 750 KG | Size: 910*910*1547mm
Model: IPS-3800
Capacity: 800KVA | Current: 1216A
Input: 3-Phase 380VAC | Output: 380VAC
Protection: IP67 | Cooling: Oil-immersed self-cooling
Weight: 1800 KG | Size: 1070*1070*1959mm
Model: IPS-33500
Capacity: 3500KVA | Current: 5320A
Input: 3-Phase 380VAC | Output: 380VAC
Protection: IP67 | Weight: 7000 KG
Size: 1550*1550*2405mm
Detail Gallery
Full Model List
| Model | Capacity | Current | Dimensions (MM) | Weight (KG) |
|---|---|---|---|---|
| IPS-3100 | 100KVA | 152A | 650*650*1000 | 450 |
| IPS-3150 | 150KVA | 225A | 750*750*1350 | 550 |
| IPS-3200 | 200KVA | 304A | 910*910*1558 | 750 |
| IPS-3300 | 300KVA | 456A | 1000*1000*1636 | 1100 |
| IPS-3500 | 500KVA | 760A | 1090*1090*1700 | 1250 |
| IPS-31000 | 1000KVA | 1520A | 1170*1170*1958 | 1900 |
| IPS-32500 | 2500KVA | 3800A | 1600*1600*2300 | 5500 |
| IPS-35000 | 5000KVA | 7600A | / | / |
Customer Feedback
Frequently Asked Questions
1. What is the maximum capacity available for the voltage stabilizer?
We offer a wide range of capacities, with customized solutions available up to 5000KVA.
2. Can the stabilizer be used in outdoor environments?
Standard units are designed for indoor use. However, we can provide customized outdoor versions upon request.
3. What is the voltage stabilization accuracy?
The stabilization accuracy is ±1-5% and is fully adjustable according to your needs.
4. What type of cooling system is utilized?
Our stabilizers utilize an oil-immersed self-cooling method, ensuring high efficiency (≥97%) and long-term reliability.
5. What is the protection level of the equipment?
The product features an IP67 protection rating, offering excellent resistance against environmental factors.
6. Does the system include automatic protection?
Yes, it includes intelligent monitoring for over-voltage, under-voltage, and phase loss, with both sound and light alarm indications.
