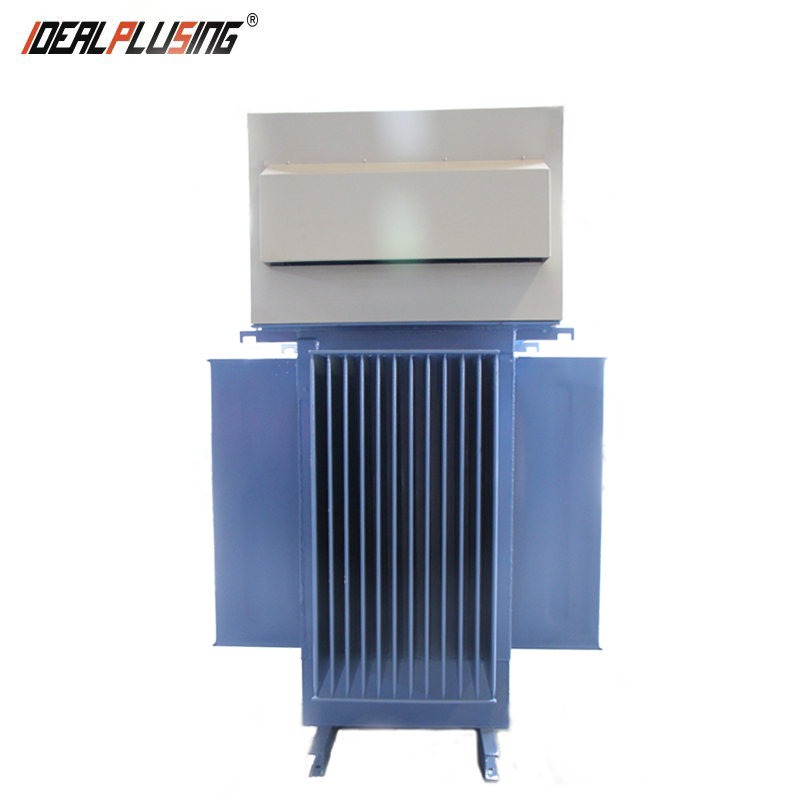

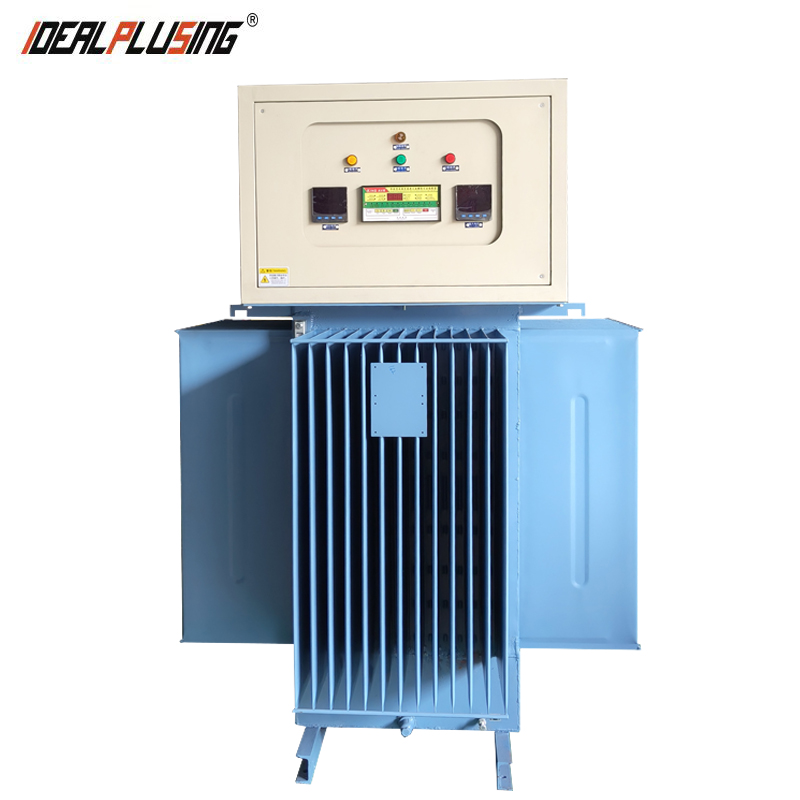

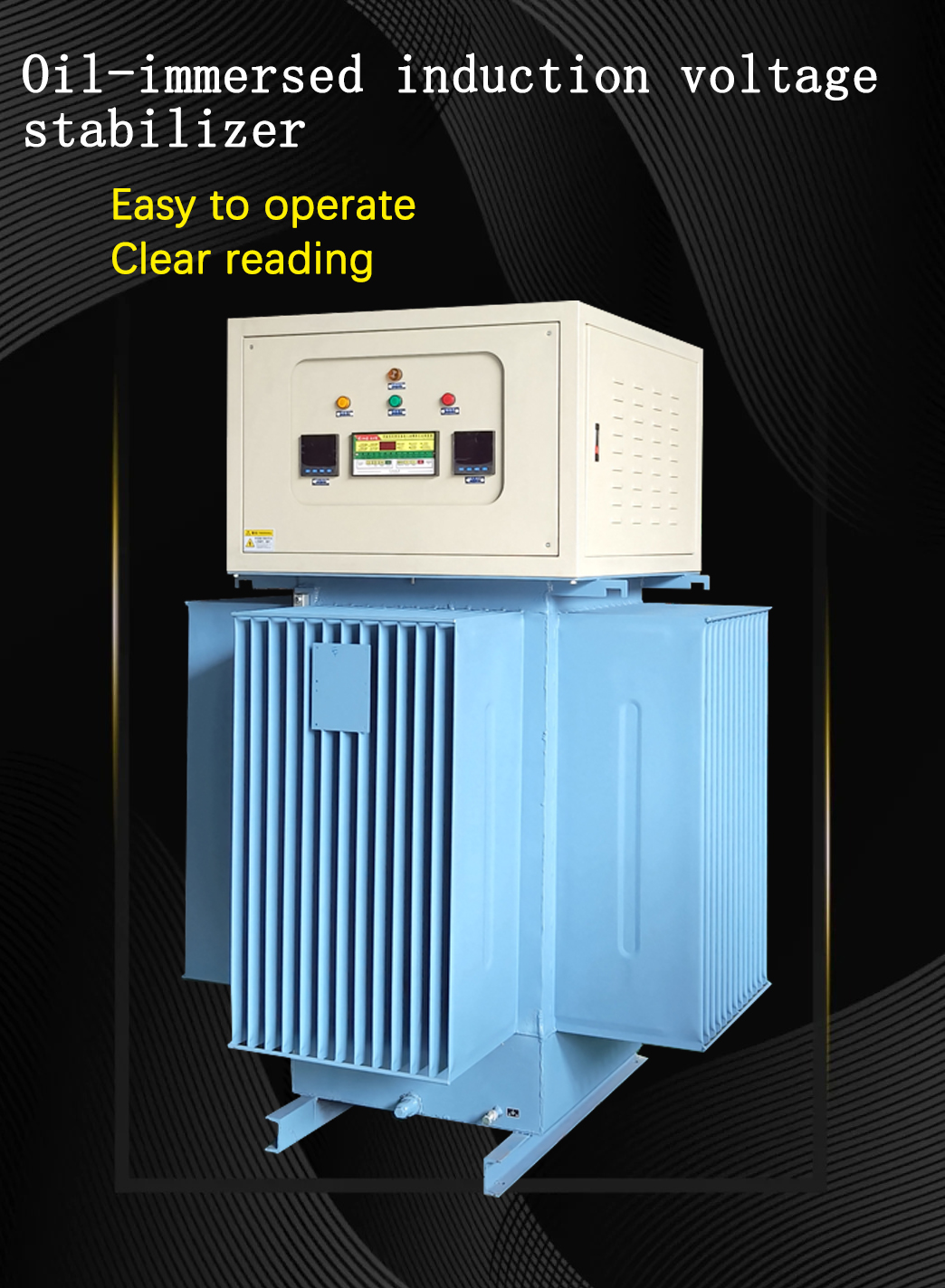

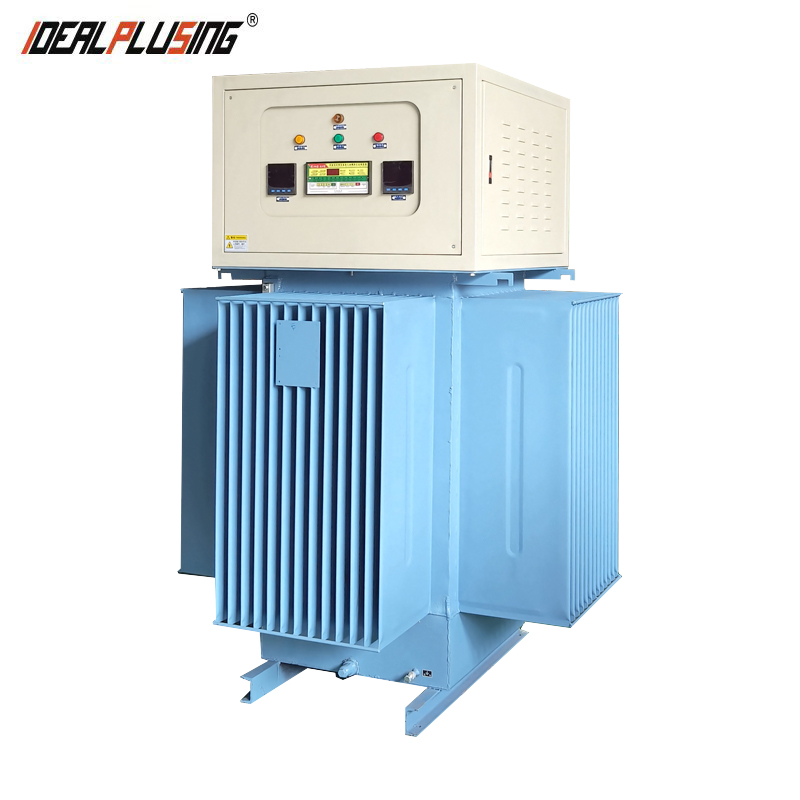

Avr 380v Oil Immersed 100kva Three Phase Voltage Stabilizer With Led Digital Display
Product Description
Product Description
Specializing in customized Oil-Immersed Induction Voltage Stabilizers designed to meet specific industrial requirements. Our solutions provide robust voltage regulation for high-capacity power needs, ranging up to 5000KVA.
| General Specifications | |||
|---|---|---|---|
| Model No. | IPS-3100 | Specification | Customize |
| Iron Core Shape | R | Transport Package | Wooden Box |
| Output Power Range | 100KVA - 5000KVA (Multiple models available) | ||
Working Environment Requirements:
- Use site: Indoor (Outdoor customization available).
- Protection: No vibration, bumps, chemical deposition, or corrosive media.
- Media Safety: Dust-free and non-explosive environment for optimal insulation.
Technical Specification
| Input | Rated Voltage | Three-phase 380VAC |
|---|---|---|
| Voltage Regulation Range | ± 15% | |
| Frequency | 50 Hz/60Hz | |
| Output | Rated Voltage | Three-phase 380VAC |
| Voltage Stabilization Accuracy | ±1-5% Adjustable | |
| Response Time | ≤1-10s Adjustable | |
| Load Current | 152A (for 100KVA model) | |
| Waveform Distortion | No additional distortion | |
| Efficiency | ≥97% or above | |
| Cooling Method | Oil-immersed self-cooling | |
| Control & Protection | Control Method | DSP Computing intelligent control |
| Protection Level | IP67 | |

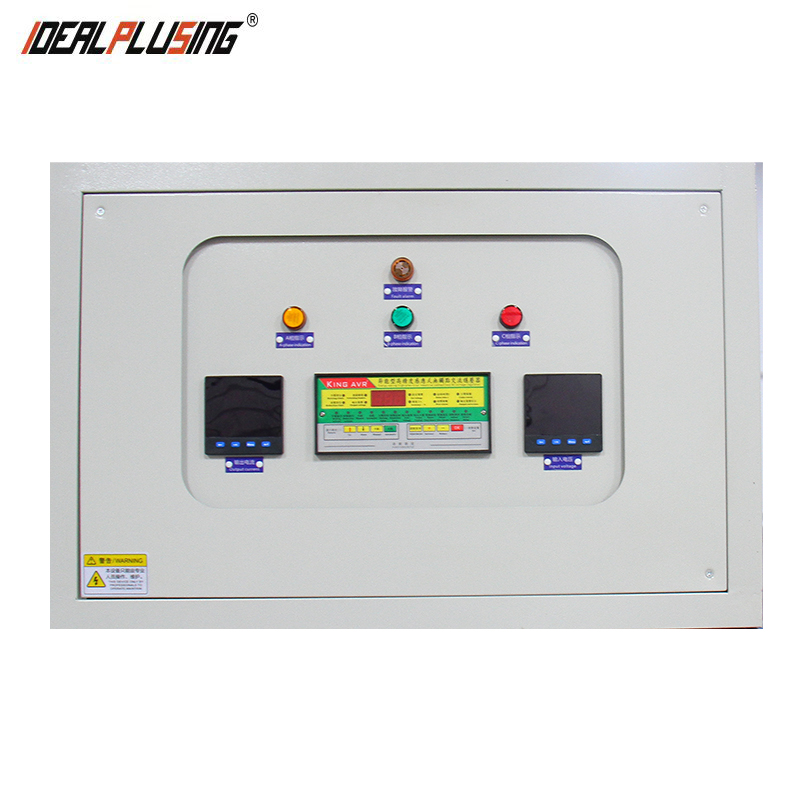

| Monitoring | Digital display for Voltage & Current | |
| Abnormal Alarms | Over/Under voltage, phase loss, sound & light alarm |
Hot Selling Models
Model: IPS-3200 (200KVA)
- Input/Output: Three-phase 480VAC / 380VAC
- Load Current: 304A
- Cooling: Oil-immersed self-cooling
- Protection: IP67
- Dimensions: 910*910*1547(MM)
- Weight: Approx. 750 KG
Model: IPS-3800 (800KVA)
- Input/Output: Three-phase 380VAC
- Load Current: 1216A
- Regulation: Three-phase regulation
- Dimensions: 1070*1070*1959(MM)
- Weight: Approx. 1800 KG
Model: IPS-33500 (3500KVA)
- High Capacity: 3500KVA
- Load Current: 5320A
- Control: DSP Intelligent Control
- Dimensions: 1550*1550*2405(MM)
- Weight: Approx. 7000 KG
Detailed Component Images
Model Selection Guide
| Model | Capacity | Current | Voltage Option | Size (MM) | Weight (KG) |
|---|---|---|---|---|---|
| IPS-3100 | 100KVA | 152A | X2/X3/X4 | 650*650*1000 | 450 |
| IPS-3200 | 200KVA | 304A | X2/X3/X4 | 910*910*1558 | 750 |
| IPS-3500 | 500KVA | 760A | X2/X3/X4 | 1090*1090*1700 | 1250 |
| IPS-31000 | 1000KVA | 1520A | X2/X3/X4 | 1170*1170*1958 | 1900 |
| IPS-32000 | 2000KVA | 3040A | X2/X3/X4 | 1550*1550*1980 | 4000 |
| IPS-35000 | 5000KVA | 7600A | X2/X3/X4 | / | / |
*Voltage Codes: X2: 220V | X3: 380V | X4: 440V
Project & Factory Overview
With over 13 years of technical expertise, our collaborative manufacturing facilities focus on R&D and high-quality power solutions. Our products are certified with international standards including CE and RoHS, serving clients across the USA, Europe, and Southeast Asia. We provide efficient, reliable, and cost-effective voltage regulation systems tailored to your industrial projects.
Frequently Asked Questions
Q1: What is the main advantage of an oil-immersed induction voltage stabilizer?
A: It provides excellent heat dissipation through oil-immersed self-cooling, allowing for long-term continuous operation under heavy loads and harsh environments with high reliability.
Q2: Can the voltage stabilization accuracy be adjusted?
A: Yes, the stabilization accuracy is adjustable between ±1% and ±5% to meet the specific requirements of sensitive industrial equipment.
Q3: Is this stabilizer suitable for outdoor installation?
A: The standard design is for indoor use, but we offer customized outdoor versions with enhanced weatherproofing and protection levels up to IP67.
Q4: How does the DSP intelligent control system help?
A: The DSP chip provides high-speed computing and metering for real-time intelligent control, ensuring precise voltage adjustment and rapid response to input fluctuations.
Q5: What safety protections are included?
A: The system includes comprehensive protection against over-voltage, under-voltage, phase loss, and features sound and light alarm indicators for immediate fault notification.
Q6: What is the maximum capacity available for customization?
A: We specialize in high-power solutions and can customize oil-immersed induction voltage stabilizers with capacities up to 5000KVA.
