400kva Autotransformer Variac Oil Cooling Voltage Regulator Three Phase Voltage Regulator
Product Description

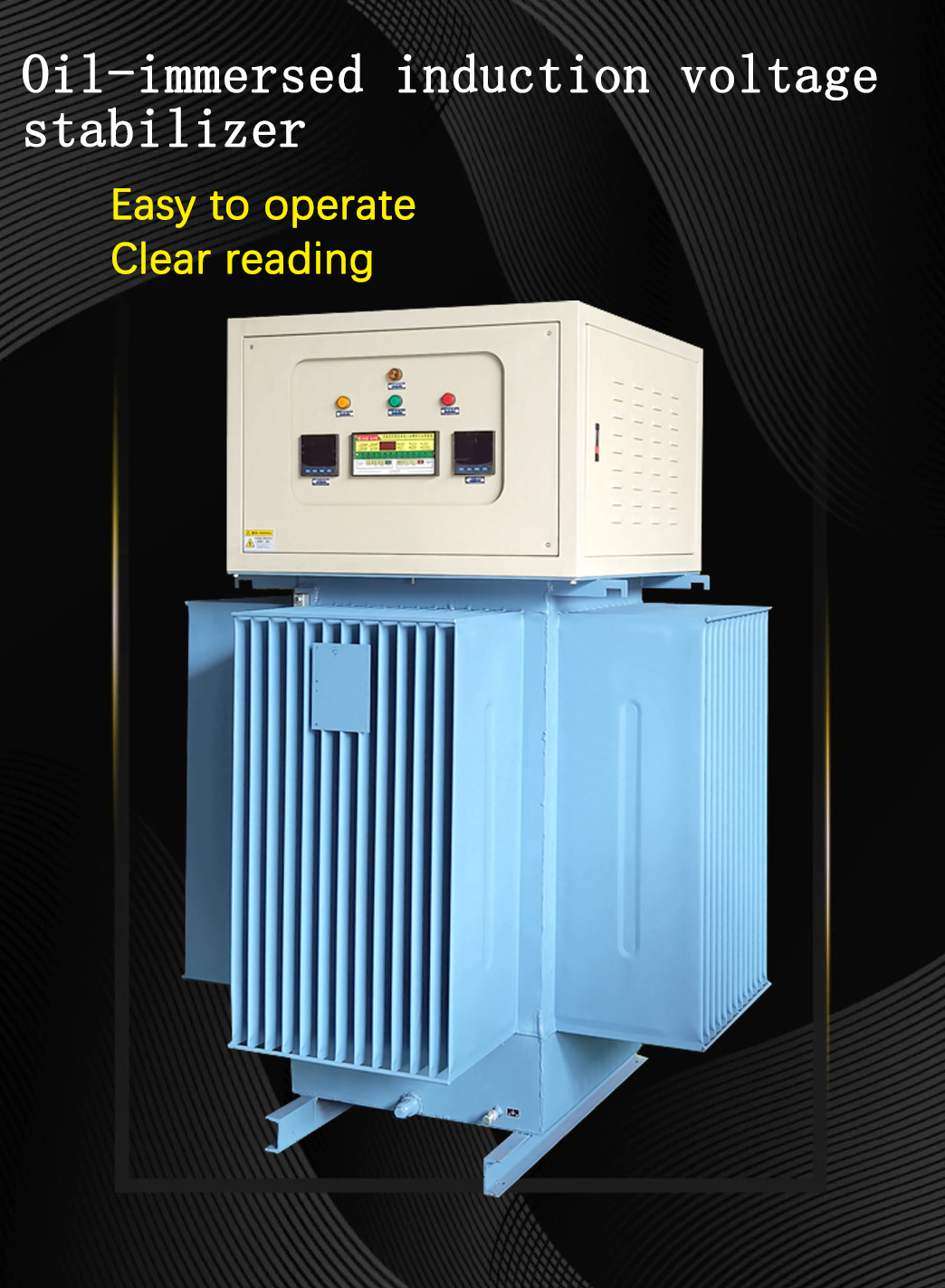

Oil-Immersed Induction Voltage Stabilizer
High-Performance Power Solutions for Industrial Applications
Customized Service Capabilities
✓
We specialize in customizing Oil-Immersed Induction Voltage stabilizers to meet your specific requirements.
✓
Our offerings range up to 5000KVA with any kind of customized voltage stabilization.
✓
Our dedicated team endeavors to respond to any inquiries within one hour.
Working Environment Requirements
| Site Condition | Specifications |
|---|---|
| Installation Site | Indoor (Outdoor can be customized) |
| Mechanical Stress | No vibration, bumps |
| Atmospheric Conditions | No gas, steam, or chemical deposition affecting insulation; No explosive or corrosive media. |
| Cleanliness | Minimal dust and dirt |
Product Process & Features
1
Exquisite Appearance: Easy to move with forklift and hand trailer; simple installation and wiring.
2
Fuel Tank Material: Cold-rolled steel plate corrugated fuel tank (Baosteel or Wuhan Iron and Steel).
3
Surface Treatment: Phosphating + PZ 660 primer + RAL 7032 powder coating.
4
Packaging: Strong and reinforced for international transport.
Technical Specifications (IPS-3400)
| Parameter | Description | |
|---|---|---|
| Input | Rated Voltage | Three-phase 380VAC |
| Regulation Range | ± 15% | |
| Frequency | 50 Hz / 60Hz | |
| Output | Rated Voltage | Three-phase 380VAC |
| Accuracy | ±1-5% Adjustable | |
| Response Time | ≤1-10s Adjustable | |
| Capacity | 400KVA (Up to 5000KVA) | |
| Efficiency | ≥97% or above | |
| Waveform Distortion | No additional distortion | |
| Protection | Protection Level | IP67 |
| Alarms | Over voltage, under voltage, phase loss, sound and light alarm | |
| Control Method | DSP Intelligent Control Technology | |
| Dimensions | 1090*1090*1636 (MM) / 1200KG | |
Hot Selling Models
Model: IPS-3200
- Capacity: 200KVA
- Output Load Current: 304A
- Input: 3-Phase 480VAC / Output: 380VAC
- Cooling: Oil-immersed self-cooling
- Protection: IP67
- Size: 910*910*1547(MM)
Model: IPS-3800
- Capacity: 800KVA
- Output Load Current: 1216A
- Voltage: 380VAC (Input/Output)
- Weight: 1800 KG
- Size: 1070*1070*1959(MM)
Model: IPS-33500
- Capacity: 3500KVA
- Output Load Current: 5320A
- Weight: 7000 KG
- Protection Level: IP67
- Size: 1550*1550*2405(MM)

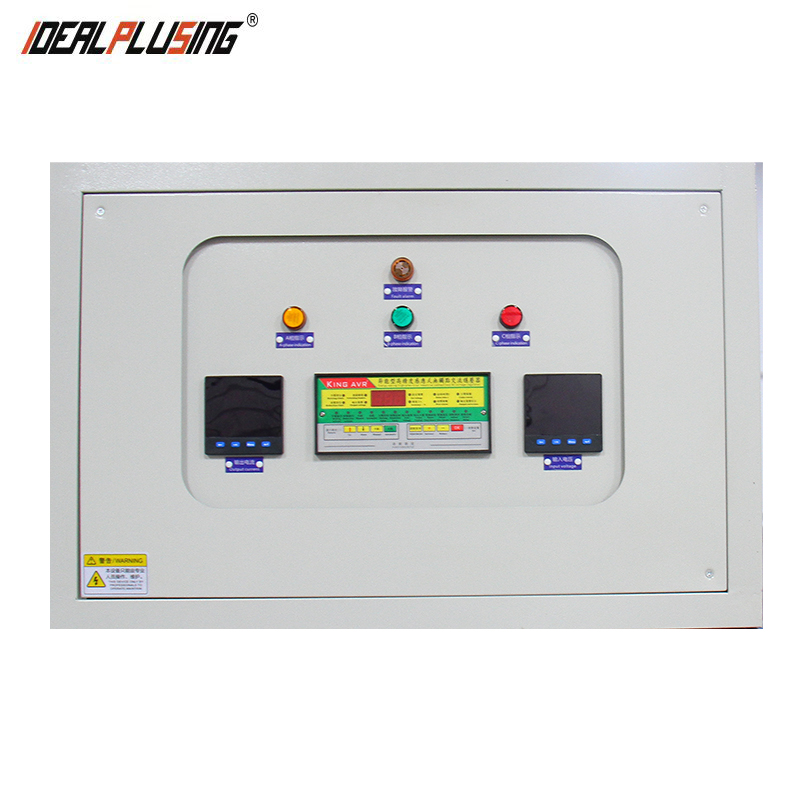

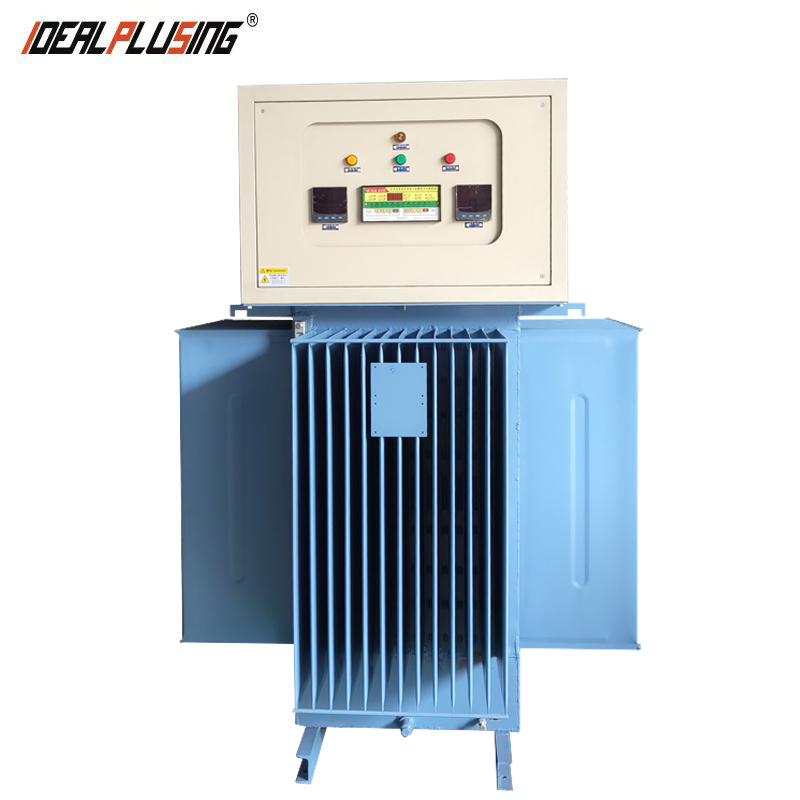

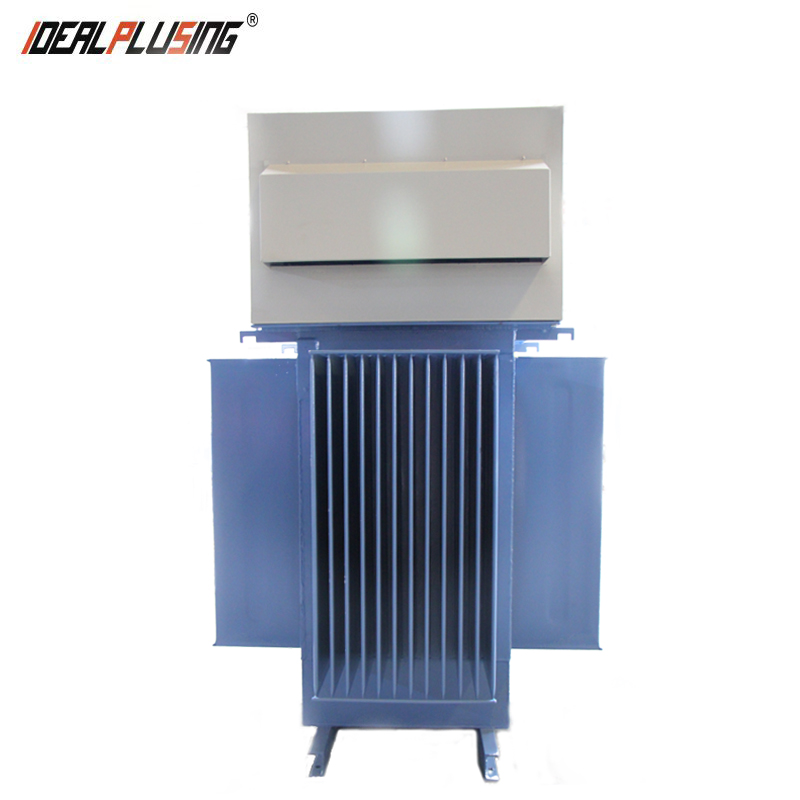

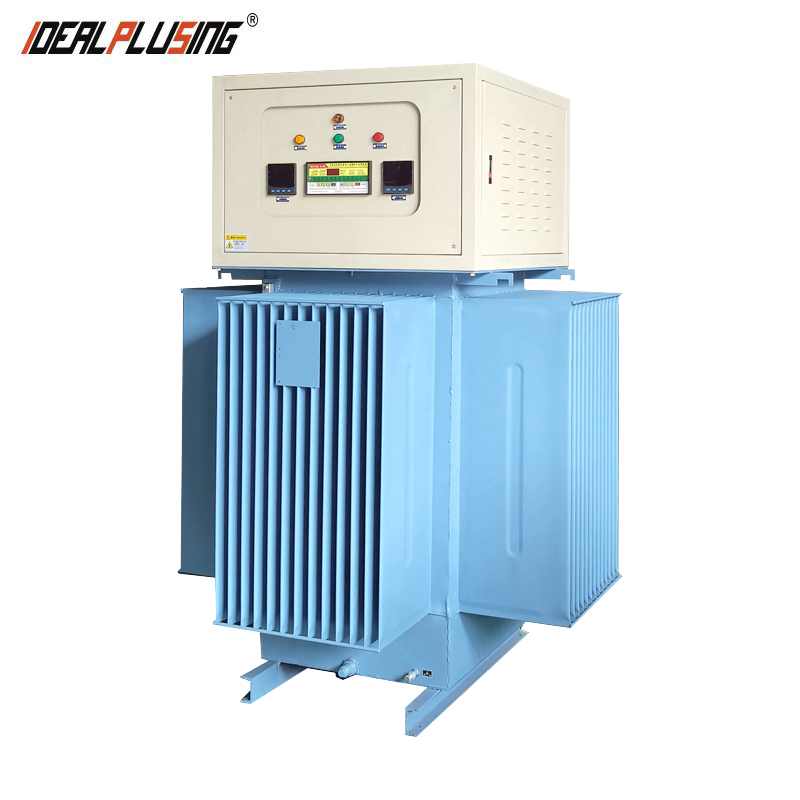

Details Images
Voltage Stabilizer Model List
| Model | Capacity | Load Current | Size (MM) | Weight (KG) |
|---|---|---|---|---|
| IPS-3100 | 100KVA | 152A | 650*650*1000 | 450 |
| IPS-3200 | 200KVA | 304A | 910*910*1558 | 750 |
| IPS-3300 | 300KVA | 456A | 1000*1000*1636 | 1100 |
| IPS-3500 | 500KVA | 760A | 1090*1090*1700 | 1250 |
| IPS-31000 | 1000KVA | 1520A | 1170*1170*1958 | 1900 |
| IPS-32000 | 2000KVA | 3040A | 1550*1550*1980 | 4000 |
| IPS-35000 | 5000KVA | 7600A | Customized | 8500 |
Our Production & Research
We focus on the research, development, and service of high-power equipment, including AC power supplies, DC power supplies, and rectifier systems. With over 13 years of technical expertise and production experience, our products follow international design concepts and are certified under CE and RoHS standards.
We have provided high-quality power solutions to partners in over 30 countries, including the United States, Germany, France, and Australia. Our goal is to provide personalized, efficient, and reliable power supply solutions for all industries.
Customer Feedback
Frequently Asked Questions
Q1: What is the maximum capacity you can customize?
A: We can customize oil-immersed induction voltage stabilizers with capacities up to 5000KVA.
Q2: Can these stabilizers be used outdoors?
A: Yes, while the standard configuration is for indoor use, we provide full customization for outdoor installations including IP67 protection levels.
Q3: How accurate is the voltage stabilization?
A: Our stabilizers offer high precision with a stabilization accuracy of ±1-5%, which is adjustable based on your needs.
Q4: What are the protection features included?
A: The systems include intelligent protection for over voltage, under voltage, phase loss, and sound/light alarm indications.
Q5: What is the efficiency rating of the equipment?
A: Our voltage stabilizers are highly efficient, reaching an efficiency rating of ≥97%.
Q6: What cooling method is used?
A: We utilize an oil-immersed self-cooling method, ensuring long-term stable operation and durability.
