1KVA 2KVA 3KVA 5KVA 10KVA 100KVA 200KVA 300KVA 500KVA 600KVA 800 Kva 1216A 3 Phase Oil Tank IPS Voltage Stabilizer Oil Base
Product Description
1
Product Description
| Model NO. | IPS-3800 | Specification | Customize |
| Iron Core Shape | R | Transport Package | Wooden Box |
| Origin | China | Cooling Method | Oil-immersed |
⚡ Available Output Power Range:
100KVA 150KVA 200KVA 250KVA
300KVA 350KVA 400KVA 500KVA
600KVA 800KVA 1000KVA 1250KVA
1600KVA 2000KVA 2500KVA 3000KVA
4000KVA 5000KVA
2
Customization Service
We specialize in customizing Oil-Immersed Induction Voltage stabilizers to meet your specific requirements. With customized options for any kind of Voltage stabilizer, our offerings range up to 5000KVA. Please submit any inquiries to explore our capabilities further. Our dedicated team endeavors to respond within one hour.
3
Working Environment & Requirements
Use Site: Indoor (outdoor can be customized), no vibration, bumps, no gas, steam, chemical deposition that seriously affects the insulation of the stabilizer, Dust, dirt and other explosive and corrosive media.
Process & Special Features:
- Exquisite appearance, easy to move with forklift and hand trailer, simple installation and wiring;
- Fuel tank material: Baosteel (or Wuhan Iron and Steel) cold-rolled steel plate corrugated fuel tank;
- Surface treatment: G139 → phosphating + PZ 660 primer + powder coating (RAL 7032);
- Packaging: Strong and beautiful wooden case.
4
Technical Specification
| Parameter | Details | |
|---|---|---|
| Input | Rated voltage | Three-phase 380VAC |
| Regulation range | ± 15% | |
| Frequency | 50 Hz/60Hz | |
| Output | Rated voltage | Three-phase 380VAC |
| Accuracy | ±1-5% Adjustable | |
| Capacity | 800KVA | |
| Efficiency | ≥97% or above | |
| Protection | Level | IP67 |
| Abnormalities | Over voltage, under voltage, phase loss, sound and light alarm | |
| Control | Method | DSP Computing and metering chip intelligent control technology |
5
Hot Selling Models
Model: IPS-3200
1. Input: Three-phase 480VAC / 50-60Hz
2. Output: Three-phase 380VAC
3. Capacity: 200KVA
4. Load current: 304A
5. Weight: 750 KG
6. Size: 910*910*1547(MM)

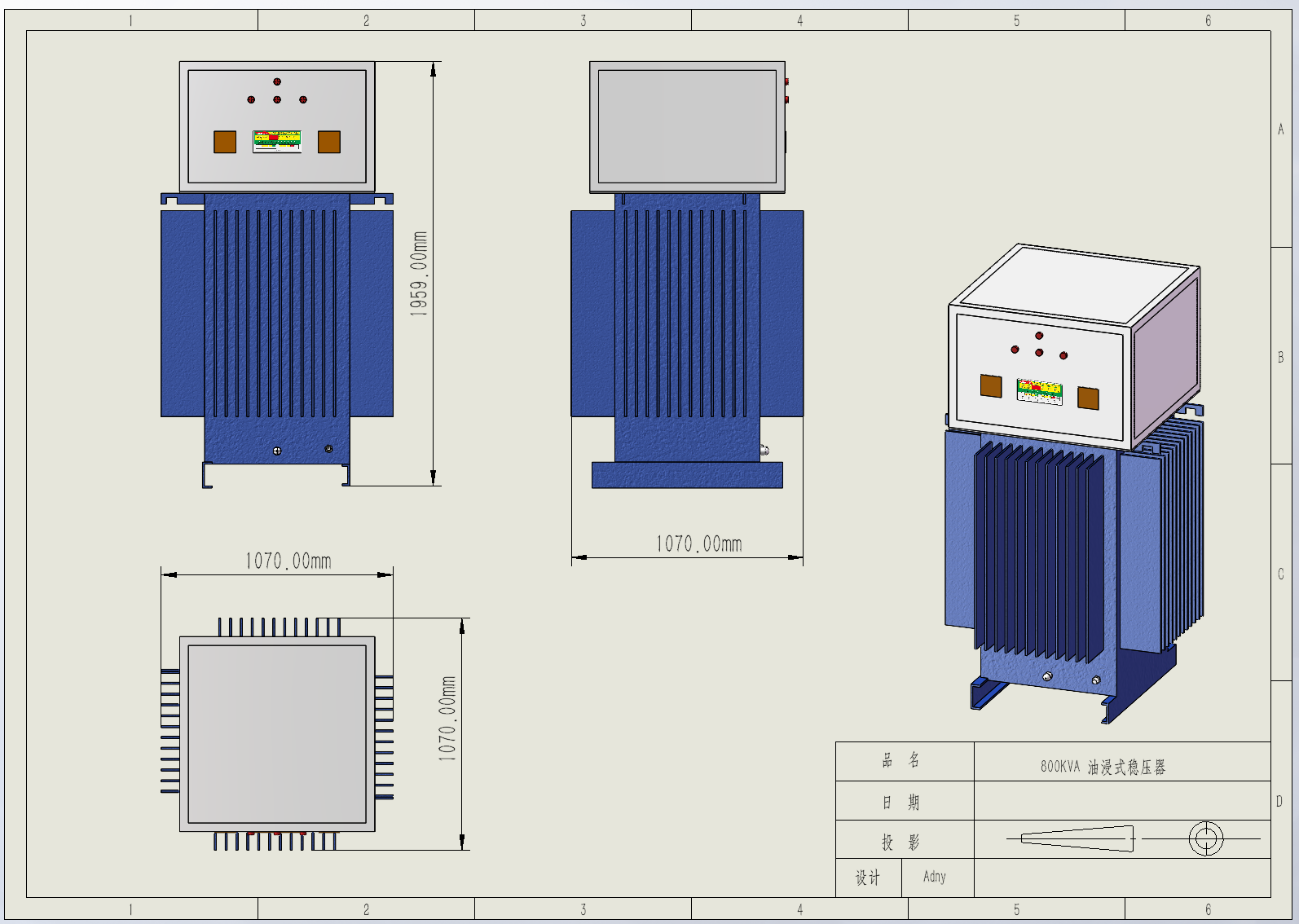

Model: IPS-3800
1. Input: Three-phase 380VAC / 50-60Hz
2. Output: Three-phase 380VAC
3. Capacity: 800KVA
4. Load current: 1216A
5. Weight: 1800 KG
6. Size: 1070*1070*1959(MM)
Model: IPS-33500
1. Input: Three-phase 380VAC
2. Output: Three-phase 380VAC
3. Capacity: 3500KVA
4. Load current: 5320A
5. Protection: IP67
6. Size: 1550*1550*2405(MM)
6

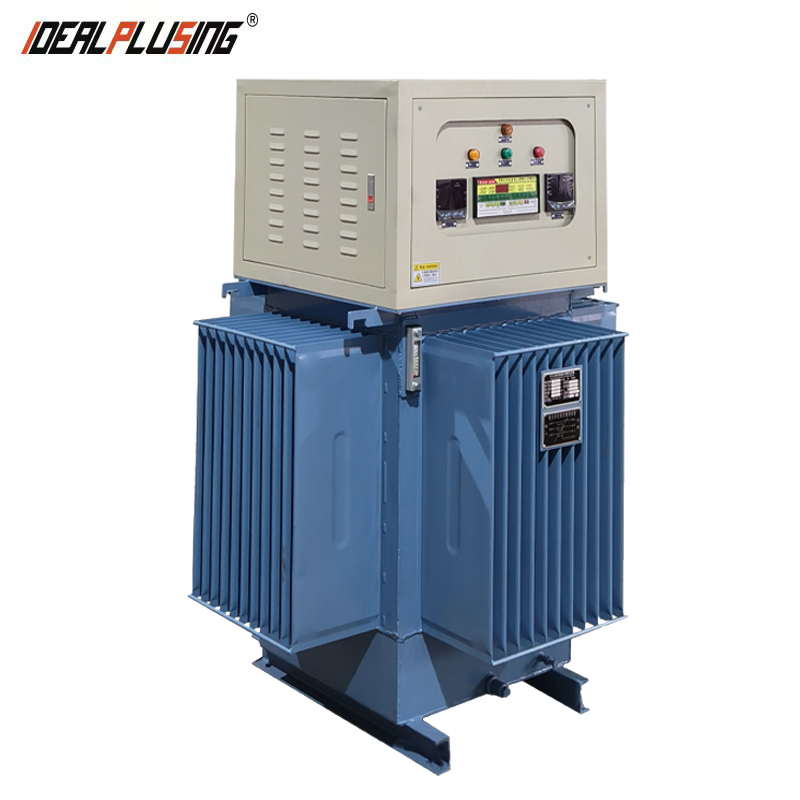

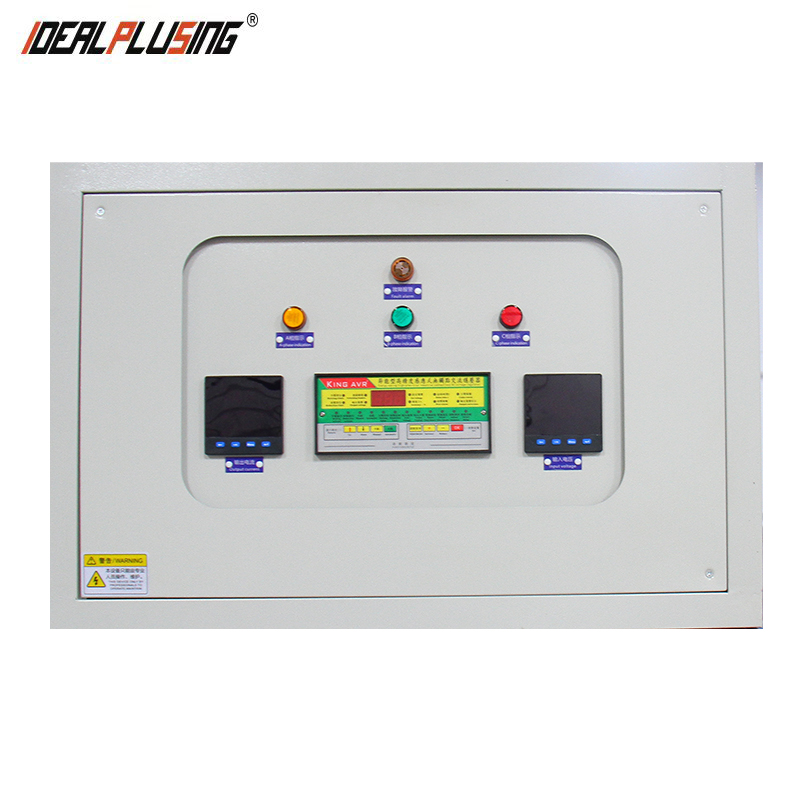

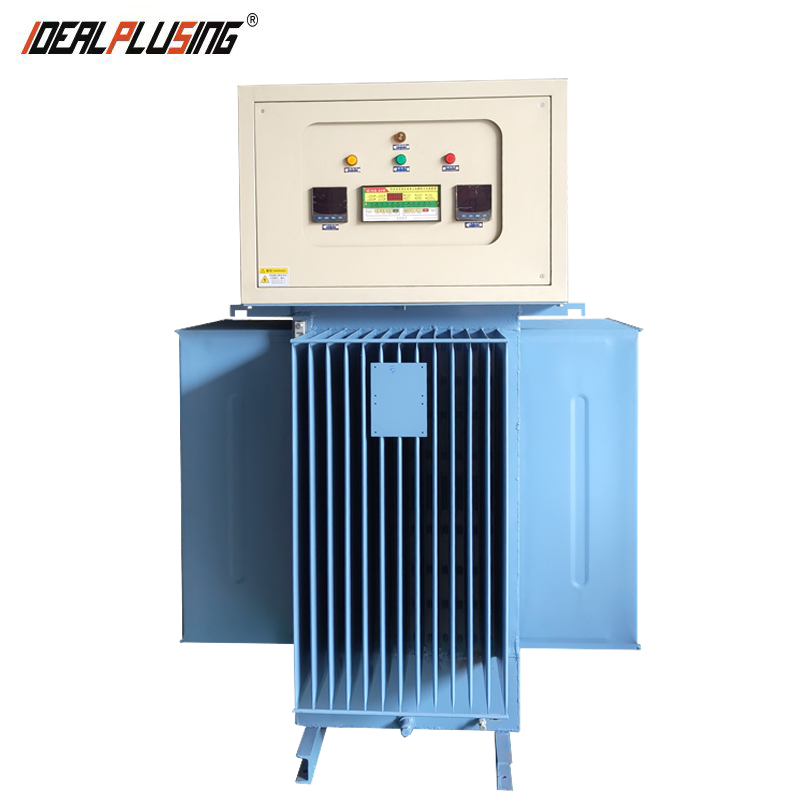

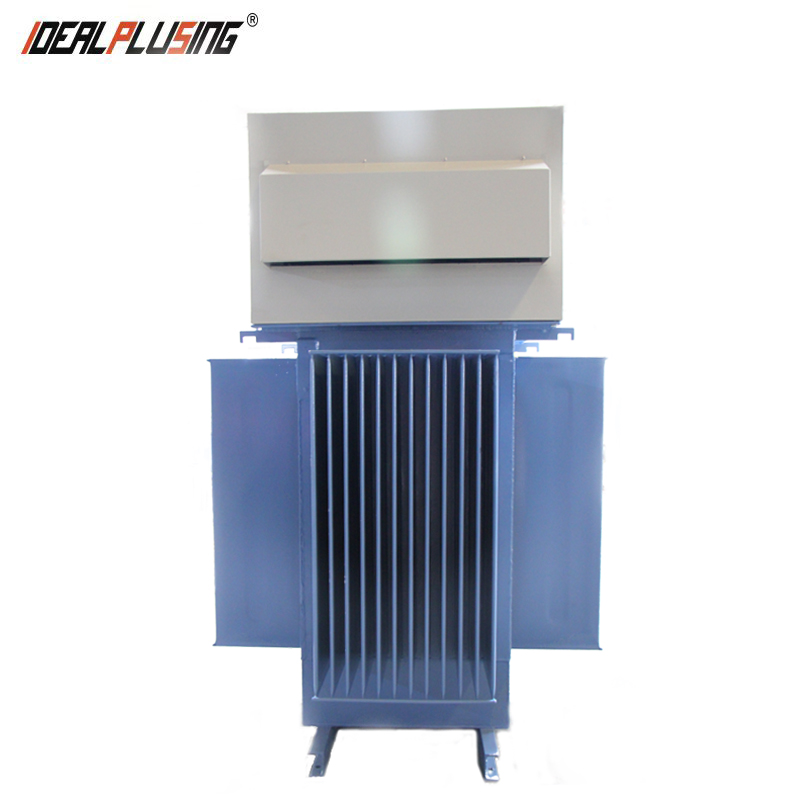

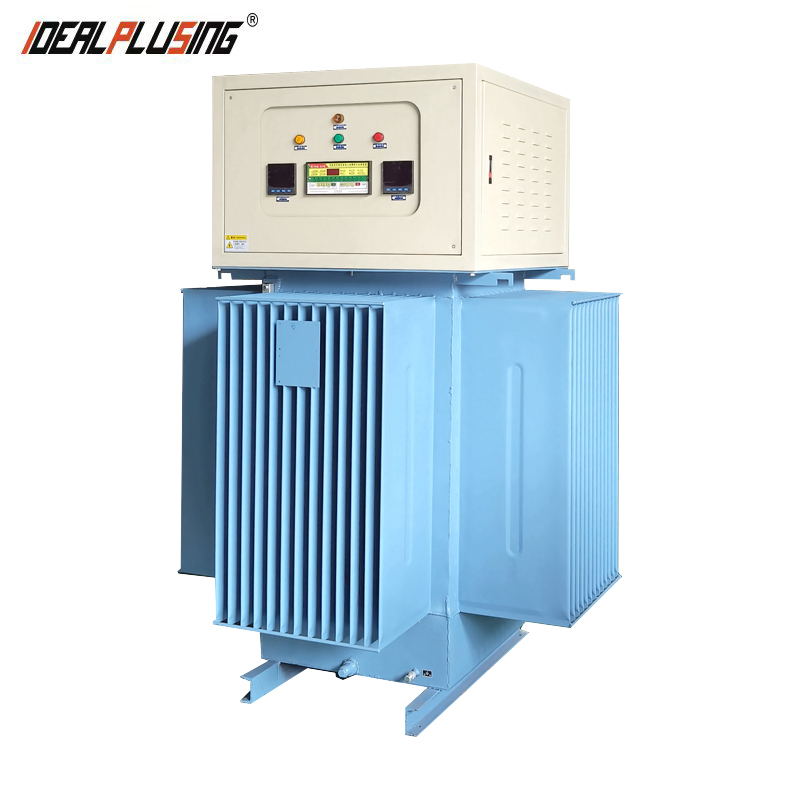

Details Images
7
Full Model List
| Model | Capacity | Current | Size (MM) | Weight (KG) |
|---|---|---|---|---|
| IPS-3100 | 100KVA | 152A | 650*650*1000 | 450 |
| IPS-3200 | 200KVA | 304A | 910*910*1558 | 750 |
| IPS-3300 | 300KVA | 456A | 1000*1000*1636 | 1100 |
| IPS-3500 | 500KVA | 760A | 1090*1090*1700 | 1250 |
| IPS-3800 | 800KVA | 1216A | 1170*1170*1958 | 1800 |
| IPS-32000 | 2000KVA | 3040A | 1550*1550*1980 | 4000 |
| IPS-35000 | 5000KVA | 7600A | / | / |
Voltage Instructions:
X2: Input 3ψ4W 220V | X3: Input 3ψ4W 380V | X4: Input 3ψ4W 440V
E: Special specification or optional. Default is 380V.
X2: Input 3ψ4W 220V | X3: Input 3ψ4W 380V | X4: Input 3ψ4W 440V
E: Special specification or optional. Default is 380V.
8
About Us
We focus on the research and development, sales and service of DC to DC power supply modules, AC to DC rectifier modules, DC to AC inverters, AC power supplies, DC power supplies, LED power supplies, chargers, and rectifier systems. Our mission is to provide personalized, efficient, reliable, and cost-effective power solutions for all industries.
Our cooperative factory brings 13 years of technical expertise and production experience. Products have passed CE, RoHS, and other international certifications, serving partners in over 30 countries including the United States, Germany, France, Australia, and more.
9
Customer Feedback
FAQ
Frequently Asked Questions
What is an oil-immersed induction voltage stabilizer?
It is a high-capacity power device that uses electromagnetic induction and oil cooling to provide a stable output voltage despite fluctuations in the input power source.
What is the maximum capacity available for these units?
We offer customized voltage stabilizers with capacities ranging from 100KVA up to 5000KVA.
Are these stabilizers suitable for outdoor use?
The standard units are designed for indoor use (IP67 protection level), but we provide full customization for outdoor environments upon request.
How efficient are the oil-immersed stabilizers?
Our induction voltage stabilizers are highly efficient, maintaining an efficiency rate of ≥97% or higher during operation.
Does the stabilizer distort the output waveform?
No, these units provide zero additional waveform distortion, ensuring the output waveform remains identical to the input.
What kind of protection does the system offer?
The system includes intelligent control for over-voltage, under-voltage, phase loss, and features sound and light alarm indicators for abnormal conditions.
