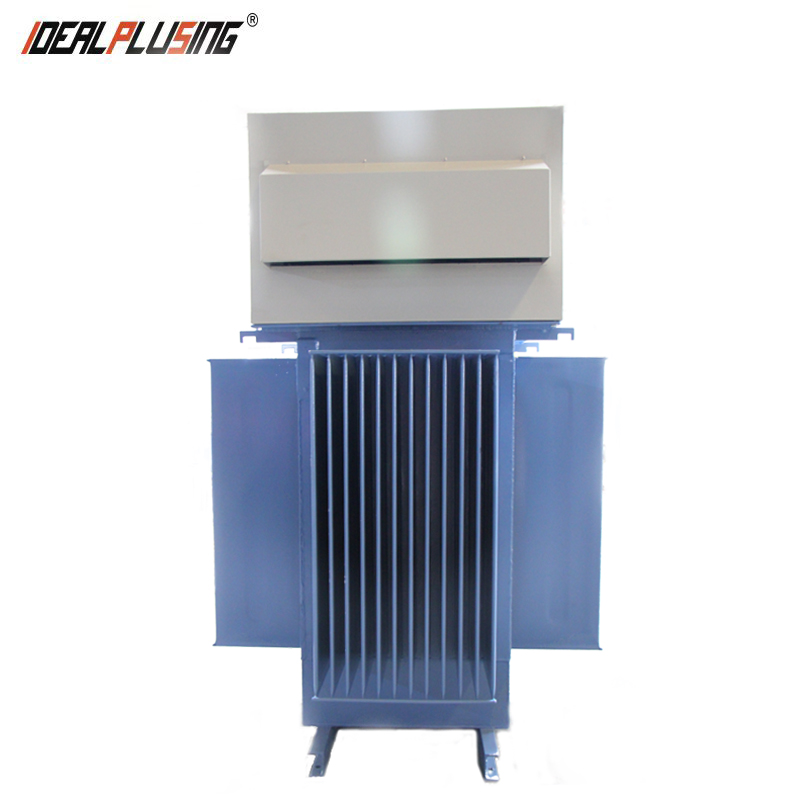

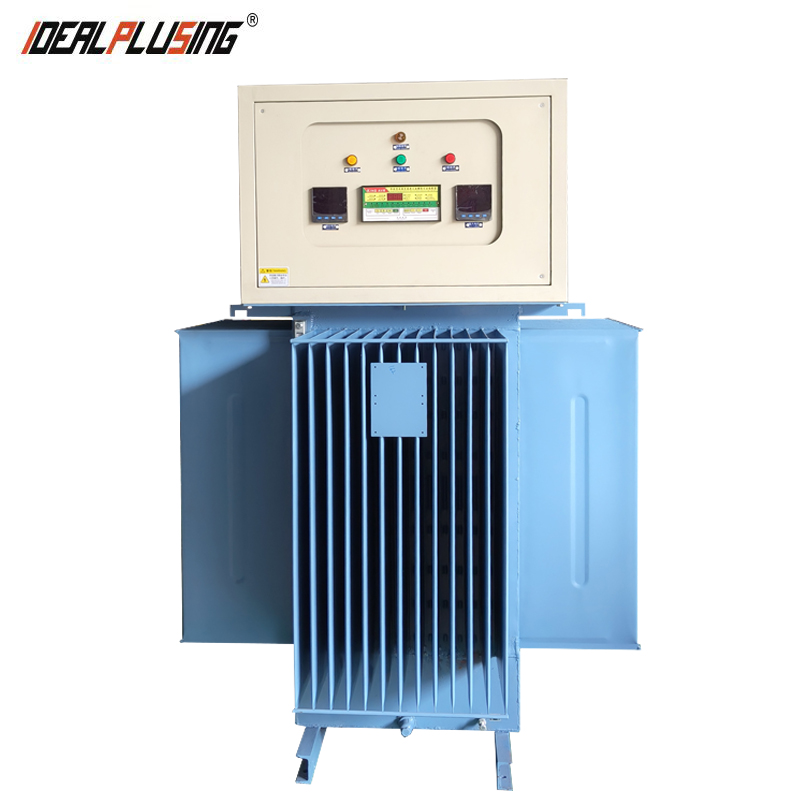

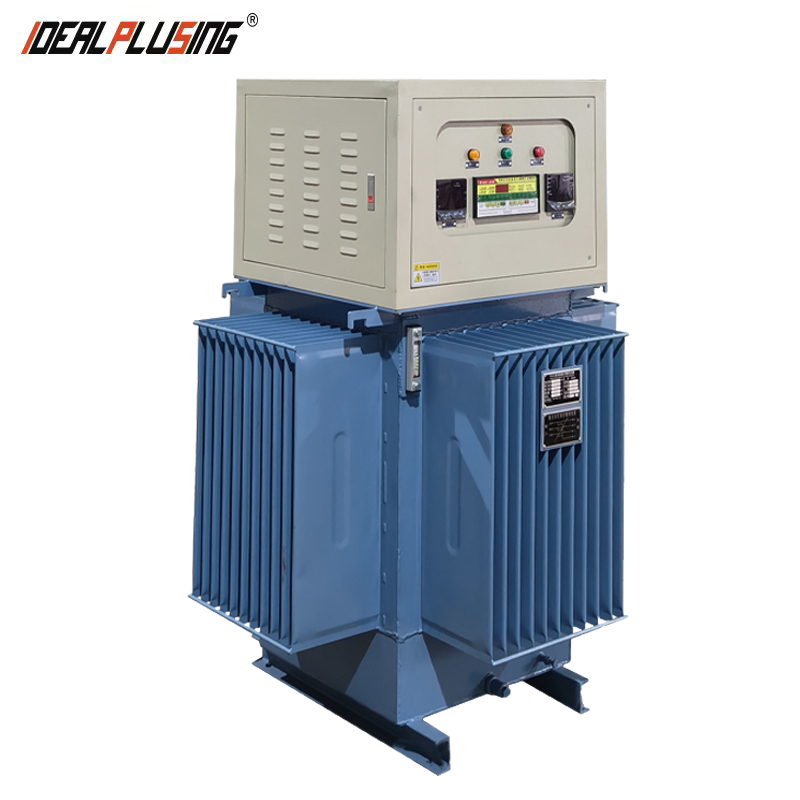

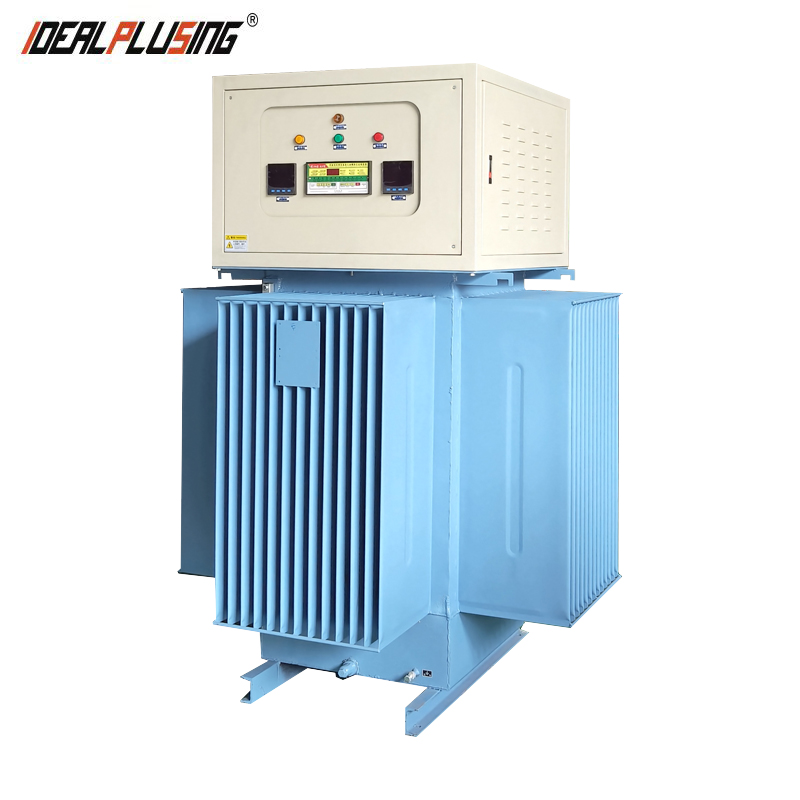

IPS Voltage Stabilizer 150kva 3 Phase Oil Cooled Voltage Regulator
Product Description
📋 Product Description
| Model NO. | IPS-3100 | Specification | Customize |
| Iron Core Shape | R | Transport Package | Wooden Box |
| Origin | China | Capacity Range | 100KVA - 5000KVA |
🌟 Customization Service
We specialize in customizing Oil-Immersed Induction Voltage Stabilizers to meet your specific requirements. With customized offerings, our capacity ranges up to 5000KVA. Please submit any inquiries to explore our capabilities further. Our dedicated team endeavors to respond promptly.
🏗️ Working Environment & Process
Environment Requirements:
Use site: Indoor (outdoor can be customized), no vibration, bumps, no gas, steam, chemical deposition that seriously affects the insulation of the stabilizer, dust, dirt and other explosive and corrosive media.
Use site: Indoor (outdoor can be customized), no vibration, bumps, no gas, steam, chemical deposition that seriously affects the insulation of the stabilizer, dust, dirt and other explosive and corrosive media.
Process & Special Requirements:
- Exquisite appearance, easy to move with forklift and hand trailer, simple installation and wiring.
- Fuel tank material: Cold-rolled steel plate corrugated fuel tank.
- Surface treatment: Phosphating + primer + powder coating (RAL 7032).
- Packaging: Strong and high-standard protective wooden crates.
⚙️ Technical Specifications (IPS-3150)
| Model | IPS-3150 | ||
| Input Rated Voltage | Three-phase 380VAC (± 15%) | ||
| Frequency | 50 Hz / 60Hz | ||
| Output Rated Voltage | Three-phase 380VAC | ||
| Stabilization Accuracy | ±1-5% Adjustable | ||
| Response Time | ≤1-10s Adjustable | ||
| Efficiency | ≥97% or above | ||
| Control Method | DSP Computing and metering chip intelligent control technology | ||
| Protection Level | IP67 | ||
| Cooling Method | Oil-immersed self-cooling | ||
| Dimensions (MM) | 750*750*1350 | ||
🔥 Hot Selling Models
Model: IPS-3200
Capacity: 200KVA
Input: 3-Phase 480VAC
Protection: IP67
Weight: 750 KG
Input: 3-Phase 480VAC
Protection: IP67
Weight: 750 KG
Model: IPS-3800
Capacity: 800KVA
Load Current: 1216A
Cooling: Oil-immersed
Weight: 1800 KG
Load Current: 1216A
Cooling: Oil-immersed
Weight: 1800 KG
Model: IPS-33500
Capacity: 3500KVA
Load Current: 5320A
Size: 1550*1550*2405(MM)
Weight: 7000 KG
Load Current: 5320A
Size: 1550*1550*2405(MM)
Weight: 7000 KG

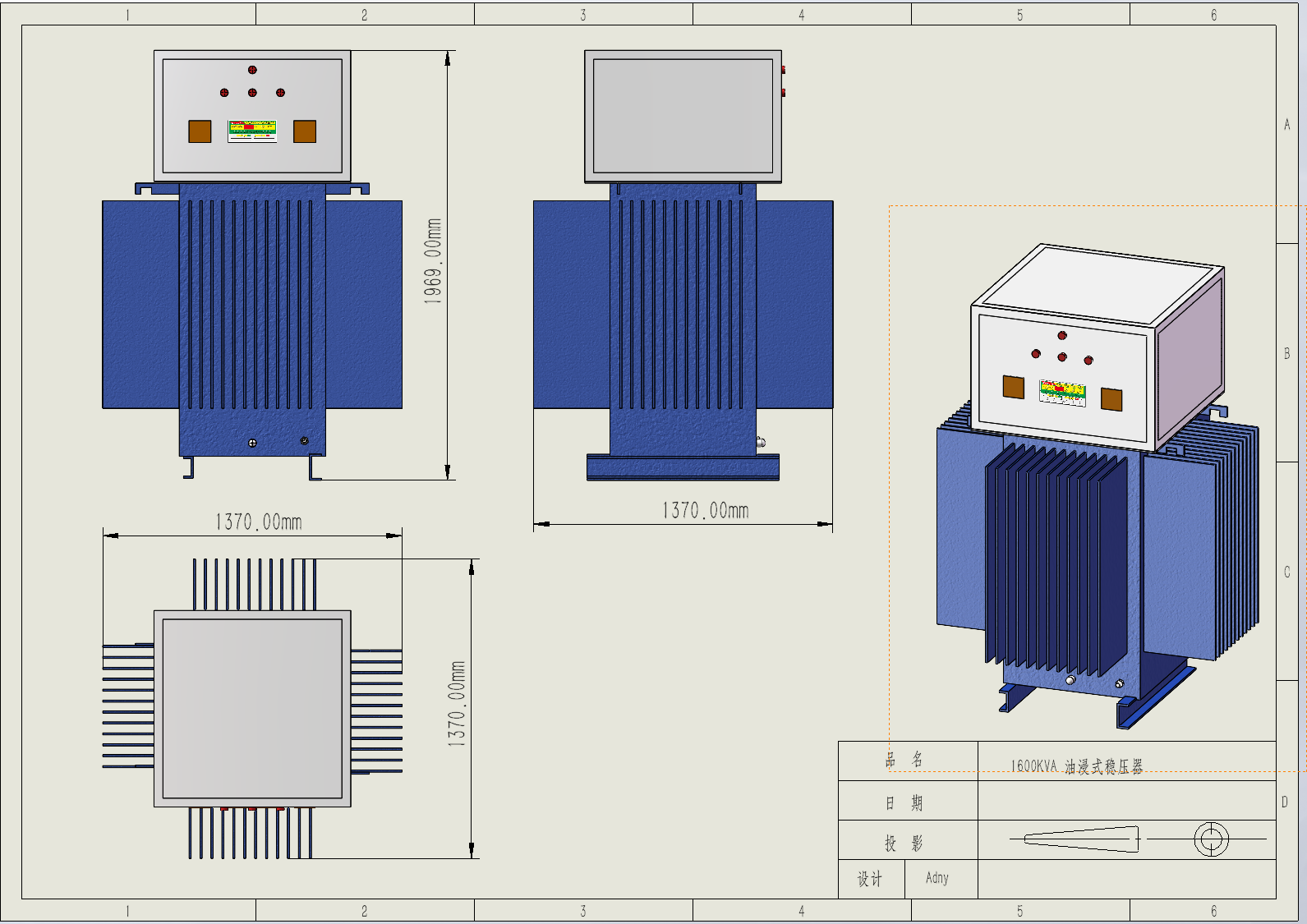

📸 Detailed Product Images
📊 Voltage Stabilizer - Model List
| Model | Capacity | Load Current | Size (MM) | Weight (KG) |
|---|---|---|---|---|
| IPS-3100 | 100KVA | 152A | 650*650*1000 | 450 |
| IPS-3200 | 200KVA | 304A | 910*910*1558 | 750 |
| IPS-3500 | 500KVA | 760A | 1090*1090*1700 | 1250 |
| IPS-3800 | 800KVA | 1216A | 1170*1170*1958 | 1800 |

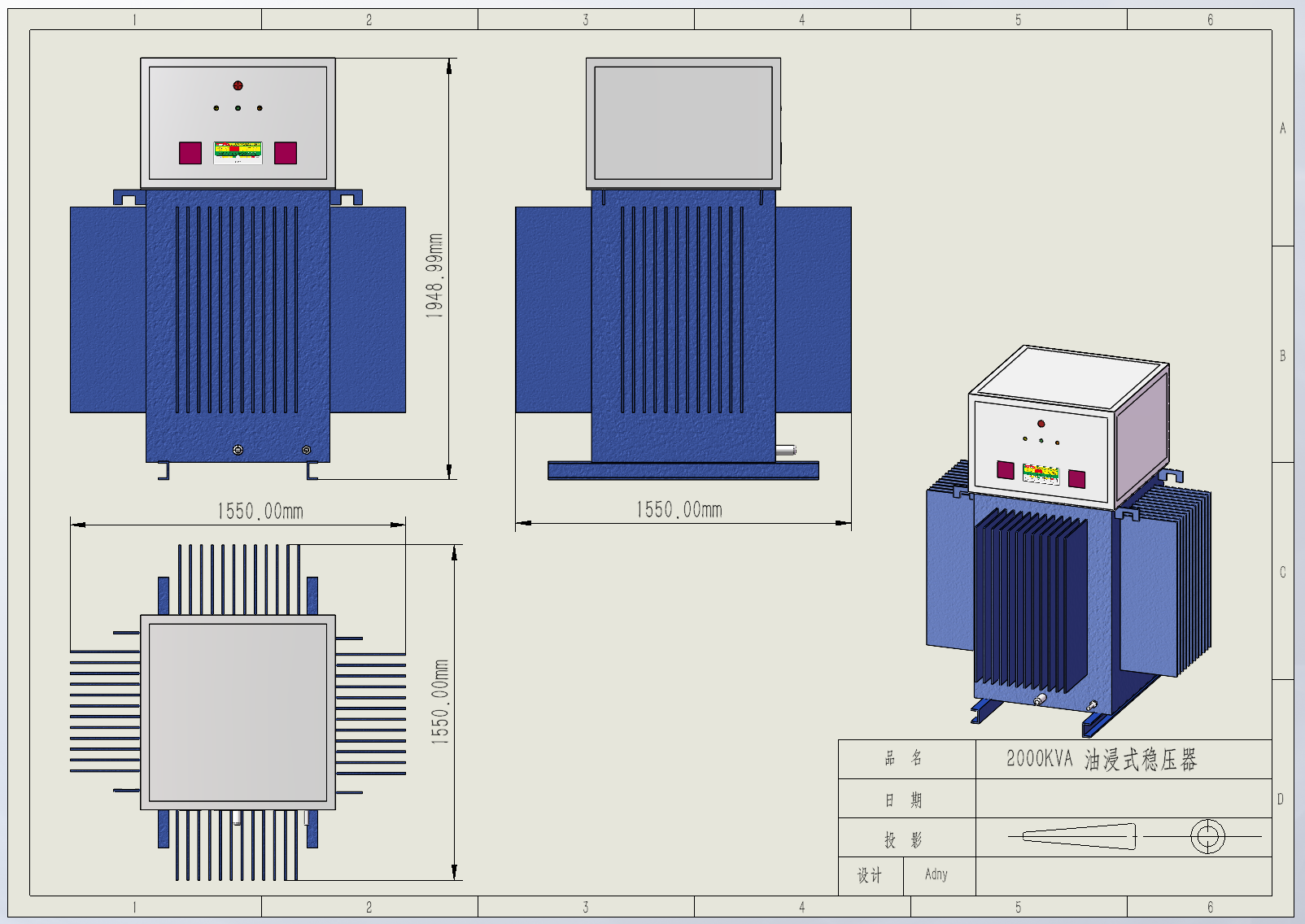

| IPS-32000 | 2000KVA | 3040A | 1550*1550*1980 | 4000 |
| IPS-35000 | 5000KVA | 7600A | Custom | Custom |
🛡️ Professional Power Solutions
We focus on research and development, sales, and service in fields including AC and DC power supplies, rectifier systems, and inverters. Our products have passed CE, RoHS, and other international certifications. We provide personalized, efficient, and reliable power solutions for global partners across over 30 countries.
💬 Customer Feedback
❓ Frequently Asked Questions
1. What is the maximum capacity for the induction voltage stabilizer?
Our offerings range up to 5000KVA, and we specialize in customizing models to meet specific power requirements.
2. Can the equipment be used in outdoor environments?
The standard units are for indoor use, but outdoor versions can be fully customized with enhanced weather protection.
3. What cooling method is used?
We utilize an oil-immersed self-cooling method, which ensures efficient heat dissipation and long-term stable operation.
4. Does the stabilizer cause waveform distortion?
No, there is no additional waveform distortion; the output waveform remains the same as the input waveform.
5. What protection features are included?
The unit includes protection against over-voltage, under-voltage, and phase loss, accompanied by sound and light alarm indications.
6. Is it easy to install and move?
Yes, the design includes features for easy movement via forklift or hand trailer, with simplified wiring for quick installation.
