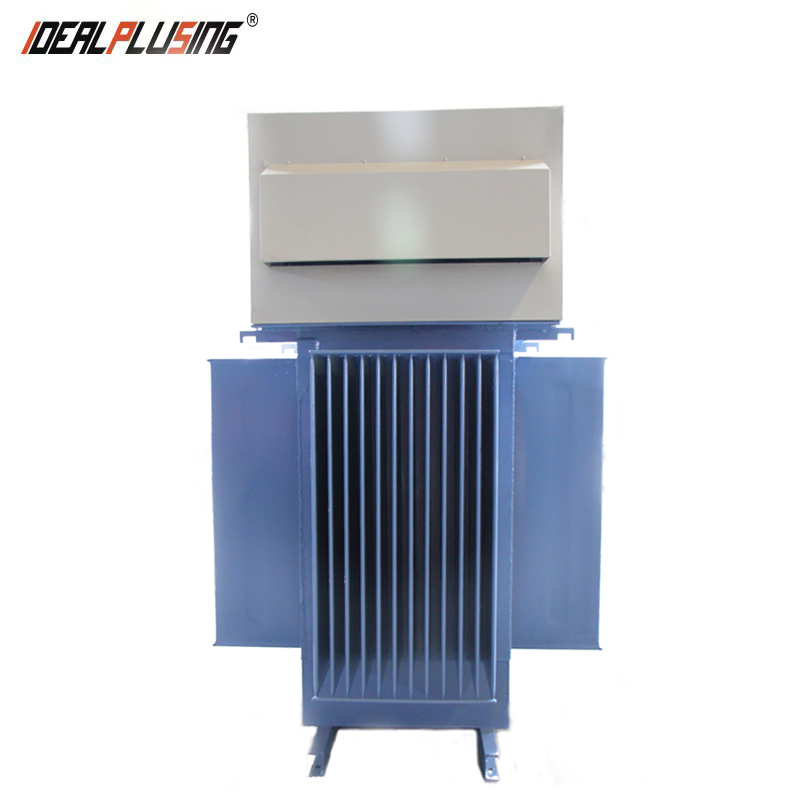

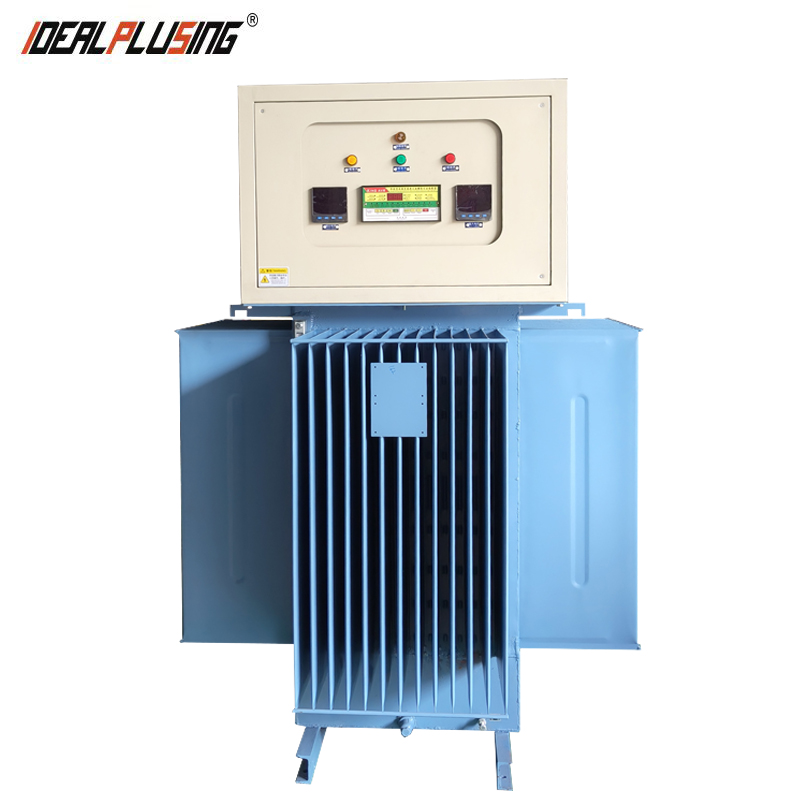

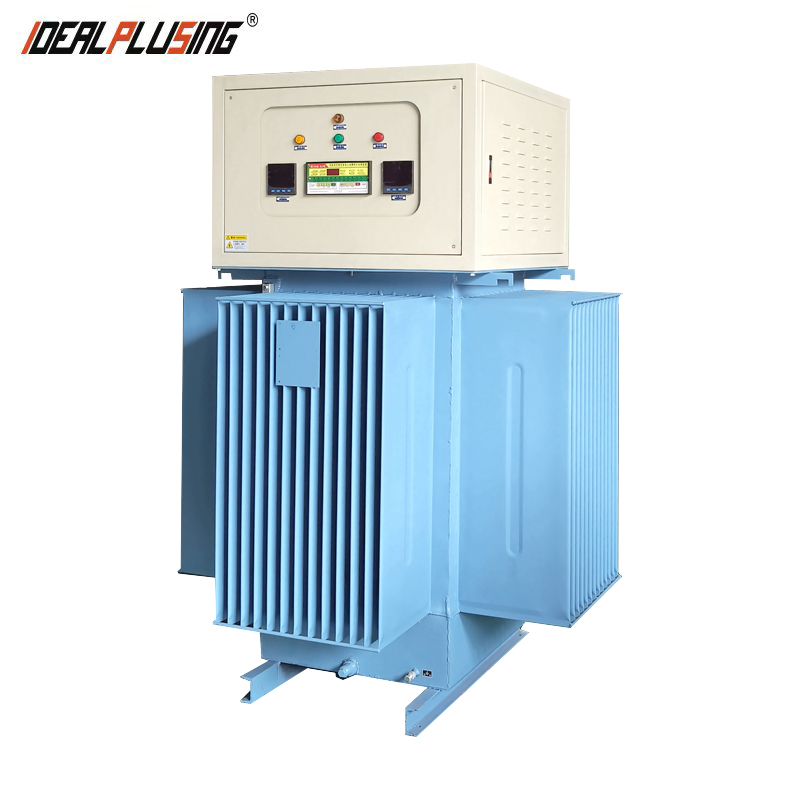

380v 3 Phase Step Down Transformer Stabilizer Voltage Regulator Oil Immersed Transformer
Product Description
Product Description
| Model NO. | IPS-31600 | Specification | Customize |
| Brand | - | Transport Package | Wooden Box |
| Iron Core Shape | R | Origin | China |
| Capacity Range | 100KVA to 5000KVA (Multiple output power options available) | ||
Customization Service

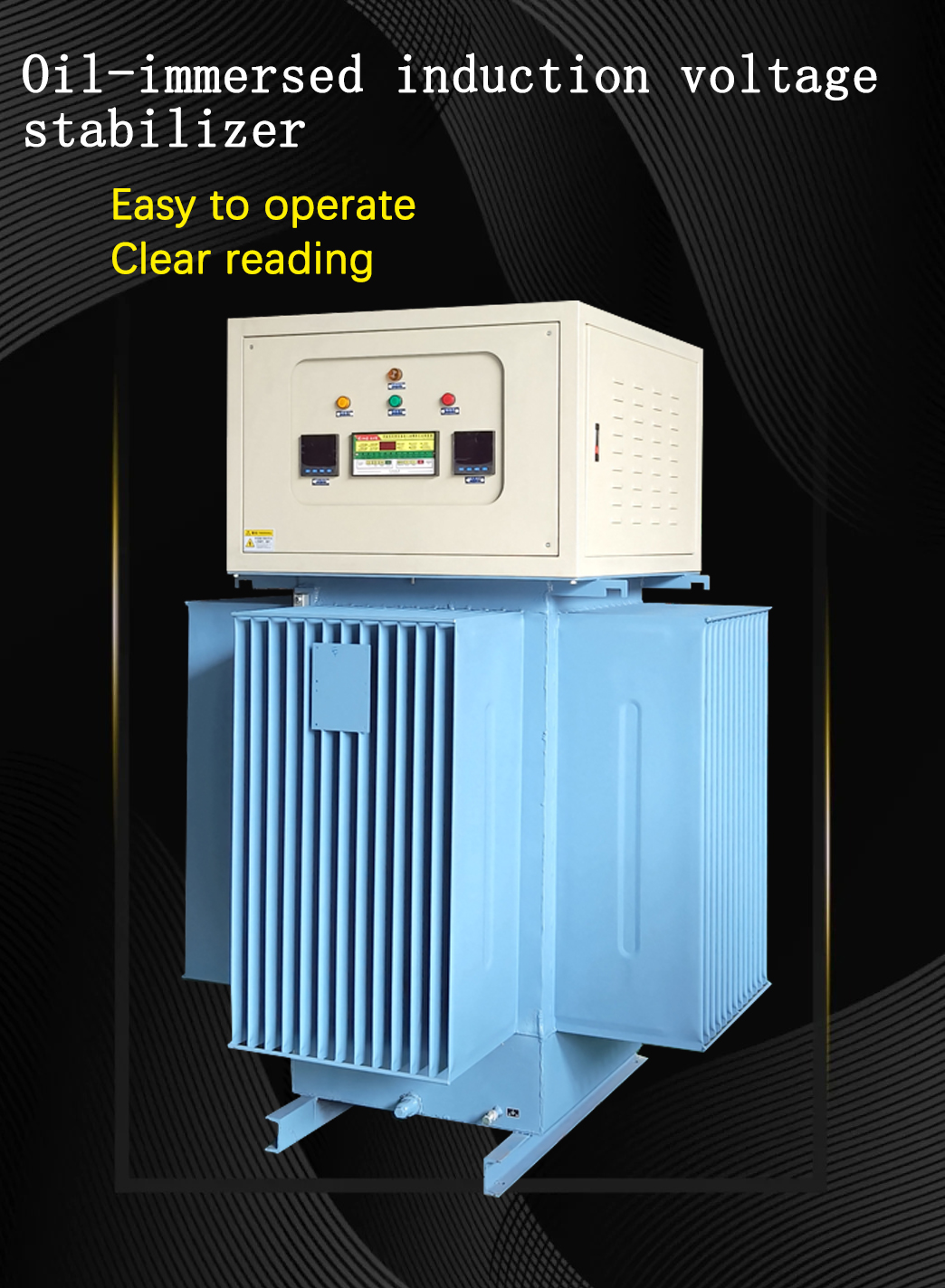

We specialize in customizing Oil-Immersed Induction Voltage stabilizers to meet your specific requirements. With customized options for any kind of Voltage stabilizer, our offerings range up to 5000KVA. Our dedicated team endeavors to respond within one hour to any inquiries.
Working Environment
- Use site: Indoor (outdoor can be customized)
- Stability: No vibration or bumps
- Protection: No gas, steam, or chemical deposition
- Safety: Clean environment free from explosive and corrosive media
Process Highlights
- Exquisite appearance, forklift/trailer friendly
- Fuel tank: Baosteel/Wuhan Iron cold-rolled corrugated steel
- Surface: Phosphating + PZ 660 primer + RAL 7032 powder coating
- Packaging: Reinforced high-strength wooden boxes
Technical Specifications
| Model | IPS-31600 | Rated Input Voltage | Three-phase 380VAC |
| Voltage Regulation | ± 15% | Frequency | 50 Hz/60Hz |
| Stabilization Accuracy | ±1-5% Adjustable | Response Time | ≤1-10s Adjustable |
| Load Current | 2432A | Capacity | 1600KVA |
| Efficiency | ≥97% | Cooling Method | Oil-immersed self-cooling |
| Protection Level | IP67 | Insulation Level | A |
| Operating Temp. | -25~+55ºC | Weight | Approx. 2200KG |
| Dimensions | 1300*1300*1958 (MM) | ||
Hot Selling Models
Model: IPS-3200
Capacity: 200KVA
Current: 304A
Weight: 750 KG
Size: 910*910*1547mm
Model: IPS-3800
Capacity: 800KVA
Current: 1216A
Weight: 1800 KG
Size: 1070*1070*1959mm
Model: IPS-33500
Capacity: 3500KVA
Current: 5320A
Weight: 7000 KG
Size: 1550*1550*2405mm
Detailed Visuals
Voltage Stabilizer Model List
| Model | Capacity | Load Current | Size(MM) | Weight(KG) |
|---|---|---|---|---|
| IPS--3100 | 100KVA | 152A | 650*650*1000 | 450 |
| IPS-3200 | 200KVA | 304A | 910*910*1558 | 750 |
| IPS-3300 | 300KVA | 456A | 1000*1000*1636 | 1100 |
| IPS-3500 | 500KVA | 760A | 1090*1090*1700 | 1250 |
| IPS-3800 | 800KVA | 1216A | 1170*1170*1958 | 1800 |
| IPS-31600 | 1600KVA | 2432A | 1300*1300*1958 | 2200 |
| IPS-35000 | 5000KVA | 7600A | Custom | 8500 |
Our research and development focuses on high-performance power supply solutions, including DC to DC modules, rectifiers, inverters, and LED power supplies. With 13 years of technical expertise, our products follow international design trends and are certified with CE and RoHS. We provide high-quality power solutions to partners in over 30 countries, including the USA, Germany, France, and Australia.
Frequently Asked Questions
What is the maximum capacity available for these stabilizers?
We provide standard and customized oil-immersed induction voltage stabilizers with capacities ranging from 100KVA up to 5000KVA.
Can these units be installed outdoors?
The standard design is for indoor use; however, we offer full customization for outdoor installations to meet specific environmental needs.
What is the response time for voltage stabilization?
The response time is highly efficient and typically adjustable between 1 to 10 seconds, depending on the specific requirements of the load.
What kind of protection does the stabilizer offer?

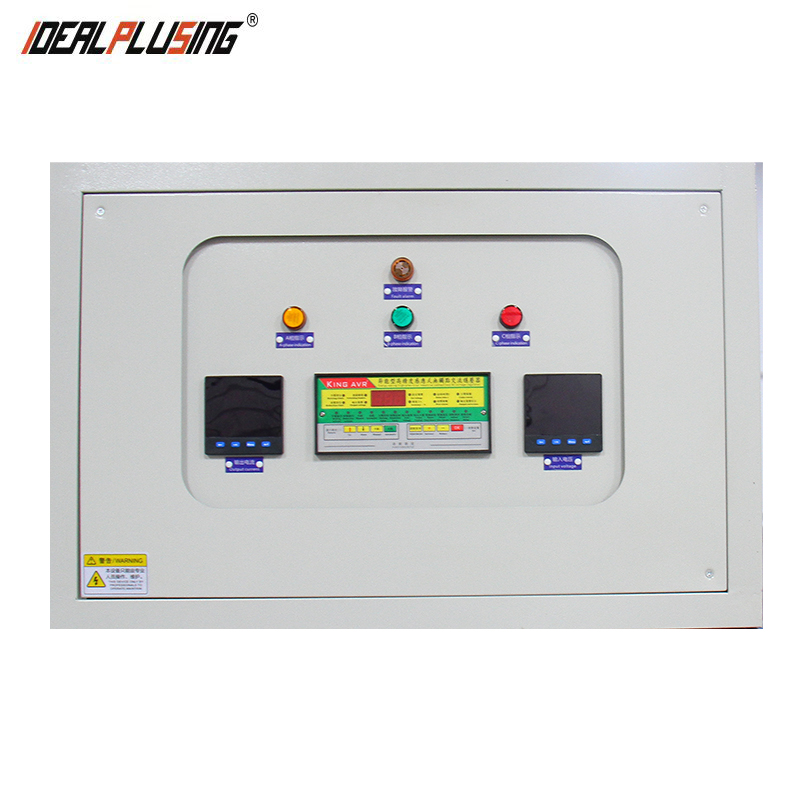

Our units feature IP67 protection levels and include intelligent alarms for over-voltage, under-voltage, phase loss, and sound/light alarm indications.
What cooling method is utilized in these stabilizers?
We use an oil-immersed self-cooling method, which ensures long-term stable operation and high efficiency (97% or above) without the need for active mechanical cooling.
