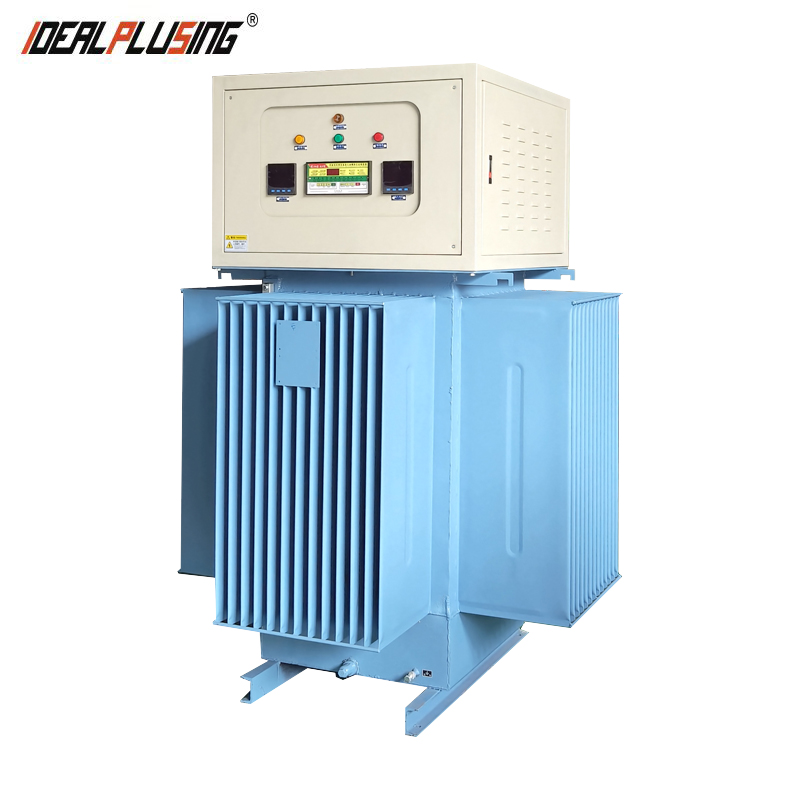

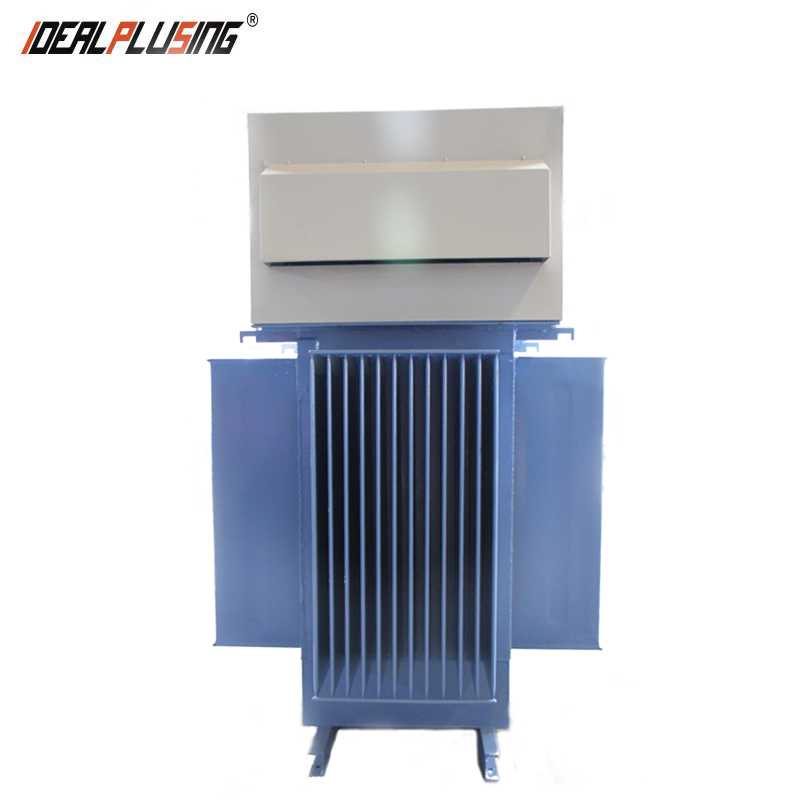

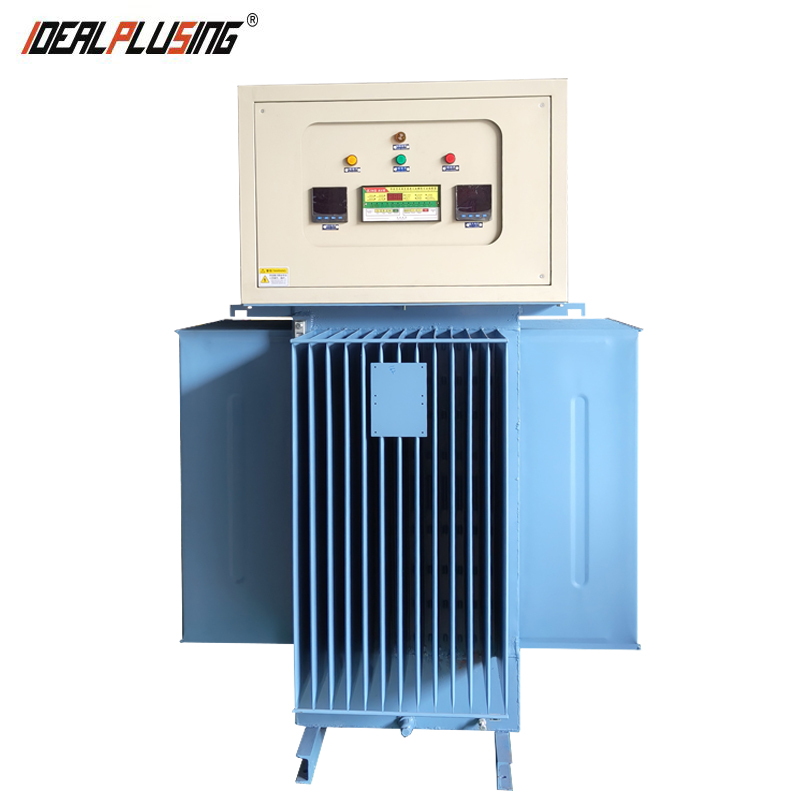

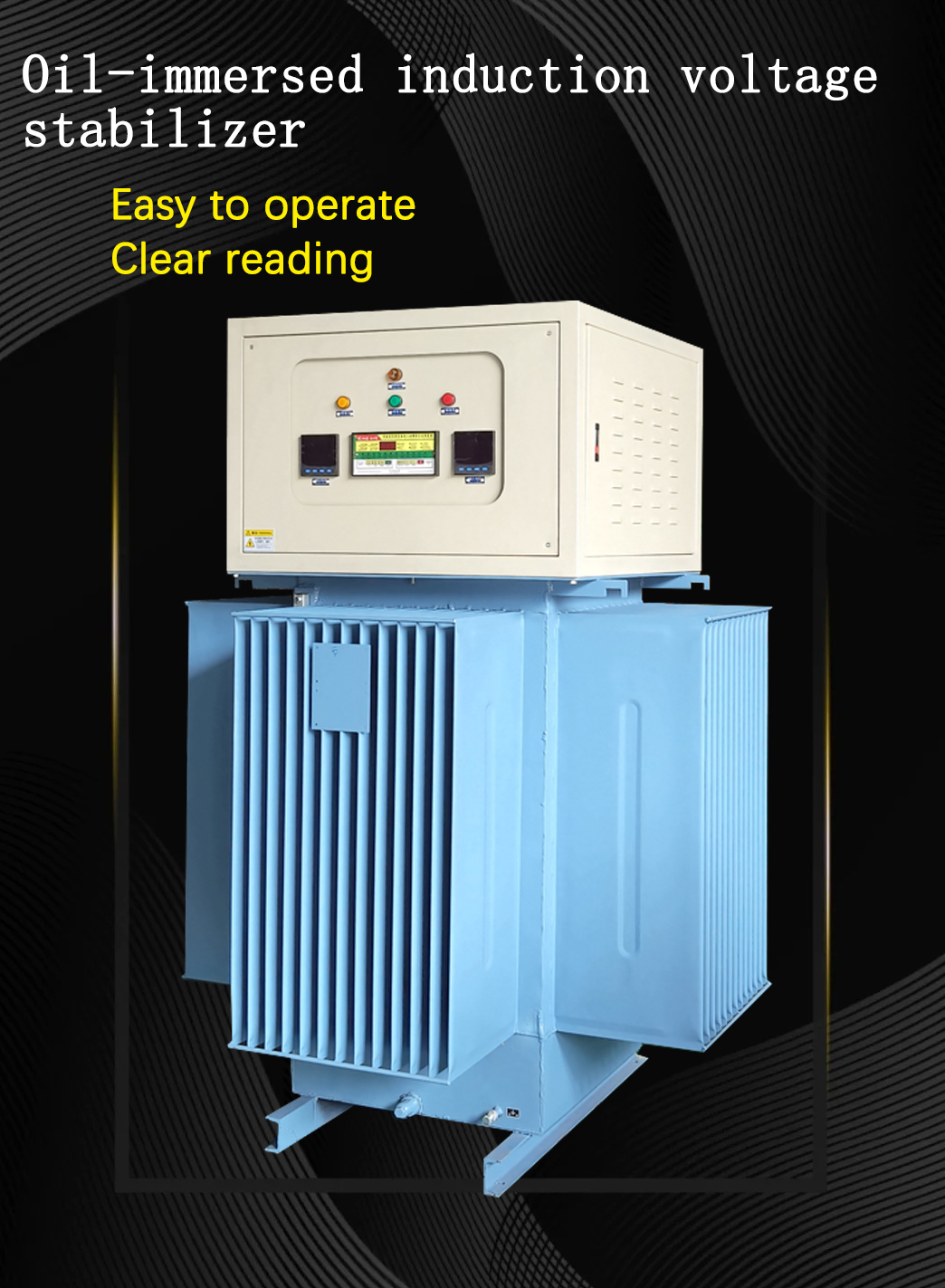

Hot Selling 4000kva Oil-immersed Induction Three Phase Automatic Voltage Stabilizer Regulator Avr 380v
Product Description
Product Description
| Model NO. | IPS-34000 | Specification | Customize |
|---|---|---|---|
| Iron Core Shape | R | Origin | China |
| Capacity Range | 100KVA to 5000KVA | ||
⚙️
Customization Service:
We specialize in customizing Oil-Immersed Induction Voltage Stabilizers to meet your specific requirements. Our offerings range up to 5000KVA. Please submit any inquiries to explore our capabilities further. Our dedicated team endeavors to respond within one hour.
Working Environment & Features
🏠
Environment Requirements:
Use site: Indoor (outdoor can be customized), no vibration, bumps, no gas, steam, chemical deposition that seriously affects insulation, dust, dirt and other explosive or corrosive media.
🛠️
Process & Requirements:
1) Exquisite appearance, easy to move with forklift and hand trailer, simple installation and wiring;
2) Fuel tank material: Cold-rolled steel plate corrugated fuel tank;
3) Surface treatment: Phosphating + Primer + Powder coating (RAL 7032);
4) Packaging: Strong wooden box packaging.
Technical Specification
| Input | Rated voltage | Three-phase 380VAC |
|---|---|---|
| Voltage regulation range | ± 15% | |
| Frequency | 50 Hz/60Hz | |
| Output | Rated voltage | Three-phase 380VAC |
| Voltage stabilization accuracy | ±1-5% Adjustable | |
| Response time | ≤1-10s Adjustable | |
| Load current | 6080A | |
| Capacity | 4000KVA | |
| Waveform distortion | None (same as input waveform) | |
| Efficiency | ≥97% or above | |

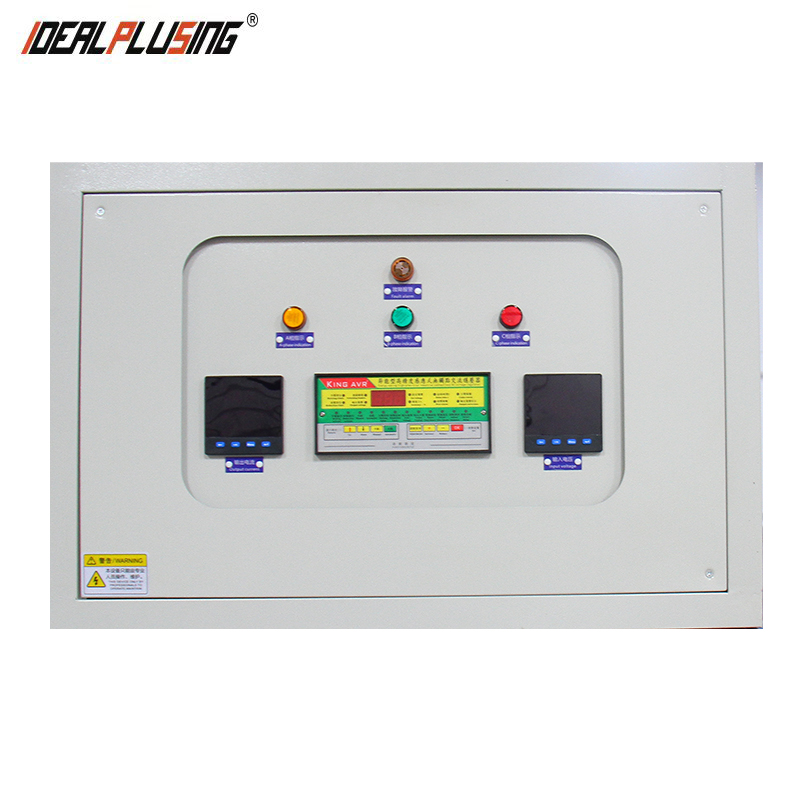

| Control | DSP Computing and metering chip intelligent control technology | |
| Protection | IP67, Over voltage, under voltage, phase loss alarm | |
| Cooling | Oil-immersed self-cooling | |
Hot Selling Models
Model: IPS-3200
Capacity: 200KVA | Current: 304A
Size: 910*910*1547(MM)
Model: IPS-3800
Capacity: 800KVA | Current: 1216A
Size: 1070*1070*1959(MM)
Model: IPS-33500
Capacity: 3500KVA | Current: 5320A
Size: 1550*1550*2405(MM)
Details Images
Model List Reference
| Model | Capacity | Load Current | Size (MM) | Weight (KG) |
|---|---|---|---|---|
| IPS-3100 | 100KVA | 152A | 650*650*1000 | 450 |
| IPS-3150 | 150KVA | 225A | 750*750*1350 | 550 |
| IPS-3200 | 200KVA | 304A | 910*910*1558 | 750 |
| IPS-3400 | 400KVA | 608A | 1090*1090*1636 | 1200 |
| IPS-3800 | 800KVA | 1216A | 1170*1170*1958 | 1800 |
| IPS-31000 | 1000KVA | 1520A | 1170*1170*1958 | 1900 |
| IPS-32000 | 2000KVA | 3040A | 1550*1550*1980 | 4000 |
| IPS-35000 | 5000KVA | 7600A | Custom | 8500 |
Our Professional Capability
🛡️
We focus on the research, development, and service of DC to DC power supply modules, AC to DC rectifier modules, inverters, and voltage stabilizers. Our products provide personalized, efficient, reliable, and cost-effective power solutions for various industries. With over 13 years of technical experience, our products comply with CE, RoHS, and other international certifications, serving partners in over 30 countries including the USA, Germany, France, and Australia.
Frequently Asked Questions
What is the capacity range of your voltage stabilizers?
Our induction voltage stabilizers cover a wide range from 100KVA up to 5000KVA, suitable for heavy industrial applications.
Can these stabilizers be used outdoors?
The standard units are designed for indoor use, but we offer fully customized outdoor versions with enhanced weather protection.
What cooling method is used?
We use oil-immersed self-cooling technology, which ensures high efficiency (≥97%) and long-term stable operation even under heavy loads.
What are the protection levels and safety features?
The equipment features an IP67 protection level and includes intelligent DSP control for over-voltage, under-voltage, and phase loss protection with sound and light alarms.
Is customization available for different input voltages?
Yes, we support various input specifications including 220V, 380V, and 440V (Three-phase), and can adjust for 50Hz or 60Hz frequencies based on your local power grid.
How long is the response time for voltage stabilization?
The response time is adjustable between 1 to 10 seconds, depending on your specific equipment requirements and grid stability.
