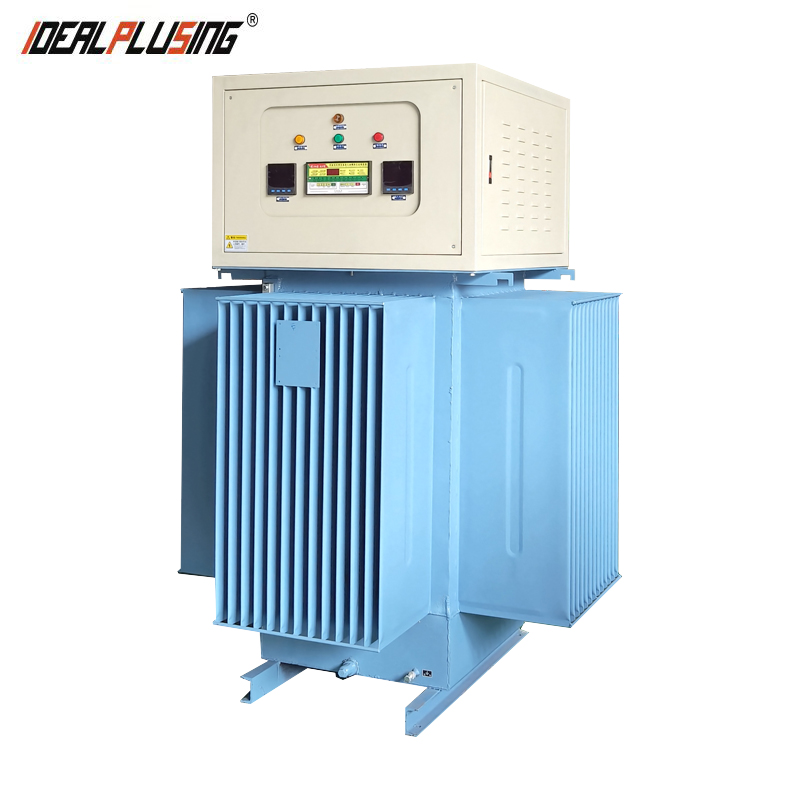

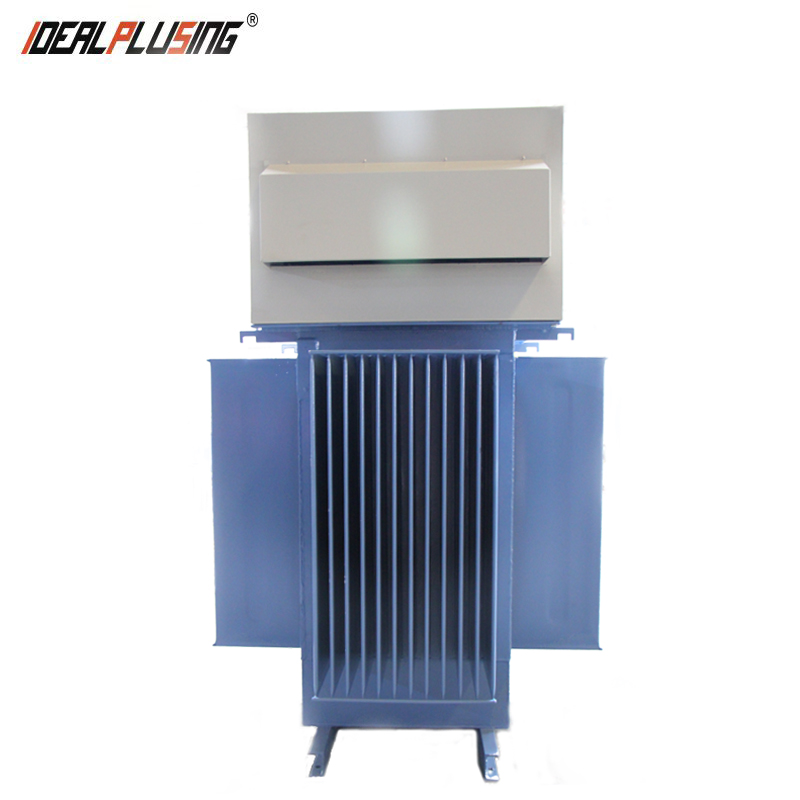

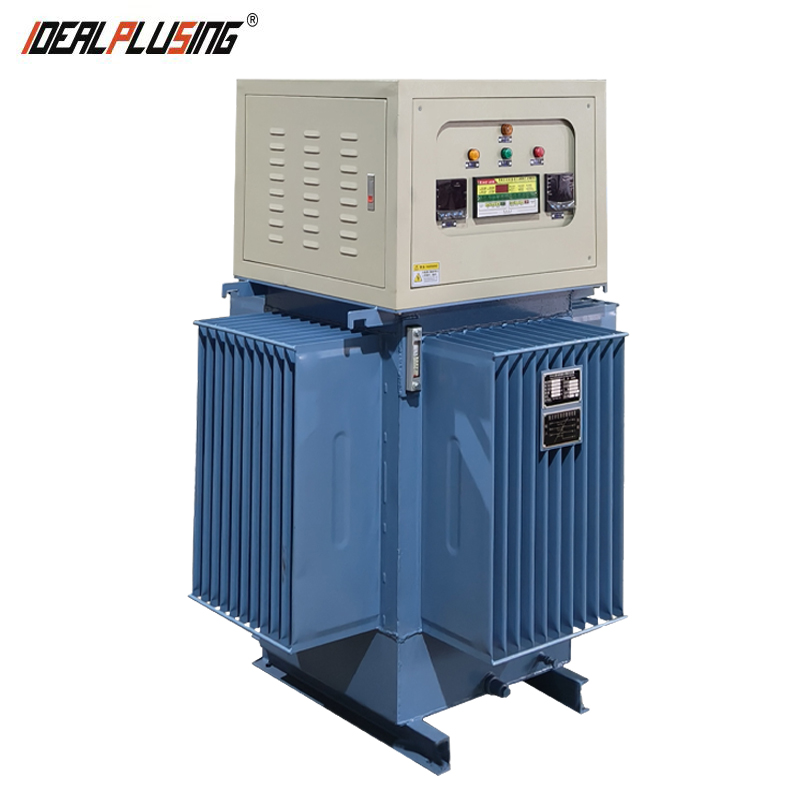

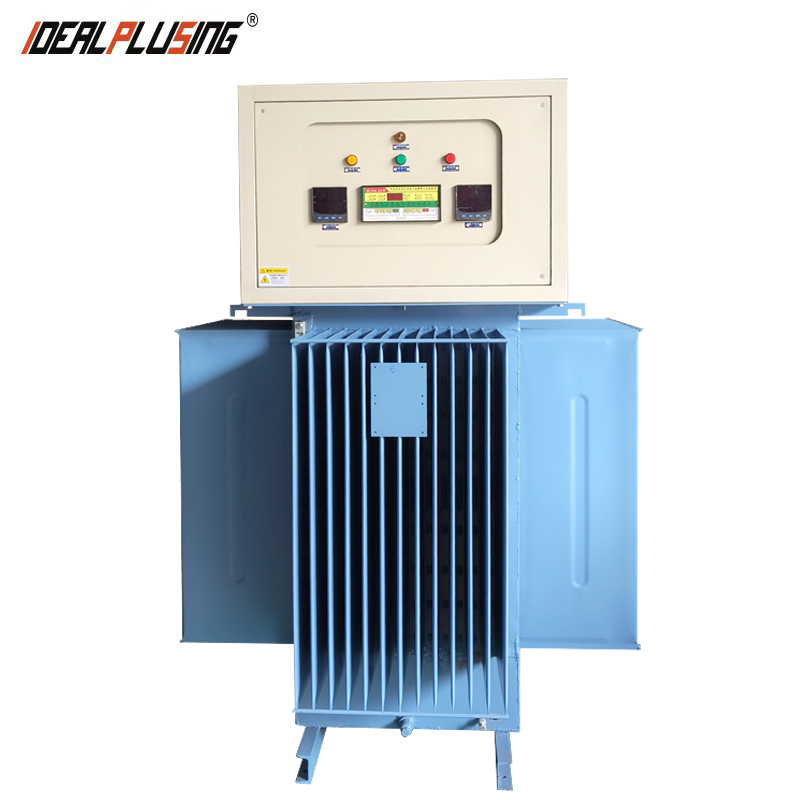

Autotransformer 500kva Variac Oil Cooling Voltage Regulator Three Phase Voltage Regulator
Product Description
| Model NO. | IPS-3500 | Specification | Customize |
|---|---|---|---|
| Iron Core Shape | R | Origin | China |
| Transport Package | Wooden Box | Capacity Range | 100KVA - 5000KVA |
Customization Service
We specialize in customizing Oil-Immersed Induction Voltage stabilizers to meet your specific requirements. With capacities ranging up to 5000KVA, we provide tailored power solutions for diverse industrial needs. Our dedicated team endeavors to respond to all inquiries promptly.
- Use site: Indoor (Outdoor customization available)
- Environment: No vibration, no heavy bumps
- Safety: No corrosive gas, steam, or chemical deposition
- Cleanliness: Free from dust, dirt, and explosive media
- Exquisite appearance, forklift-friendly design
- Fuel tank: Baosteel/WISCO cold-rolled steel plate
- Surface treatment: Phosphating + PZ 660 primer + RAL 7032 powder coating
- Simple installation and wiring system
| Input Rated Voltage | Three-phase 380VAC | |
|---|---|---|
| Voltage Regulation Range | ± 15% | |
| Frequency | 50 Hz / 60 Hz | |
| Voltage Stabilization Accuracy | ±1-5% (Adjustable) | |
| Response Time | ≤1-10s (Adjustable) | |
| Output Capacity | 500KVA (Up to 5000KVA) | |
| Efficiency | ≥97% | |
| Control Technology | DSP Intelligent Computing & Metering Chip | |
| Cooling Method | Oil-immersed self-cooling | |
| Protection Level | IP67 | |
| Operating Temperature | -25°C to +55°C | |
Model: IPS-3200
Capacity: 200KVA
Input Voltage: Three-phase 480VAC
Output Voltage: Three-phase 380VAC
Load Current: 304A
Weight: 750 KG
Size: 910*910*1547(MM)
Model: IPS-3800
Capacity: 800KVA
Current: 1216A
Protection: IP67
Weight: 1800 KG
Size: 1070*1070*1959(MM)
Model: IPS-33500
Capacity: 3500KVA
Load Current: 5320A
Cooling: Oil-immersed self-cooling
Weight: 7000 KG
Size: 1550*1550*2405(MM)
| Model | Capacity | Load Current | Dimensions (MM) | Weight (KG) |
|---|---|---|---|---|
| IPS-3100 | 100KVA | 152A | 650*650*1000 | 450 |
| IPS-3200 | 200KVA | 304A | 910*910*1558 | 750 |
| IPS-3300 | 300KVA | 456A | 1000*1000*1636 | 1100 |
| IPS-3500 | 500KVA | 760A | 1090*1090*1700 | 1250 |
| IPS-3800 | 800KVA | 1216A | 1170*1170*1958 | 1800 |
| IPS-31000 | 1000KVA | 1520A | 1170*1170*1958 | 1900 |
| IPS-32000 | 2000KVA | 3040A | 1550*1550*1980 | 4000 |
| IPS-35000 | 5000KVA | 7600A | Custom | 8500 |
With 13 years of strong technical precipitation and rich production experience, we follow international design trends. Our products have passed CE and RoHS international certifications. We provide high-quality power supply solutions for over 30 countries including the United States, Germany, France, and Australia.
1. What is the maximum capacity available for these voltage stabilizers?
Our standard models range from 100KVA up to 5000KVA. Each unit can be customized to meet specific power requirements for industrial applications.
2. Can these units be used outdoors?
Yes. While the standard design is for indoor use, we offer specialized outdoor customizations. The units feature IP67 protection to ensure durability in various environments.
3. How accurate is the voltage stabilization?
The units provide high precision with a stabilization accuracy of ±1-5%, which is adjustable based on your operational needs.
4. What kind of cooling system do these stabilizers use?
They utilize an oil-immersed self-cooling method, which is highly efficient for large-capacity power management and ensures long-term stable operation.
5. Are the stabilizers protected against phase loss or overvoltage?

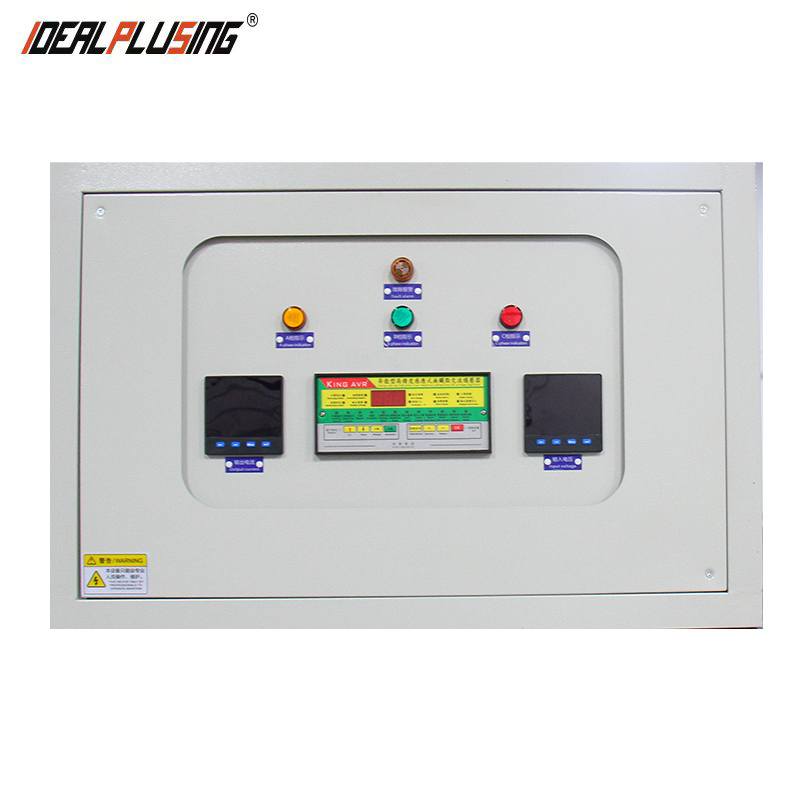

Absolutely. The intelligent DSP control system includes sound and light alarm indications for over-voltage, under-voltage, and phase loss to protect your equipment.
6. What certifications do your products hold?
Our power supply products are designed to meet international standards and have passed CE and RoHS certifications.
