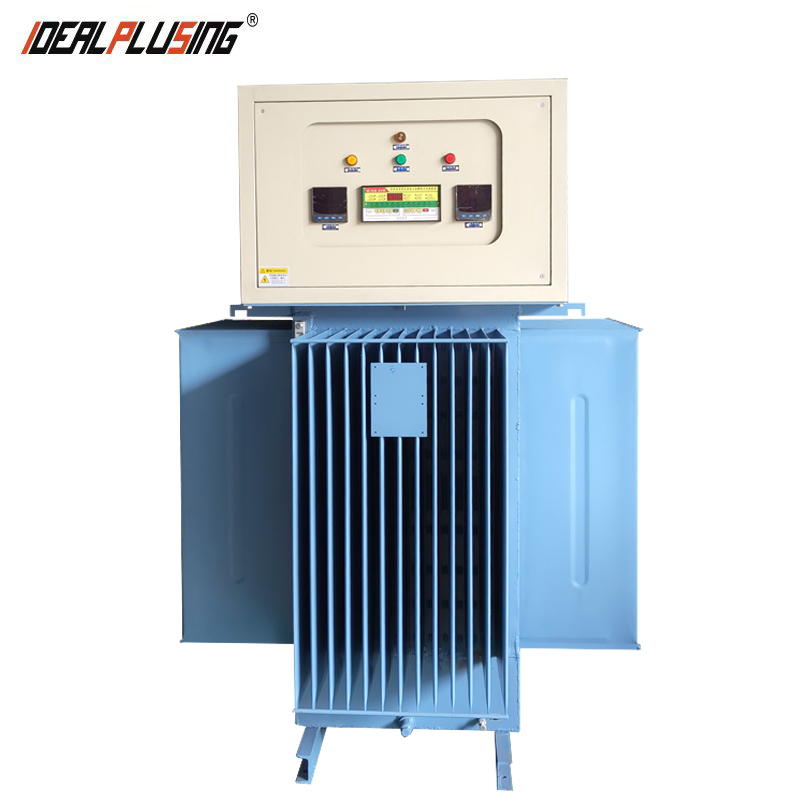

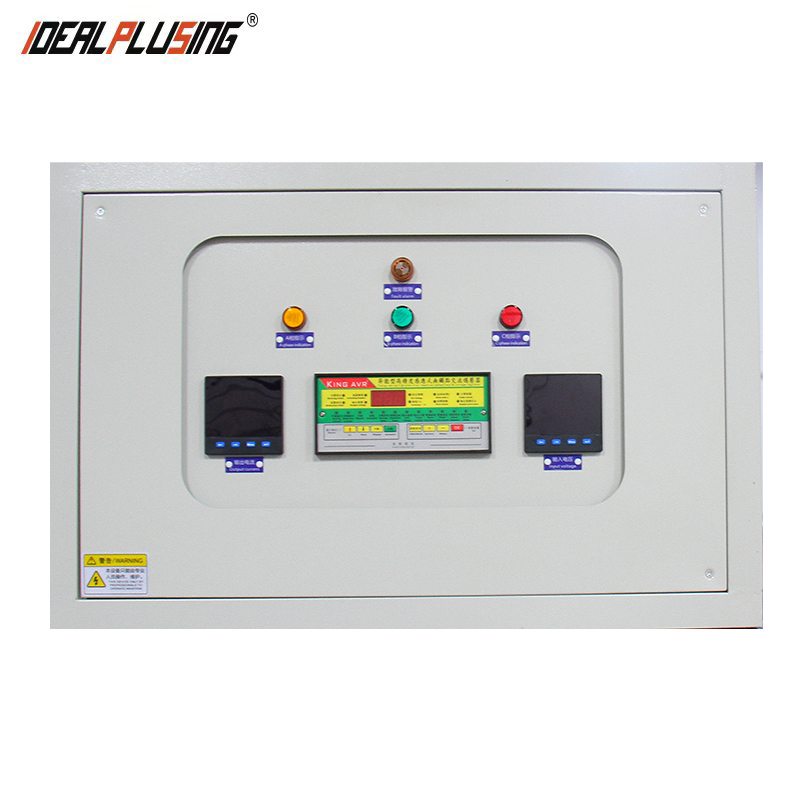

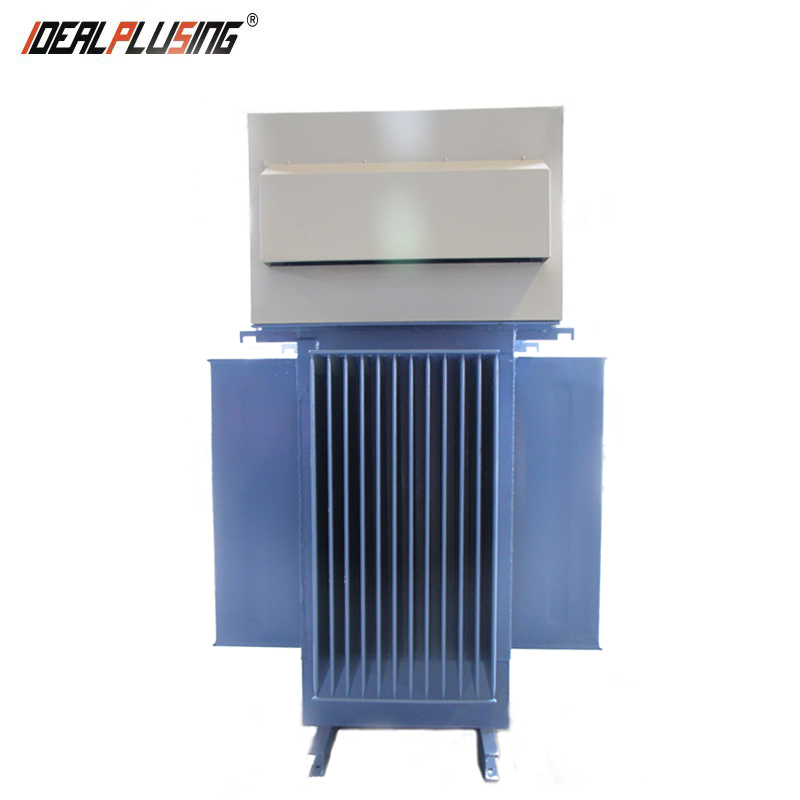

High Power Oil Type Three Phase Voltage Regulator Induction Voltage Stabilizer
Product Description
📦 Product Description
| Model NO. | IPS-32000 | Specification | Customize |
| Iron Core Shape | R | Origin | China |
| Transport Package | Wooden Box | Output Range | 100KVA - 5000KVA |
🛠 Professional Customization Service
We specialize in customizing Oil-Immersed Induction Voltage stabilizers to meet your specific requirements. Our offerings range up to 5000KVA. Our dedicated team endeavors to respond to inquiries within one hour. Thank you for considering our services.
🌍 Working Environment Requirements
- Use site: Indoor (outdoor can be customized).
- Conditions: No vibration, no bumps.
- Atmosphere: No gas, steam, chemical deposition, dust, or dirt that affects insulation.
- Media: No explosive or corrosive media.
✨ Process and Special Requirements
- Exquisite appearance, easy to move with forklift and hand trailer, simple installation and wiring.
- Fuel tank material: Cold-rolled steel plate corrugated fuel tank.
- Surface treatment: Phosphating + PZ 660 primer + powder coating (RAL 7032).
- Packaging: Strong and beautiful wooden box packaging.
📊 Technical Specification
| Category | Parameters | |
|---|---|---|
| Input | Rated Voltage | Three-phase 380VAC |
| Voltage Regulation Range | ± 15% | |
| Frequency | 50 Hz / 60 Hz | |
| Output | Voltage Stabilization Accuracy | ±1-5% Adjustable |
| Response Time | ≤1-10s Adjustable | |
| Load Current | 3040A | |
| Capacity | 2000KVA | |
| Waveform Distortion | No additional waveform distortion | |
| Efficiency | ≥97% or above | |
| Protection & Control | Control Method | DSP Computing and metering chip intelligent control |
| Protection Level | IP67 | |
| Alarm System | Over voltage, under voltage, phase loss, sound & light alarm | |
🔥 Hot Selling Models

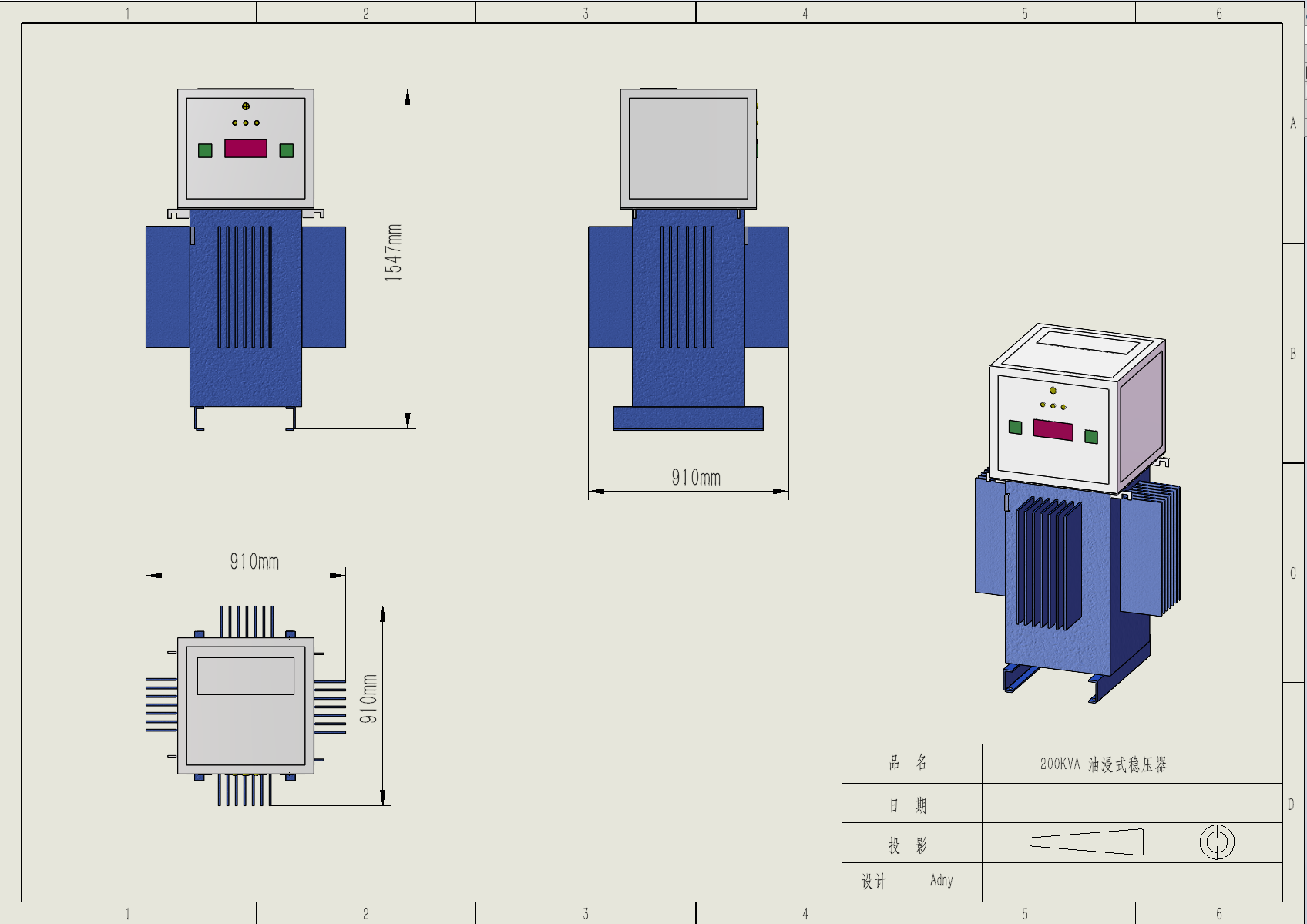

Model: IPS-3200 (200KVA)
- Input: Three-phase 480VAC
- Output: Three-phase 380VAC
- Current: 304A
- Cooling: Oil-immersed self-cooling
- Weight: 750 KG

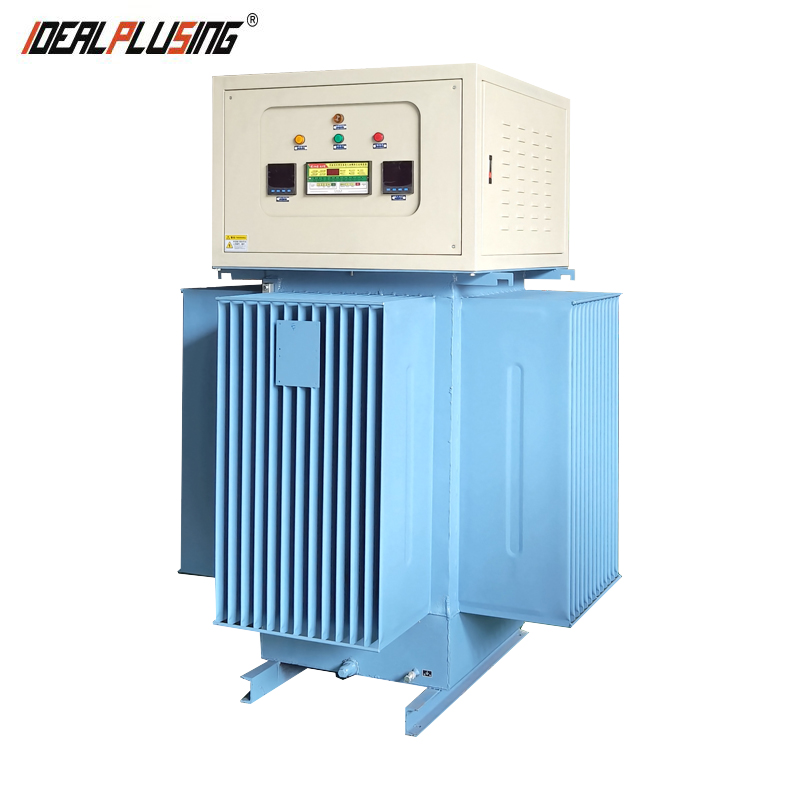

Model: IPS-3800 (800KVA)
- Input/Output: Three-phase 380VAC
- Current: 1216A
- Protection: IP67
- Weight: 1800 KG
- Size: 1070*1070*1959(MM)

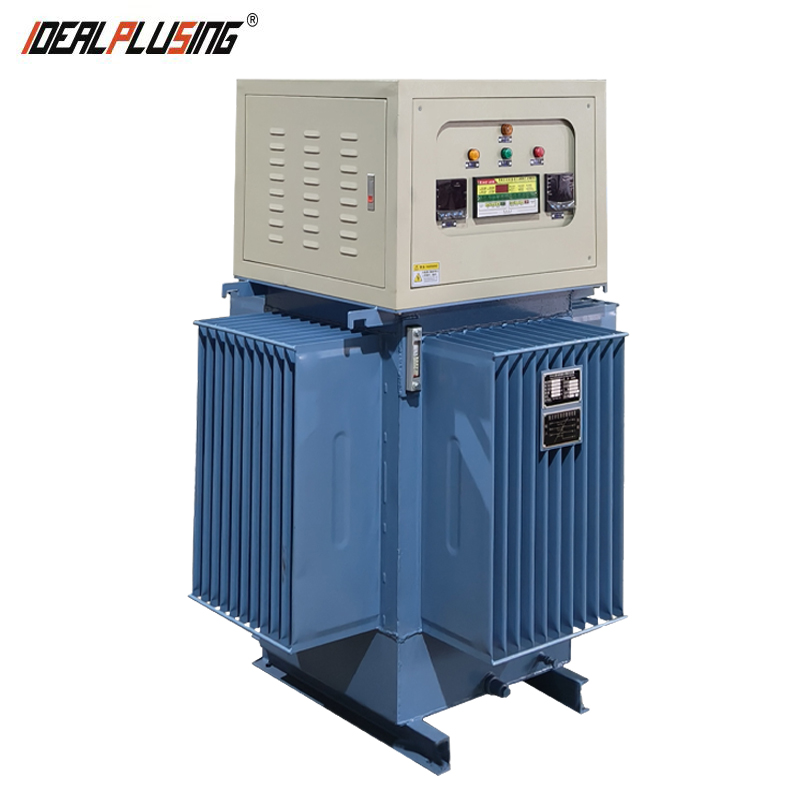

Model: IPS-33500 (3500KVA)
- Capacity: 3500KVA
- Current: 5320A
- Voltage Adjustment: Three-phase regulation
- Weight: 7000 KG

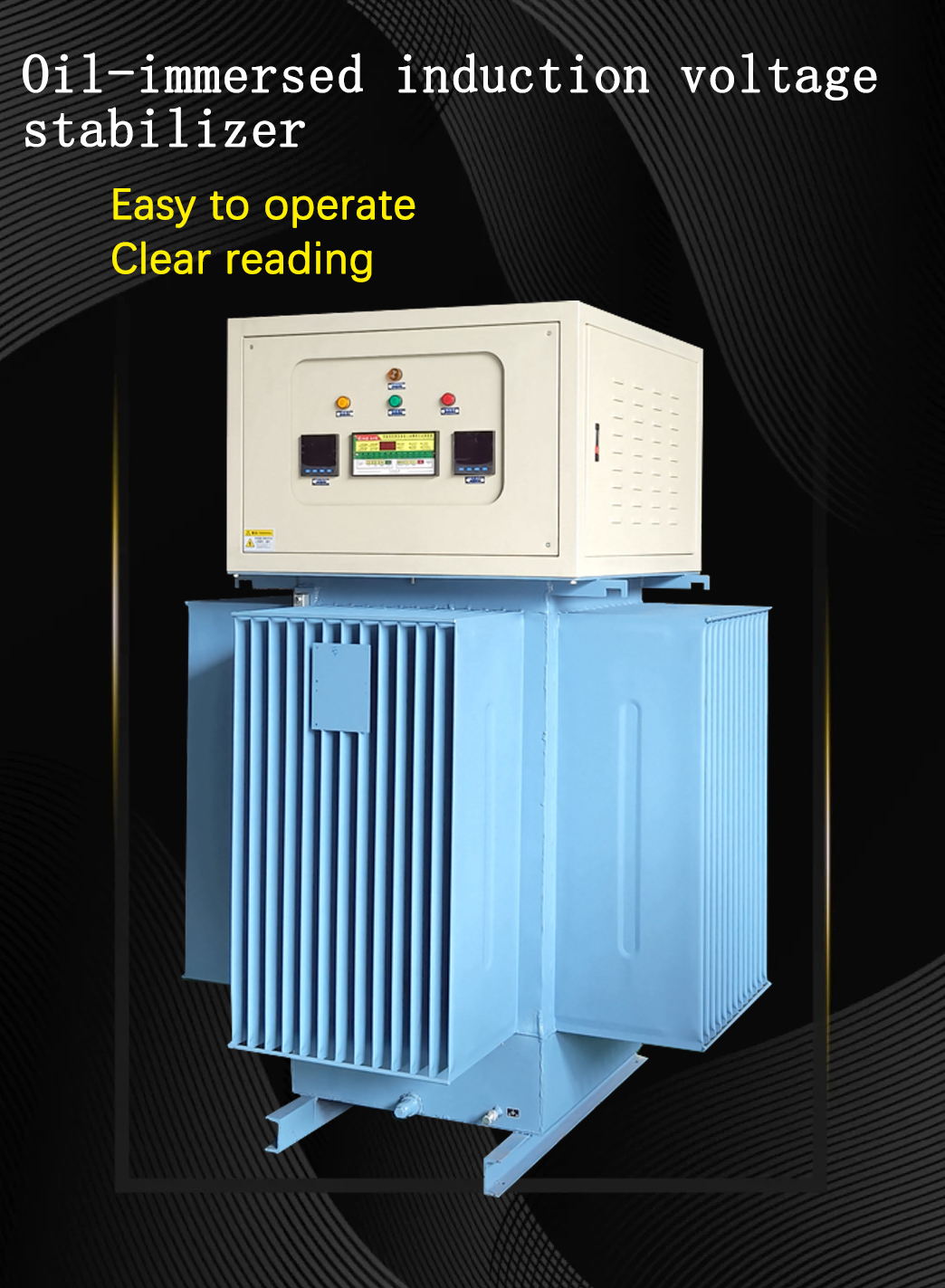

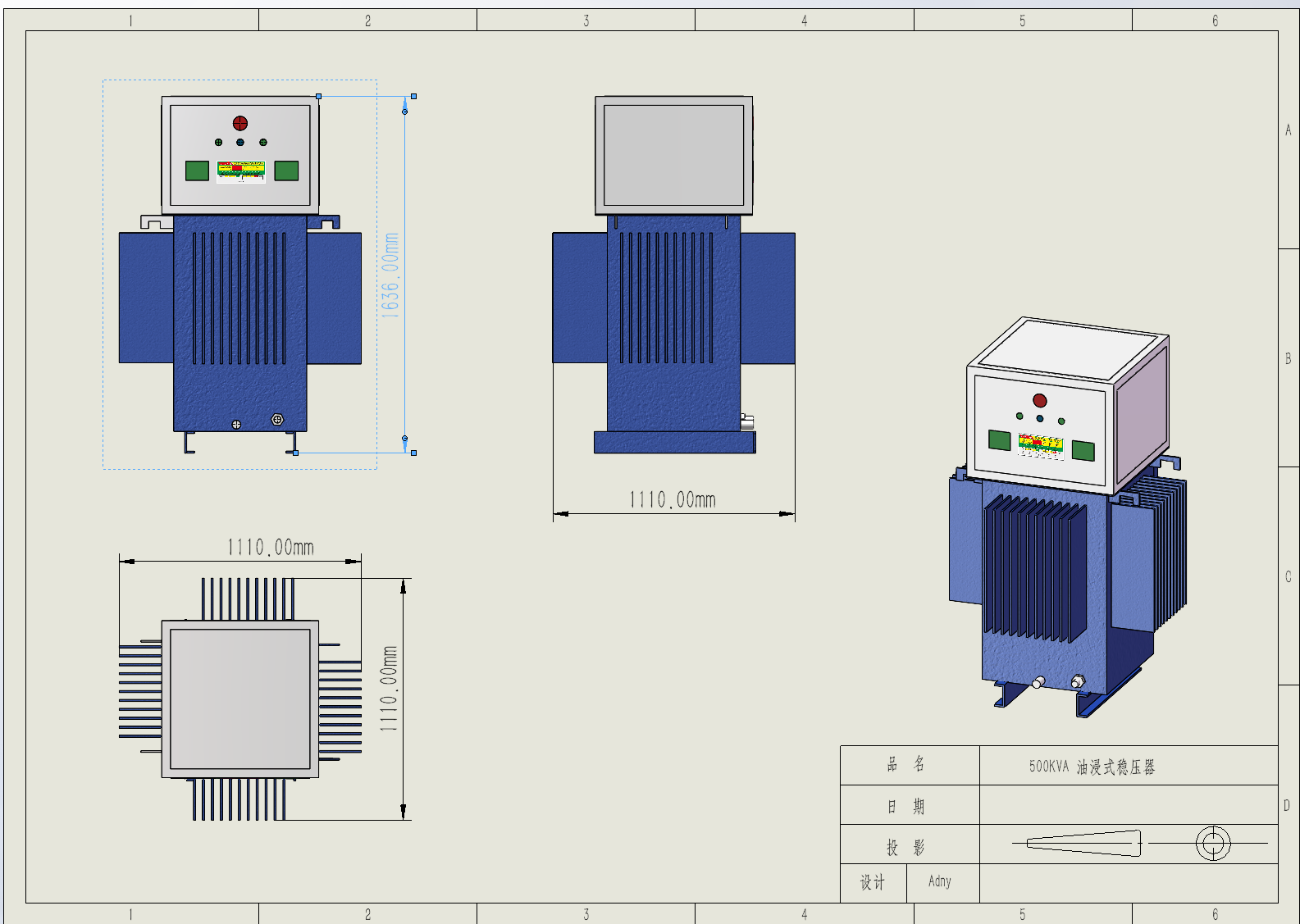

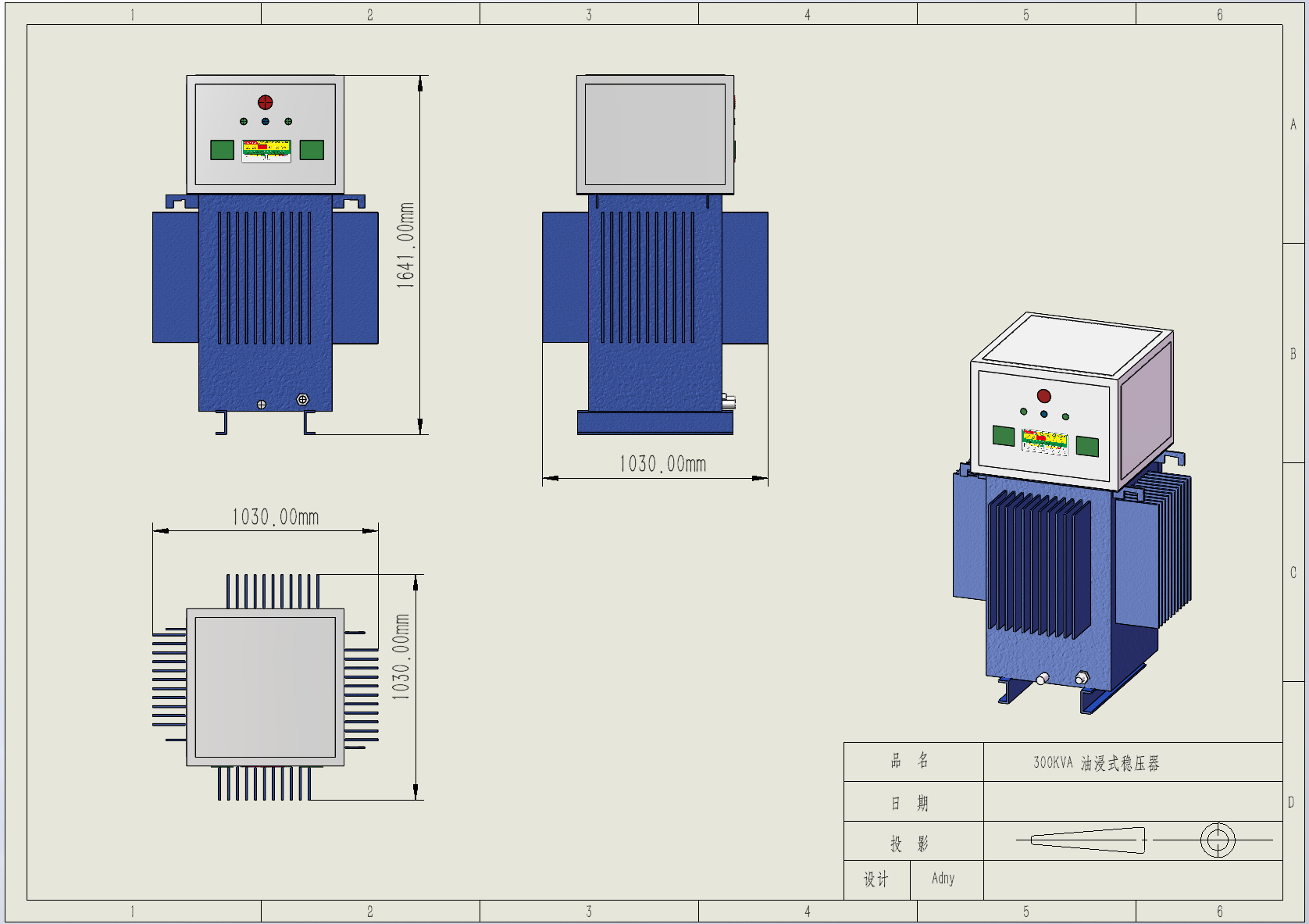

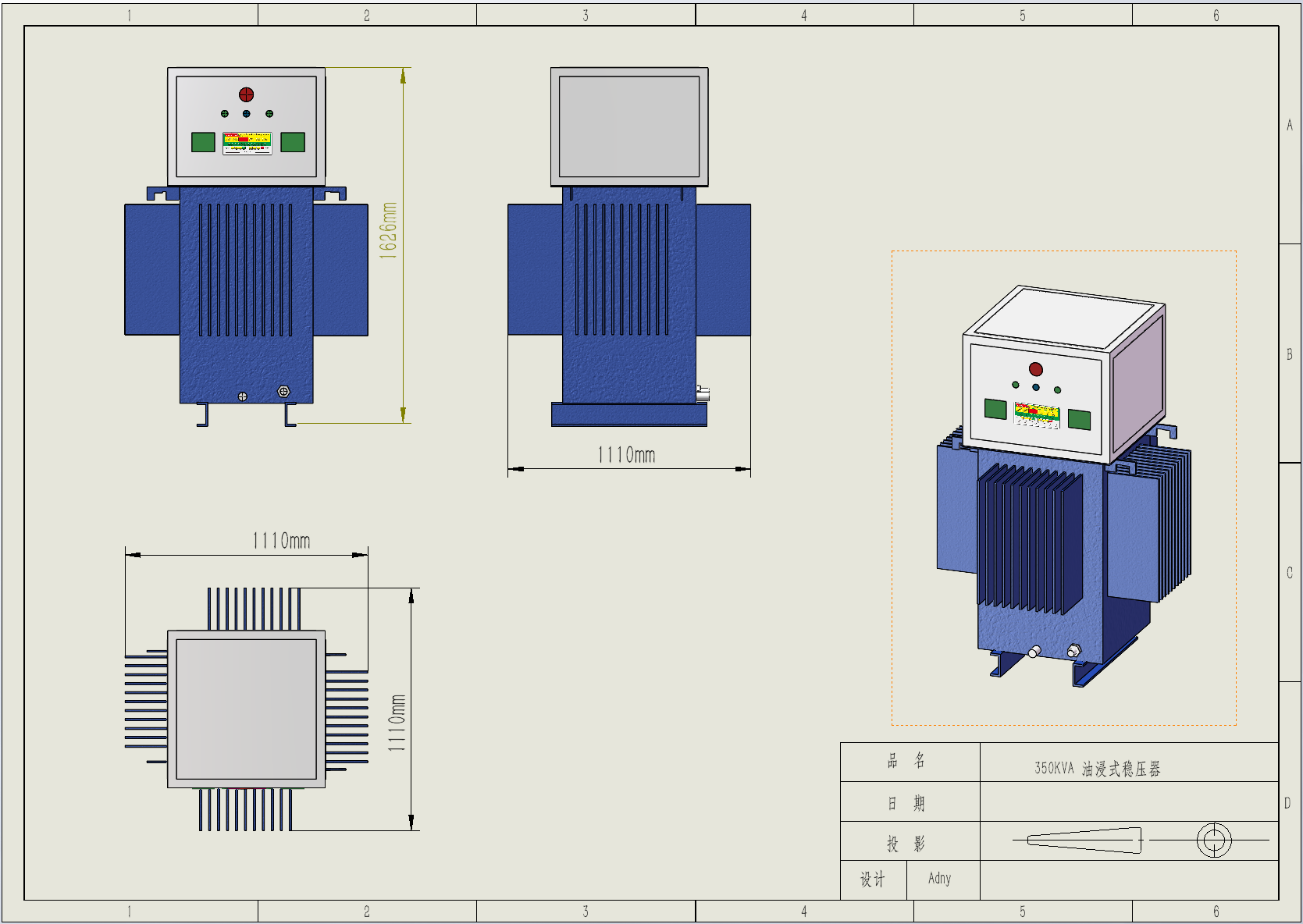

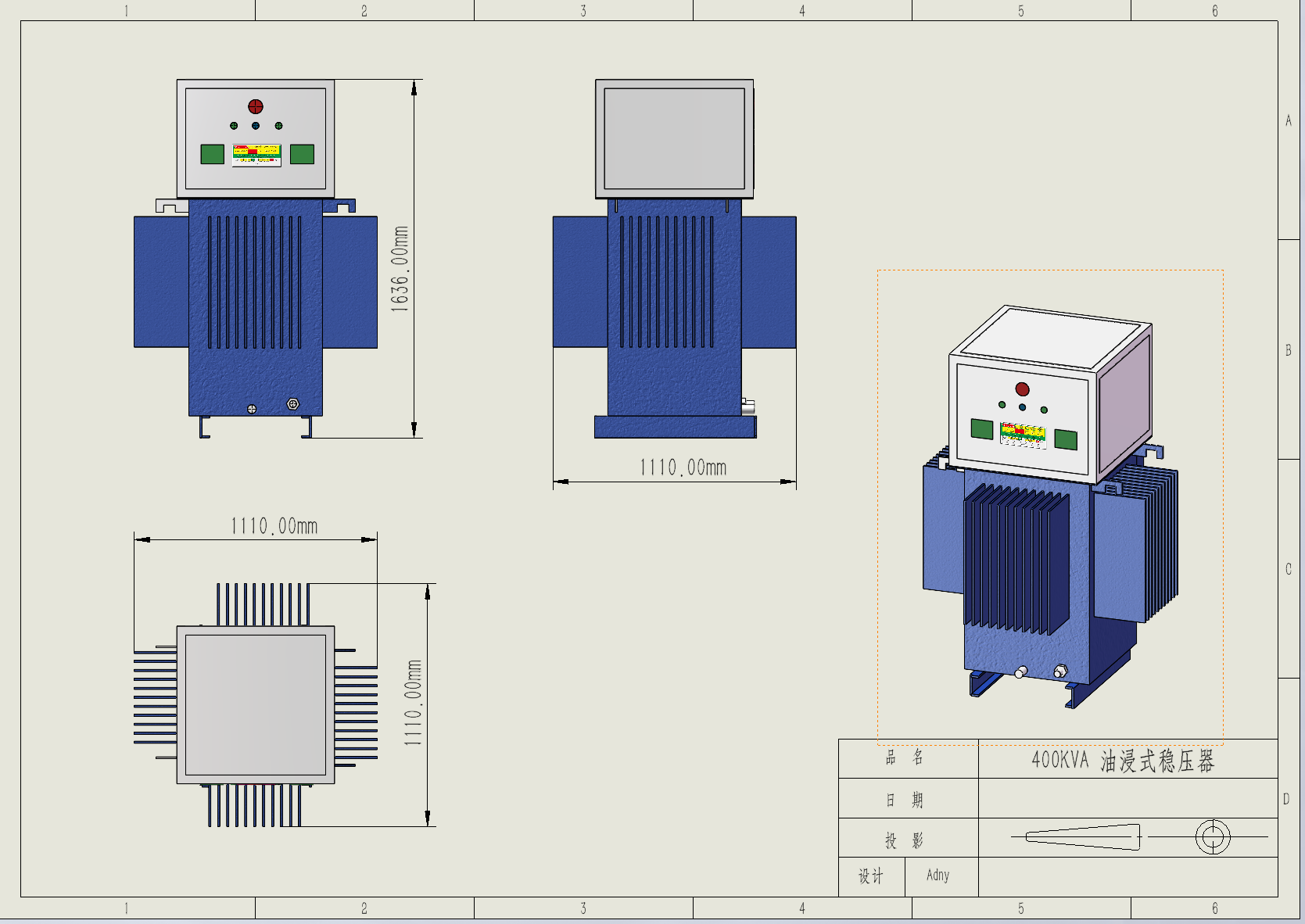

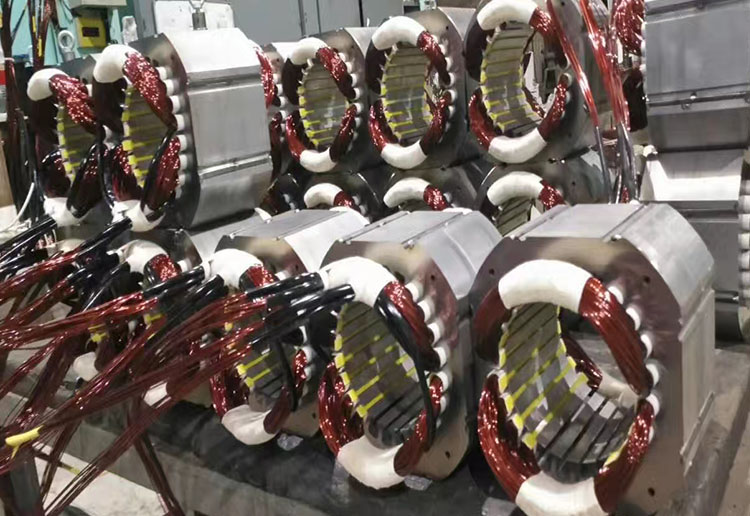

📷 Detail Images
🏢 Our Capabilities
We focus on the research, development, and service of DC to DC power supply modules, AC to DC rectifier modules, DC to AC inverters, and high-capacity voltage stabilizers. We provide personalized, efficient, and reliable power solutions for all industries.
Our collaborative factories adhere to 13 years of strong technical expertise and production experience. Products have passed CE, RoHS, and other international certifications, serving partners in over 30 countries including the United States, Germany, France, Australia, and more.
❓ Frequently Asked Questions
What is the range of output capacity available?
We offer a wide range of output capacities from 100KVA up to 5000KVA, suitable for various industrial applications.
What is the protection level of these stabilizers?
The standard protection level is IP67, which provides excellent protection against dust and water.
Is the voltage regulation range customizable?
Yes, we provide customizable voltage regulation ranges. The standard range is ±15%, but other specifications can be manufactured upon request.
How efficient are the oil-immersed induction stabilizers?
Our stabilizers are highly efficient, with an efficiency rating of ≥97% or above.
Does this stabilizer cause waveform distortion?
No, there is no additional waveform distortion; the output waveform remains the same as the input waveform.
What control technology is used?
We utilize DSP computing and metering chip intelligent control technology for precise voltage stabilization.
