OEM/OEM Pure Sine Wave Power Inverter 48V 60V 72V to 220V 50Hz/60Hz with LED Display High Efficiency for Industrial Automation
Product Description
OEM/OEM Pure Sine Wave Power Inverter 48V 60V 72V to 220V 50Hz/60Hz
High Efficiency with LED Display for Industrial Automation
Friendly Reminder
Dear Customer: The prices shown on this page are for reference only. The final transaction price will be recalculated and quoted by our sales staff based on your actual needs, purchase quantity, and market conditions. The online prices are for your preliminary budget reference only and do not constitute a final transaction commitment.
Our company always adheres to the principle of integrity and avoids price misrepresentation. Thank you for your understanding and trust.
Product Specifications (12V/24V)
| Feature | 12V/24V Intelligent Automatic Switching | ||
|---|---|---|---|
| Model | IPS-PI1215+2432 | IPS-PI1212+2423 | IPS-PI1220+2422 |
| Input Voltage | DC12V/24V | DC12V/24V | DC12V/24V |
| Rated Power | 1500W / 3200W | 1200W / 2300W | 2000W / 2200W |
| Peak Power | 3000W / 6400W | 2400W / 4600W | 4000W / 4400W |
| Output Voltage | 220V ± 10% | ||
| Efficiency | ≥90% | ||
| USB Charging | Type-C, USB 5V 2.1A | ||
| Protection | Low/High Voltage, Overload, Temp, Short Circuit | ||
| Dimensions | 327.4 * 231.6 * 87.3mm | ||
Product Specifications (48V/60V/72V)

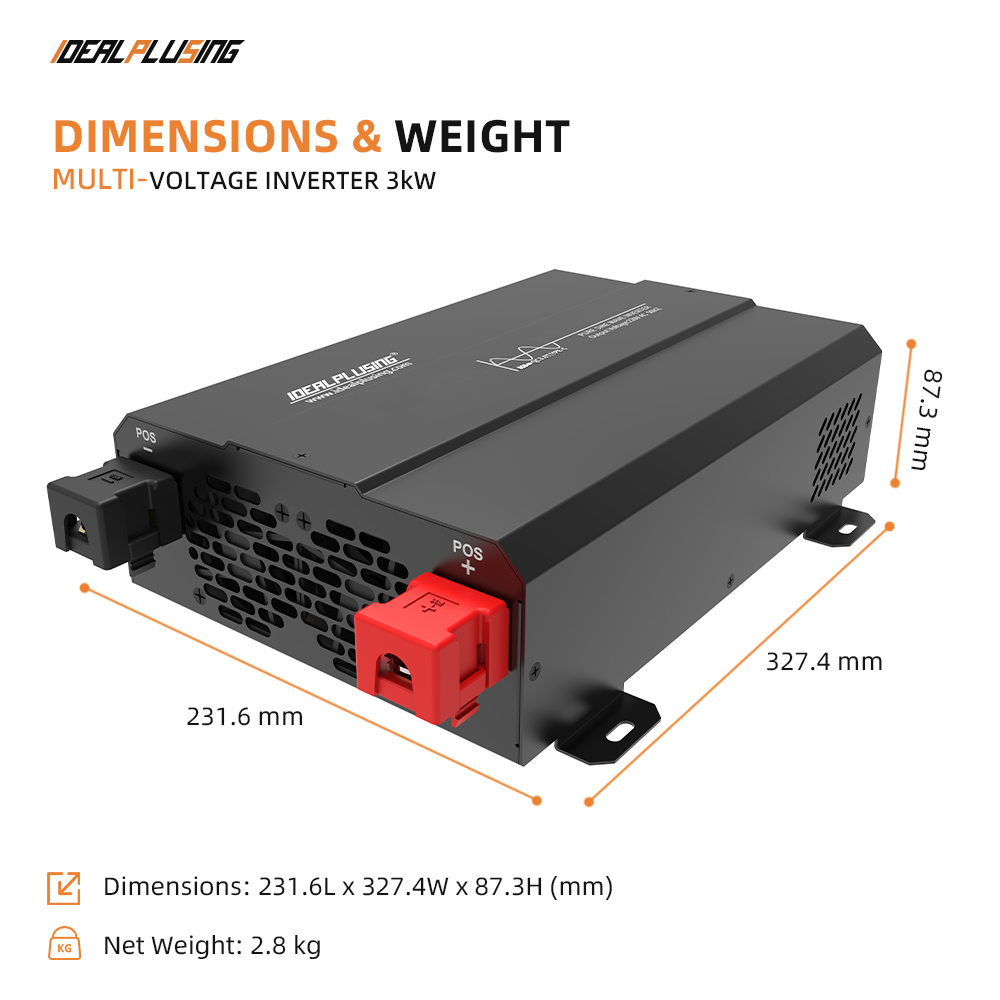

| Model | IPS-PI486072-1.5KW | IPS-PI486072-2KW | IPS-PI486072-3KW |
|---|---|---|---|
| Input Mode | 48V/60V/72V Manual Switching | ||
| Rated Power | 1500W | 2000W | 3000W |
| Peak Power | 3000W | 4000W | 6000W |
| Input Voltage Range | 42V-64V / 52V-80V / 63V-96V | ||
| Conversion Efficiency | ≥90% | ||
| Buzzer | Continuous beep alarm | ||
| Protection | Yes (Full Protection Suite) | ||
| Weight | 2.0KG | 2.0KG | 2.8KG |

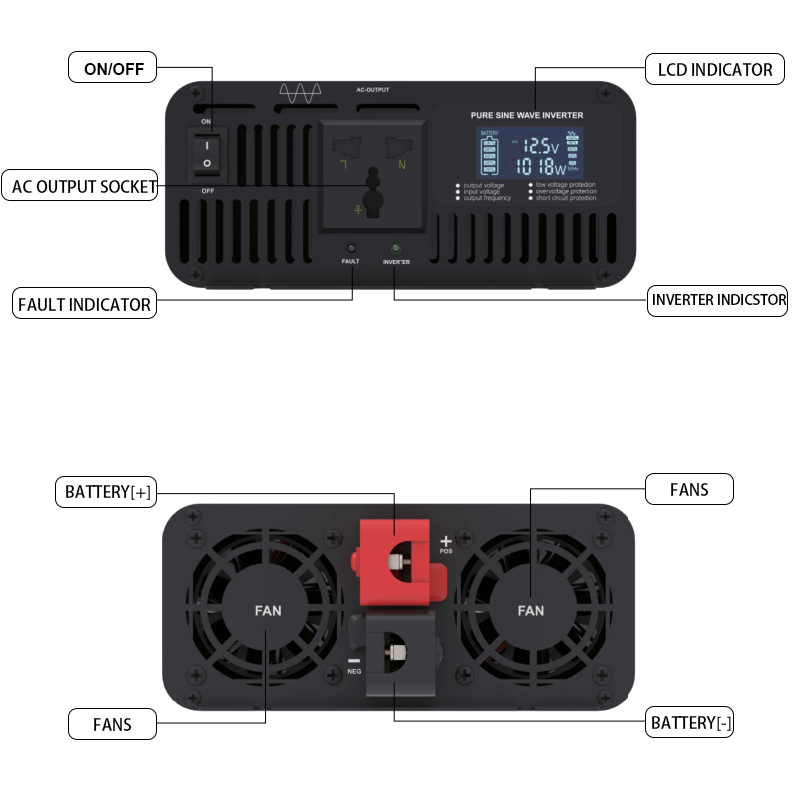

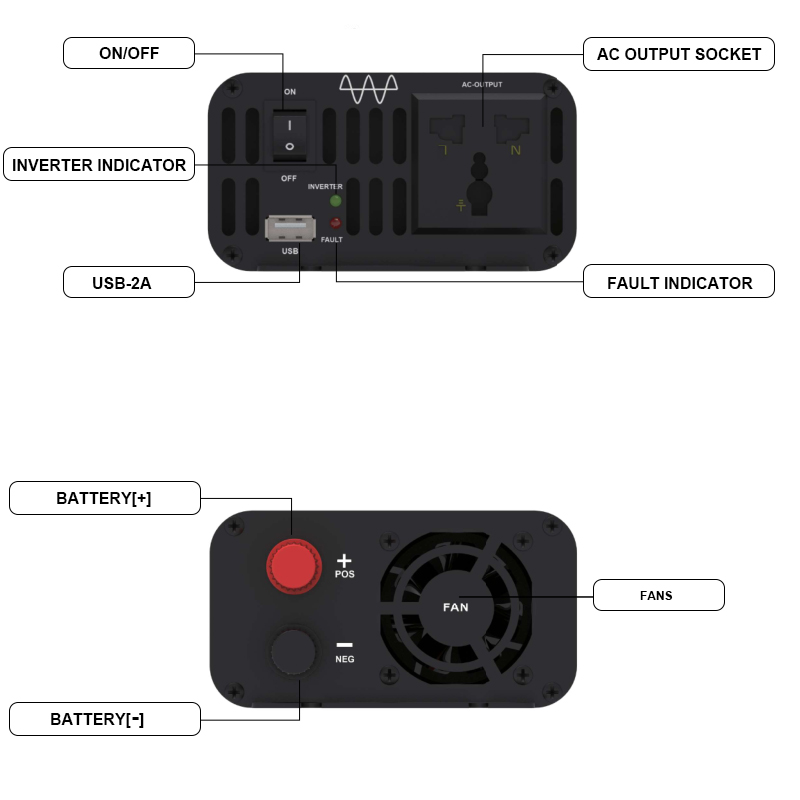

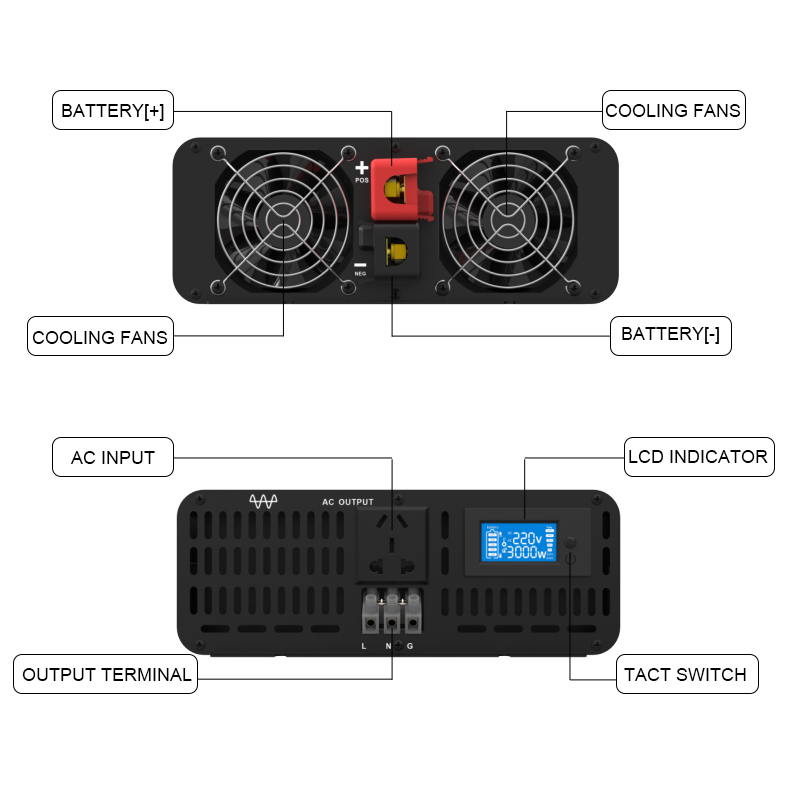

Product Display

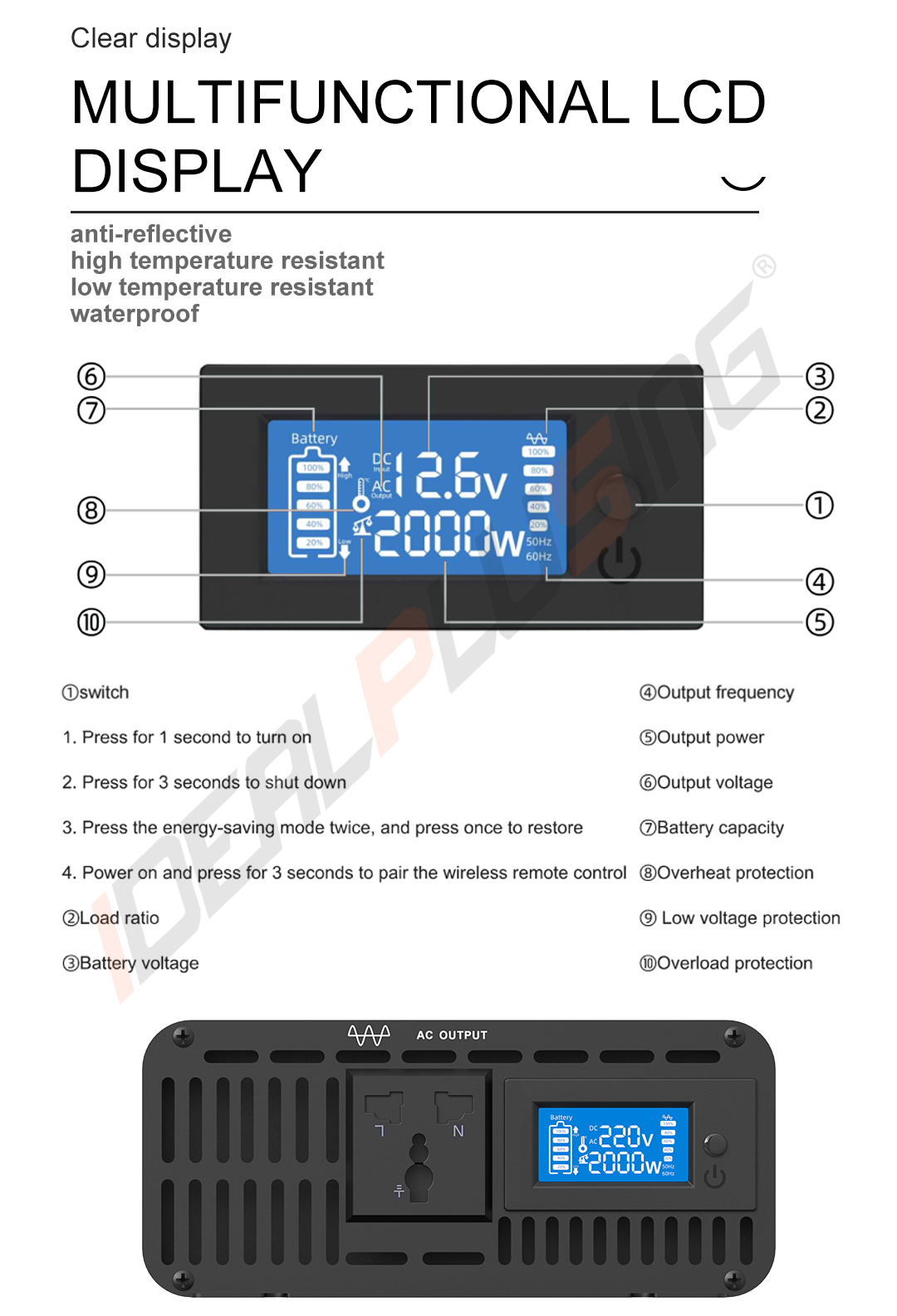

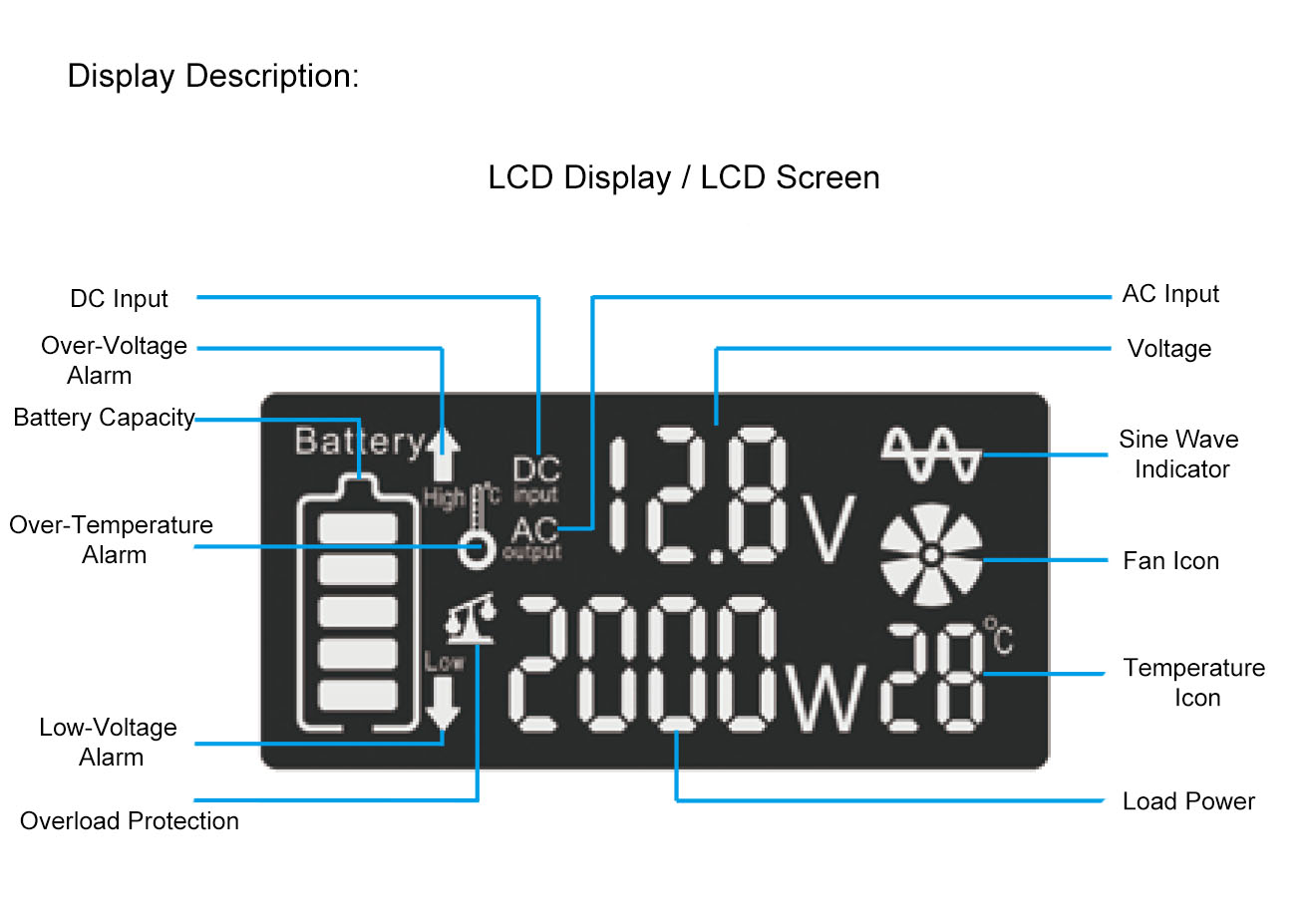

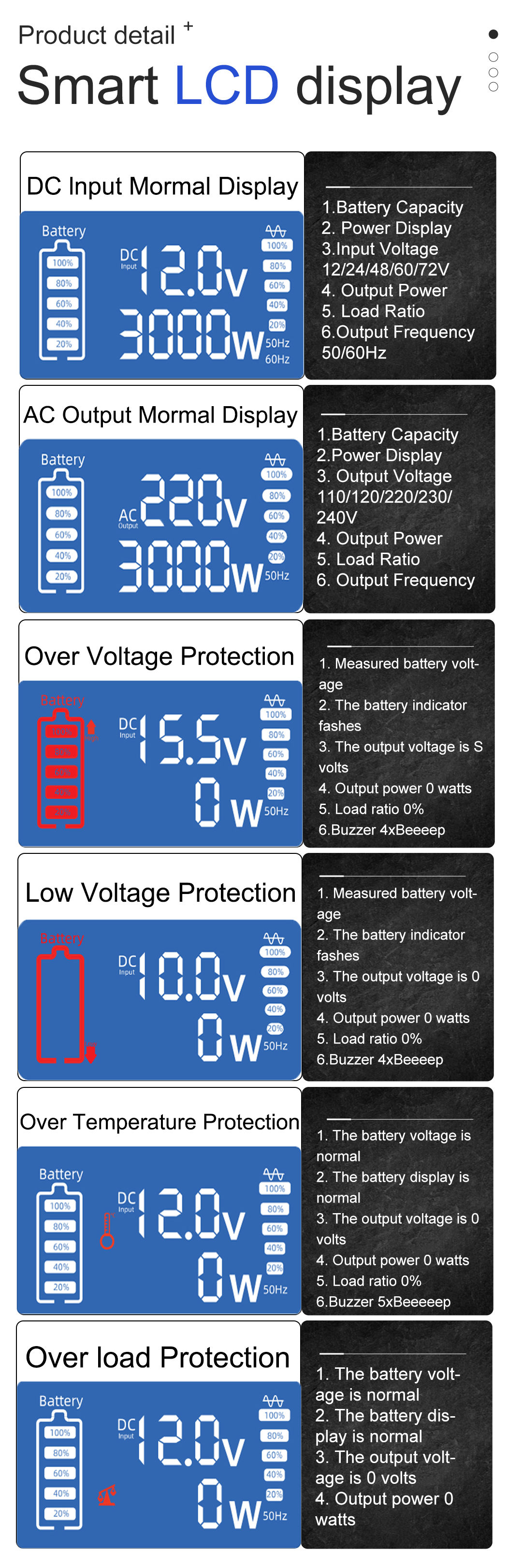

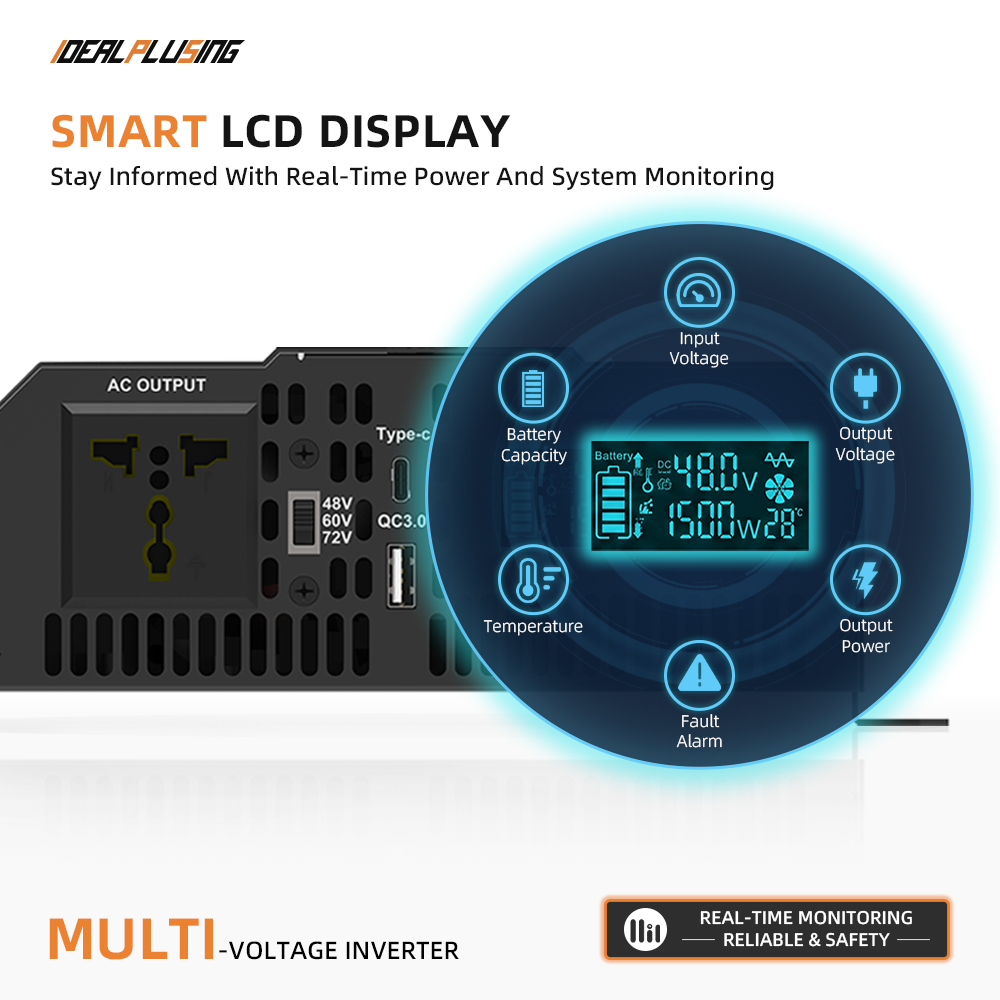

LCD Display Functions
| Function | Explanation |
| Battery Ratio | Check and read the battery capacity! |
| DC Input / AC Output | Indicators for operational status and toggling. |
| Overload Protection | Automatic shutdown after 10s of overload, lock after 3 failures. |
| Sine Wave Standard | Pure sine wave output indicator. |
| Temperature Icon | Displays real-time machine operating temperature. |
| Voltage Monitoring | Scrolls between DC and AC voltage automatically. |
| Alarms | Low Voltage, Overvoltage, and Overheating (80°C) protection warnings. |

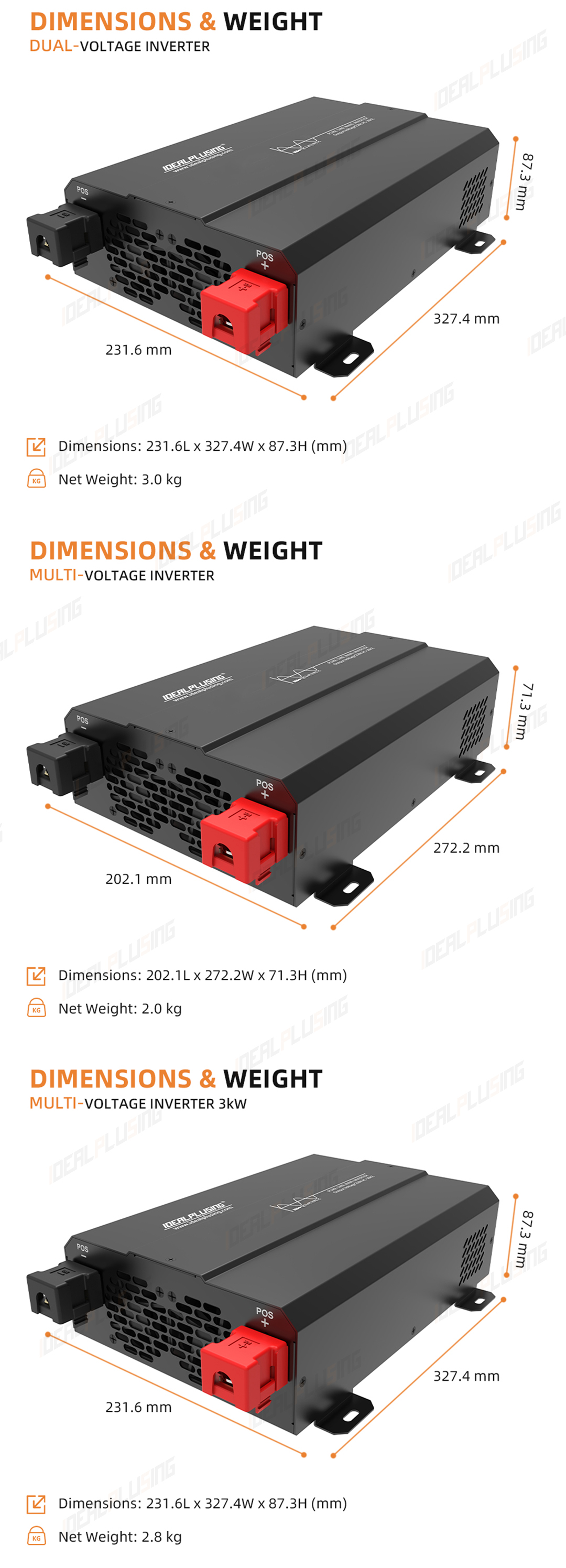

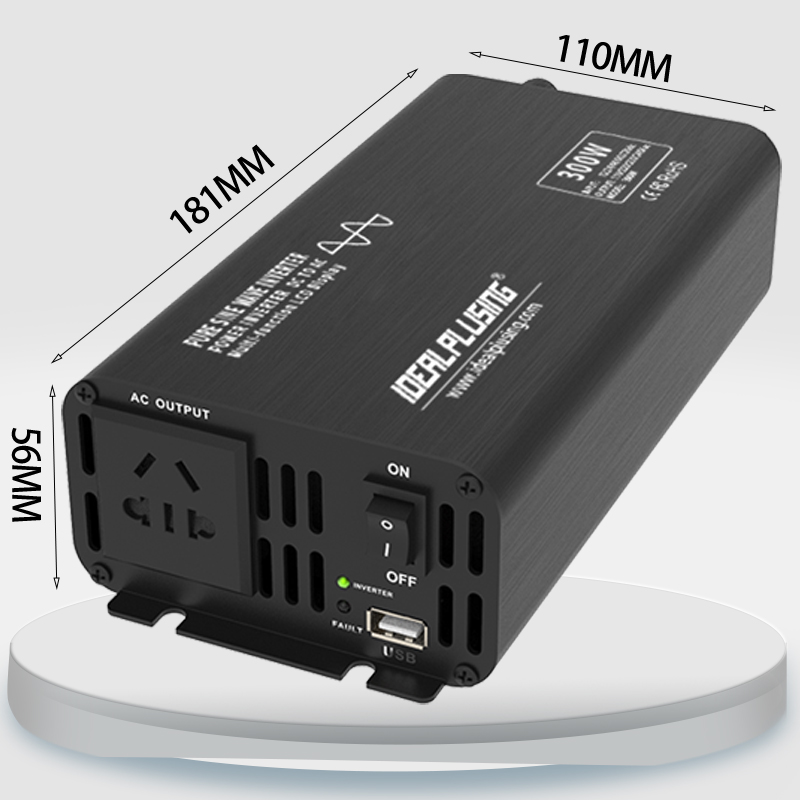

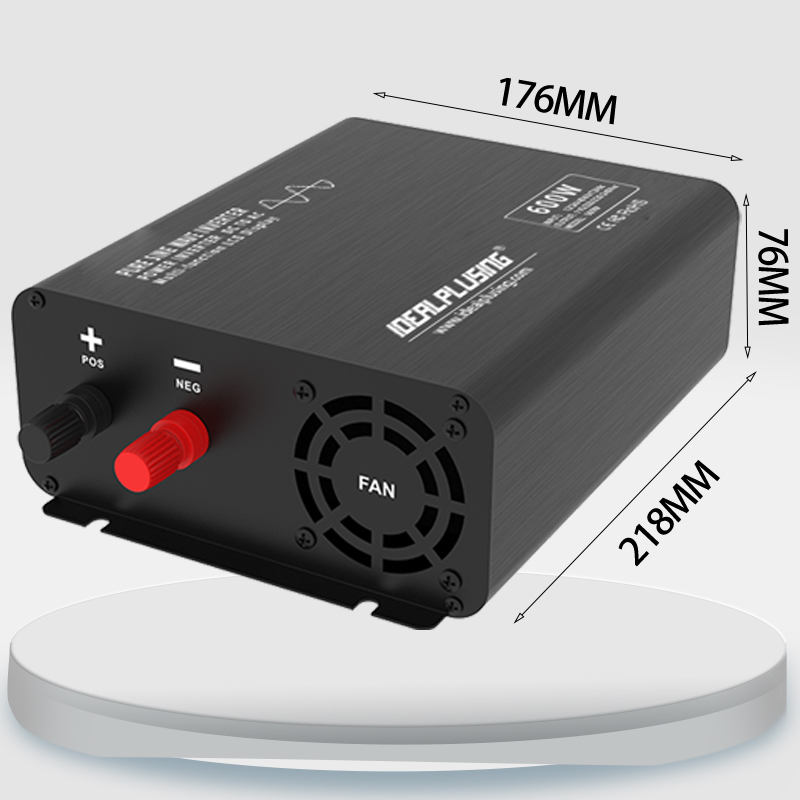

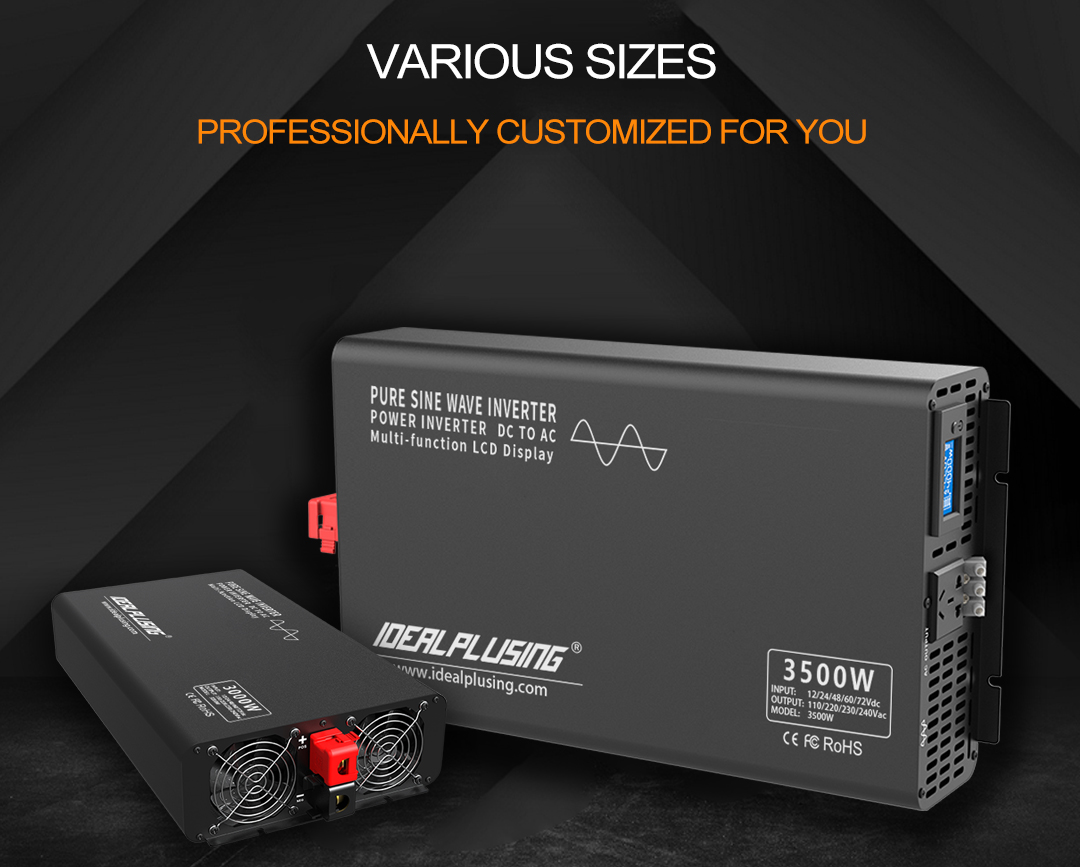

Product Dimensions & Power Options

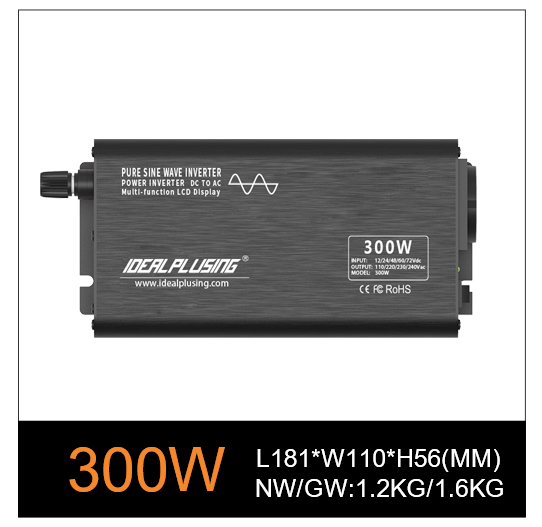

300W

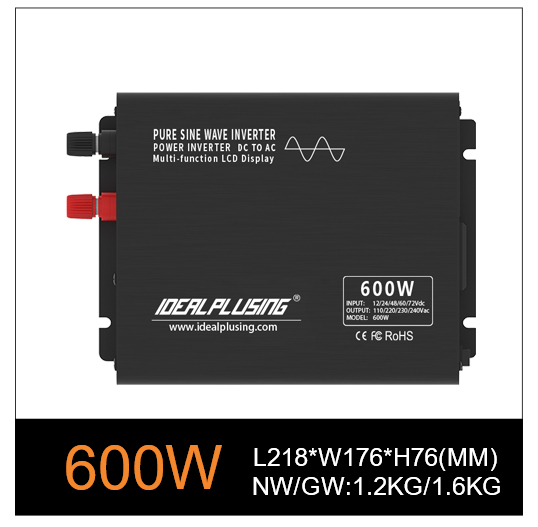

600W

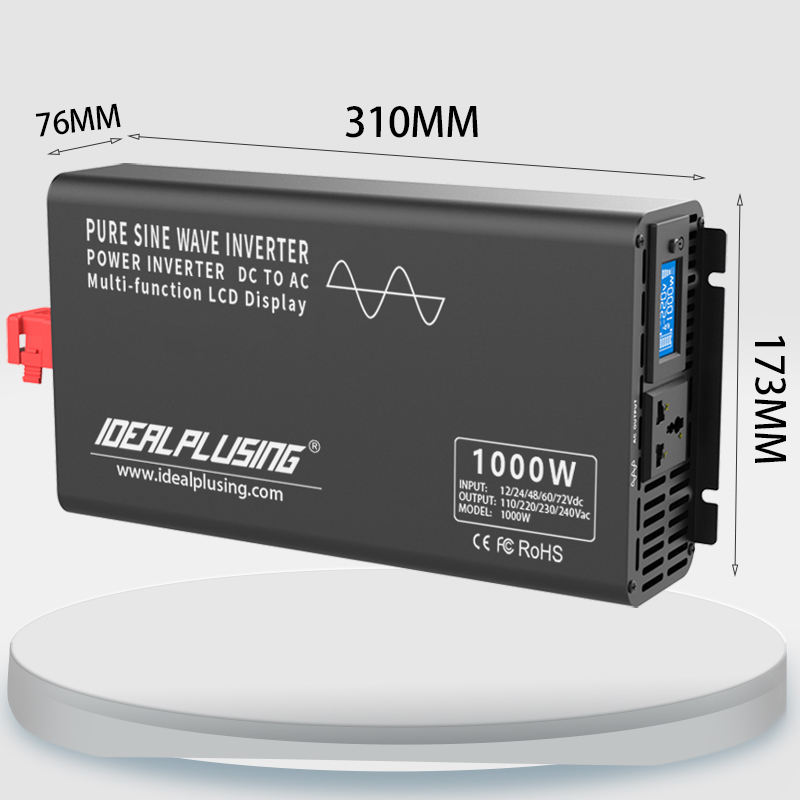

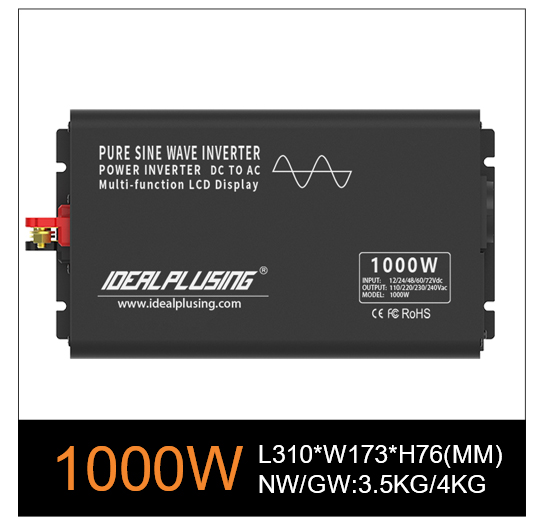

1000W

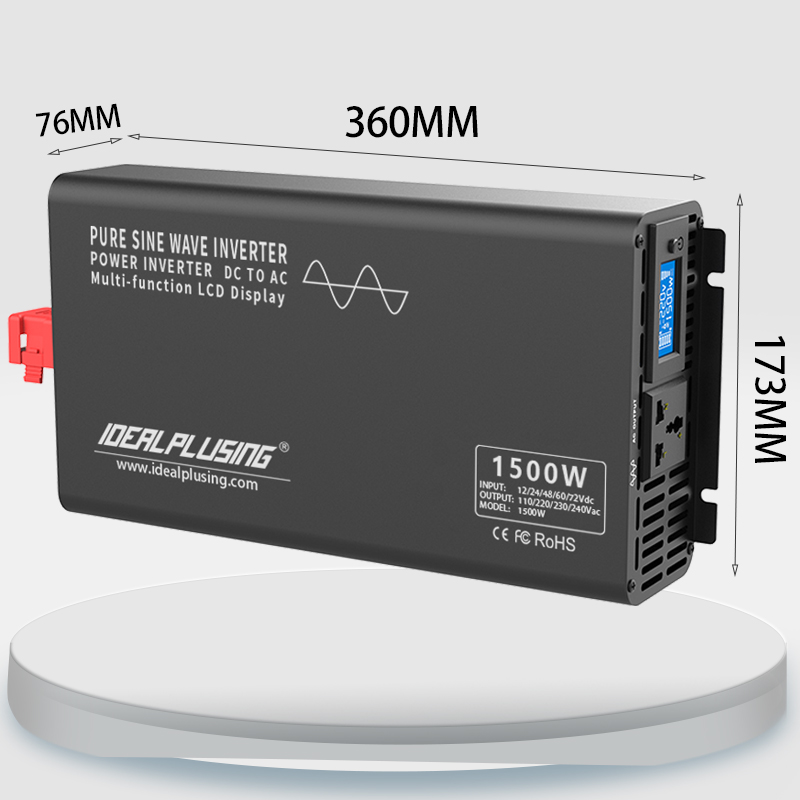

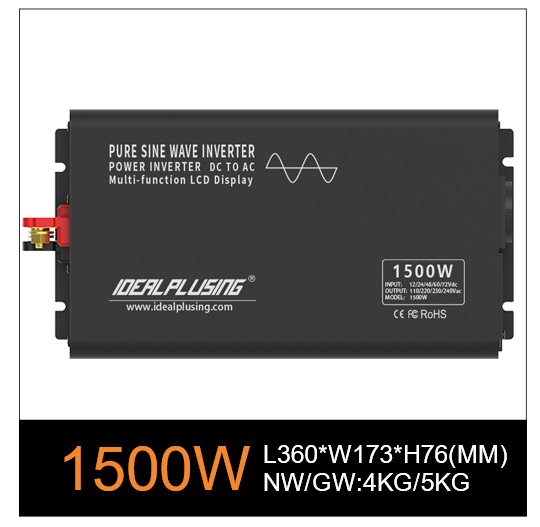

1500W

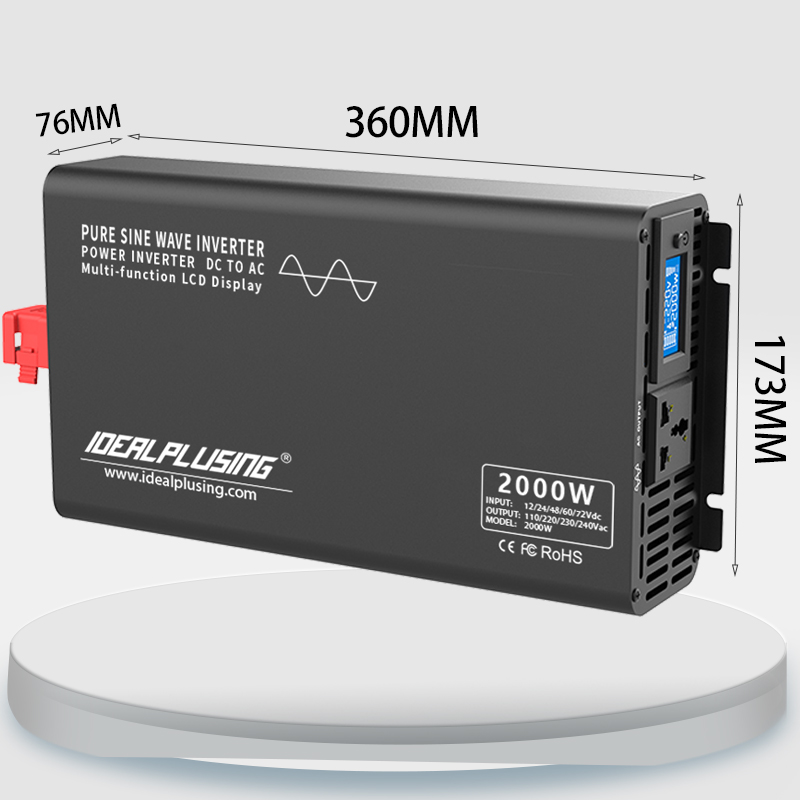

2000W

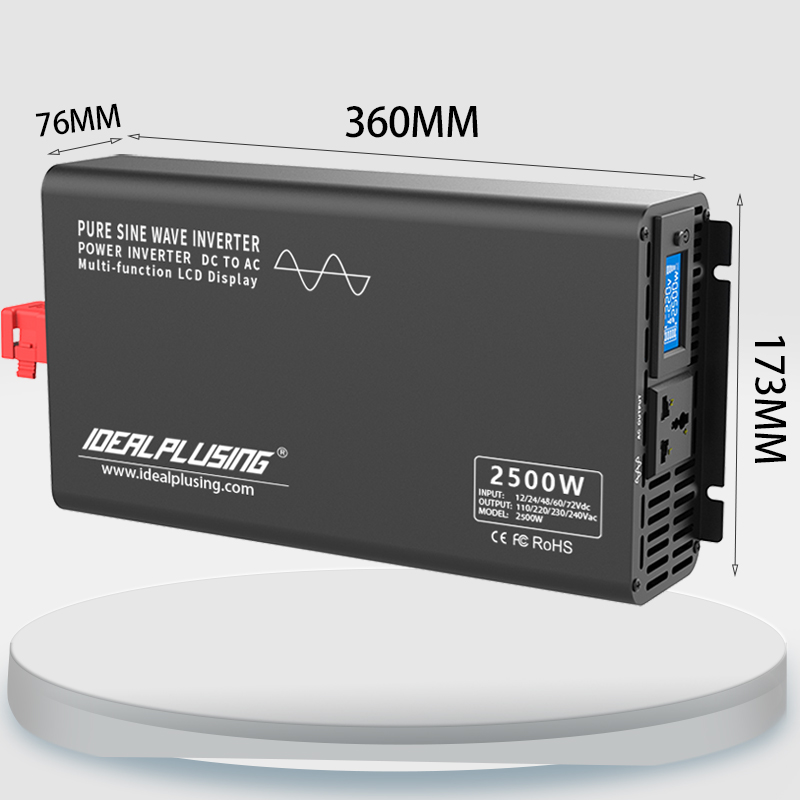

2500W
Advanced Features
Core Performance
Products Applications

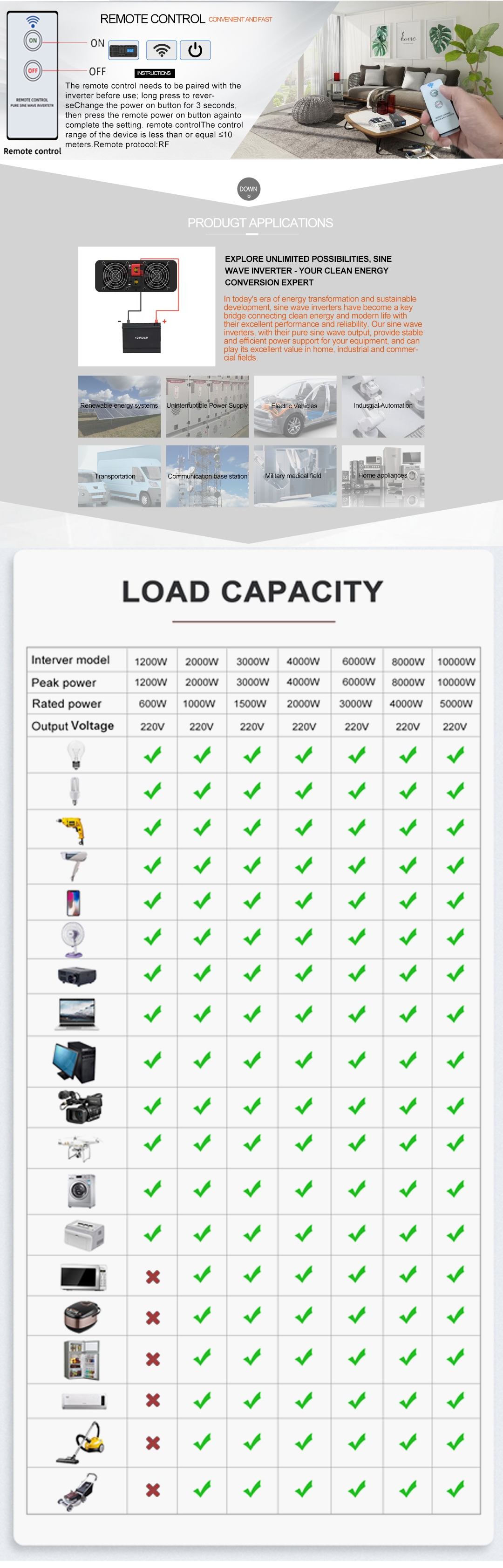

Inverter Load Notes (Reference Only)
Resistive Load: Household appliances such as incandescent lamps, induction cookers, fans, computers, microwave ovens. Example: A 2000W induction cooker needs a 2000W inverter.
Inductive Load: Motors, compressors, water pumps, air conditioners. These require 3-7 times starting current. A 150W refrigerator may need over 1000W for startup.
Capacitive Load: Switching power supplies, energy-saving lamps, electric vehicle chargers.
Sine Wave vs. Modified Wave Inverters
- Waveform Quality: Pure sine wave is consistent with grid power; modified wave contains more harmonics.
- Efficiency: Sine wave inverters are better for precision equipment but more complex/costly.
- Adaptability: Sine wave inverters can power all AC loads safely.
- Equipment Impact: Sine wave provides clean power for medical and laboratory devices, whereas modified waves may cause interference.
Frequently Asked Questions
What types of batteries are compatible with this inverter?
Our inverter is highly versatile and fully compatible with almost all mainstream battery types, including Lithium-ion, Lead-Acid, AGM, and Gel batteries.

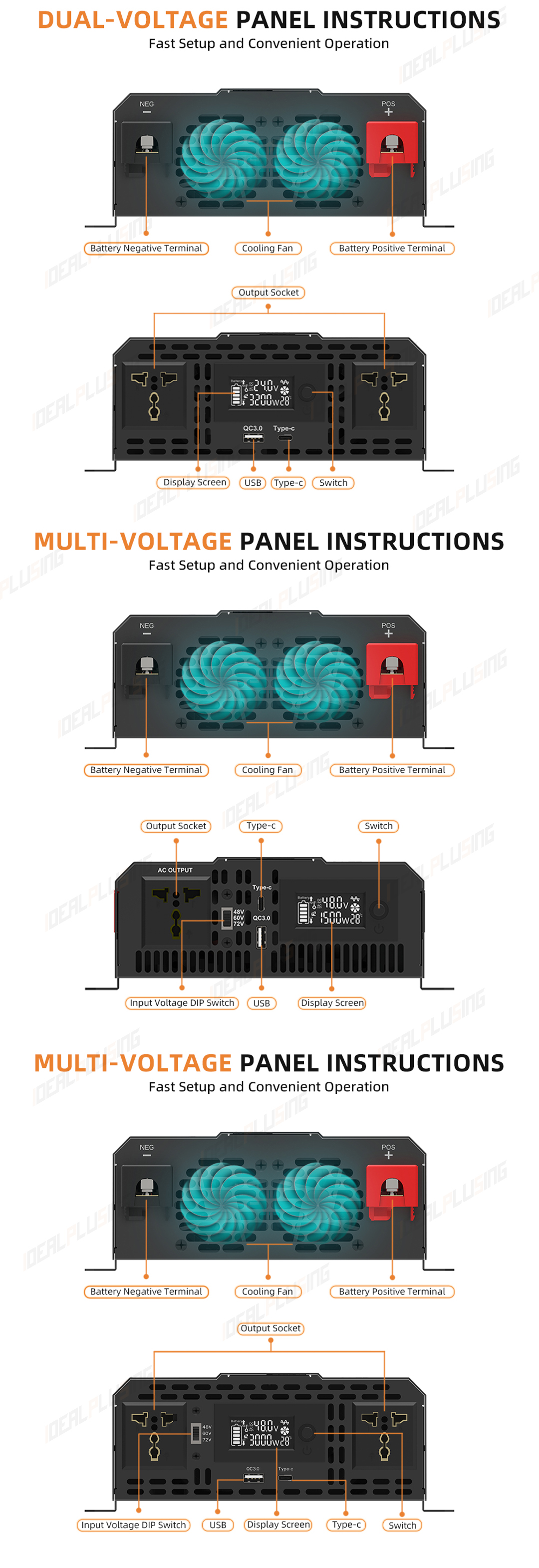

What does "Dual Input (12V/24V)" and "Triple Input (48V/60V/72V)" mean?
It means industry-leading flexibility. Dual-input models adapt automatically to 12V or 24V. Three-input models feature a manual switch for 48V, 60V, or 72V packs, eliminating the need for multiple inverters.
Is this a Pure Sine Wave or a Modified Sine Wave inverter?
This is a pure sine wave inverter with extremely low THD (3%), offering safe AC power for sensitive appliances like refrigerators and laptops.
What is the peak power capability?
Our inverters feature 2X peak power capability (e.g., a 2000W rated unit handles 4000W surge) to start heavy inductive loads like water pumps.
What is the warranty period?
We provide a comprehensive 1-year warranty for all our power supply products.
Do you have an MOQ for orders?
We offer a low MOQ; 1 piece for sample checking is available.
