ODM/OEM IDEALPLUSING Pure Sine Wave Inverter Dual Input 12V 24V to 220V 50Hz/60Hz with LED Display for Energy Storage Systems
Product Description
Pure Sine Wave Inverter Dual Input 12V 24V to 220V
Professional ODM/OEM Energy Storage Solutions with LED Display (50Hz/60Hz)
💡 Friendly Reminder
The prices shown on this page are for reference only. The final transaction price will be recalculated based on your actual needs, purchase quantity, and market conditions.
Product Specifications (12V/24V)
| Input Voltage Mode | 12V/24V Intelligent Automatic Switching | ||||||
|---|---|---|---|---|---|---|---|
| Model | IPS-PI1215+2432 | IPS-PI1212+2423 | IPS-PI1220+2422 | ||||
| Rated Power | 1500W / 3200W | 1200W / 2300W | 2000W / 2200W | ||||
| Peak Power | 3000W / 6400W | 2400W / 4600W | 4000W / 4400W | ||||
| Output Voltage | 220V ± 10% (Accuracy: ±10V) | ||||||
| Efficiency | ≥90% | ||||||
| USB Charging | Type-C, USB 5V 2.1A | ||||||
| Protection | Low/High Voltage, Overload, Over-temperature (80°), Short Circuit | ||||||
Product Specifications (48V/60V/72V)
| Input Mode | 48V/60V/72V Manual Switching Mode | |||
|---|---|---|---|---|
| Model | IPS-PI486072-1.5KW | IPS-PI486072-2KW | IPS-PI486072-3KW | |
| Rated Power | 1500W | 2000W | 3000W | |
| Peak Power | 3000W | 4000W | 6000W | |
| Size (mm) | 272.2 * 202.1 * 71.3 | 327.4 * 231.6 * 87.3 | ||

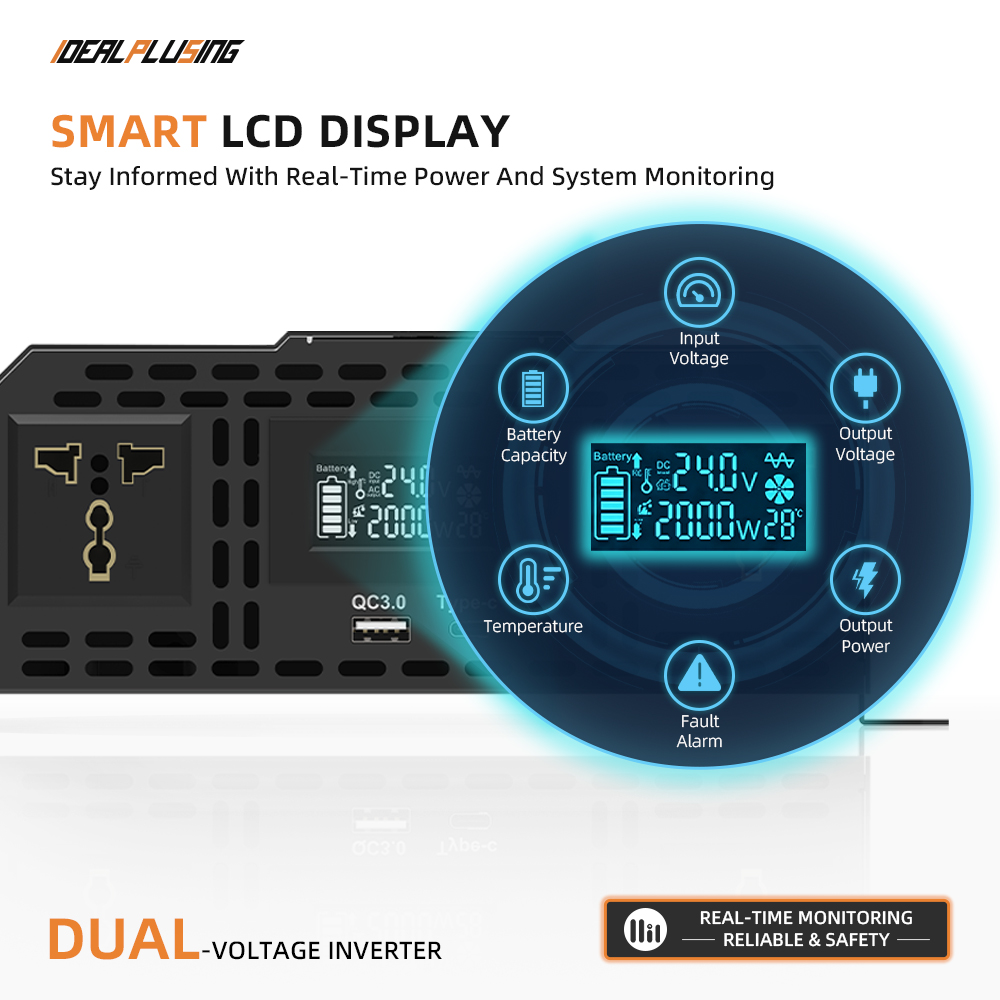

LCD Display Indicators
| Function | Explanation |
|---|---|
| Battery Ratio | Check and read the battery capacity! |
| DC Input / AC Output | Indicates working status and toggle between DC/AC icons. |
| Overload Protection | System locks after 3 failures; auto-shutdown after 10s of overload. |
| Sine Wave Standard | Pure sine wave output for stable performance. |
| Temperature / Fan | Real-time temperature monitoring and fan status. |
| Voltage Monitoring | Scrolls automatically between DC and AC voltage. |
| Protection Alarms | Low voltage, Overvoltage, Overheating (80°±5°), Short-Circuit. |

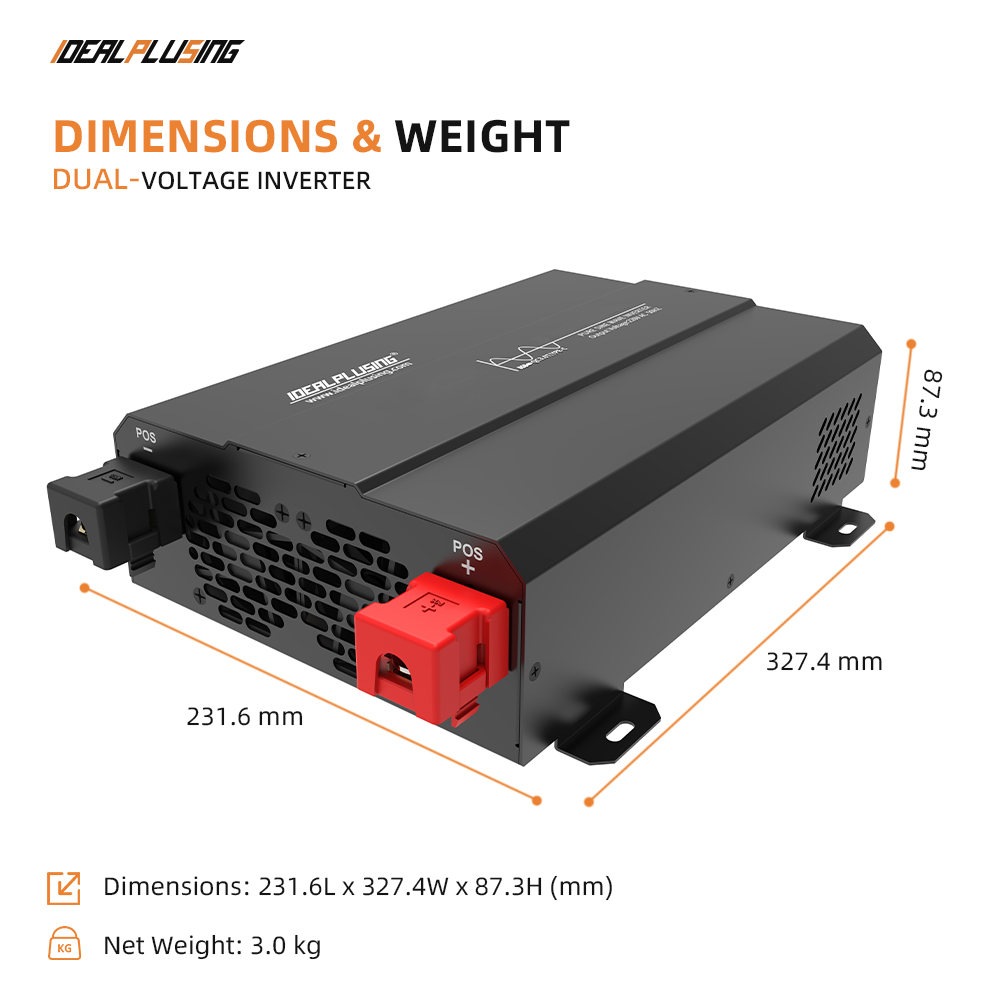

Product Detail Dimensions
Output Power Variations
300W
600W
1000W
1500W
2000W
2500W
3000W
3500W
4000W
5000W

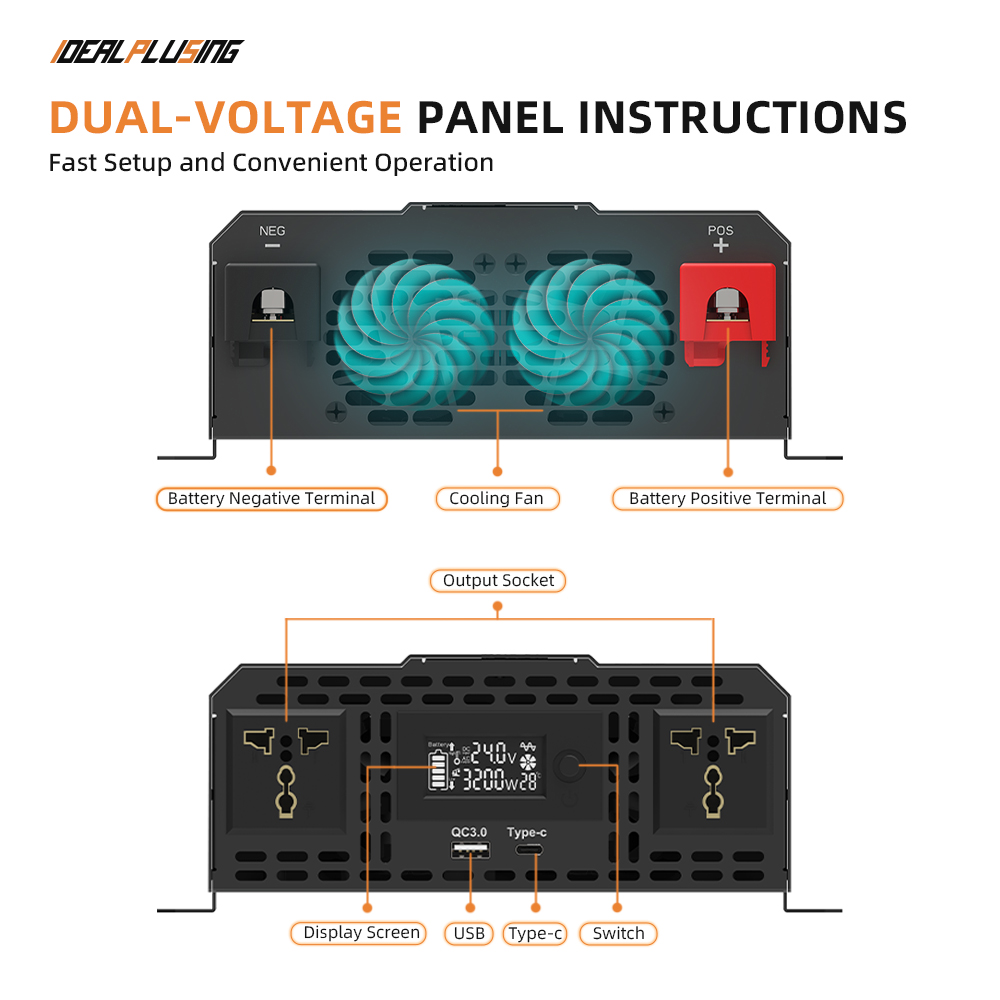

Product Features & Internal Structure
Inverter Load Selection Guide
Resistive load: Ideal for incandescent lamps, induction cookers, fans, and computers. For example, a 2000W induction cooker can be driven by a 2000W inverter.
Inductive load: Requires 3-7 times starting current. Examples: Refrigerator, washing machine, air conditioner, water pumps. A 150W refrigerator might need >1000W starting power.
Capacitive load: Includes switching power supplies, energy-saving lamps, and EV chargers.
Sine Wave vs. Modified Wave
- 1 Waveform Quality: Sine wave is consistent with grid power; Modified wave has higher harmonic content.
- 2 Adaptability: Sine wave works with all AC appliances, especially precision medical/lab equipment.
- 3 Equipment Safety: Pure sine wave prevents interference in communication and precision devices.
Products Applications
Frequently Asked Questions
Do you have any MOQ limit?
Low MOQ, 1 piece for sample checking is available.
What about the lead time?
Most models are in stock. Sample lead time after payment is 1-3 working days.
What types of batteries are compatible?
Highly versatile and compatible with Lithium-ion, Lead-Acid, AGM, and Gel batteries.
What does Dual Input (12V/24V) mean?
The inverter automatically adapts to 12V or 24V systems, eliminating the need for separate devices for different voltages.
Pure Sine Wave vs Modified Sine Wave?
This is a Pure Sine Wave inverter with THD < 3%. It delivers clean power safe for sensitive appliances like laptops and air conditioners.
What is the peak power capability?
Engineered with 2X peak surge capability (e.g., 2000W rated can handle 4000W surge) to start heavy inductive loads.
