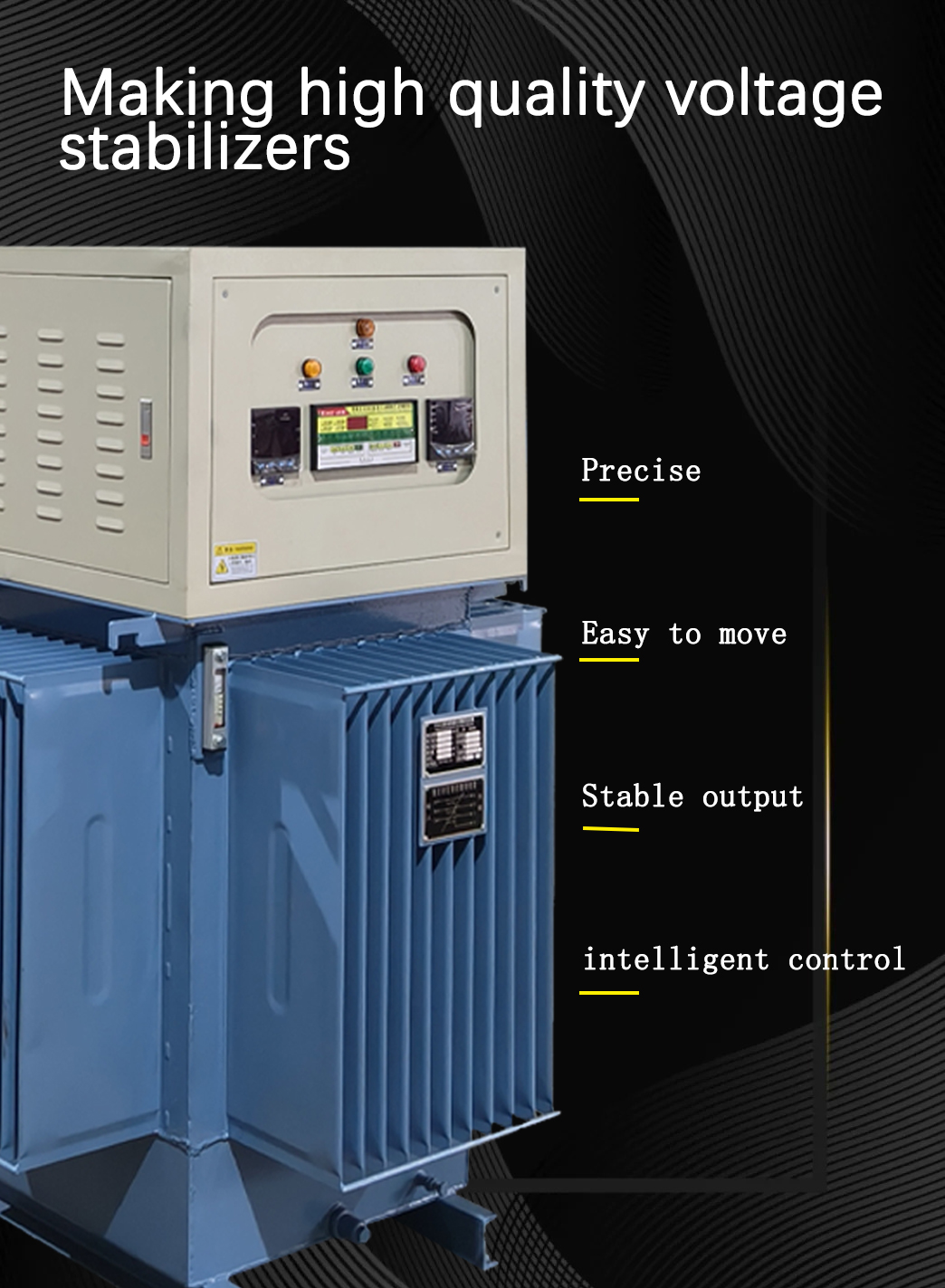

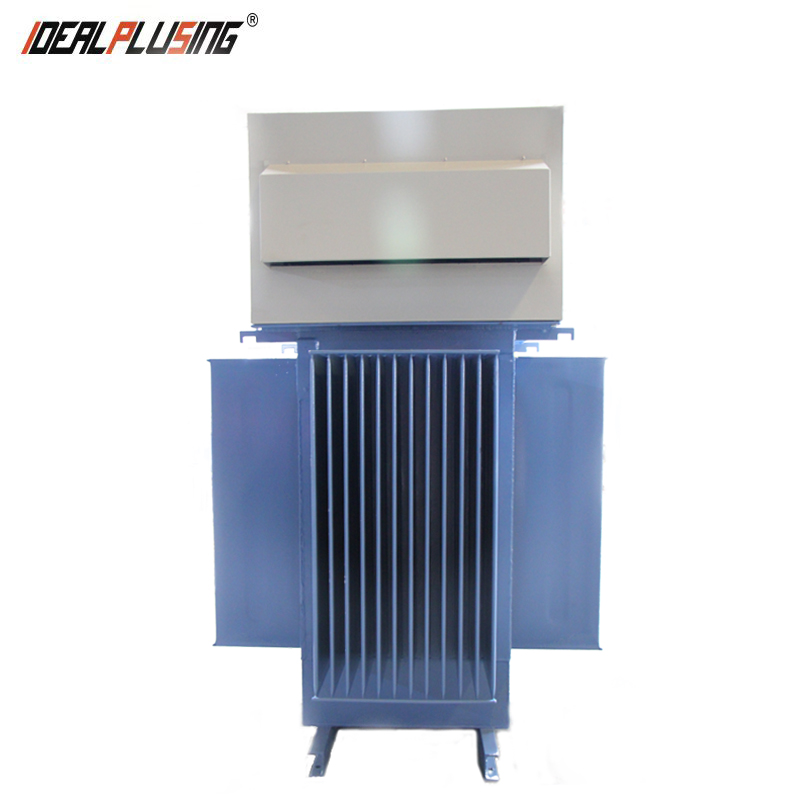

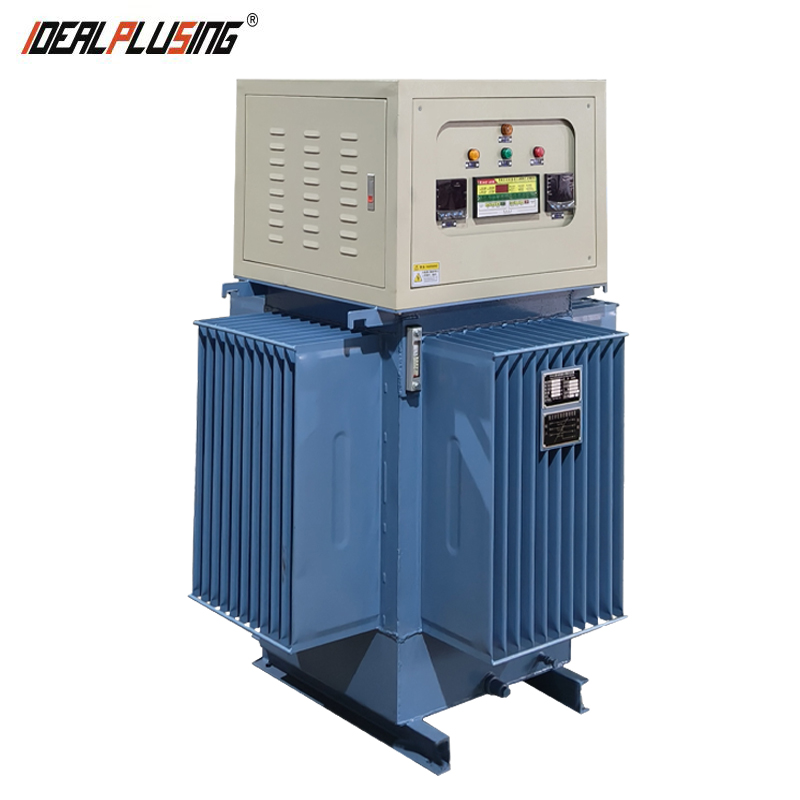

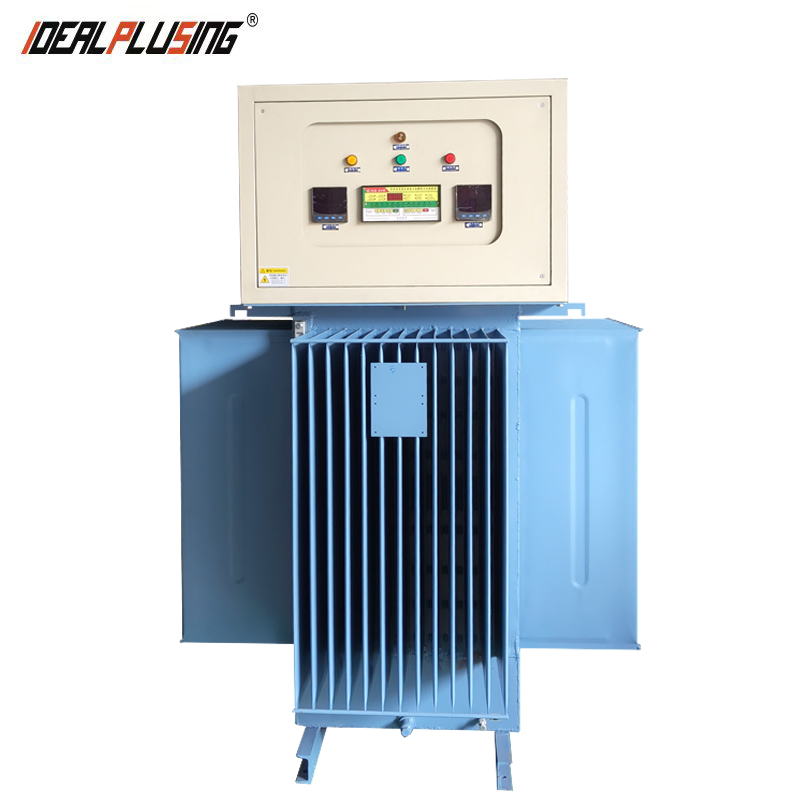

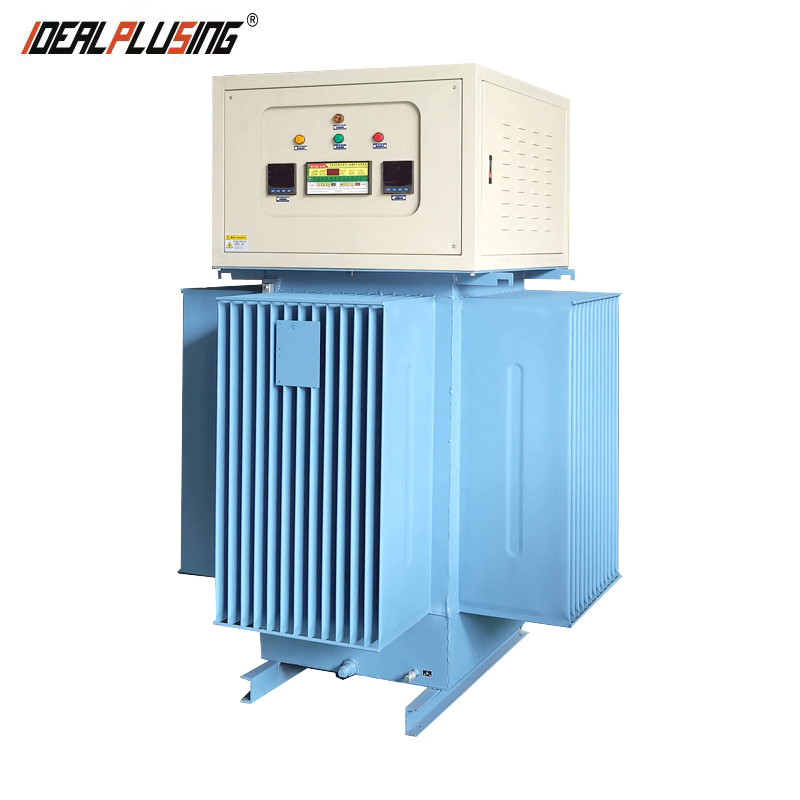

Manufacturer 300kva 400kva 500kva 600kva Oil Cooled Three Phase Inductive Voltage Regulator Voltage Stabilizer
Product Description
Product Overview
| Model NO. | IPS-33000 | Specification | Customize |
| Transport Package | Wooden Box | Origin | China |
| Iron Core Shape | R | Available Power Range: 100KVA to 5000KVA | |
🛡️ Professional Customization Service
We specialize in customizing Oil-Immersed Induction Voltage stabilizers to meet your specific requirements. With customized options for any kind of Voltage stabilizer, our offerings range up to 5000KVA. Our dedicated team endeavors to respond to inquiries within one hour.

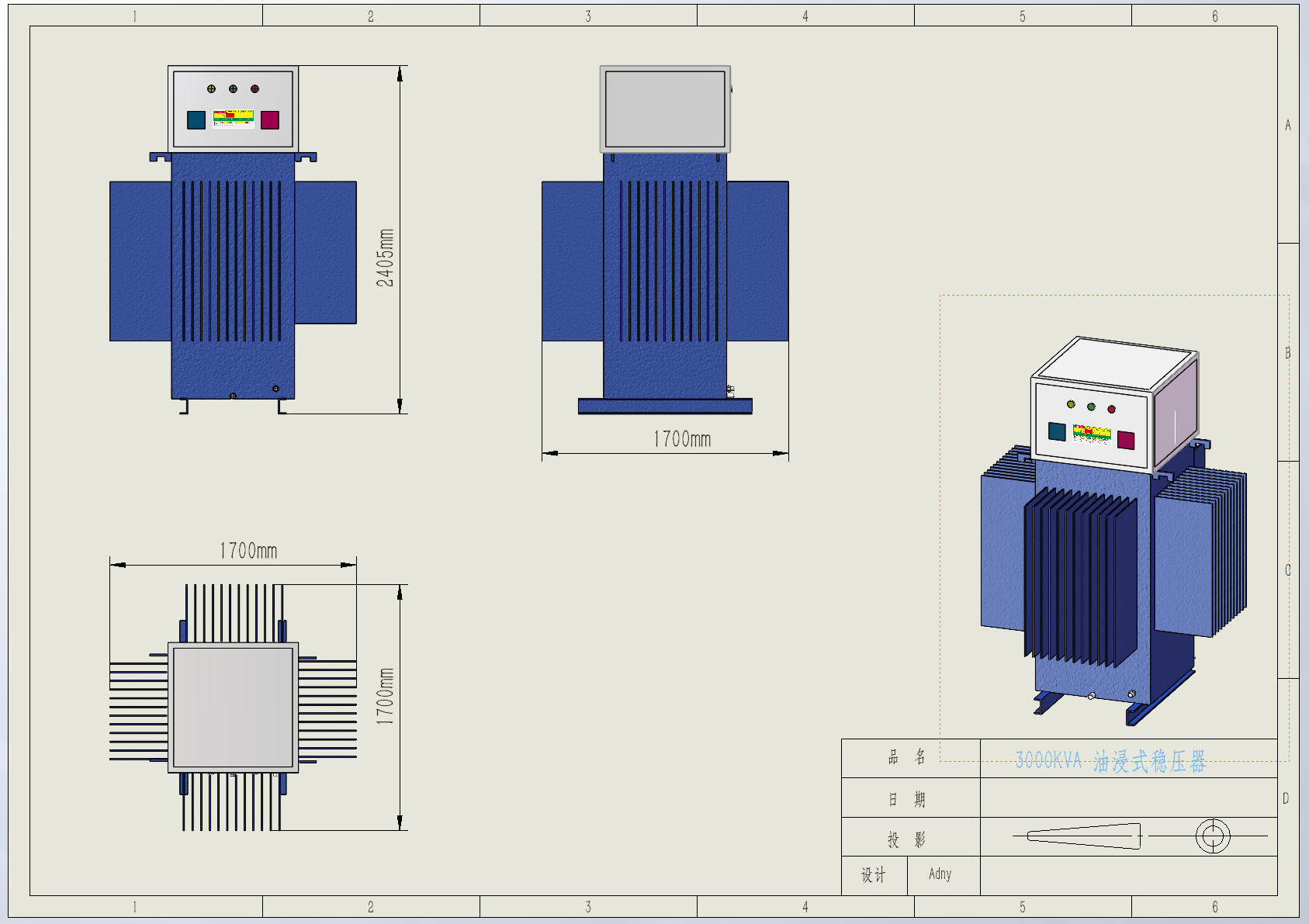

Technical Specifications (IPS-33000)
| Parameter | Details | |
|---|---|---|
| Input | Rated Voltage | Three-phase 380VAC |
| Voltage Range | ± 15% | |
| Frequency | 50 Hz/60Hz | |
| Output | Rated Voltage | Three-phase 380VAC |
| Accuracy | ±1-5% Adjustable | |
| Response Time | ≤1-10s Adjustable | |
| Load Current | 4560A | |
| Capacity | 3000KVA | |
| Waveform | No additional distortion | |
| Efficiency | ≥97% | |
| Protection Level | IP67 | |
| Cooling Method | Oil-immersed self-cooling | |
| Operating Temperature | -25~+55ºC | |
| Weight | 6500KG | |
| Dimensions | 1700*1700*2400 (MM) | |
Operating Environment & Process
- Usage Site: Indoor (Outdoor can be customized).
- Safety: No vibration, no corrosive gas, no explosive media.
- Appearance: Exquisite design, easy to move with forklift.
- Material: Cold-rolled steel plate corrugated fuel tank.
- Surface Treatment: Phosphating + PZ 660 primer + Powder coating (RAL 7032).
Hot Selling Models
Model: IPS-3200
- Input: Three-phase 480VAC
- Output: 200KVA / 304A
- Protection: IP67
- Weight: 750 KG
- Size: 910*910*1547mm
Model: IPS-3800
- Input: Three-phase 380VAC
- Output: 800KVA / 1216A
- Protection: IP67
- Weight: 1800 KG
- Size: 1070*1070*1959mm

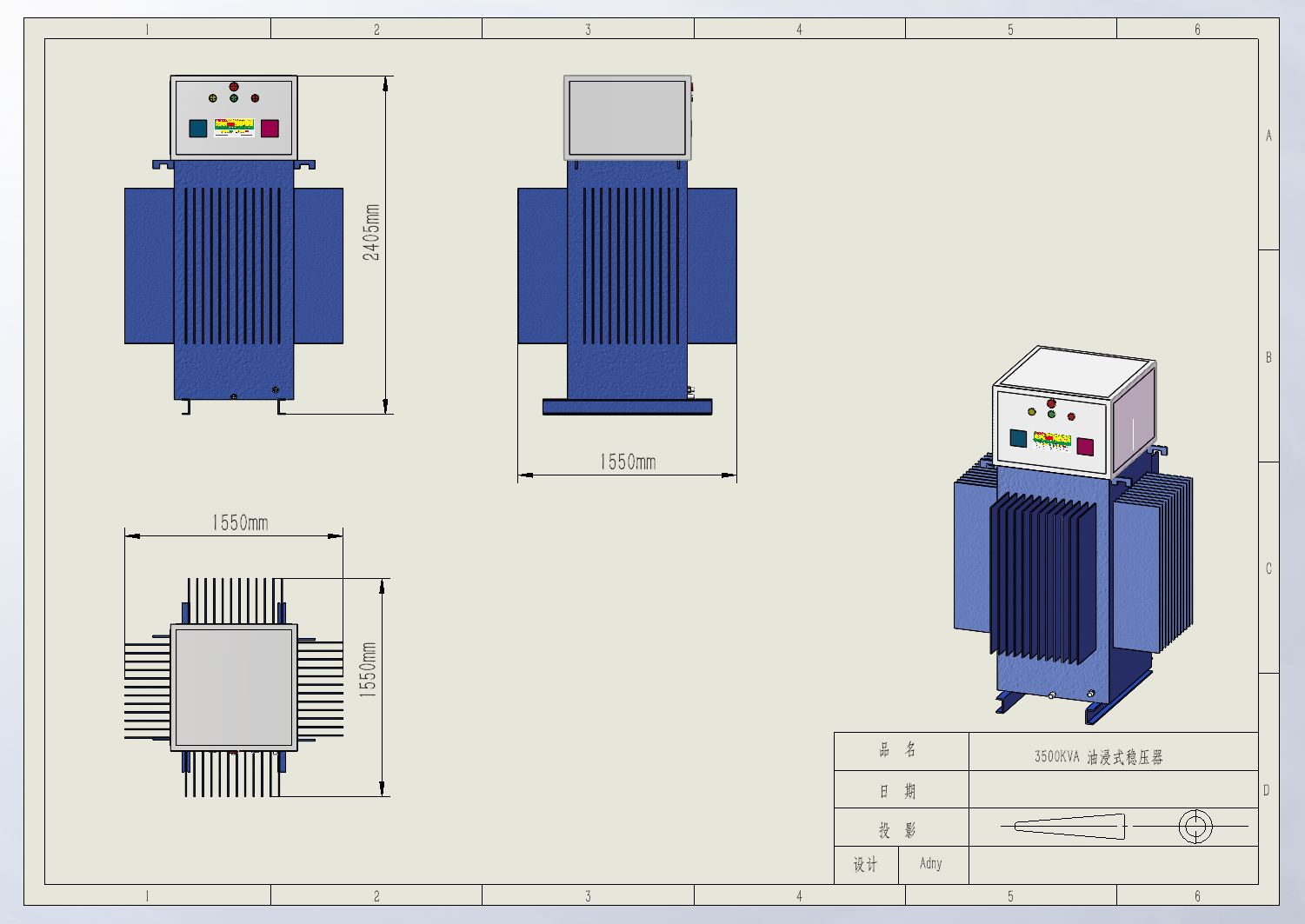

Model: IPS-33500
- Output Capacity: 3500KVA
- Output Current: 5320A
- Weight: 7000 KG
- Size: 1550*1550*2405mm
Model: IPS-35000
- Output Capacity: 5000KVA
- Output Current: 7600A
- Weight: 8500 KG
- Size: 1660*1660*2358mm
Product Detail Gallery
Model List Matrix
| Model | Capacity | Load Current | Size (MM) | Weight (KG) |
|---|---|---|---|---|
| IPS-3100 | 100KVA | 152A | 650*650*1000 | 450 |
| IPS-3150 | 150KVA | 225A | 750*750*1350 | 550 |
| IPS-3200 | 200KVA | 304A | 910*910*1558 | 750 |
| IPS-3300 | 300KVA | 456A | 1000*1000*1636 | 1100 |
| IPS-3500 | 500KVA | 760A | 1090*1090*1700 | 1250 |
| IPS-3800 | 800KVA | 1216A | 1170*1170*1958 | 1800 |
| IPS-31000 | 1000KVA | 1520A | 1170*1170*1958 | 1900 |
| IPS-32000 | 2000KVA | 3040A | 1550*1550*1980 | 4000 |
| IPS-33000 | 3000KVA | 4560A | 1700*1700*2400 | 6500 |
| IPS-35000 | 5000KVA | 7600A | / | / |
Voltage Instructions: X2: Input 220V | X3: Input 380V | X4: Input 440V | E: Special specifications. Default is 380V.
Expertise & Quality
We focus on the research and development, sales and service of DC to DC power supply modules, AC to DC rectifier modules, DC to AC inverters, and high-capacity voltage stabilizers. Our cooperative factory brings 13 years of strong technical precipitation and rich production experience.
Products have passed CE, RoHS, and other international certifications, serving partners in over 30 countries including the United States, Germany, France, Australia, and the Netherlands. We provide high-quality power supply project cooperation aimed at winning customer trust through professional pre-sales and after-sales service.
Customer Feedback
Frequently Asked Questions
What is the maximum capacity available for customization?
We can customize Oil-Immersed Induction Voltage stabilizers with a capacity of up to 5000KVA to meet large-scale industrial requirements.
Can these stabilizers be used outdoors?
Yes, our standard units are IP67 rated, and we can provide specific outdoor customization to handle various weather conditions.
What cooling method is utilized in these units?
These stabilizers use an oil-immersed self-cooling method, which is highly efficient for long-term, high-capacity operations.
How accurate is the voltage stabilization?
The voltage stabilization accuracy is adjustable between ±1% and ±5%, ensuring a steady power supply for sensitive equipment.
What certifications do your power products hold?
Our products have passed international certifications including CE and RoHS, ensuring they meet global safety and quality standards.
Is the response time adjustable?
Yes, the response time is intelligent and can be adjusted between ≤1s and 10s depending on your specific load requirements.
