Heavy Duty 36V to 5V 12V 24V 1A 2A 3A 15W 24W SMPS Switching AC to DC Converter Module for CNC Laser Machine RoHS 8-42V
Product Description
Heavy Duty 36V to 5V 12V 24V SMPS Switching AC to DC Converter Module
⚡ Features: DC/DC converter is a voltage converter which can effectively output fixed voltage after converting input voltage. DC/DC converters are divided into three categories: Boost type, boost & buck type, and buck type. Three kinds of control can be adopted according to the demand. PWM control type has high efficiency and good output voltage ripple and noise. PFM control type has the advantage of low power consumption even if it is used for a long time, especially under small load. PFM control is implemented when PWM/PFM converts to small load, and it is automatically converted to PWM control when heavy load occurs. At present, DC-DC converters are widely used in mobile phones, MP3, digital cameras, portable media players and other products. It belongs to chopper circuit in the classification of circuit types.
🚀 We focus on the research and development of power supply modules, providing personalized, efficient, reliable and cost-effective solutions for all industries. What we want to give our customers is the right power supply solution, giving a better quotation with the right items. We specialize in customizing DC-DC converters to meet your specific requirements. With customized input and output voltage and current, our offerings range from 1V to 1000V DC and 1A to 1000A. We provide both isolated and non-isolated converter design options.
Product Specifications
| Parameter | Detail |
|---|---|
| Type | Non-Isolate |
| Model | IPS-ATD36S241 |
| Input voltage | 20-42VAC |
| Output Voltage | 24VDC |
| Output Current | 1 Amps |
| Output Power | 24 Watts |
| Material of shell | Plastic |

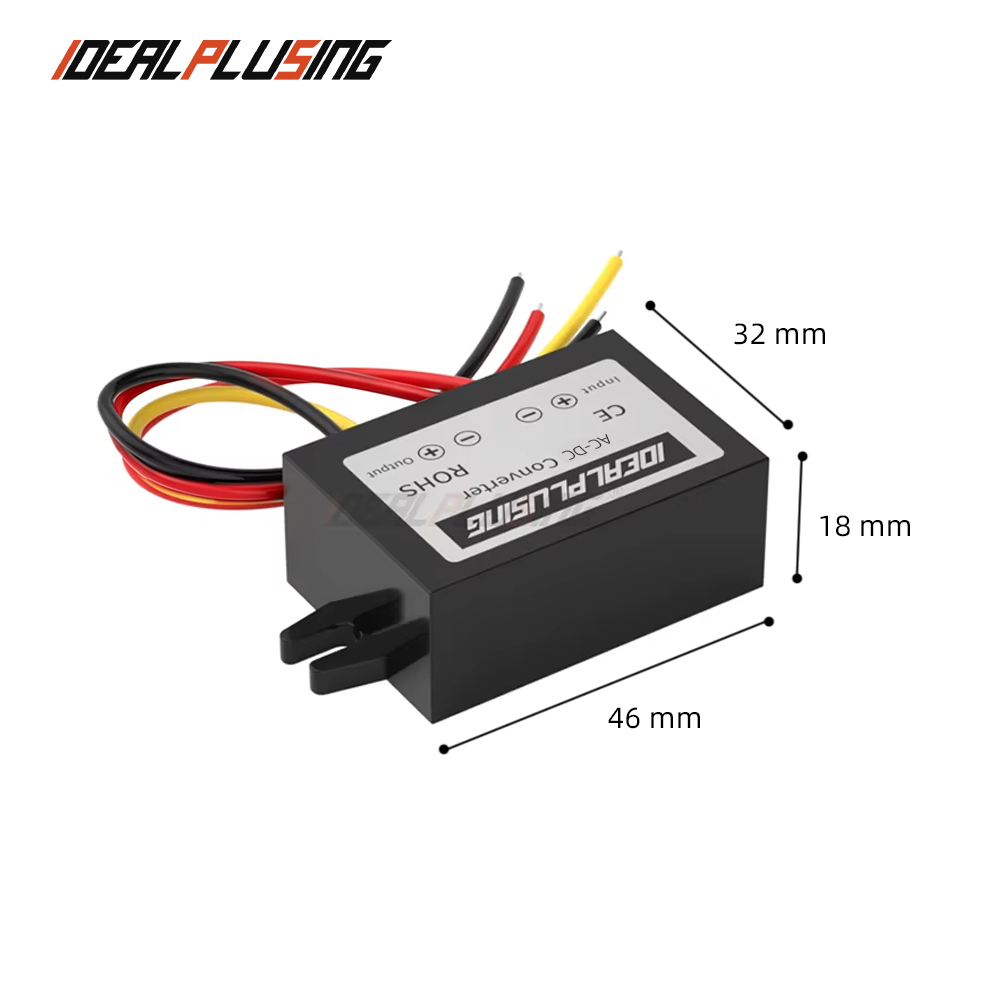

| Converter Size | 46*32*18MM |
| Converter Net Weight | 47G |
| Waterproof Level | IP67 |
Available Model Series
| Category | Model/Series | Conversion | Output Current Options |
|---|---|---|---|
| Boost Converter | IPS-DTD12S15** | 12V to 15V | 1A to 15A |
| IPS-DTD12S24** | 12V to 24V | 1A to 50A | |
| IPS-DTD12S48** | 12V to 48V | 1A to 20A | |
| IPS-DTD24S48** | 24V to 48V | 2A to 40A | |
| Buck Converter | IPS-DTD24S12** | 24V to 12V | 1A to 100A |
| IPS-DTD48S12** | 48V to 12V | 1A to 60A | |
| IPS-DTD72S24** | 72V to 24V | 1A to 50A | |
| IPS-DTD96S12** | 96V to 12V | 1A to 20A |
Product Showcase
Technical Application Description
🛡️
All buck-boost and step-up/step-down products come standard with output overcurrent, short-circuit, and undervoltage protection. High power units include over-temperature protection (~90°C).
⚙️
For inductive loads (coils, magnetic valves, motors), it is recommended to use a power supply 3-5 times the rated power of the load.
⚠️
In non-isolated buck power supplies, a failure could pass high input voltage directly to the output. For precious loads, isolated products are strongly recommended for safety.
🔌
Isolated products cannot share a negative pole (ground) between input and output, or the isolation effect will be lost.
💎
Isolated power supplies are the safest option, representing over 90% of global power supplies. They prevent high voltage passage and support both positive and negative voltage outputs.
Frequently Asked Questions
What is the difference between PWM and PFM control?
PWM control offers high efficiency with low ripple and noise for heavy loads. PFM control is optimized for low power consumption during long-term use and small loads. Many modules automatically switch between the two.
Do I need a fuse for step-up (boost) converters?
Yes. Due to circuit architecture, many boost products do not have output short-circuit protection. Adding an appropriate fuse at the input end is essential to prevent damage during a short circuit.
Why should I choose an isolated power supply for precious equipment?
Isolated power supplies prevent the high input voltage from directly passing to the output end in case of a failure, providing the highest level of safety for your connected devices.
Can I share the negative pole on an isolated converter?
No. The negative poles (ground) of the input and output must be kept separate. Sharing them will bypass the isolation and negate the safety benefits of the module.
Are these modules waterproof?
Standard modules like the IPS-ATD36S241 feature an IP67 waterproof level, making them suitable for outdoor and high-demand industrial environments.
What should I consider for motor applications?
For motor loads, we recommend a power supply with a rated power 3-5 times that of the motor's rated power to handle the high start-up current (inductive load).
