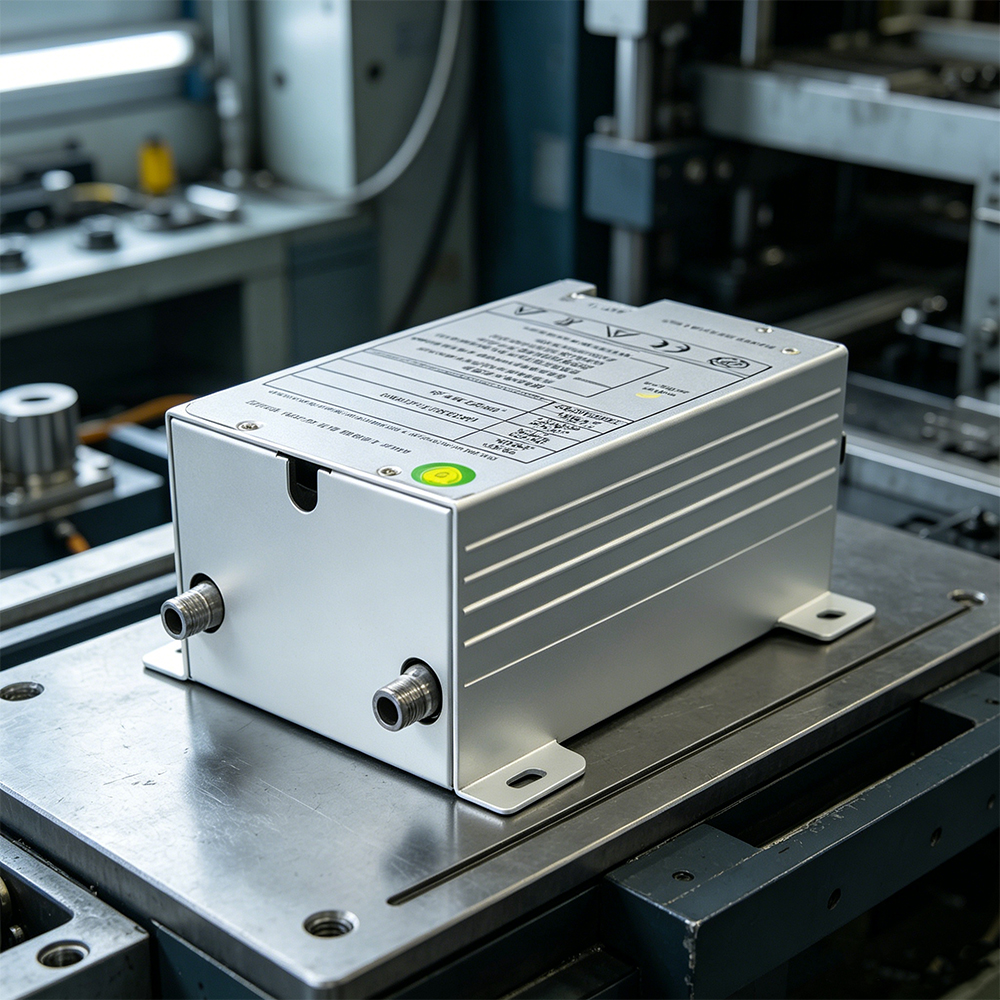

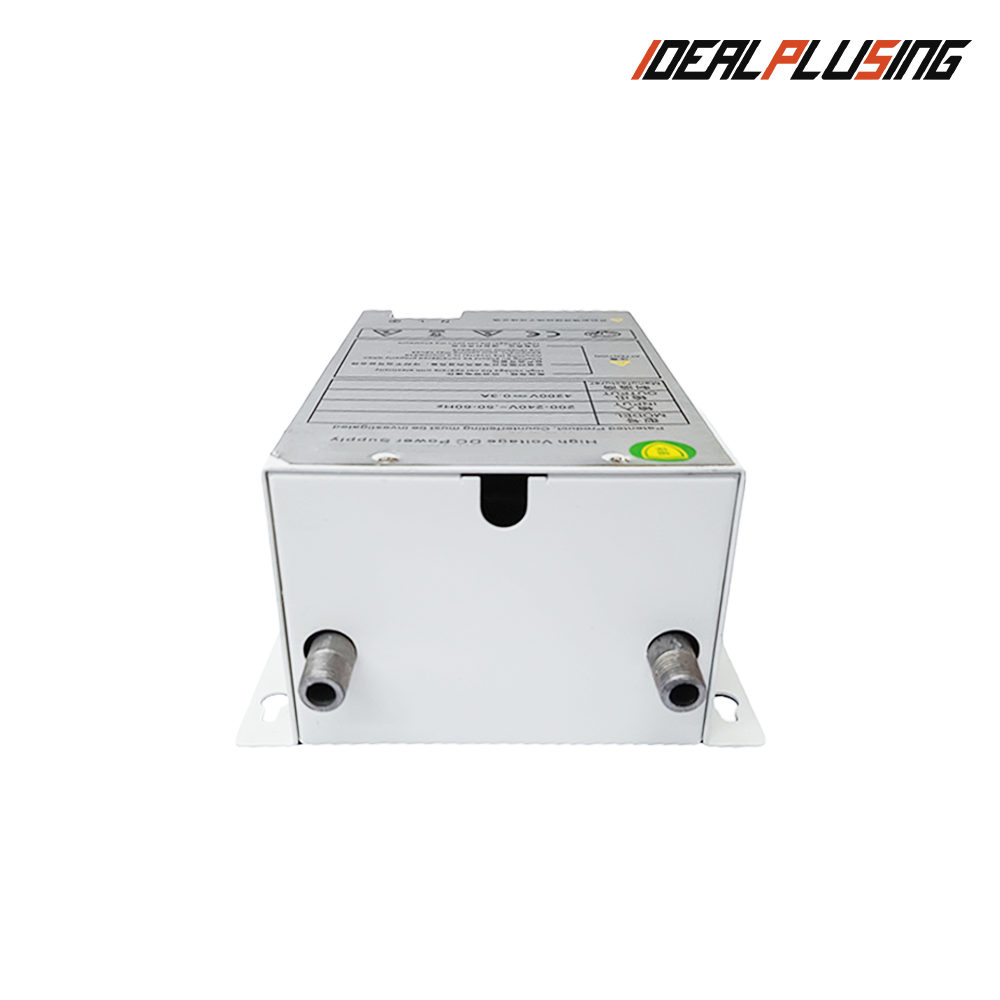

1250W High Power Fast Response Microwave Generator Power Supply for Industrial Microwave Heating System
Product Description
Friendly Reminder
Dear Customer:
The prices shown on this page are for reference only. The final transaction price will be recalculated and quoted based on your actual needs, purchase quantity, and market conditions. The online prices are for your preliminary budget reference only and do not constitute a final transaction commitment.
Our operations always adhere to the principle of integrity and avoid price misrepresentation. Thank you for your understanding and trust.
The prices shown on this page are for reference only. The final transaction price will be recalculated and quoted based on your actual needs, purchase quantity, and market conditions. The online prices are for your preliminary budget reference only and do not constitute a final transaction commitment.
Our operations always adhere to the principle of integrity and avoid price misrepresentation. Thank you for your understanding and trust.
Product Description
1
High reliability design, multiple internal protection.
2
Supports Multi-mode Control.
3
Built-in self-diagnosis and fault reporting functions.
4
This microwave high-voltage switching power supply is suitable for a wide range of microwave applications and is compatible with magnetrons from various manufacturers.
5
Designed for operation in an ambient temperature range of -25 °C to +45 °C; it must be kept at least 10 metres away from any source of fire.
| Specifications | 1000W Output Series | |
|---|---|---|
| Model | IPS-MWAA1000 | IPS-MWAWA1000 |
| Cooling Method | Air cooling | Air Cooling+Water Cooling |
| AC Input | 175VAC-264VAC | |
| Normal Voltage Range | 200VAC-240VAC | |
| Input frequency | 47HZ-63HZ | |
| Max Input AC Current | 6A max. at full load condition | |
| Leakage Current | Less Than 0.5mA, @ 240Vac input | |
| Normal output power | 1000W | |
| Regulation power range | 150-1000W (Continued work) | |
| Max. endure input voltage | 300VAC | |
| Rated Output Anode HV | 4.2KVDC | |
| Rated Anode Output Current | 330mA | |
| AC RMS OVP | 275VAC | |
| AC RMS UVP | 160VAC | |
| AC OCP | 8A | |
| Communication Protocol | RS485+Modbus RTU | |
| Power Adjustment Precision | ±10% | |
| ON/OFF test | After applying 15000 times on/off test, included on for 4 minutes and off for 2 minutes, total test period is 1500 hours, unit shall work normally. | |
| Insulation Resistance | The insulation resistance of 100Mohms shall be ensured at application 500VDC between AC line and earth for 1 minute. | |
| Dielectric Strength | 1500VAC between AC line and earth shall be withstood for 1minute. | |
| Safety | The power supply shall comply with the following criterion: GB4706.1/IEC60335 | |
| ESD / EFT / SURGE | ESD: N/A | EFT: Level 1 L/N-Earth | SURGE: Level 2 L-N 1KV, L/N-Earth 2KV | |
| WEEE/RoHS | The product complies with the environmental directives for PAHs, RoHS, and REACH. | |
| Temperature | Operating: -40℃ to +65℃ | Storage: -40℃ to +85℃ | |
| Humidity | Operating: From 10% to 90% (non-condensing) | Storage: From 5 to 95% | |
| Altitude | Operating: -60 to 3000m (Max temp decreases by 0.5°C for every 100m increase) | Storage: Up to 5000m | |
| Machine Dimension | 208*110*91 (MM) | / |
| Gross Weight | 1.25KG | 1.5KG |
Note: All models can be configured as fixed-power versions, with non-adjustable output.
Cautions: Carry the board by the edges. Do not carry by the heatsink or electronic components. More than 4.6KV high voltage inside, do not touch before disconnecting.

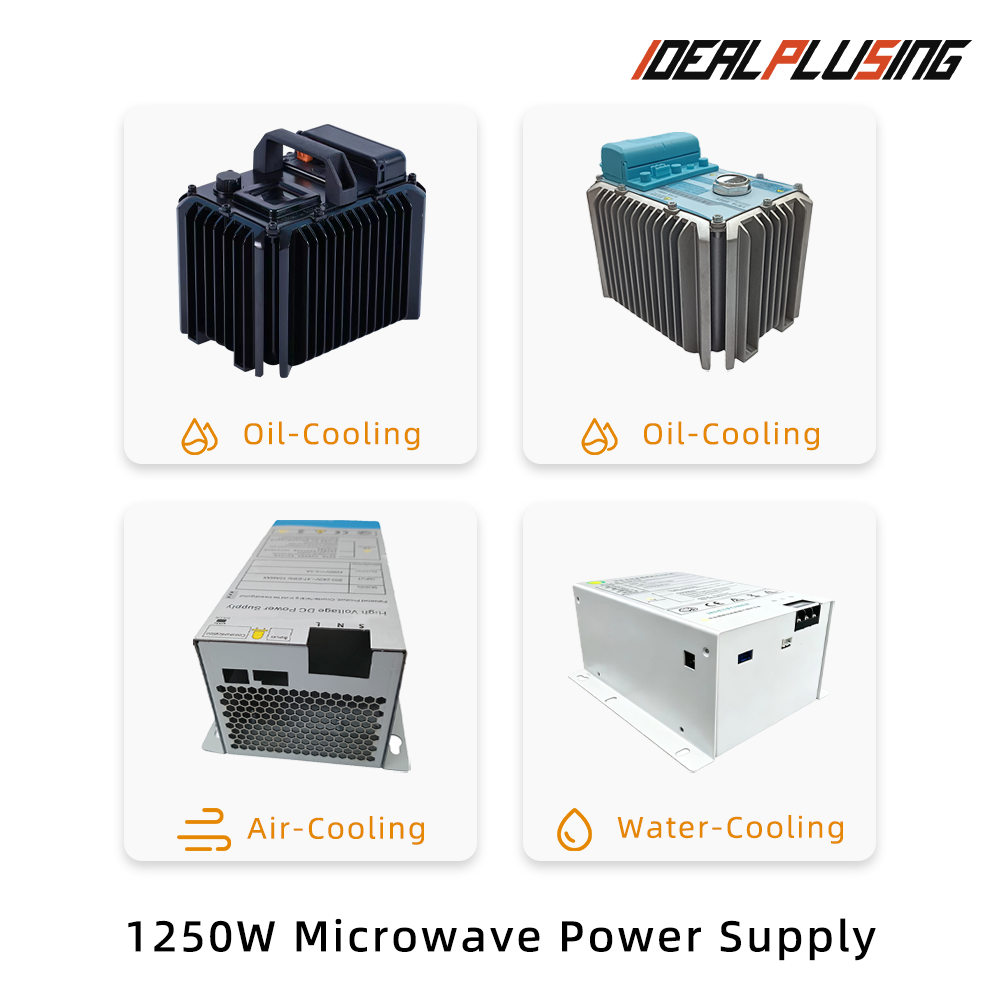

| Specifications | 1250W Output Series | ||
|---|---|---|---|
| Model | IPS-MWOA1250 | IPS-MWAA1250 | IPS-MWWA1250 |
| Cooling Method | Oil cooling | Air cooling | Water cooling |
| AC Input | 175VAC-264VAC | ||
| Normal output power | 1250W | ||
| Regulation range | 150-1250W (Continued work) | ||
| Rated Output Anode HV | 4~4.65KVDC | ||
| Rated Anode Current | 330mA | ||
| Communication Protocol | RS485+Modbus RTU | ||

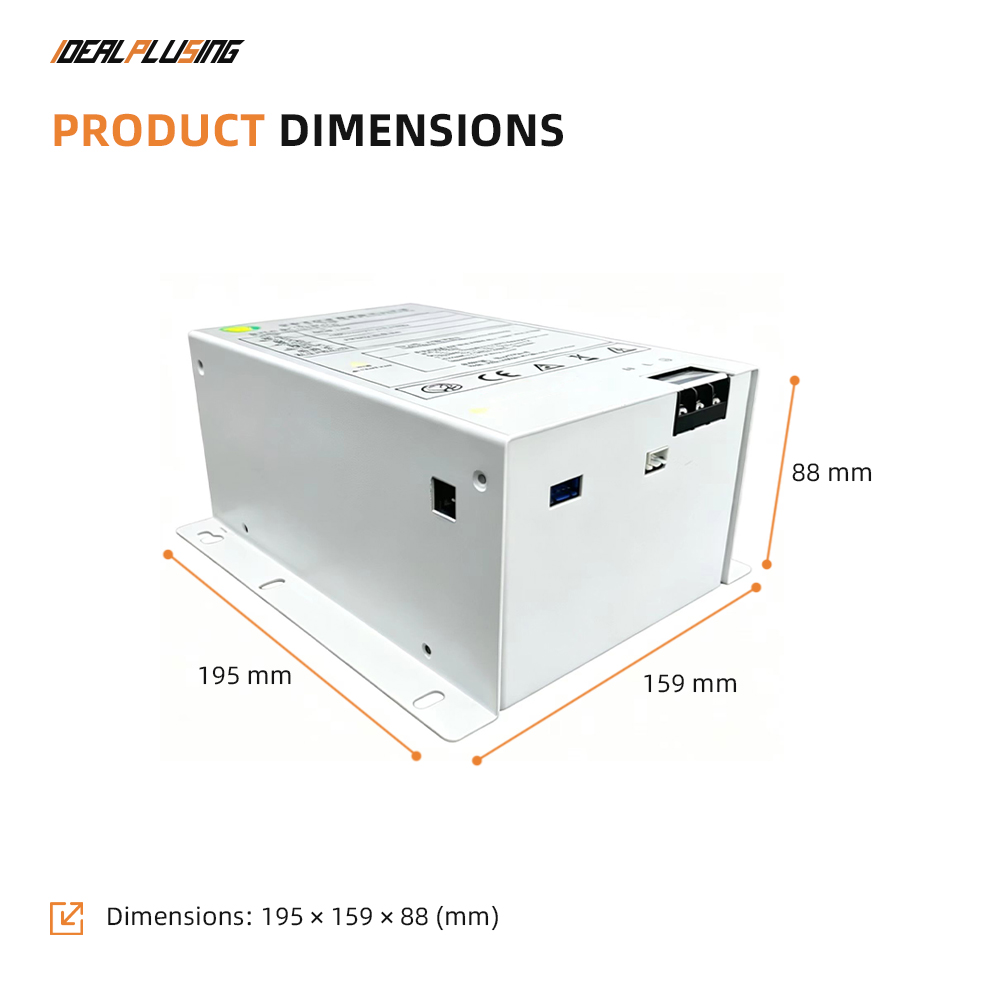

| Machine Dimension | 192*141*163MM | 192*141*163MM | 195*159*88MM |
| Net/Gross Weight | 3.4KG | 1.25KG | 2.3KG |
Note: All models can be configured as fixed-power versions, with non-adjustable output.
Cautions: Carry the board by the edges. Do not carry by the heatsink or electronic components. More than 4.6KV high voltage inside, do not touch before disconnecting.
| Specifications | 1500W Output Series | |
|---|---|---|
| Model | IPS-MWOA1500 | IPS-MWAA1500 |
| Cooling Method | Oil cooling | Air cooling |
| AC Input | 175VAC-264VAC | |
| Normal output power | 1500W | |
| Regulation range | 150-1500W | |
| Rated Output Anode HV | 4~4.65KVDC | |
| Rated Anode Current | 430mA | |
| Machine Dimension | 220*139*137 (MM) | 208*110*91 (MM) |
| Gross Weight | 3.6KG | 1.25KG |
Note: All models can be configured as fixed-power versions, with non-adjustable output.

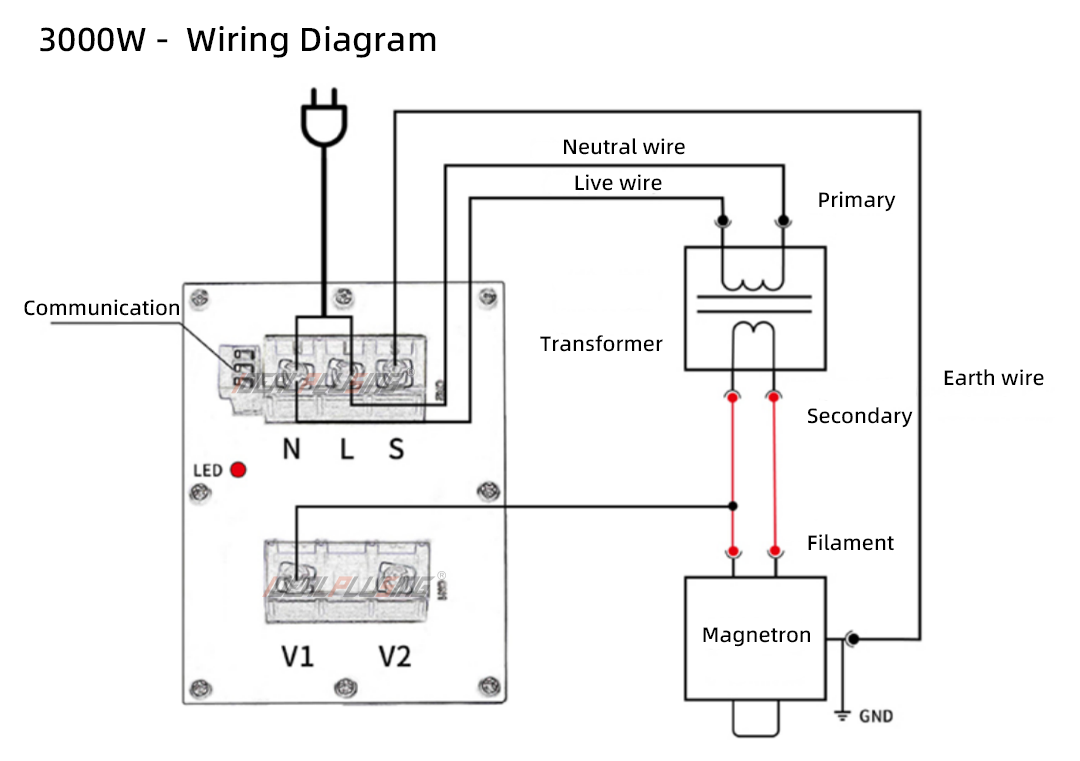

| Specifications | 3000W Output Series | |
|---|---|---|
| Model | IPS-MWOA3000 | IPS-MWAA3000 |
| Cooling Method | Oil cooling | Air cooling |
| AC Input | 175VAC-264VAC | |
| Normal output power | 3000W | |
| Regulation range | 300-3000W | |
| Rated Output Anode HV | 4~4.65KVDC | |
| Rated Anode Current | 750mA | |
| Machine Dimension | 300*175*231 (MM) | |
| Gross Weight | 8.5KG | |
Note: All models can be configured as fixed-power versions, with non-adjustable output.
| Specifications | 4000W Output Series | |
|---|---|---|
| Model | IPS-MWOA4000 | IPS-MWAA4000 |
| Cooling Method | Oil cooling | Air cooling |
| AC Input | 175VAC-264VAC | |
| Normal output power | 4000W | |
| Regulation range | 250-3800W | |
| Rated Output Anode HV | 5.1KVDC | |
| Rated Anode Current | 840mA | |
| Machine Dimension | 300*175*23 (MM) | 400*213*129 (MM) |
| Gross Weight | 8.5KG | 5.6KG |
Note: All models can be configured as fixed-power versions, with non-adjustable output.

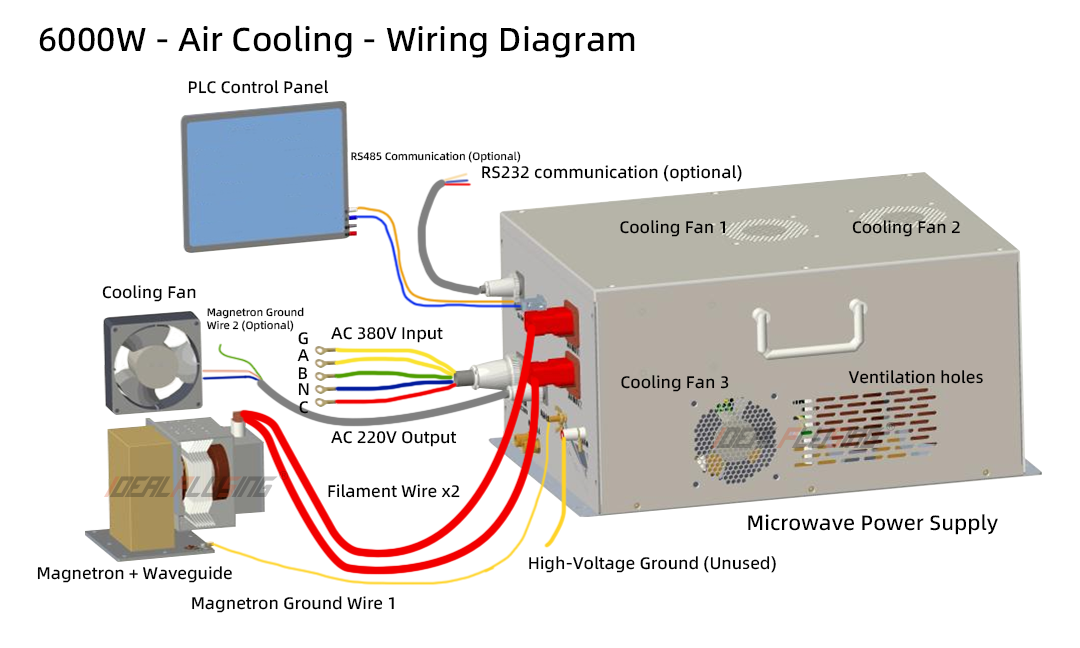

| Specifications | 6000W Output Series | |
|---|---|---|
| Model | IPS-MWAA6000 | IPS-MWWA6000 |
| Cooling Method | Air cooling | Water cooling |
| AC Input | 353VAC-406VAC | |
| Normal output power | 3000W | |
| Regulation range | 500-3000W | |
| Rated Output Anode HV | 4~4.65KVDC | |
| Rated Anode Current | 840mA | |
| Machine Dimension | 476*330*230 (MM) | |
| Gross Weight | ① 14.15 kg (Aluminum Profile) ② 21.20 kg (Galvanized Sheet) |
|
Note: All models can be configured as fixed-power versions, with non-adjustable output.
Hot Selling
IPS-MWAA1000
- Input Voltage: 175–264VAC
- Output Voltage: 4.2 KVDC
- Output Power: 150–1000W
IPS-MWWA1250
- Input Voltage: 175–264VAC
- Output Voltage: 4-4.65 KVDC
- Output Power: 150–1250W
IPS-MWOA1500
- Input Voltage: 175–264VAC
- Output Voltage: 4-4.65 KVDC
- Output Power: 150–1500W
IPS-MWOA1250-A
- Input Voltage: 175–264VAC
- Output Voltage: 4.2 KVDC
- Output Power: 250–1500W
IPS-MWOA1250-B
- Input Voltage: 175–264VAC
- Output Voltage: 4-4.65 KVDC
- Output Power: 150–1250W
IPS-MWAA1250
- Input Voltage: 175-264VAC
- Output Voltage: 4–4.65 KVDC
- Output Power: 150–1250W
IPS-MWOA3000
- Input Voltage: 175–264VAC
- Output Voltage: 4–4.65 KVDC
- Output Power: 300–3000W
IPS-MWAA4000
- Input Voltage: 175–264VAC
- Output Voltage: 5.1 KVDC
- Output Power: 250–3800W
IPS-MWAA6000
- Input Voltage: 353–406VAC
- Output Voltage: 4–4.65 KVDC
- Output Power: 500–3000W
IPS-MWTWA1250
- Input Voltage: 175–264VAC
- Output Voltage: 4–4.65 KVDC
- Output Power: 150–1250W
IPS-MWCM10
- Input Voltage: 100–240VAC
- Input Frequency: 47-63Hz
- Output Voltage: 12VDC
IPS-MWCM18
- Input Voltage: 175–264VAC
- Input Frequency: 47-63Hz
- Output Voltage: 12-24VDC
Details Images

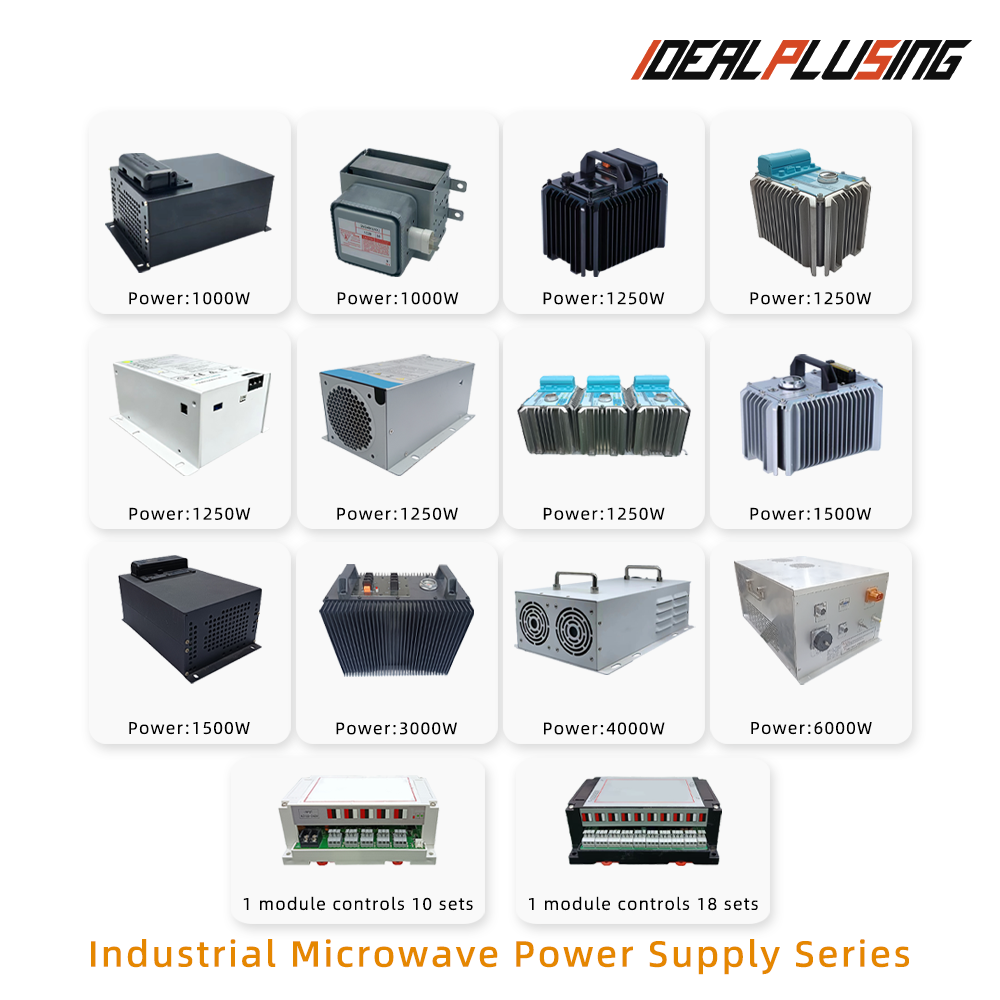

Model List
| Model | Input Voltage | Input Frequency | Output Voltage | Power |
|---|---|---|---|---|
| IPS-MWAA1000 | AC200-240VAC | 47-63HZ | 4.2 KVDC | 150-1000W (Adjustable) |
| IPS-MWAWF1000 | AC200-240VAC | 47-63HZ | 4.2 KVDC | 1000W |
| IPS-MWOA1250 | AC175-264VAC | 47-63HZ | 4.2 KVDC | 250-1500W (Adjustable) |
| IPS-MWOA1250 | AC175-264VAC | 47-63HZ | 4-4.65 KVDC | 150-1250W (Adjustable) |
| IPS-MWWA1250 | AC175-264VAC | 47-63HZ | 4-4.65 KVDC | 150-1250W (Adjustable) |
| IPS-MWAA1250 | AC175-264VAC | 47-63HZ | 4-4.65 KVDC | 150-1250W (Adjustable) |
| IPS-MWAF1250 | AC175-264VAC | 47-63HZ | 4-4.65 KVDC | 1250W |
| IPS-MWOA1500 | AC175-264VAC | 47-63HZ | 4-4.65 KVDC | 150-1500W (Adjustable) |
| IPS-MWOF1500 | AC175-264VAC | 47-63HZ | 4-4.65 KVDC | 1500W |
| IPS-MWAA1500 | AC175-264VAC | 47-63HZ | 4-4.65 KVDC | 150-1500W (Adjustable) |
| IPS-MWAF1500 | AC175-264VAC | 47-63HZ | 4-4.65 KVDC | 1500W |
| IPS-MWOA3000 | AC175-264VAC | 47-63HZ | 4-4.65 KVDC | 300-3000W (Adjustable) |
| IPS-MWOF3000 | AC175-264VAC | 47-63HZ | 4-4.65 KVDC | 3000W |
| IPS-MWAA4000 | AC175-264VAC | 47-63HZ | 5.1 KVDC | 250-3800W (Adjustable) |
| IPS-MWAF4000 | AC175-264VAC | 47-63HZ | 5.1 KVDC | 4000W |
| IPS-MWAA6000 | AC353-406VAC | 47-63HZ | 4-4.65 KVDC | 500-3000W (Adjustable) |
| IPS-MWAF6000 | AC353-406VAC | 47-63HZ | 4-4.65 KVDC | 6000W |
Products Applications
Due to the significant variations in operating environments and modes associated with industrial microwave equipment, the demands placed on the power supply itself are exceptionally high. Our microwave power supply products are currently deployed across a wide range of industries—including food, pharmaceuticals, timber, chemicals, tea, ceramics, UV-based exhaust gas treatment, and paper manufacturing—to facilitate essential processes such as drying, sterilization, chemical reactions, sintering, extraction, and heating.

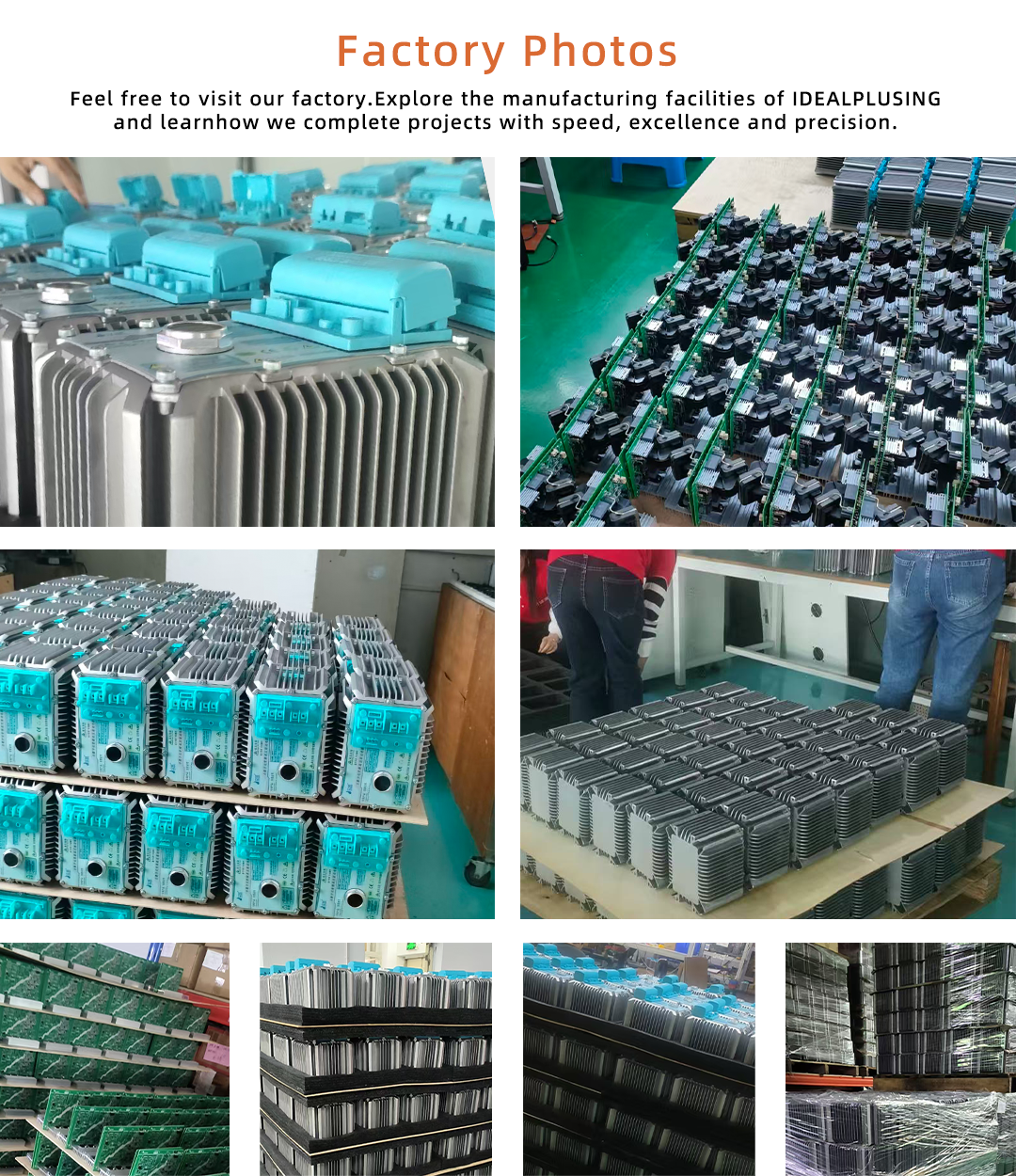

Manufacturing & Production Facilities
