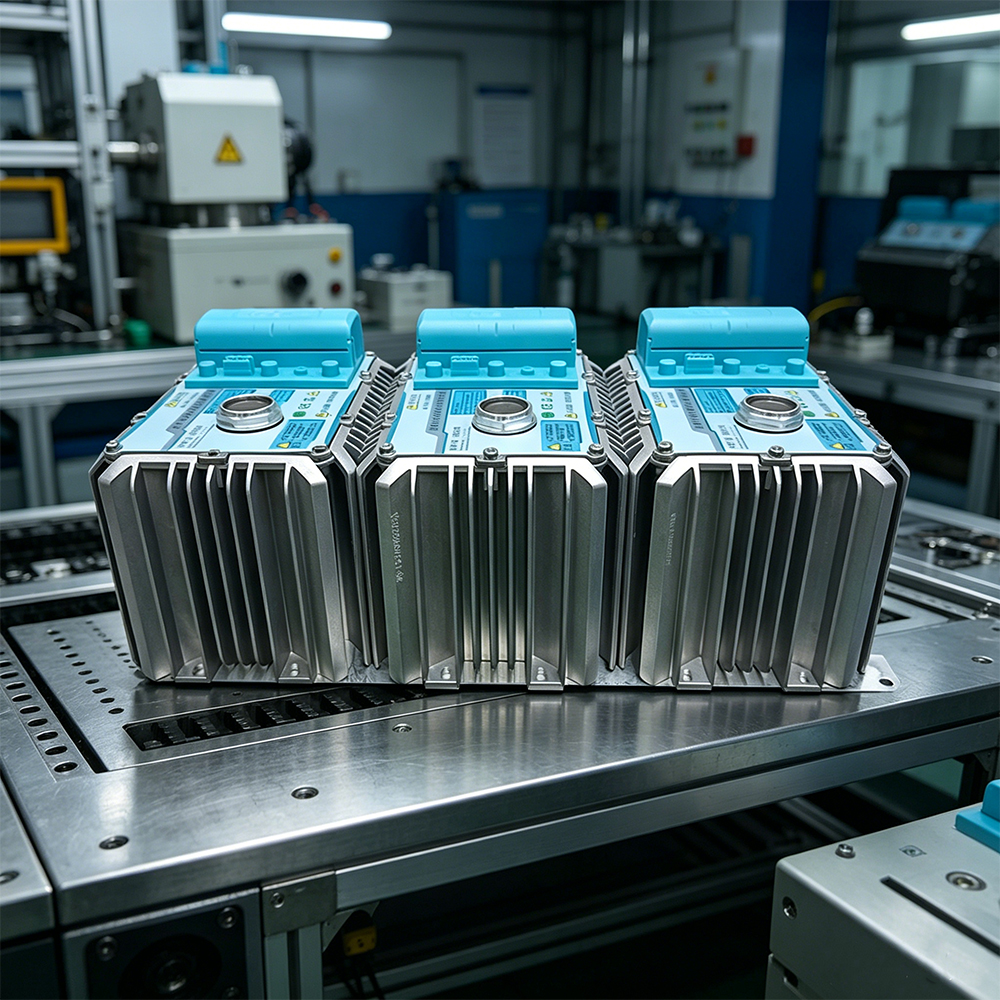

1250W Wide Bandwidth Fast Regulation Variable Frequency Magnetron Microwave Power Supply for Industrial Microwave Processing
Product Description
1250W Wide Bandwidth Fast Regulation Variable Frequency Magnetron Microwave Power Supply
Professional Solution for Industrial Microwave Processing
⚠️ Friendly Reminder
Dear Customer: The prices shown are for reference only. The final transaction price will be recalculated based on your actual needs, purchase quantity, and market conditions. We adhere to the principle of integrity and appreciate your trust.
Dear Customer: The prices shown are for reference only. The final transaction price will be recalculated based on your actual needs, purchase quantity, and market conditions. We adhere to the principle of integrity and appreciate your trust.
Product Description
🛡️
High reliability design with multiple internal protection mechanisms.
⚙️
Supports Multi-mode Control for versatile industrial applications.
🔍
Built-in self-diagnosis and real-time fault reporting functions.
📡
Wide compatibility with magnetrons from various global manufacturers.
🌡️
Operates reliably in ambient temperatures from -25°C to +45°C.
1000W Output Series Specifications
| Parameter | IPS-MWAA1000 (Air Cooling) | IPS-MWAWA1000 (Air+Water) |
|---|---|---|
| AC Input | 175VAC-264VAC (Normal: 200V-240V) | |
| Max Input Current | 6A max at full load | |
| Normal Output Power | 1000W (Regulation: 150-1000W) | |
| Rated Anode HV | 4.2KVDC / 330mA | |
| Protocol | RS485 + Modbus RTU | |
| Dimension | 208*110*91 mm | / |
| Gross Weight | 1.25 KG | 1.5 KG |

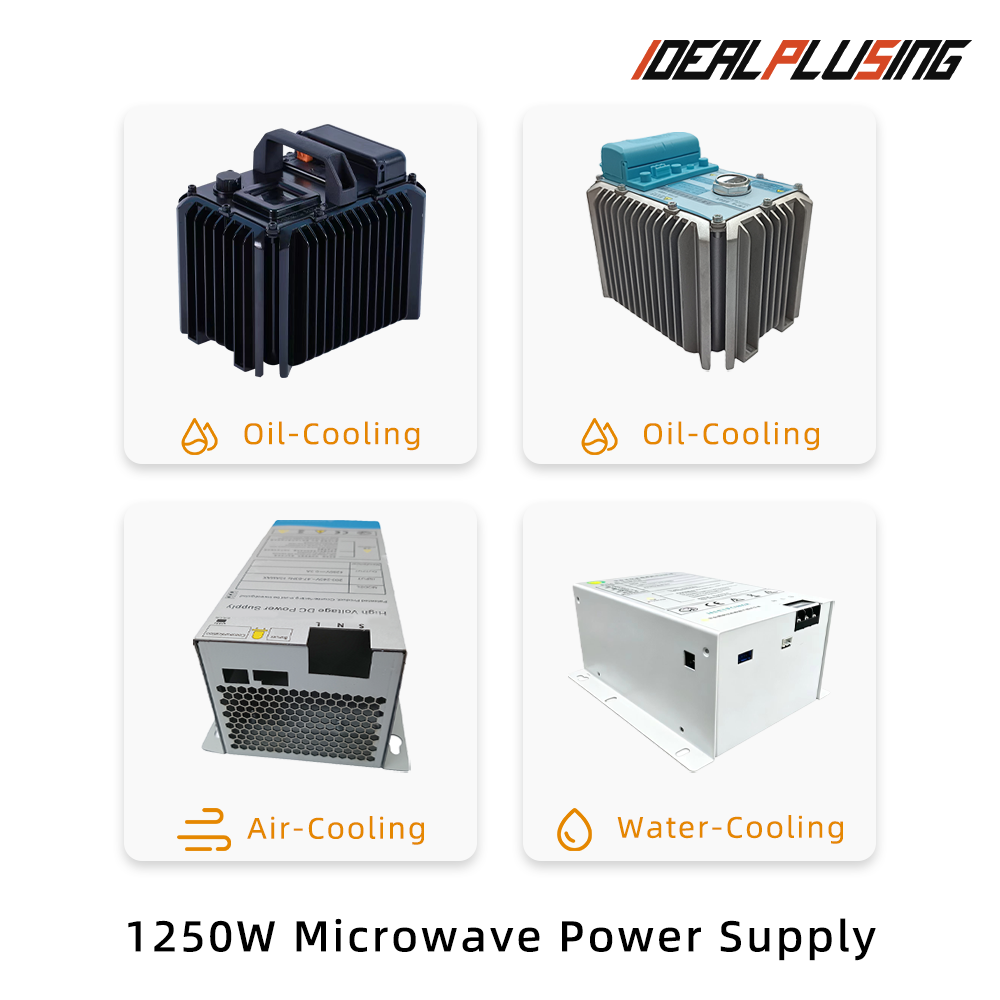

1250W Output Series Specifications
| Parameter | IPS-MWOA1250 (Oil) | IPS-MWAA1250 (Air) | IPS-MWWA1250 (Water) |
|---|---|---|---|
| AC Input | 175VAC-264VAC | ||
| Normal Output Power | 1250W (Regulation: 150-1250W) | ||
| Rated Anode HV | 4~4.65KVDC / 330mA | ||
| Dimension (mm) | 192*141*163 | 192*141*163 | 195*159*88 |
| Weight | 3.4 KG | 1.25 KG | 2.3 KG |
Hot Selling Models

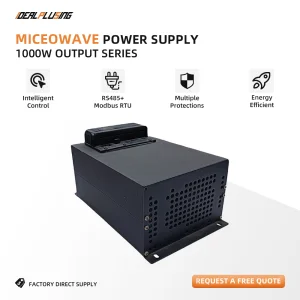

IPS-MWAA1000
Input: 175–264VAC | Output: 4.2 KVDC | Power: 150–1000W
IPS-MWWA1250
Input: 175–264VAC | Output: 4-4.65 KVDC | Power: 150–1250W
IPS-MWOA1500
Input: 175–264VAC | Output: 4-4.65 KVDC | Power: 150–1500W

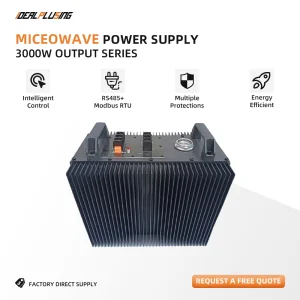

IPS-MWOA3000
Power: 300–3000W Adjustable | High Voltage Output

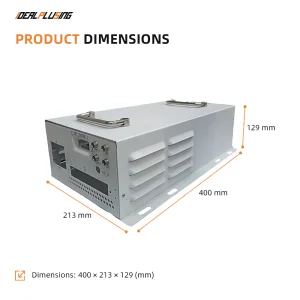

IPS-MWAA4000
Power: 250–3800W Adjustable | Air Cooling

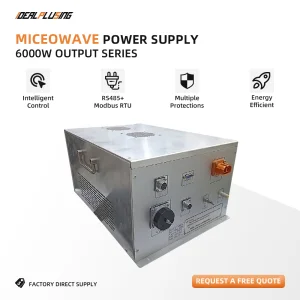

IPS-MWAA6000
Input: 353–406VAC | Power: 500–3000W (High Stability)

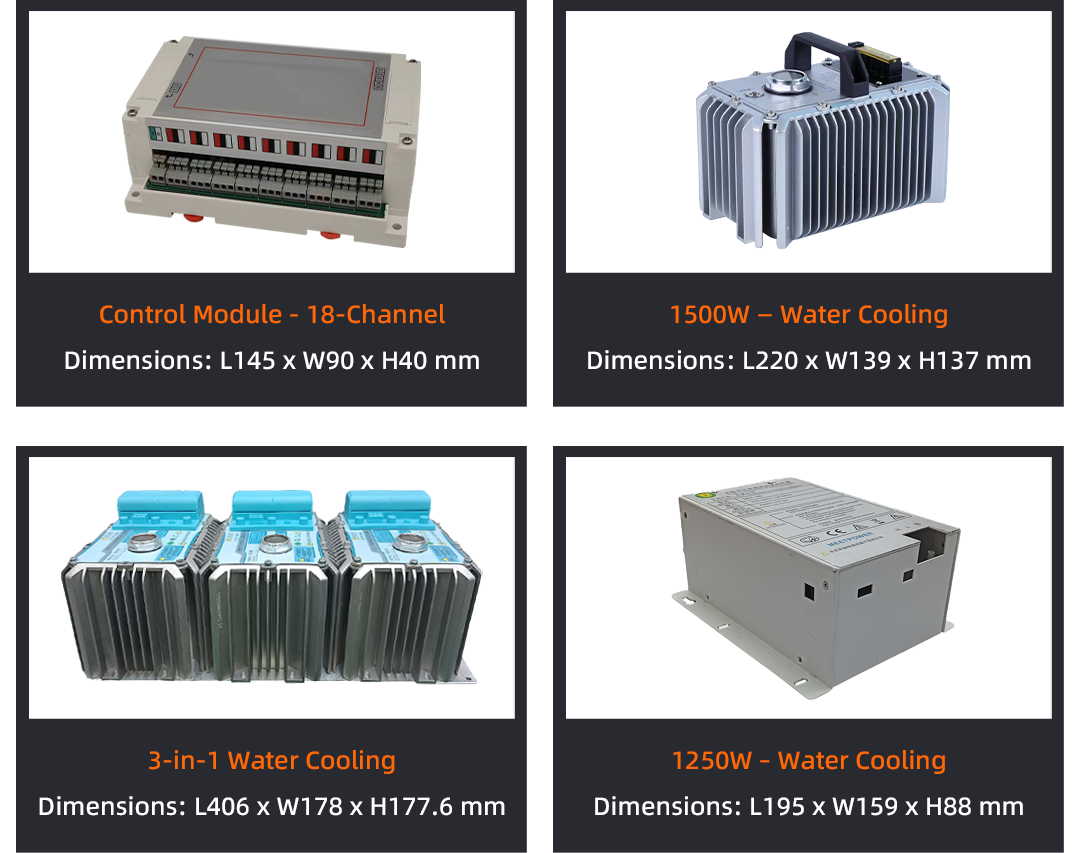

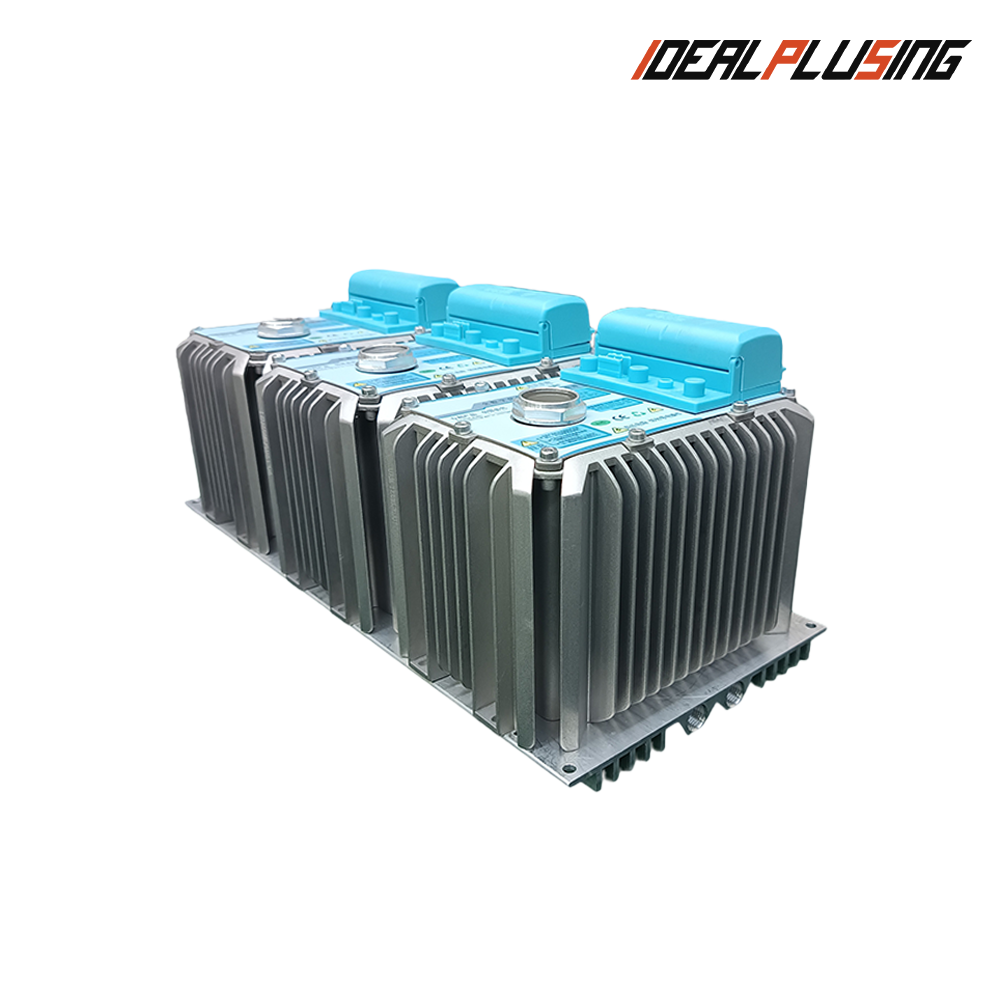

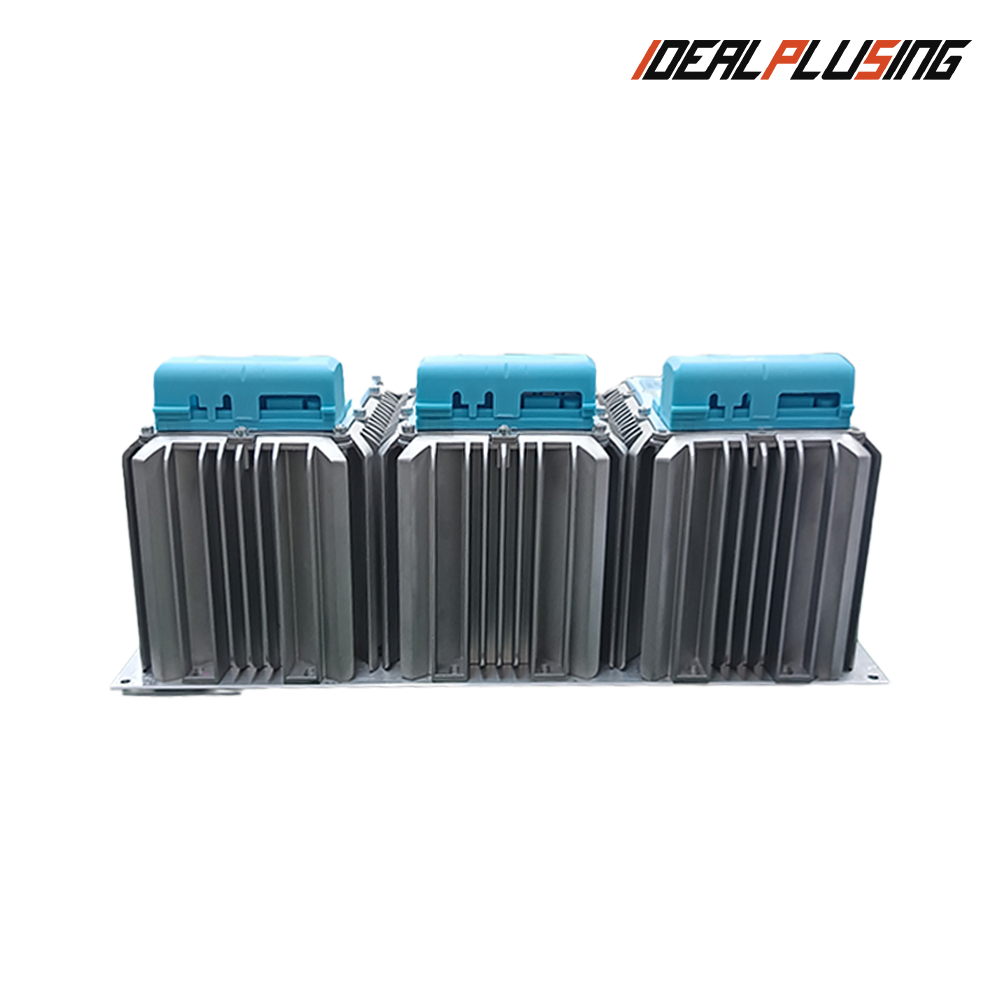

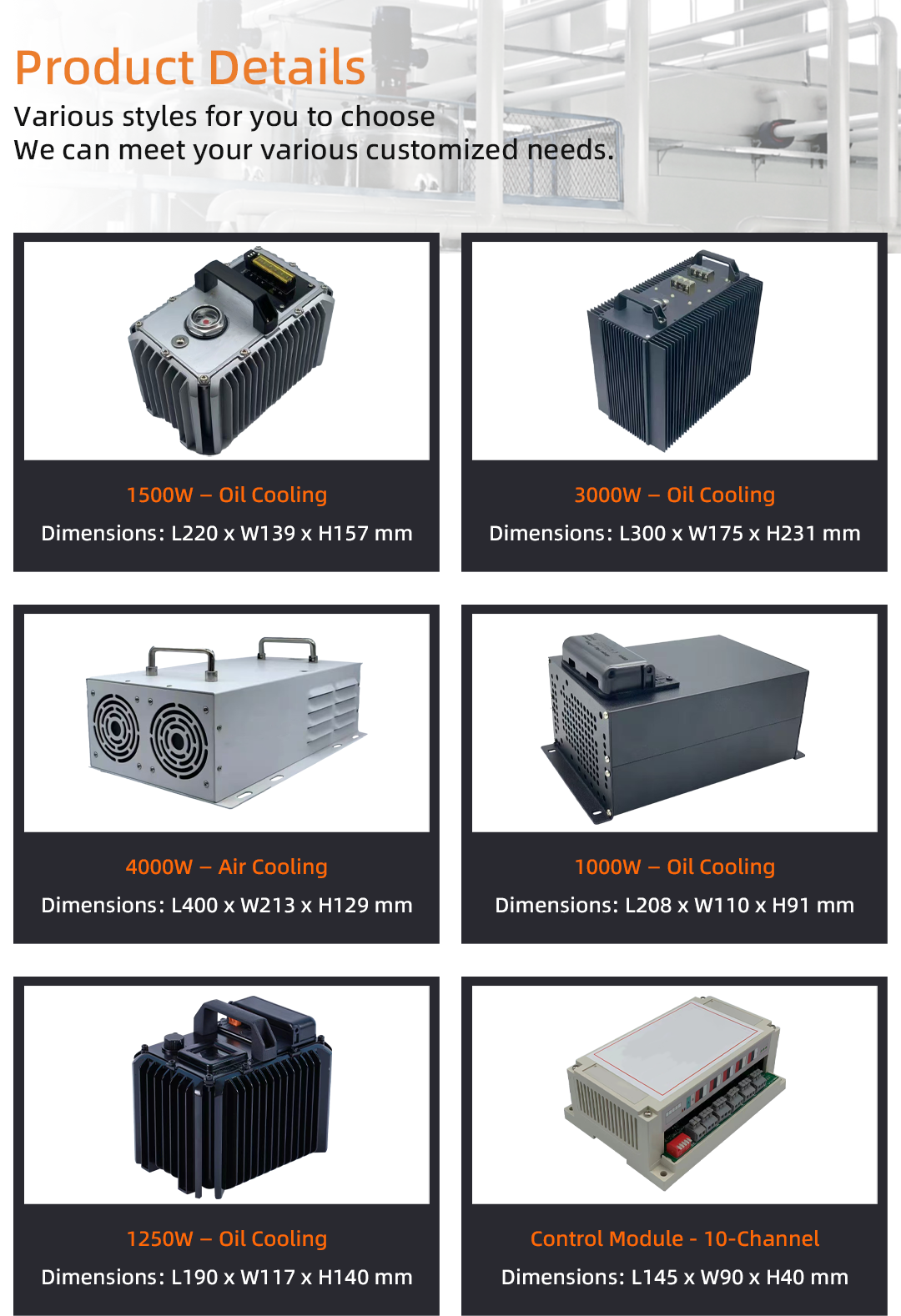

Detailed Product View
Industrial Applications
Our microwave power supplies are engineered for high-demand environments across various industries:
🍲Food Processing
💊Pharmaceuticals
🪵Timber & Wood
🧪Chemical Reactions
🍵Tea & Ceramics
♻️Exhaust Gas Treatment

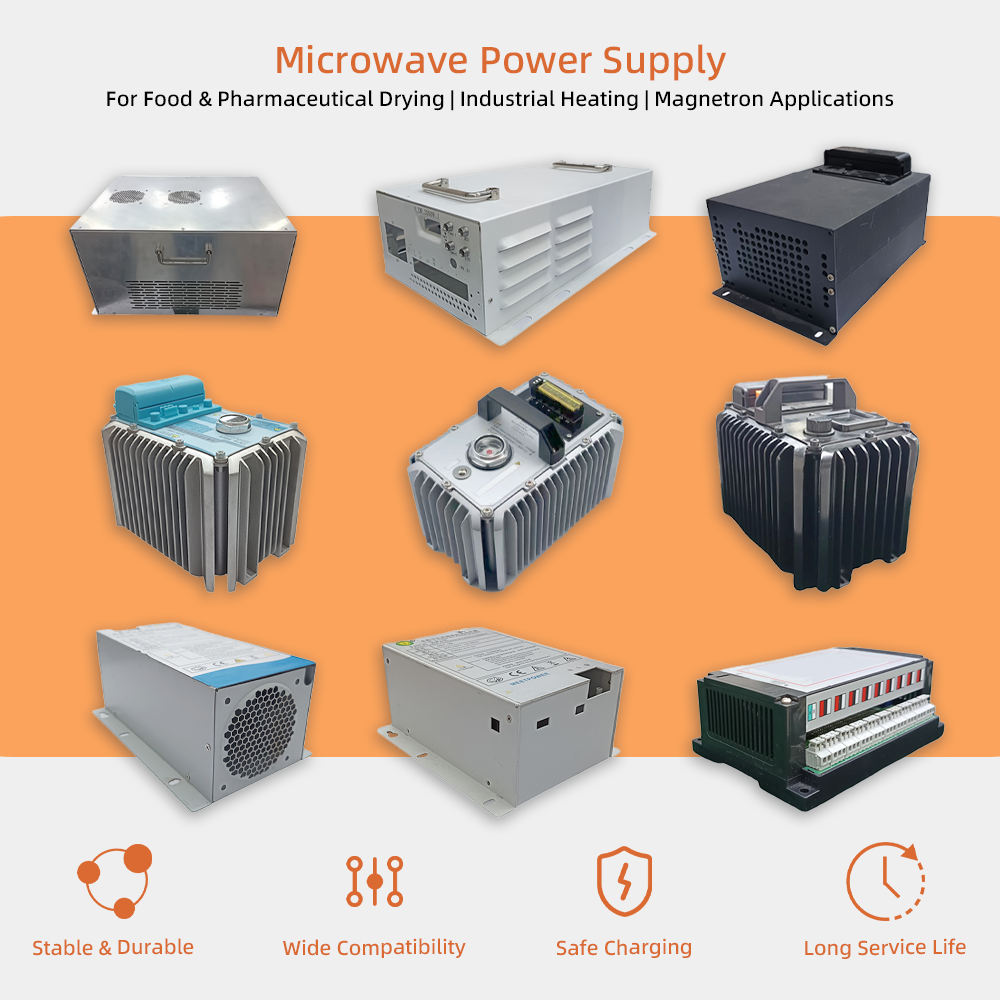

Complete Model List
| Model | Input Voltage | Output Voltage | Power Range |
|---|---|---|---|
| IPS-MWAA1000 | AC200-240V | 4.2 KVDC | 150-1000W |
| IPS-MWOA1250 | AC175-264V | 4-4.65 KVDC | 150-1250W |
| IPS-MWAA1500 | AC175-264V | 4-4.65 KVDC | 150-1500W |
| IPS-MWAA4000 | AC175-264V | 5.1 KVDC | 250-3800W |
| IPS-MWAA6000 | AC353-406V | 4-4.65 KVDC | 500-3000W |
⚠️ Safety Precautions
Internal voltages exceed 4.6KV. Do not touch components while the power is connected. Handle the board by the edges only; carrying by the heatsink may damage the inverter.
Internal voltages exceed 4.6KV. Do not touch components while the power is connected. Handle the board by the edges only; carrying by the heatsink may damage the inverter.
Frequently Asked Questions
Can I request a sample order?
Yes, sample orders are available for quality testing and verification during our initial cooperation.
What is the typical lead time?
Most models are in stock. For standard samples, the lead time is usually 1-3 working days after payment receipt.
What shipping methods do you use?
We commonly ship via DHL, UPS, FedEx, or TNT (3-5 days delivery). Airline and sea freight options are also available for bulk orders.
How do I proceed with a formal order?
First, share your requirements or application. We will provide a quote. Once you confirm the sample and place a deposit, we will arrange production.
What is the warranty period for your products?
We offer a full 1-year warranty for all our power supply units to ensure long-term reliability.
Is the output power adjustable on all models?
Yes, most models feature continuously adjustable power ranges. However, all models can also be configured as fixed-power versions if required.
