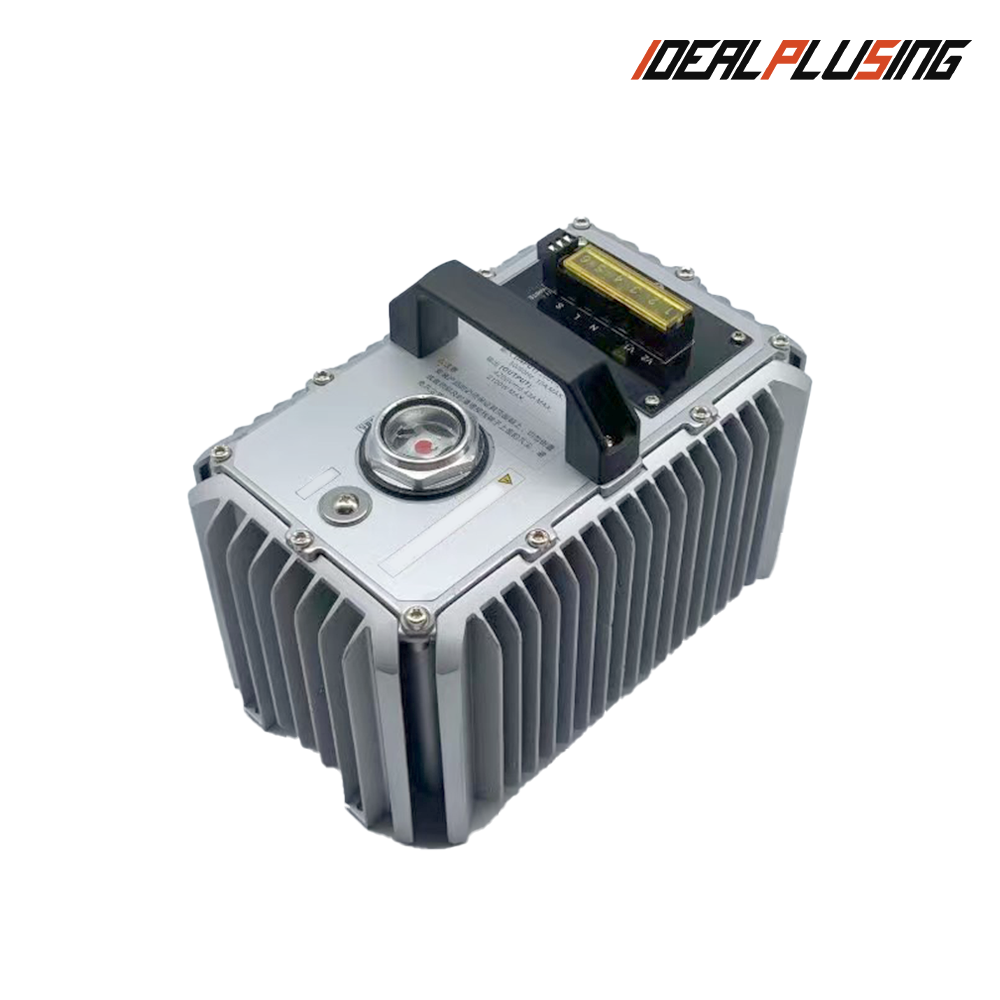

High Stability Low Ripple Microwave Power Supply, 1500W Industrial Microwave Equipment Power Supply
Product Description
High Stability Low Ripple Microwave Power Supply, 1500W Industrial Microwave Equipment Power Supply
📢 Friendly Reminder
Dear Customer: The prices shown on this page are for reference only. The final transaction price will be recalculated and quoted based on your actual needs, purchase quantity, and market conditions. Adherence to the principle of integrity and avoidance of price misrepresentation is our priority. Thank you for your understanding and trust.
Product Description
- High reliability design, multiple internal protection.
- Supports Multi-mode Control.
- Built-in self-diagnosis and fault reporting functions.
- Suitable for a wide range of microwave applications and compatible with magnetrons from various manufacturers.
- Designed for operation in an ambient temperature range of -25°C to +45°C.
| 1000W Output Series Specifications | ||
|---|---|---|
| Model | IPS-MWAA1000 | IPS-MWAWA1000 |
| Cooling Method | Air cooling | Air Cooling+Water Cooling |
| AC Input | 175VAC-264VAC (Normal: 200VAC-240VAC) | |
| Max Input AC Current | 6A max. at full load condition | |
| Normal output power | 1000W (Regulation range: 150-1000W) | |
| Rated Output Anode HV | 4.2KVDC | |
| Communication Protocol | RS485+Modbus RTU | |
| Machine Dimension | 208*110*91(MM) | / |
| 1250W Output Series Specifications | |||
|---|---|---|---|
| Model | IPS-MWOA1250 | IPS-MWAA1250 | IPS-MWWA1250 |
| Cooling Method | Oil cooling | Air cooling | Water cooling |
| Normal output power | 1250W (Regulation range: 150-1250W) | ||
| Rated Output Anode HV | 4~4.65KVDC | ||
| Rated Anode Output Current | 330mA | ||
| Machine Dimension | 192*141*163MM | 192*141*163MM | 195*159*88MM |

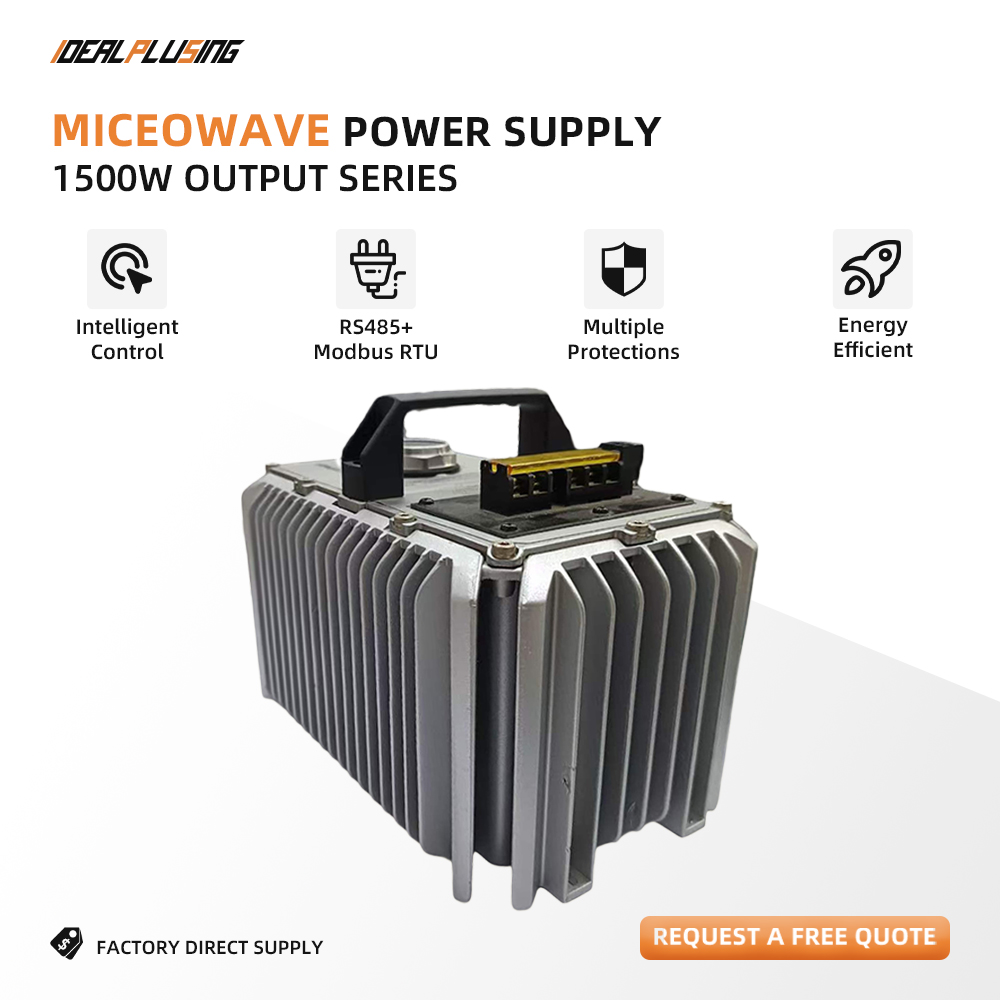

| 1500W Output Series Specifications | ||
|---|---|---|
| Model | IPS-MWOA1500 | IPS-MWAA1500 |
| Cooling Method | Oil cooling | Air cooling |
| Normal output power | 1500W (Regulation range: 150-1500W) | |
| Rated Anode Output Current | 430mA | |

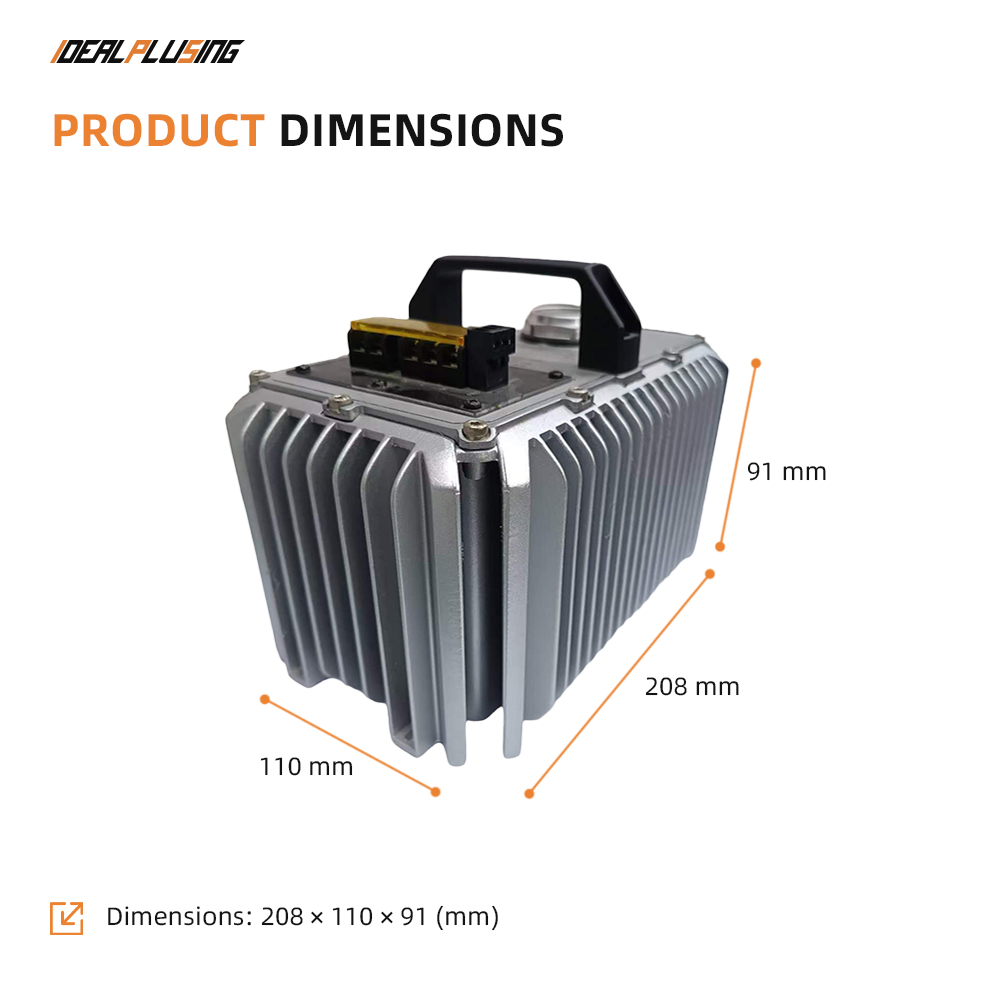

| Machine Dimension | 220*139*137(MM) | 208*110*91(MM) |
Hot Selling Models
IPS-MWAA1000
1000W Adjustable
IPS-MWWA1250
1250W Water Cooling
IPS-MWOA1500
1500W Oil Cooling
IPS-MWOA1250-A
IPS-MWOA1250-B
IPS-MWAA1250

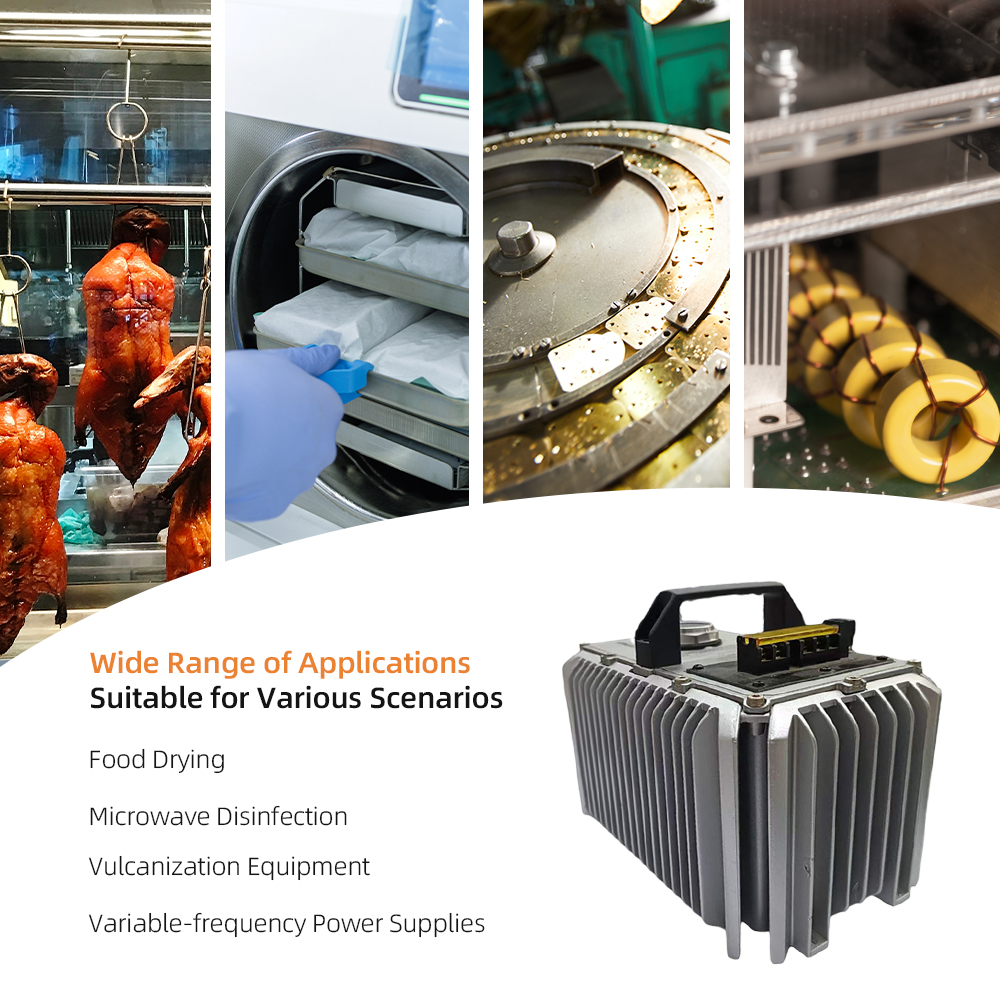

Product Applications
Our microwave power supply products are currently deployed across a wide range of industries including food, pharmaceuticals, timber, chemicals, tea, ceramics, UV-based exhaust gas treatment, and paper manufacturing to facilitate essential processes such as drying, sterilization, chemical reactions, sintering, extraction, and heating.
Details Images
Complete Model List
| Model | Input Voltage | Output Voltage | Power Range |
| IPS-MWAA1000 | AC200-240V | 4.2 KVDC | 150-1000W |
| IPS-MWOA1250 | AC175-264V | 4-4.65 KVDC | 150-1250W |
| IPS-MWOA1500 | AC175-264V | 4-4.65 KVDC | 150-1500W |
| IPS-MWOA3000 | AC175-264V | 4-4.65 KVDC | 300-3000W |
| IPS-MWAA4000 | AC175-264V | 5.1 KVDC | 250-3800W |
| IPS-MWAA6000 | AC353-406V | 4-4.65 KVDC | 500-3000W |

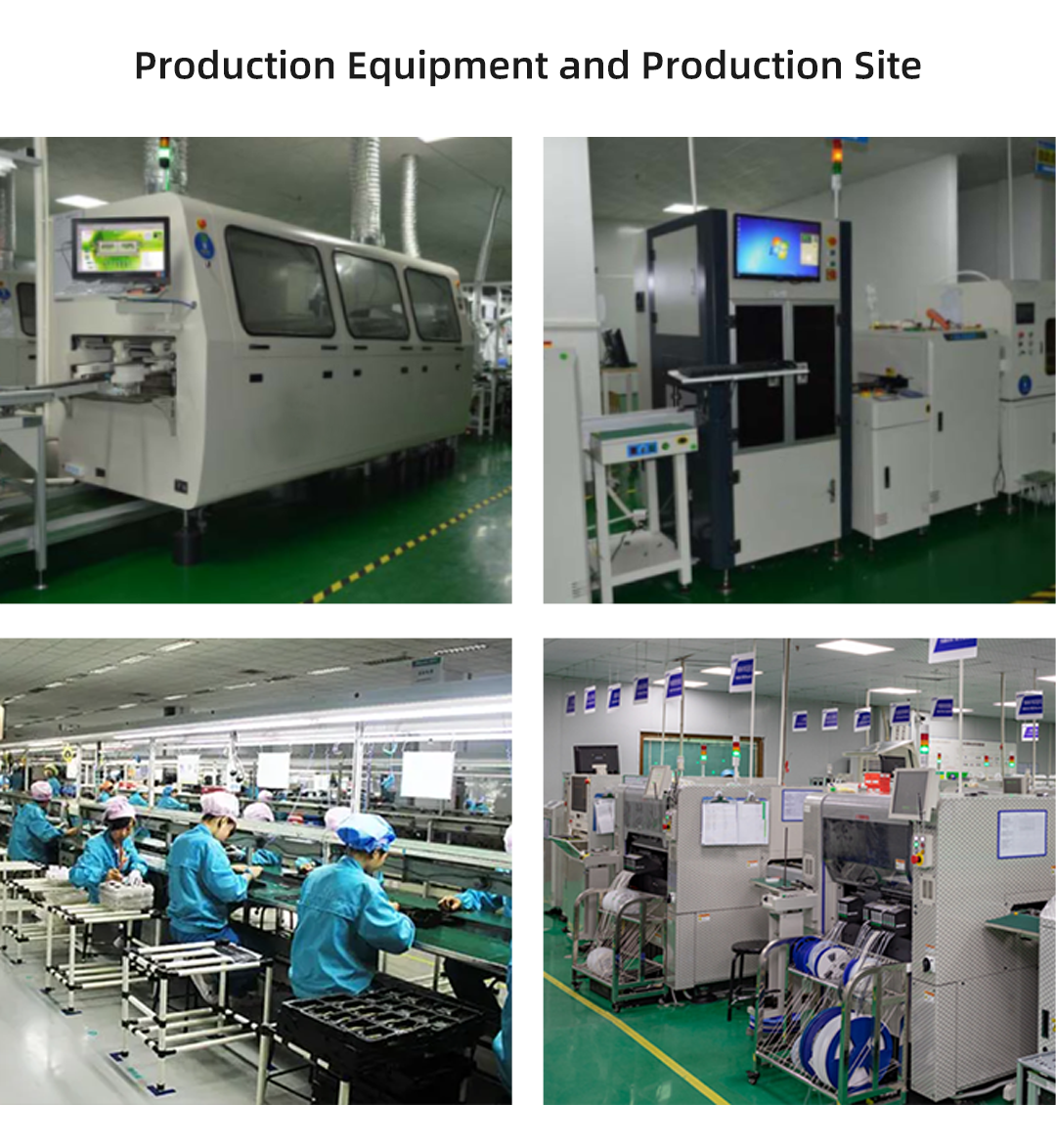

Quality Control & Facilities
Frequently Asked Questions
Q1. Can I have a sample order?
A: Yes, sample order is acceptable to test and check quality for the first cooperation.
Q2. What about the lead time?
A: Most models are in stock. Sample lead time after receiving payment is typically 1-3 working days.
Q3. Do you have any MOQ limit?
A: Low MOQ, 1 piece for sample checking is available.
Q4. How do you ship the goods?
A: We often ship by DHL, UPS, FedEx, or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping are also optional.
Q5. Is it acceptable to print the buyer logo on the product?
A: Yes. Please inform us formally before our production and confirm the design based on our sample.
Q6. Do you offer a guarantee for the products?
A: Yes, we offer a 1-year warranty for all power supplies.
