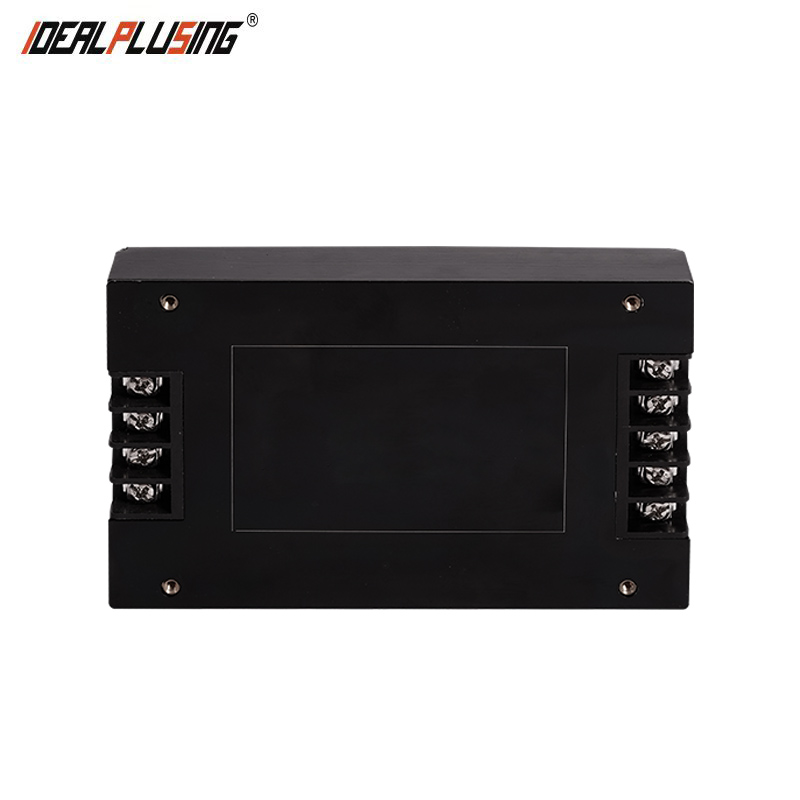

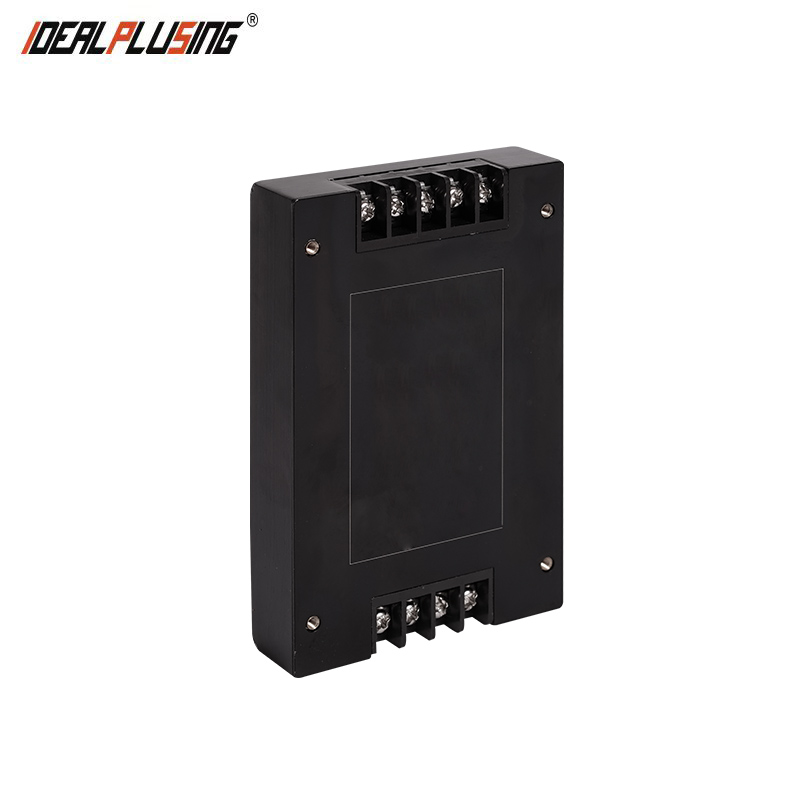

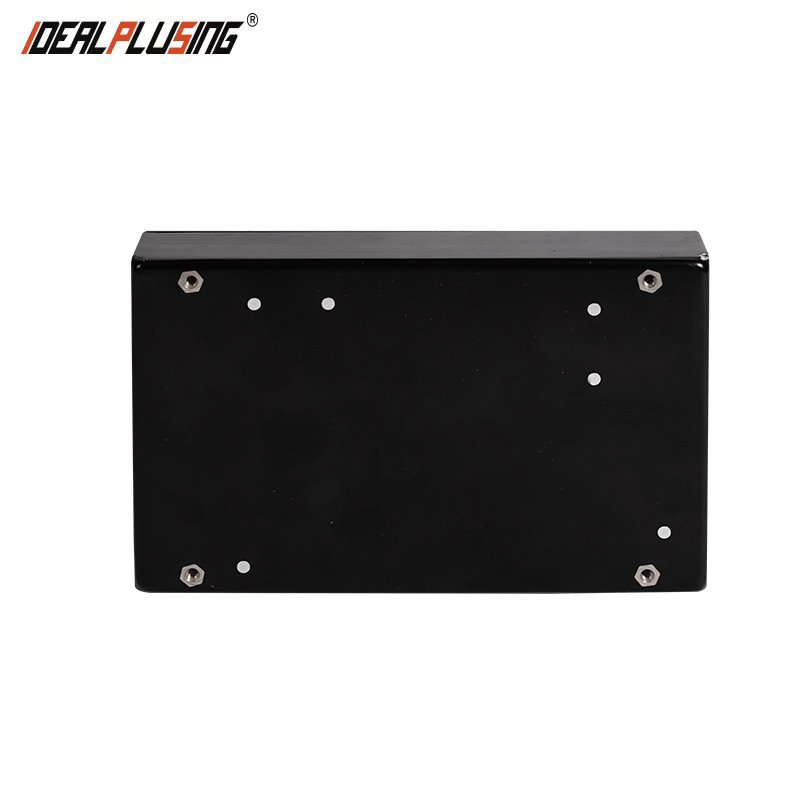

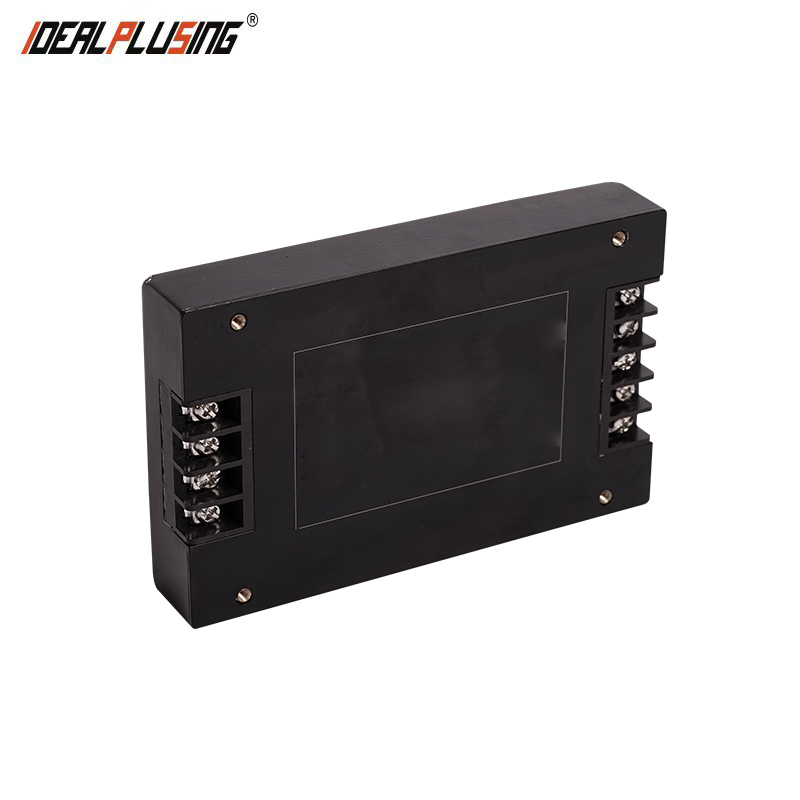

Step Down 48V 50V 56V 60V to 12V DC DC Isolated Converter 12V 5A 60W Converter for Lighting System
Product Description
Step Down 48V 50V 56V 60V to 12V DC DC Isolated Converter 12V 5A 60W
Core Features
Isolation converters play a vital role in the interconnection of electronic devices and systems. These conversion devices achieve electrical isolation, ensuring the safety and stability of signals during transmission by establishing an effective isolation barrier between input and output ends. They effectively prevent interference between different circuits and damage caused by ground potential differences.
Our unique isolation characteristics make these converters widely used in industrial automation, medical equipment, communication systems, and new energy. With a professional team and advanced R&D capabilities, we can customize external dimensions, pin definitions, rated power, and other parameters to meet special needs.
Professional Power Solutions
Our team has been providing power solutions since 2001, specializing in power conversion for electric vehicles, automobiles, RVs, marine, and communication industries. We have developed more than 5000+ power supply solutions, with power ranges from 1 watt to 200 kilowatts and input voltages up to 2000 volts.
💡 Customization Capabilities: We specialize in customizing DC-DC converters (Isolated and Non-isolated) with input/output ranges from 1V to 1000V DC and 1A to 1000A.
🛠️ Reliability: Our products meet high requirements in global markets, designed for a life cycle of 15 to 20 years, suitable for complex working environments.
Technical Specification
| DATASHEET - IPS-DTD48-60S12-5 | |
|---|---|
| Name | Isolated DC DC Converter |

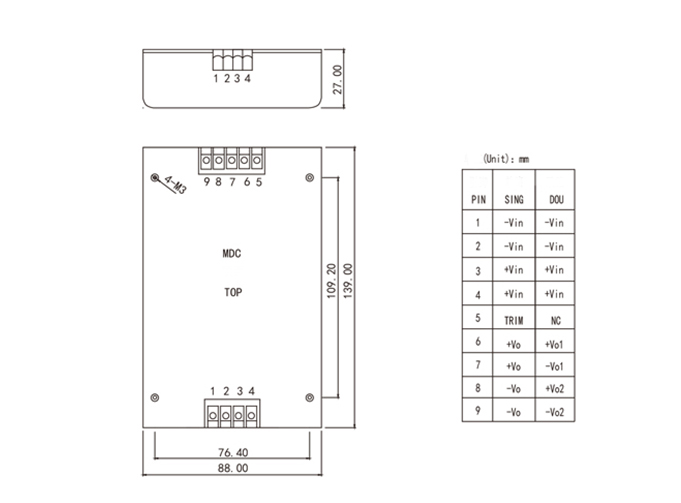

| Product Size | 139*88*27 MM |
| Design | Input and output completely isolated |
| Net Weight | 0.5KG |
| Input Voltage Range | 48 - 60 VDC (Typical: 54V) |
| Output Voltage | 12 VDC |
| Output Current | 5 A |
| Voltage Regulation | ±1% |
| Ripple and Noise | 200 Mvp-p |
| Protection | Input undervoltage, over-temperature, output overcurrent, short circuit |
| Cooling Method | Self Cooling |
Hot Selling Models
IPS-DTD600-1000S24-1.05
Input: 600V-100VDC
Output: 24V 1.05A 25W
IPS-DTD36-72S12-8.33
Input: 36V-72VDC
Output: 12V 8.33A 100W
IPS-DTD9-36S24-4.16
Input: 9V-36VDC
Output: 24V 4.16A 100W
IPS-DTD400-800S12-8.33
Input: 400V-800VDC
Output: 12V 8.33A 100W
IPS-DTD65-154S24-12.5
Input: 65V-154VDC
Output: 24V 12.5A 300W
IPS-DTD18-36S24-20.8
Input: 18V-36VDC
Output: 24V 20.8A 500W
Product Details & Assembly
Technical Application Guide
- Inductive Loads: For coils, motors, and speakers, use a power supply 3-5 times the rated power of the load.
- Safety First: Isolated products are recommended for precious loads to prevent high input voltage from passing to the output.
- Polarity: Isolated power supplies support negative voltage input. Connect the 0V line to the red wire and negative voltage to the black wire.
- Protection: Standard features include output overcurrent, short-circuit, and undervoltage protection.
- Non-Isolated vs Isolated: The negative poles (ground) of isolated products cannot be shared; input and output grounds must be separate to maintain isolation.
Frequently Asked Questions
Q1: What is the main advantage of an isolated DC-DC converter?
A: The primary advantage is safety and signal stability. It creates an electrical barrier that prevents high input voltage from damaging the output load and eliminates interference between different circuits.
Q2: Can the input and output grounds be connected together?
A: No. For isolated products, the negative poles (ground) must be used separately. If they are shared, the isolation effect is lost.
Q3: How do I choose a power supply for a motor or inductive load?
A: We recommend using a power supply that is 3 to 5 times the rated power of the load to handle the high starting currents common in motors and inductive loads.
Q4: Do these converters include short-circuit protection?
A: Yes, all buck-boost and step-down products come standard with output short-circuit, overcurrent, and input undervoltage protection.
Q5: Can I request a customized voltage or current?
A: Absolutely. We offer customization for input/output voltages from 1V to 1000V and current from 1A to 1000A to meet specific equipment requirements.
Q6: What happens if the input voltage is much higher than the output voltage?
A: For applications where the input is 3x higher than the output, isolated products are strongly recommended to ensure reliability and prevent equipment damage.
