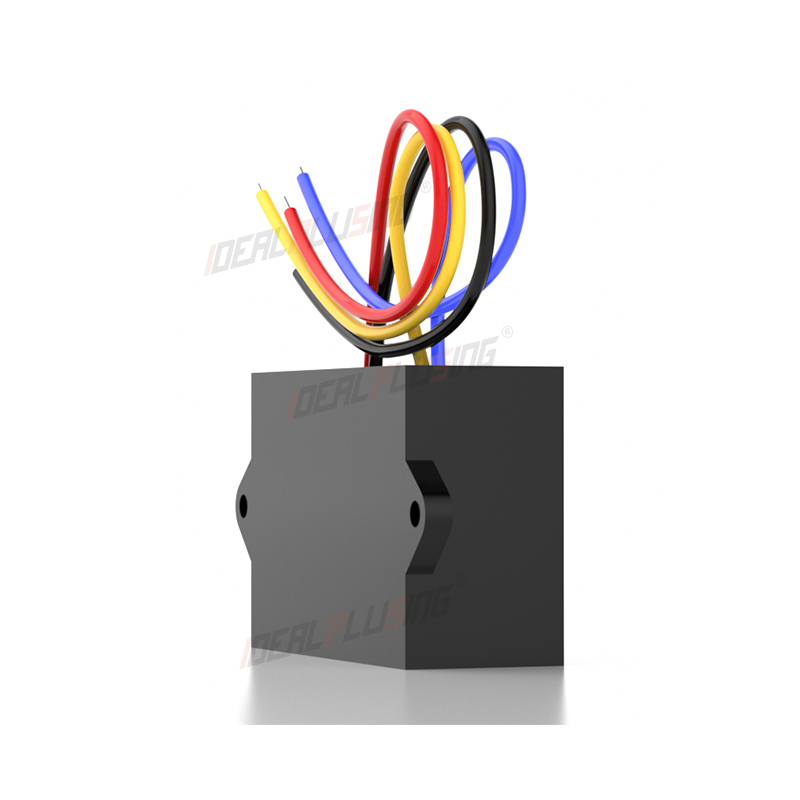

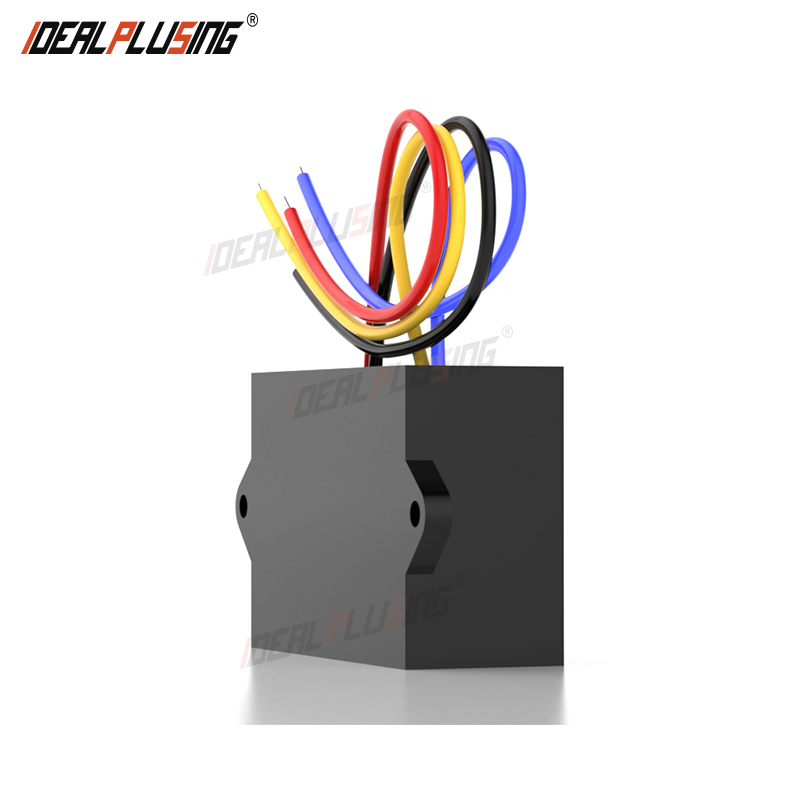

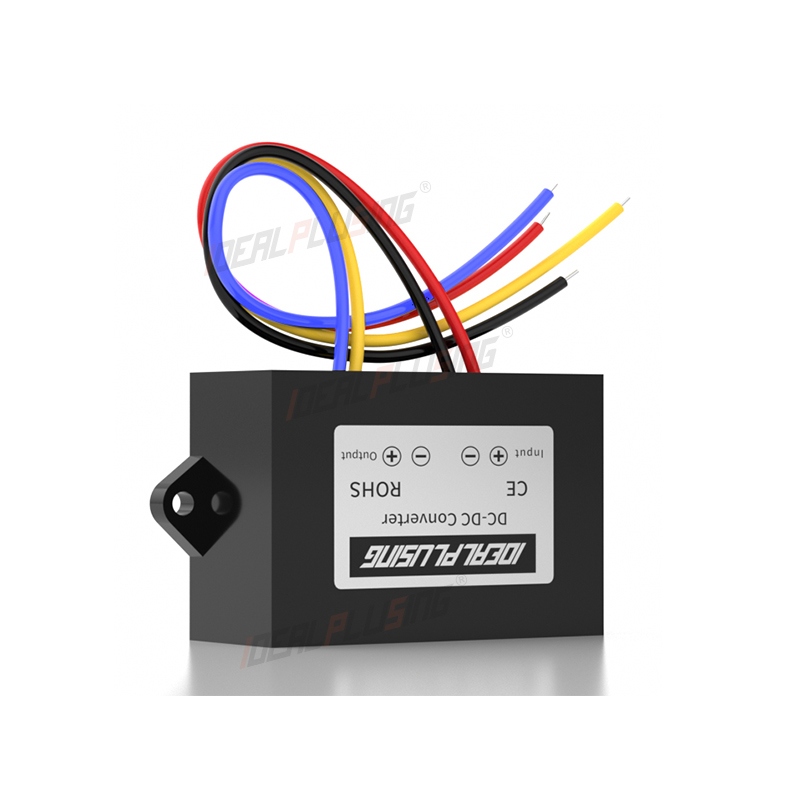

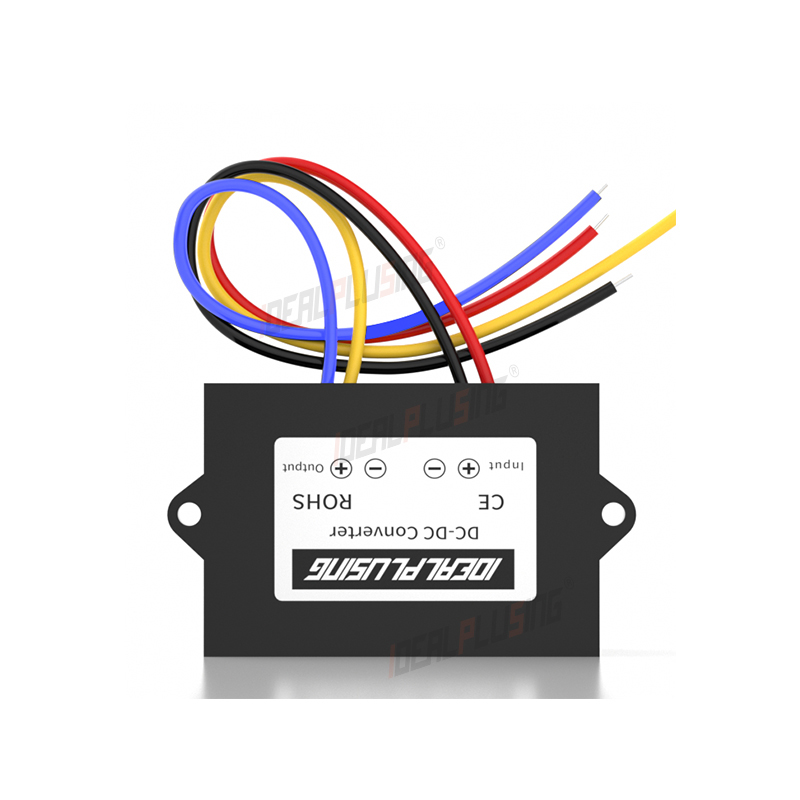

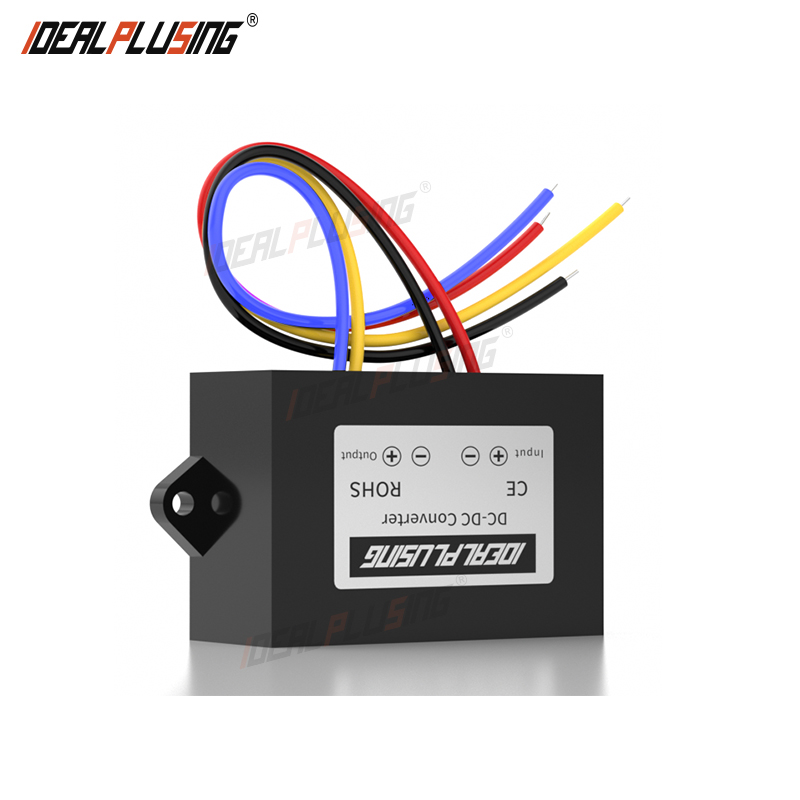

Converter Module 50-100V to DC 12V Step Down Transformer Dc to Dc Convertor
Product Description
Converter Module 50-100V to DC 12V Step Down Transformer
🚀
Key Features: Isolation converters play a vital role in the interconnection of electronic devices and systems. They ensure the safety and stability of signals during transmission by establishing an effective isolation barrier between the input and output ends, preventing interference and ground potential difference damage.
With a professional team and advanced R&D capabilities, we offer customization for external dimensions, pin definitions, rated power, and other parameters to meet special needs. Our products are widely used in electric vehicles, automobiles, RVs, marine, and communication industries. Providing power solutions since 2001, our R&D team has over 24 years of experience to ensure high reliability.
🛠️
Customization Expertise: We specialize in customizing DC-DC converters to meet specific requirements. Offerings range from 1V to 1000V DC and 1A to 1000A with both isolated and non-isolated design options.
Our products feature a design life of 15 to 20 years, meeting high standards globally for complex working environments. We are dedicated to providing the right power supply solution with optimized technical specifications.
Technical Specifications
| DATASHEET | ||||||
|---|---|---|---|---|---|---|
| Name | Isolated DC DC Converter | Model | IPS-DTDYI50~100S123 | |||
| Product Size | 58*40*22 MM | Design | Input and output are completely isolated | |||
| Net Weight | 0.1KG | Gross Weight | 0.3KG | |||
| Parameters | Minimum | Typical | Maximum | Unit | Condition | Remark |
| Input Voltage | 50 | 84 | 100 | VDC | - | - |
| Output Voltage | - | 12 | - | VDC | - | - |
| Output Current | - | 3 | - | A | - | - |
| Protection | Input undervoltage, over-temperature, output overcurrent, short circuit protection | |||||
| Environment | Waterproof, Self-Cooling, Operating Temp: -25℃ to 85℃ | |||||
Hot Selling Models
IPS-DTD600-1000S24-1.05
Input: 600V-100VDC
Output: 24VDC 1.05A 25W
IPS-DTD36-72S12-8.33
Input: 36V-72VDC
Output: 12VDC 8.33A 100W
IPS-DTD9-36S24-4.16
Input: 9V-36VDC
Output: 24VDC 4.16A 100W
IPS-DTD400-800S12-8.33
Input: 400V-800VDC
Output: 12VDC 8.33A 100W
IPS-DTD65-154S24-12.5
Input: 65V-154VDC
Output: 24VDC 12.5A 300W
IPS-DTD18-36S24-20.8
Input: 18V-36VDC
Output: 24VDC 20.8A 500W
Technical Application Notes
- Buck-boost and step-down products include output overcurrent, short-circuit, and undervoltage protection.
- Step-up series require external fuses at the input to prevent damage during short circuits.
- For inductive loads (motors, coils), choose a power supply 3-5 times the rated load power.
- Isolated products are highly recommended for precious loads to prevent high input voltage direct pass-through.
- Negative poles (ground) of isolated products must be used separately to maintain the isolation effect.
- Isolated power supplies support negative voltage input (Red wire to 0V, Black wire to negative voltage).
Product Showcase
Frequently Asked Questions
What is the main advantage of an isolated DC-DC converter?
Isolation creates an electrical barrier between input and output, ensuring signal stability and protecting the load from high voltage direct pass-through or interference, which is critical for expensive equipment.
Can I use these converters for motor or inductive loads?
Yes. For inductive loads like motors or magnetic valves, it is recommended to use a power supply that is 3-5 times the rated power of the load to handle start-up surges.
What happens if the input voltage is very high compared to the output?
For applications where input voltage is 3x or more than the output, using an isolated product is strongly recommended to improve overall reliability and safety.
Are the units waterproof?
Many of our models feature hard gel encapsulation and aluminum shells, making them highly resistant to high temperatures and suitable for outdoor waterproof applications.
Can the input and output share a negative pole?
No. In isolated products, the negative poles of the input and output must remain separate. Sharing the ground will cause the isolation effect to be lost.
Do the products come with short-circuit protection?
Standard buck-boost and step-down models include output short-circuit protection. However, step-up series usually require an external fuse at the input for safety.
