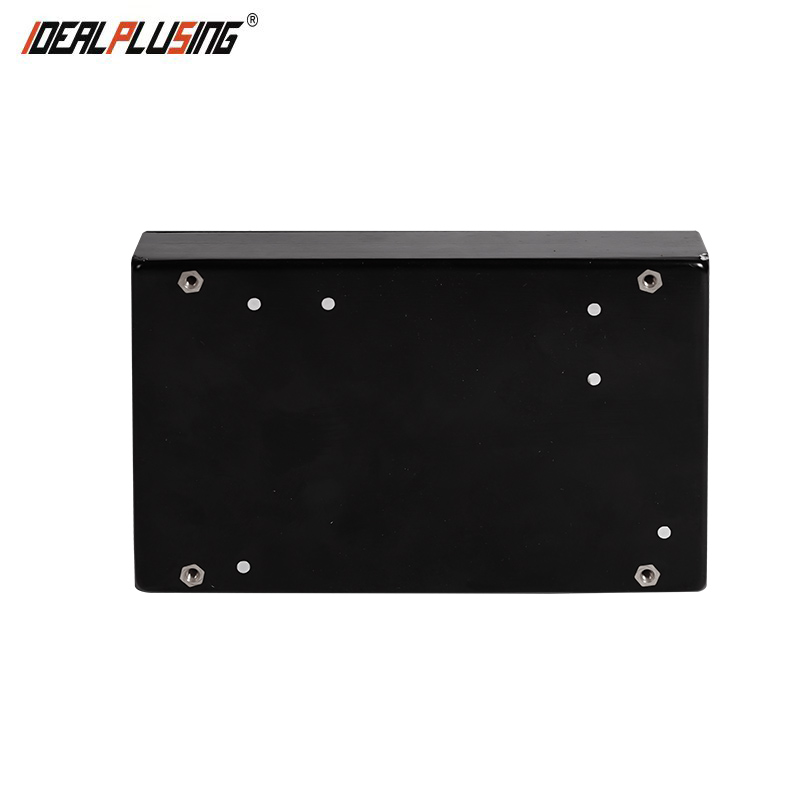

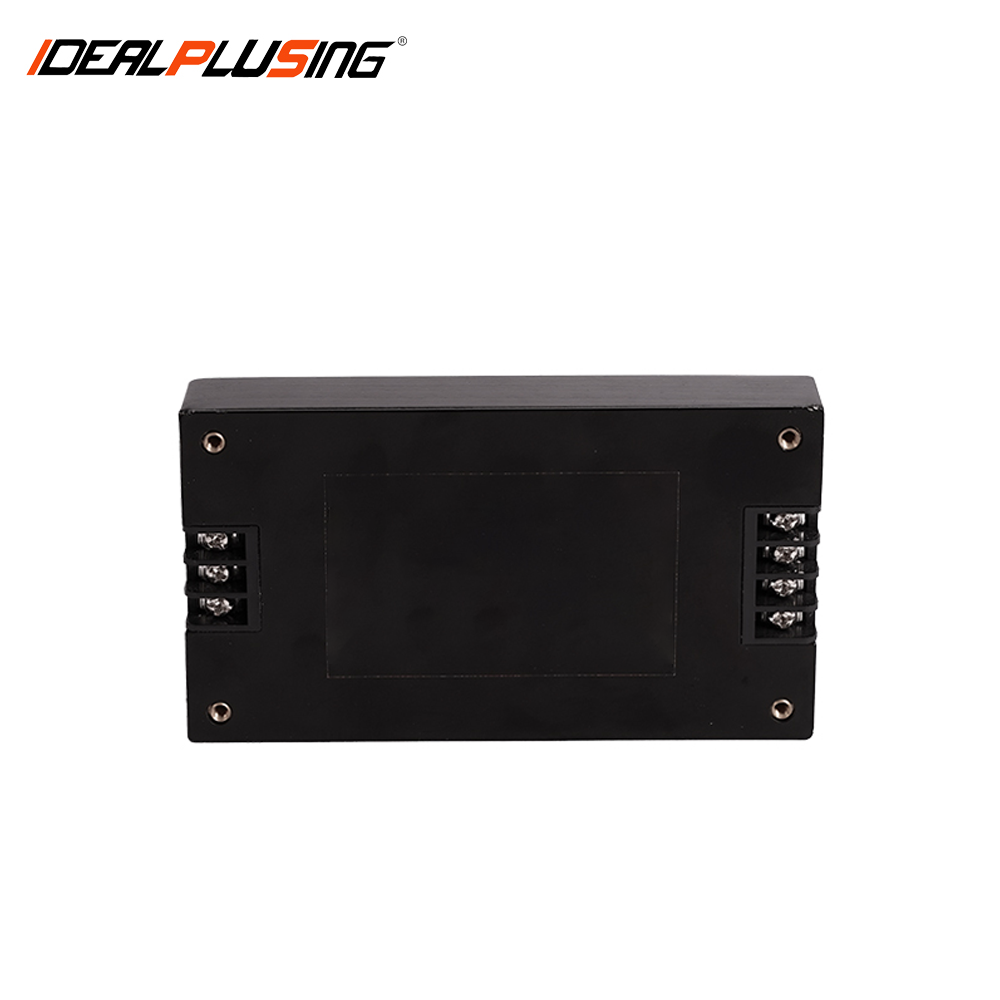

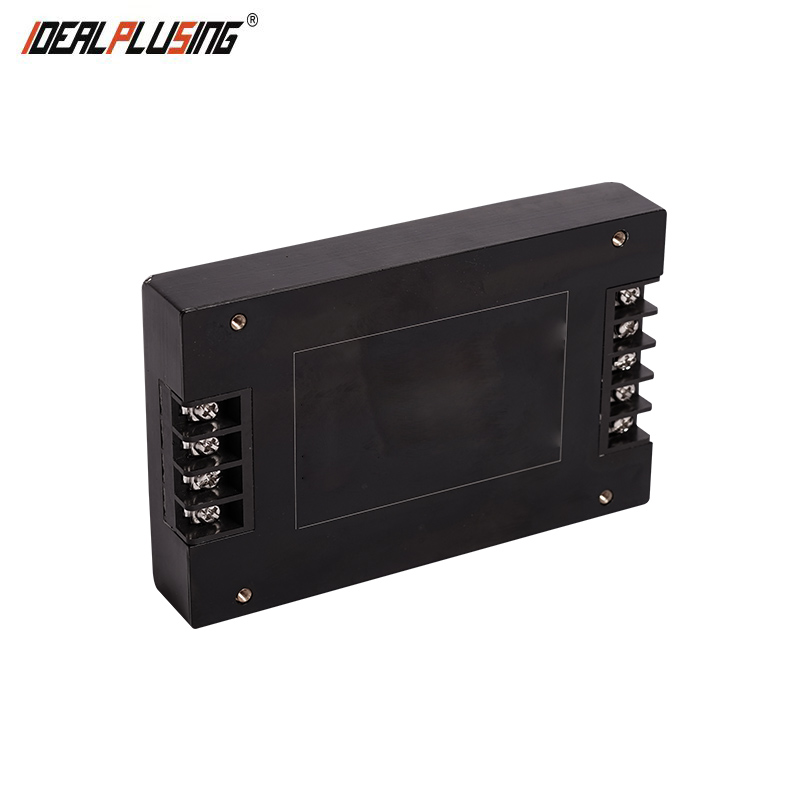

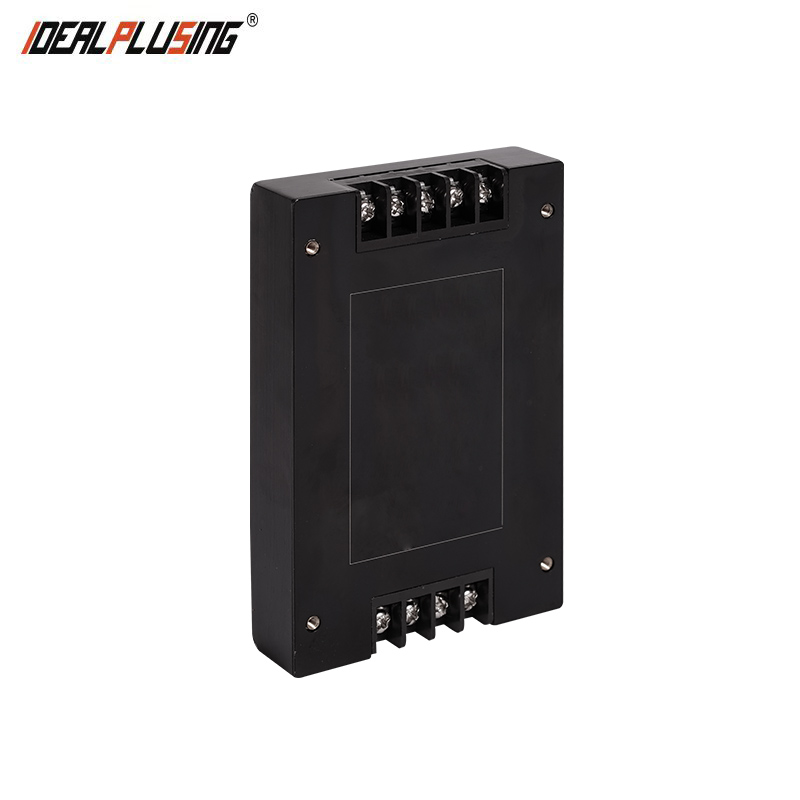

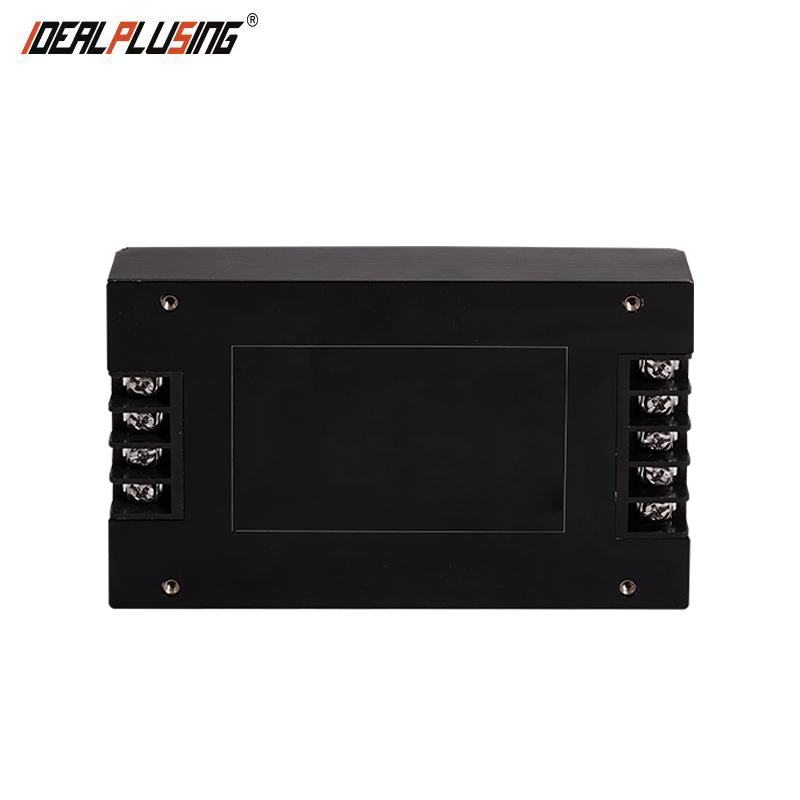

High Precision 95V 100V 110V 120V 139V to 12V 3A 36W DC to DC Step Down Isolated Converter
Product Description
High Precision 95V 100V 110V 120V 139V to 12V 3A 36W DC to DC Step Down Isolated Converter
🛡️
Electrical Isolation
Ensures safety and signal stability by establishing an effective isolation barrier between input and output ends, preventing interference and ground potential damage.
⚙️
Versatile Applications
Widely used in industrial automation, medical equipment, communication systems, and new energy sectors.
🔧
Customization Capabilities
Professional R&D team can customize dimensions, pin definitions, and rated power to meet specific requirements from 1V to 1000V DC.
⚡ Power Conversion Expertise
With over 24 years of R&D experience and 16 years of production management, our team provides reliable power solutions. We have developed over 5000+ power supply solutions with power ranges from 1 watt to 200 kilowatts and input voltages up to 2000 volts.
Our products are designed for complex environments with a design life of 15 to 20 years. We specialize in both isolated and non-isolated converter designs, ranging from 1V to 1000V DC and 1A to 1000A.
TECHNICAL DATASHEET
| Parameter | Typical Value / Range | Unit | Condition |
|---|---|---|---|
| Model | IPS-DTD95-139S12-3 | - | - |
| Input Voltage Range | 95 - 139 (Typical: 120) | VDC | Step Down |
| Output Voltage | 12 | VDC | Regulated |
| Output Current | 3 | A | Max |
| Voltage/Load Regulation | ±1 | % | - |
| Ripple and Noise | 200 | Mvp-p | - |
| Isolation Voltage | 1500 | VDC | Input to Output |
| Protection | Undervoltage, Over-temperature, Overcurrent, Short Circuit | - | Standard |
| Operating Temperature | -25 to 85 | ℃ | Shell Temp |
| Cooling Method | Self Cooling | - | - |
HOT SELLING MODELS
IPS-DTD600-1000S24-1.05
Input: 600V-100V | Output: 24V 1.05A
IPS-DTD36-72S12-8.33
Input: 36V-72V | Output: 12V 8.33A
IPS-DTD9-36S24-4.16
Input: 9V-36V | Output: 24V 4.16A

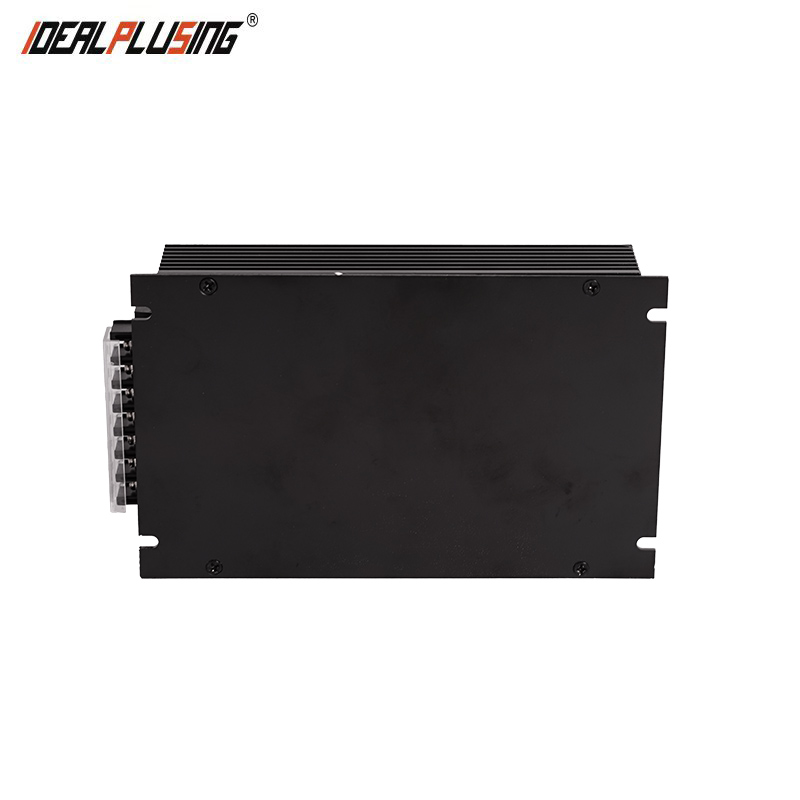

IPS-DTD400-800S12-8.33
Input: 400V-800V | Output: 12V 8.33A

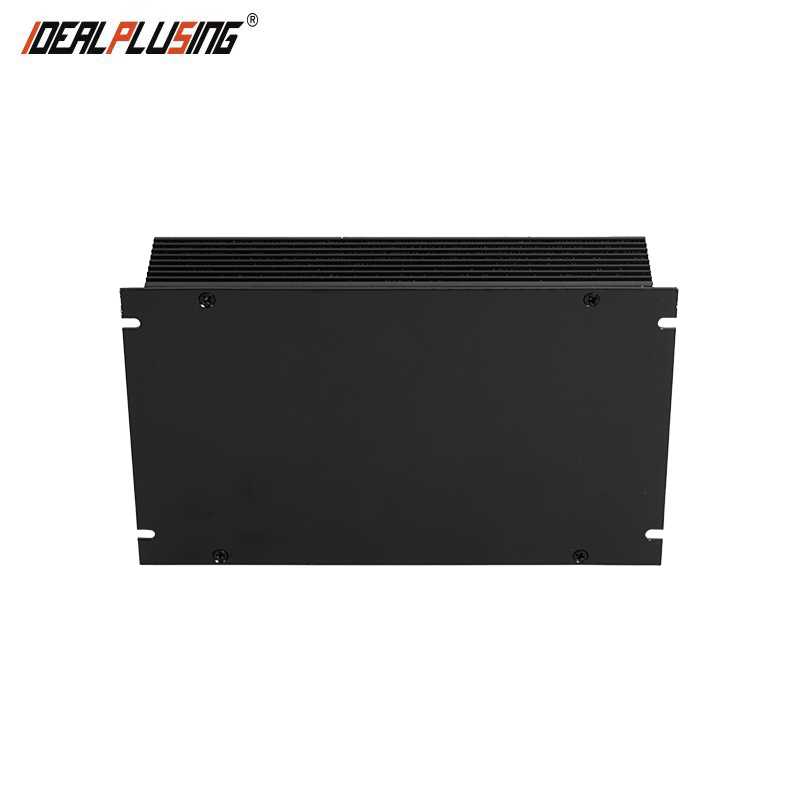

IPS-DTD65-154S24-12.5
Input: 65V-154V | Output: 24V 12.5A

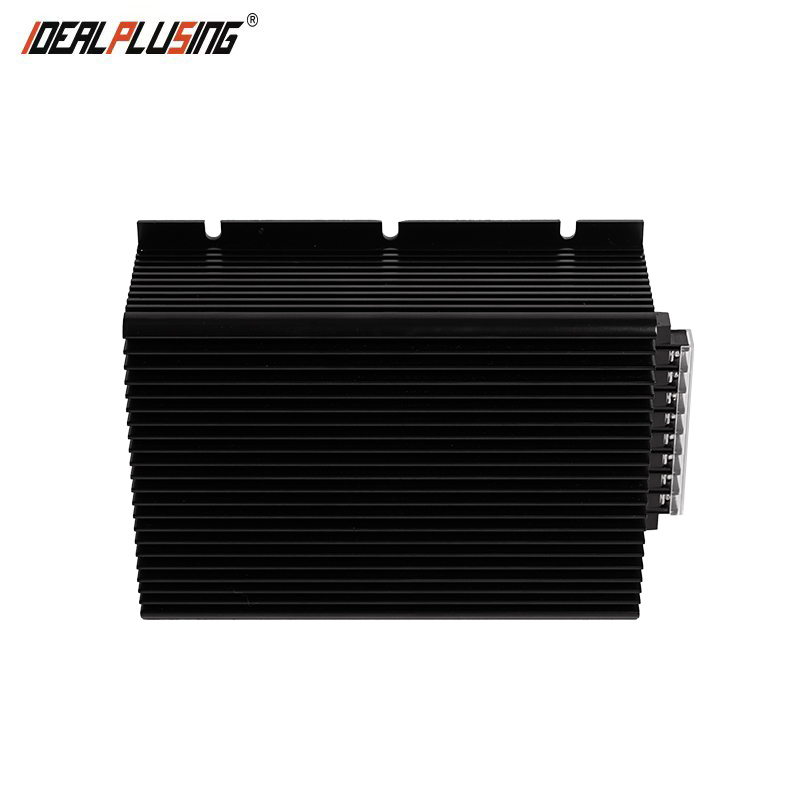

IPS-DTD18-36S24-20.8
Input: 18V-36V | Output: 24V 20.8A
INDUSTRIAL SERIES OVERVIEW
| Series | Input Rating (VDC) | Output Voltage (VDC) | Output Current (A) | Size |
|---|---|---|---|---|
| IPS-MD* | 18/24/48/110 | 12/24/05&12/12&24 | Up to 8.33A | Model dependent |
| IPS-MDB* | Up to 800VDC | 12/15/24/48 | Up to 12.5A | Model dependent |
| 19" Rack Mount | 24/48/110/125/220 | 24/48/110/220 | 5A to 60A | Standard Rack |
PRODUCT DETAILS & SHOWCASE
📋 Technical Application Notes
- Inductive Loads: For coils, magnetic valves, and motors, we recommend a power supply 3-5 times the rated power of the load.
- Safety First: Isolated products are the safest. They prevent high input voltage from passing directly to the output end, protecting precious equipment.
- Installation: Isolated products' negative poles (ground) cannot be shared; input and output negative poles must be used separately.
- Protection: Most buck-boost products include overcurrent, short-circuit, undervoltage, and overheating protection as standard.
- Customization: Isolated power supply production involves transformer remaking and circuit adjustment. Prototype delivery periods may be extended.
Frequently Asked Questions (FAQ)
What is the advantage of an isolated DC-DC converter?
Isolation provides an electrical barrier that protects the output load from input voltage spikes and noise, ensuring higher safety for sensitive electronic systems.
Can I share the negative pole between input and output?
No, for isolated products, the negative poles must remain separate. Sharing the ground will cause the isolation effect to be lost.
What should I consider for motor or inductive applications?
Inductive loads have high start-up currents. It is recommended to choose a converter with a rated power 3 to 5 times higher than the load's continuous power.
Are these converters waterproof?
Yes, models with hard gel encapsulation are waterproof and suitable for harsh outdoor environments. However, note that encapsulated models generally cannot be repaired.
What protection features are built-in?
Most of our isolated converters include output overcurrent, short-circuit protection, input undervoltage protection, and thermal shutdown.
Can the output voltage be customized?
Yes, we specialize in customization. We can adjust input/output voltage and current settings to meet your specific project needs.
