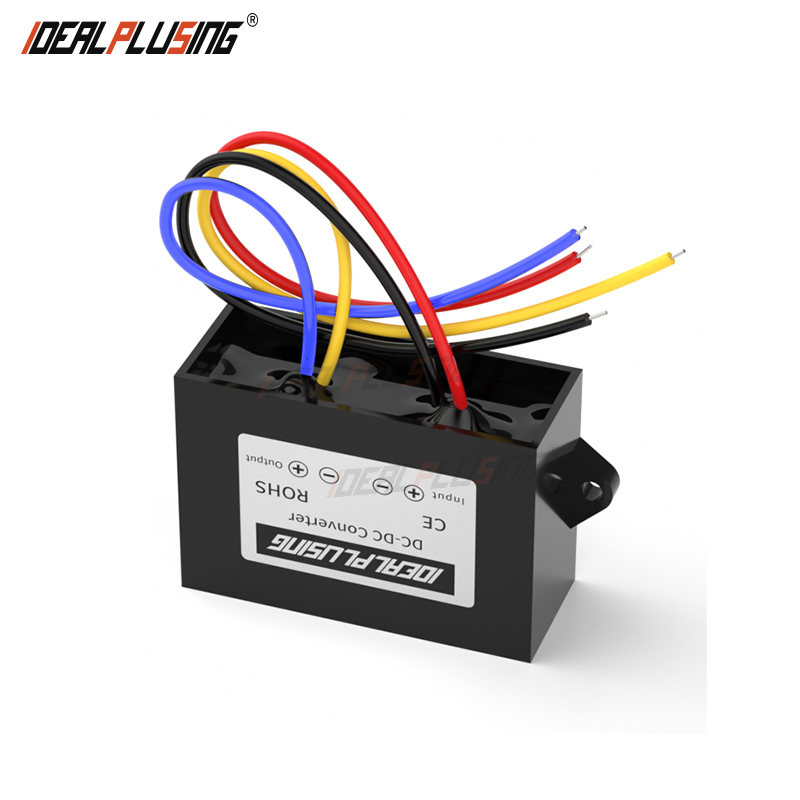

60W DC DC Converter (75-150V Range)to 12V Isolated Power Converter
Product Description
60W Isolated Power Converter
Isolation converters play a vital role in the interconnection of electronic devices and systems. These conversion devices achieve electrical isolation, ensuring the safety and stability of signals during transmission by establishing an effective isolation barrier between input and output ends. They effectively prevent interference between different circuits and damage caused by ground potential differences.
Our products are widely used in industrial automation, medical equipment, communication systems, and new energy. We offer customized external dimensions, pin definitions, rated power, and other parameters to meet special equipment requirements. Our solutions cover a power range from 1 watt to 200 kilowatts with input voltages up to 2000 volts.
Technical Datasheet
| Parameter Item | Specifications | |
|---|---|---|
| Model | IPS-DTDYI75-150S125 | |
| Input Voltage Range | 75-150V DC (Typical: 120V) | |
| Output Voltage | 12V DC | |
| Output Current | 5A | |
| Product Size | 58 * 40 * 22 mm | |
| Isolation Voltage | 1500 VDC (Input to Output) | |
| Voltage/Load Regulation | ±1% | |
| Waterproof Grade | Waterproof | |
| Cooling Method | Self Cooling | |
Hot Selling Models
IPS-DTD600-1000S24
Input: 600V-1000VDC
Output: 24VDC 1.05A
IPS-DTD36-72S12
Input: 36V-72VDC
Output: 12VDC 8.33A
IPS-DTD9-36S24
Input: 9V-36VDC
Output: 24VDC 4.16A
IPS-DTD400-800S12
Input: 400V-800VDC
Output: 12VDC 8.33A
IPS-DTD65-154S24
Input: 65V-154VDC
Output: 24VDC 12.5A
IPS-DTD18-36S24
Input: 18V-36VDC
Output: 24VDC 20.8A
Industrial Series Model List
| Series | Input (VDC) | Output (VDC) | Current (A) |
|---|---|---|---|
| IPS-MD* | 18/24/48/110 | 12/24/5 | Up to 8.33A |
| IPS-MDB* | 18 to 800 | 5/12/15/24/48 | Up to 12.5A |
| IPS-MDC* | 18 to 110 | 12/24/48 | Up to 12.5A |
| IPS-MDE* | 24/48/110 | 12/24/48 | Up to 20.8A |
| IPS-MDI* | 12 to 600 | 12/24/48/110 | Up to 66.6A |
Technical Application Guide
1
Standard products include overcurrent, short-circuit, undervoltage, and overheating protection.
2
Small aluminum casing series is high-temperature resistant and suitable for outdoor applications.
3
For inductive loads (motors, coils), use a power supply 3-5 times the rated load power.
4
Isolated products are recommended for precious loads to prevent high input voltage passage.
5
The negative poles of isolated products must be used separately to maintain isolation.
6
Isolated power supplies support negative voltage input (Red wire to 0V, Black wire to negative).

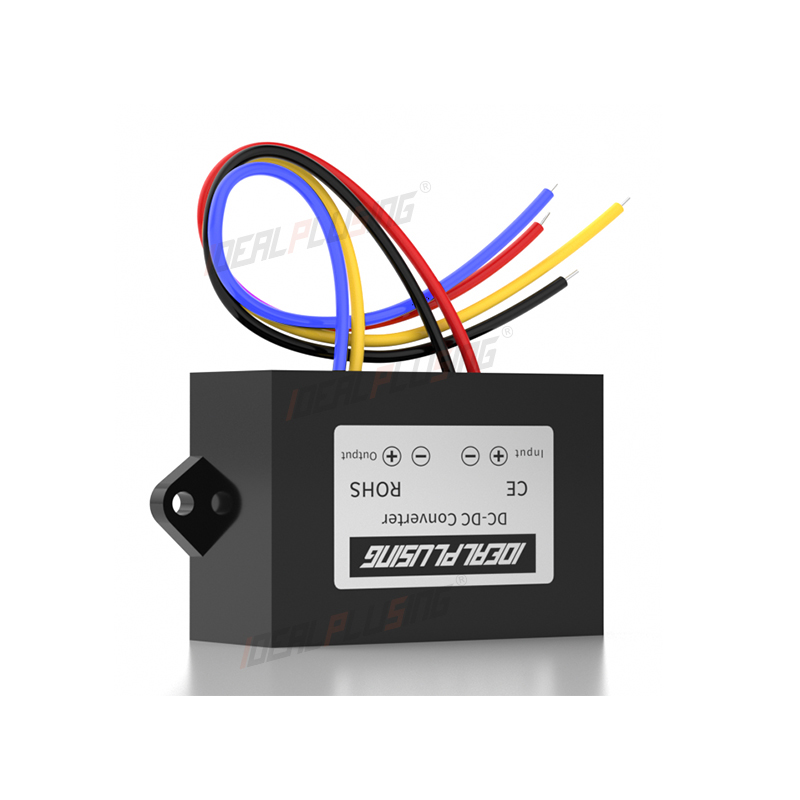

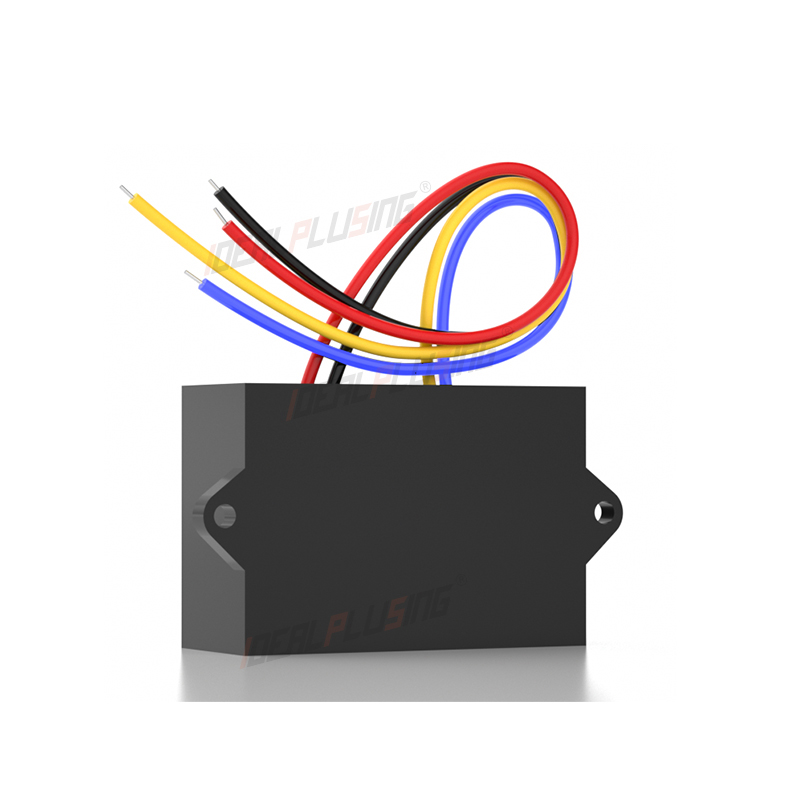

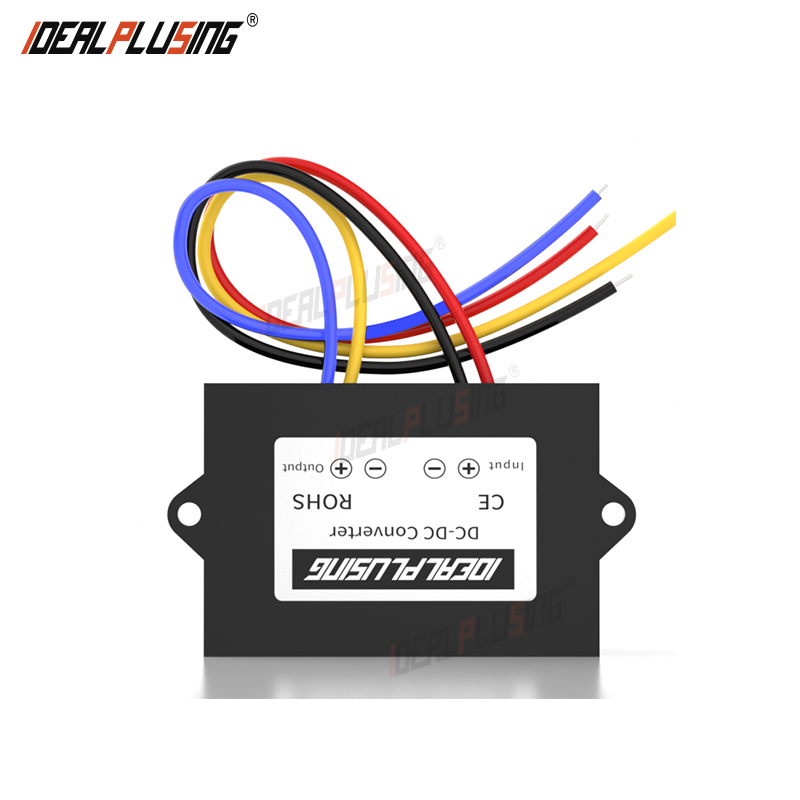

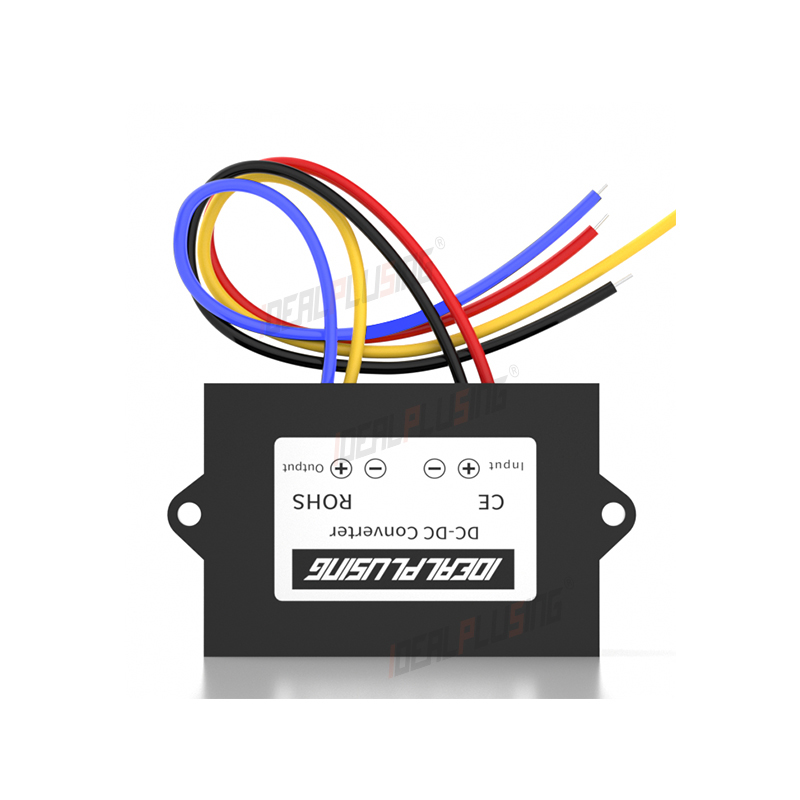

Product Gallery
Frequently Asked Questions
Why should I choose an isolated DC-DC converter over a non-isolated one?
Isolated converters provide an electrical barrier between input and output. This prevents high input voltage from passing directly to the output in case of a failure, protecting precious equipment and reducing electrical interference.
Are these power supplies suitable for electric vehicles and marine use?
Yes, our solutions are widely utilized in electric vehicles, automobiles, RVs, and marine industries due to their high reliability and robust protection features.
What kind of protection do these converters offer?
Standard features include input undervoltage protection, over-temperature protection, output overcurrent protection, and short-circuit protection.
Can I use these converters for inductive loads like motors or coils?
Yes, but for inductive loads, we recommend using a power supply that is 3 to 5 times the rated power of the load to handle the starting current surge.
Is it possible to customize the specifications?
Absolutely. We specialize in customizing input/output voltage, current (from 1V to 1000V DC and 1A to 1000A), and physical dimensions to meet specific requirements.
How long is the design life and warranty of the products?
The design life of our products is typically 15 to 20 years, with warranties ranging from 1 to 3 years depending on the specific model.
