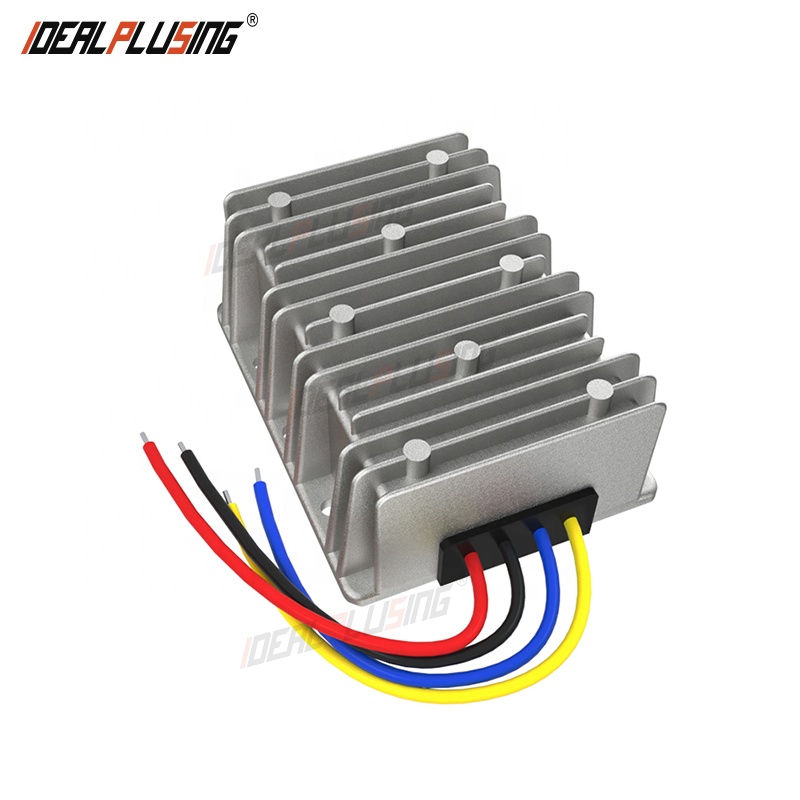

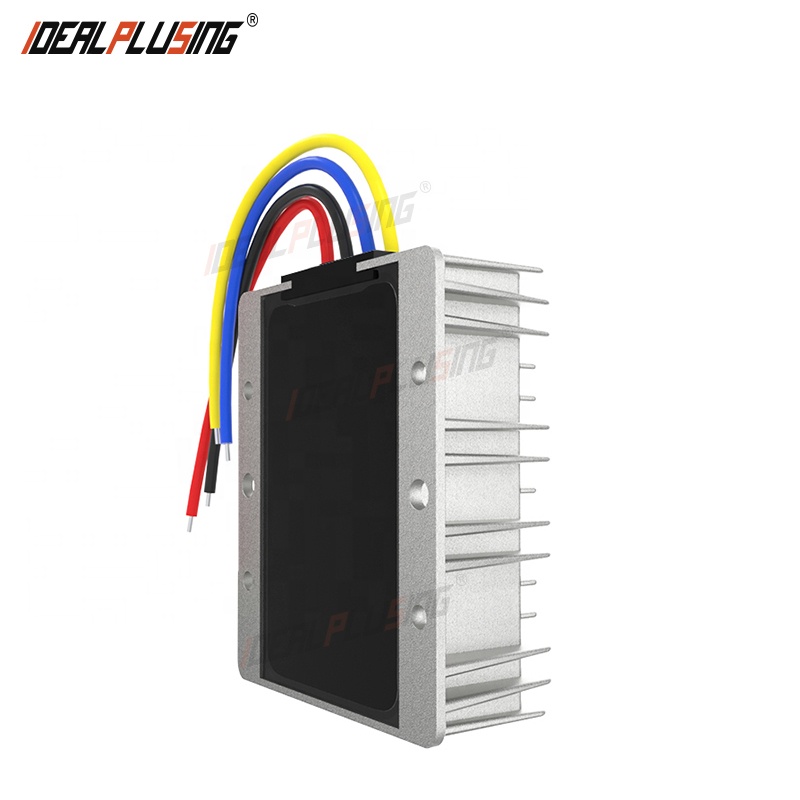

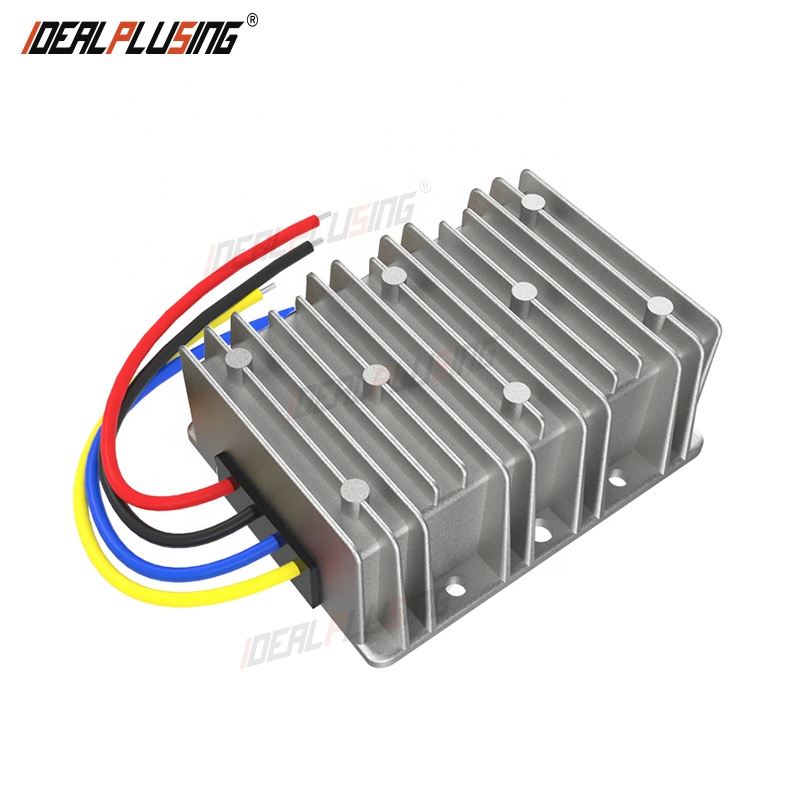

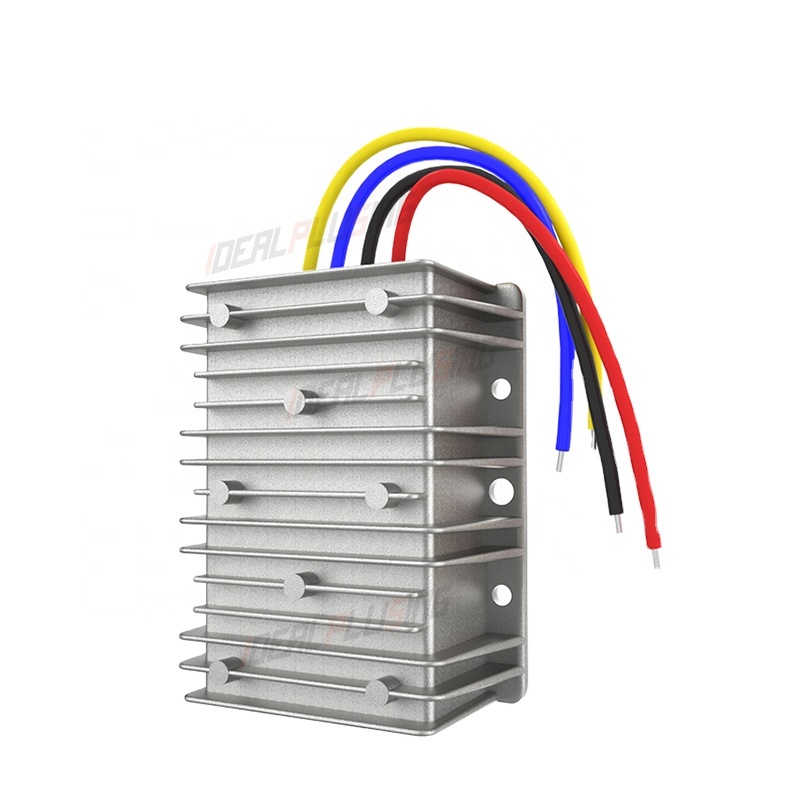

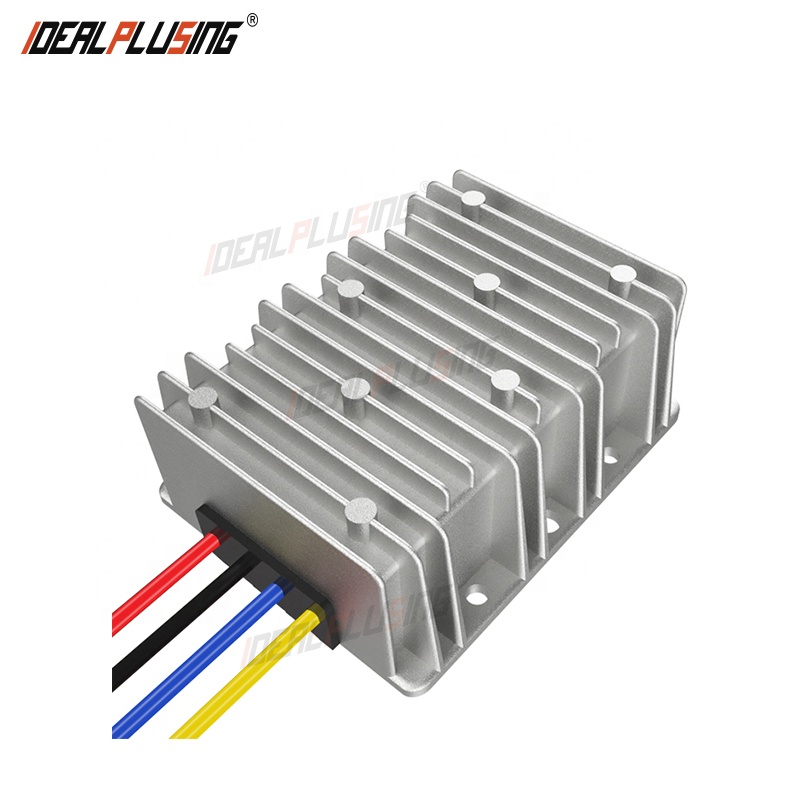

IDEALPLUSING Hot-sale Step Down Converter Isolated Design 75-150V to 24V DC DC Converter 20A 480W with CE Rohs Certification
Product Description
Hot-sale Step Down Converter Isolated Design
75-150V to 24V DC DC Converter 20A 480W with CE Rohs Certification. Isolation converters play a vital role in the interconnection of electronic devices and systems. They ensure the safety and stability of signals during transmission by establishing an effective isolation barrier between the input and output ends, while effectively preventing interference between different circuits and damage caused by ground potential differences.
Its unique isolation characteristics make it widely used in industrial automation, medical equipment, communication systems, and new energy. With a professional team and advanced R&D capabilities, external dimensions, pin definitions, rated power and other parameters can be customized for customers to meet special needs.
Power Conversion Solutions
Specializing in power conversion solutions since 2001, providing high-quality products widely used in electric vehicles, automobiles, RVs, marine, and communication industries. More than 5000+ power supply solutions have been developed, with a power range from 1 watt to 200 kilowatts and input voltage up to 2000 volts.
The R&D team has more than 24 years of experience, ensuring high reliability with a design life of 15 to 20 years. Specializing in customizing DC-DC converters:
- ✔ Custom input/output: 1V to 1000V DC
- ✔ Custom current: 1A to 1000A
- ✔ Designs: Isolated and non-isolated options
Product Specifications
| DATASHEET: IPS-DTD75-150S24-20 | |||
|---|---|---|---|
| Name | Isolated DC DC Converter | Model | IPS-DTD75-150S24-20 |
| Product Size | 125*105*52 MM | Design | Input/Output Isolated |
| Net Weight | 1.1KG | Gross Weight | 1.2KG |
| Technical Parameters | Typical Value | Maximum | Unit |
|---|---|---|---|
| Input Voltage Range | 120 | 150 | VDC |
| Output Voltage | 24 | - | VDC |
| Output Current | 20 | - | A |
| Voltage Regulation | ±1 | - | % |
| Ripple and Noise | 200 | - | Mvp-p |
| Operating Temperature | -25 | 85 | ℃ |
Hot Selling Models
IPS-DTD600-1000S24-1.05
Input: 600V-100V | Output: 24V 1.05A
IPS-DTD36-72S12-8.33
Input: 36V-72V | Output: 12V 8.33A
IPS-DTD9-36S24-4.16
Input: 9V-36V | Output: 24V 4.16A
IPS-DTD10-20S24-20
Input: 10V-20V | Output: 24V 20A

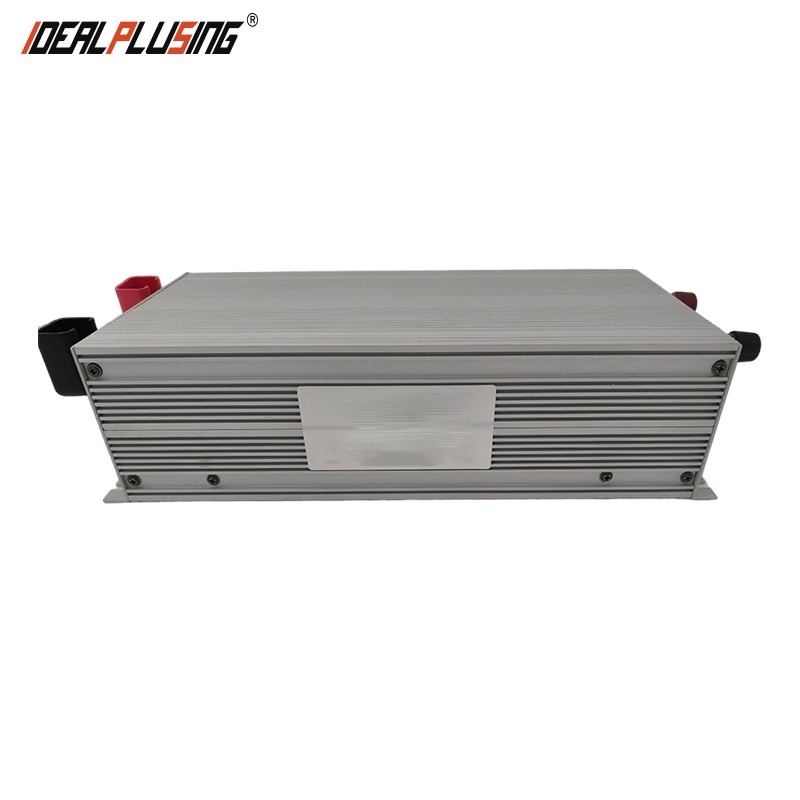

IPS-DTD12-14S20-100
Input: 12V-14V | Output: 20V 100A
Product Details Showcase
Technical Application Notes
Protection Standards: All buck-boost products include overcurrent, short-circuit, undervoltage, and overheating protection (standard protection around 90°C).
Inductive Loads: For coils, magnetic valves, or motors, it is recommended to use a power supply 3-5 times the rated power of the load.
Isolated Advantage: Prevents high input voltage from passing to the output, protecting precious loads from burning out.
Negative Voltage: Isolated power supplies support negative voltage input. Connect the 0V line to the red wire and negative voltage to the black wire.
Isolation Integrity: The negative pole (ground) of isolated products cannot be shared; input and output must be used separately.
Frequently Asked Questions
What is the main advantage of an isolated DC-DC converter?
Isolation established an effective barrier between input and output, preventing ground potential differences and ensuring that high input voltage never passes through to damage the output load.
Can these converters be used for motor applications?
Yes, but for inductive or motor loads, you should choose a converter with 3-5 times the rated power of the load to handle start-up surges.
Do your products include short-circuit protection?
Standard buck-boost and step-down products include output short-circuit protection. However, step-up series may require external fuses for the best safety.
Is customization available for specific voltages?
Yes, we can customize input and output voltages ranging from 1V to 1000V and current from 1A to 1000A based on your specific requirements.
What is the design life of these power supplies?
Our products are designed for high reliability with a life expectancy of 15 to 20 years, suitable for complex working environments.
Can isolated power supplies handle negative voltage input?
Yes, they support negative voltage input. When using negative voltage, connect the 0V line to the red wire and the negative line to the black wire.
