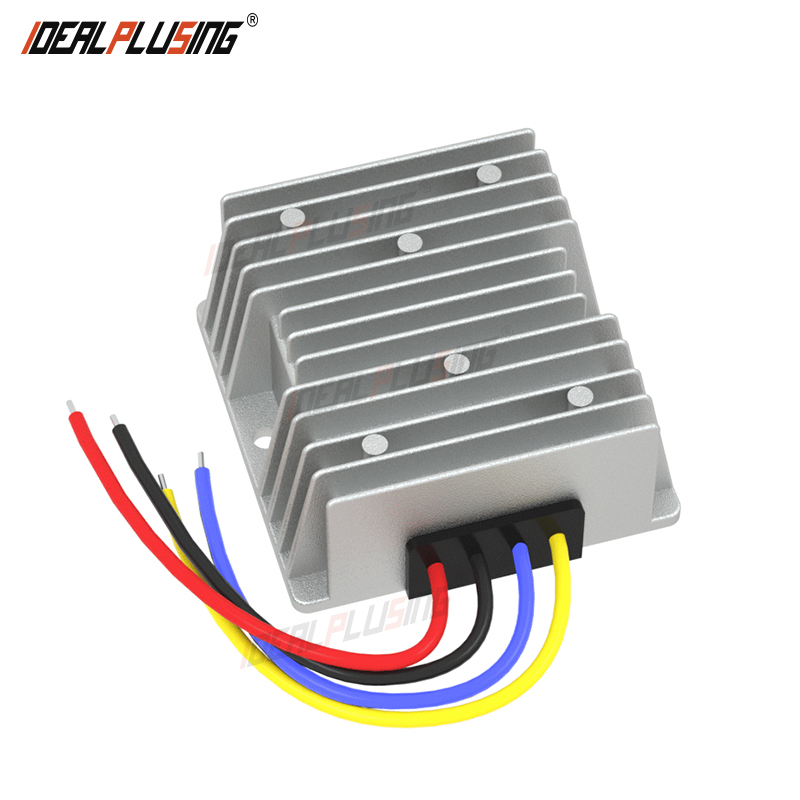

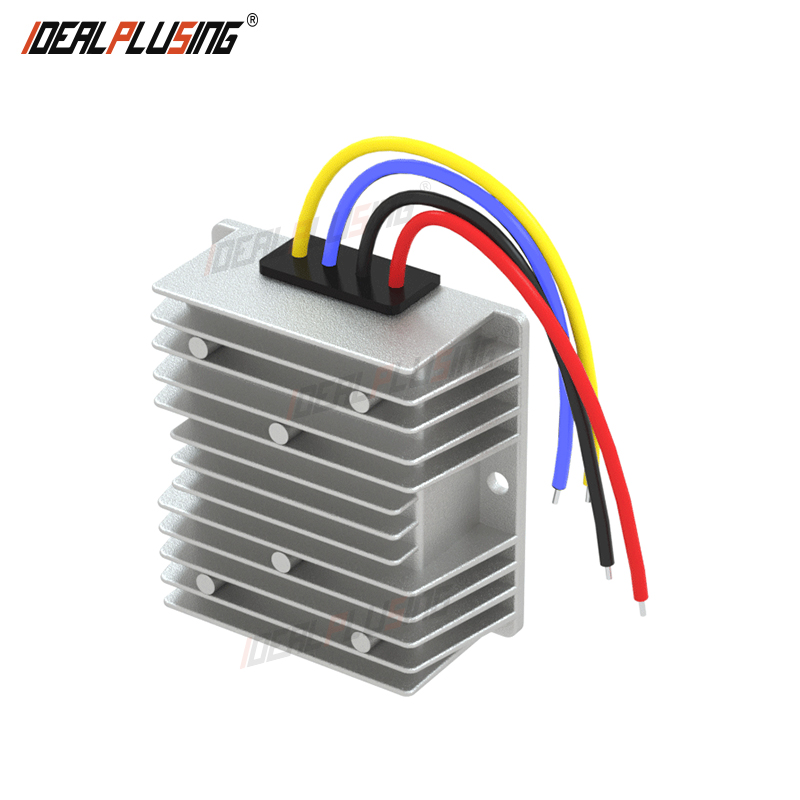

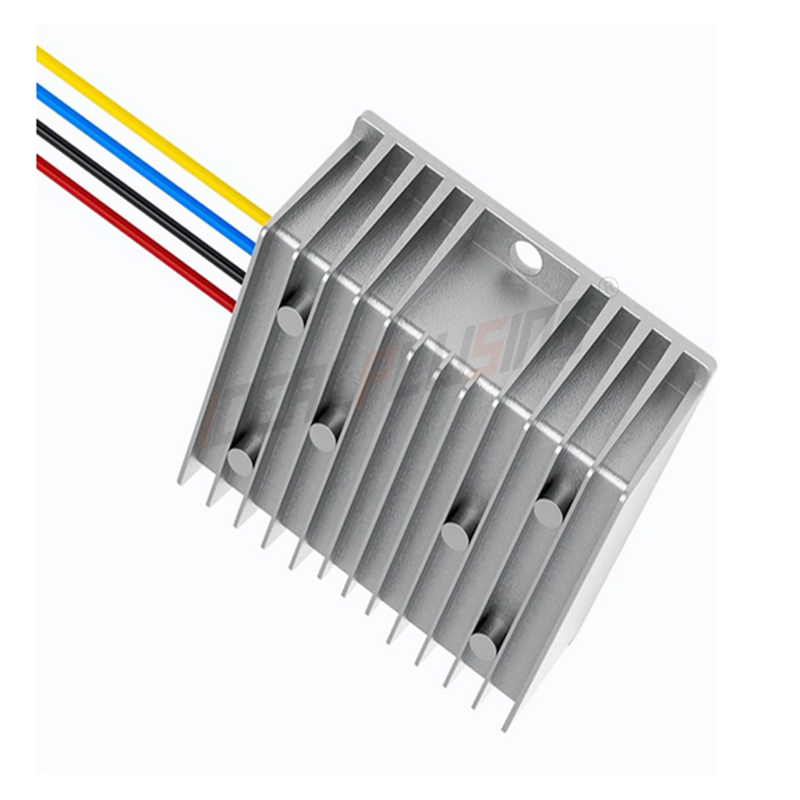

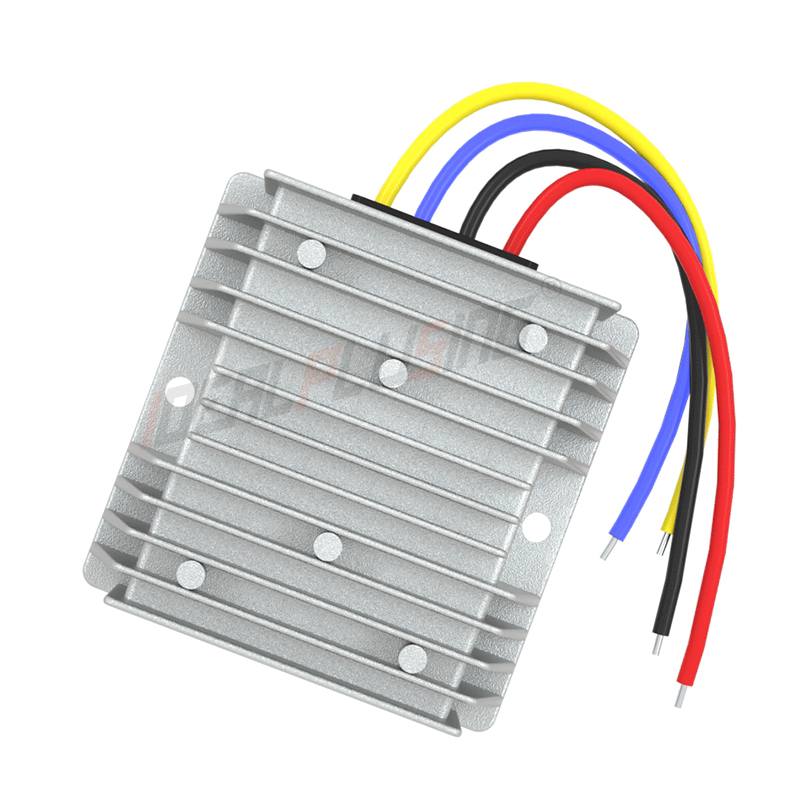

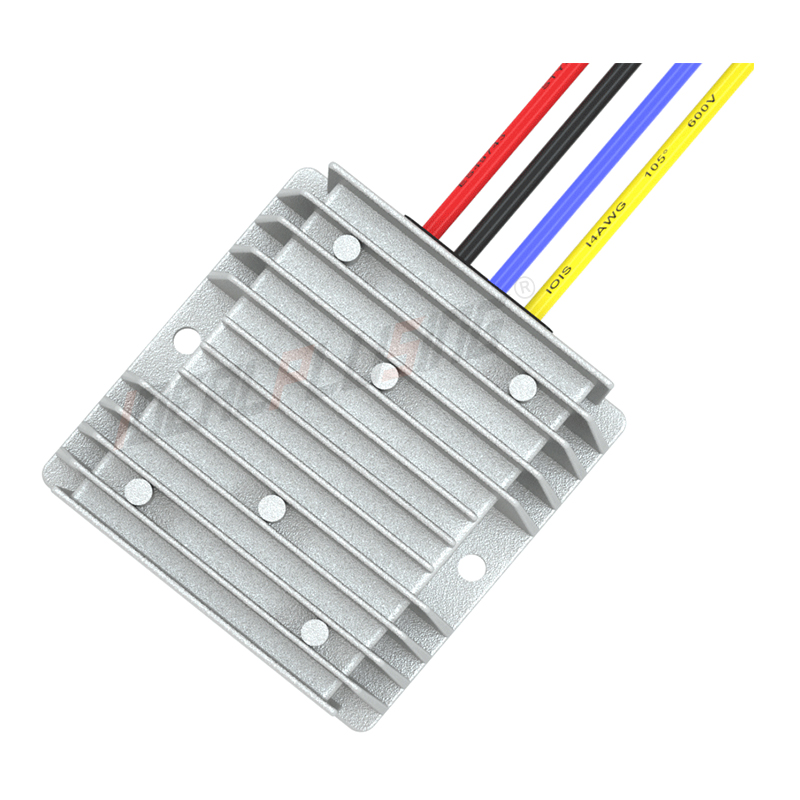

Isolated Step Down Dc-dc Converter 36v 48v 60v 72v 80v 96v 120v 144v to 12v 13.8v 10a 120w Dc Converter
Product Description
Isolated Step Down DC-DC Converter
36V 48V 60V 72V 80V 96V 120V 144V to 12V 13.8V 10A 120W
Isolation converters play a vital role in the interconnection of electronic devices and systems. These devices achieve electrical isolation, ensuring the safety and stability of signals during transmission by establishing an effective isolation barrier between the input and output ends. This prevents interference between different circuits and damage caused by ground potential differences. Widely used in industrial automation, medical equipment, communication systems, and new energy, providing a solid guarantee for the reliable operation of various complex circuits.
Capabilities & Experience
1
Extensive Solutions
Developed more than 5000+ power supply solutions with a range from 1 watt to 200 kilowatts.
2
High Voltage Range
Input voltage capabilities up to 2000 volts to meet extreme industrial requirements.
3
Long Design Life
Design life of 15 to 20 years, ensuring high reliability in complex working environments.
We specialize in customizing DC-DC converters to meet your specific requirements. With customized input and output voltage and current, our offerings range from 1V to 1000V DC and 1A to 1000A. We provide both isolated and non-isolated converter design options.
Technical Specifications
| DATASHEET: IPS-DTDYI80S1210 | |||
|---|---|---|---|
| Name | Isolated DC DC Converter | Size | 74*74*32 MM |
| Net Weight | 0.3KG | Design | Fully Isolated Input/Output |
| Parameter | Min | Typical | Max |
| Input Voltage (VDC) | 64 | 80 | 96 |
| Output Voltage (VDC) | - | 12 | - |
| Output Current (A) | - | 10 | - |
| Ripple and Noise | 200 Mvp-p | ||
| Protections | Undervoltage, Over-temperature, Overcurrent, Short Circuit | ||
| Cooling / Grade | Self Cooling / Waterproof | ||
Hot Selling Models
IPS-DTD600-1000S24
600V-100V to 24V 1.05A
IPS-DTD36-72S12
36V-72V to 12V 8.33A
IPS-DTD9-36S24
9V-36V to 24V 4.16A
IPS-DTD400-800S12
400V-800V to 12V 8.33A
IPS-DTD65-154S24
65V-154V to 24V 12.5A
IPS-DTD18-36S24
18V-36V to 24V 20.8A
Product Details
Technical Application Guide
Protection Standard: All buck-boost products include overcurrent, short-circuit, undervoltage, and overheating protection as standard.
Inductive Loads: For coils, magnetic valves, or motors, recommend using a power supply 3-5 times the rated power of the load.
Safety Advantage: Isolated power supplies prevent high input voltage from passing to the output, protecting precious equipment.
Product Showcase
Frequently Asked Questions
? Why should I choose an isolated DC-DC converter?
Isolated converters provide an electrical barrier that protects sensitive loads from high input voltage spikes and ground loop interference, significantly improving system safety and reliability.
? Can these converters be used for motor applications?
Yes. However, due to high start-up currents in motors (inductive loads), we recommend choosing a converter with 3-5 times the rated power of the motor.
? What are the standard protection features?
Our converters include output overcurrent protection, output short-circuit protection, input undervoltage protection, and chip/casing overheating protection.
? Are the negative poles shared in isolated products?
No. The negative poles (ground) of isolated products must be used separately. Sharing them would cause the device to lose its isolation effect.
? Do you provide custom voltage and current specifications?
Yes, we specialize in customization. We can design solutions ranging from 1V to 1000V DC and currents from 1A to 1000A based on your specific requirements.
? Is the product waterproof and suitable for outdoor use?
Many of our models feature waterproof grades and high-temperature resistant aluminum casings, making them ideal for outdoor and high-demand industrial environments.
