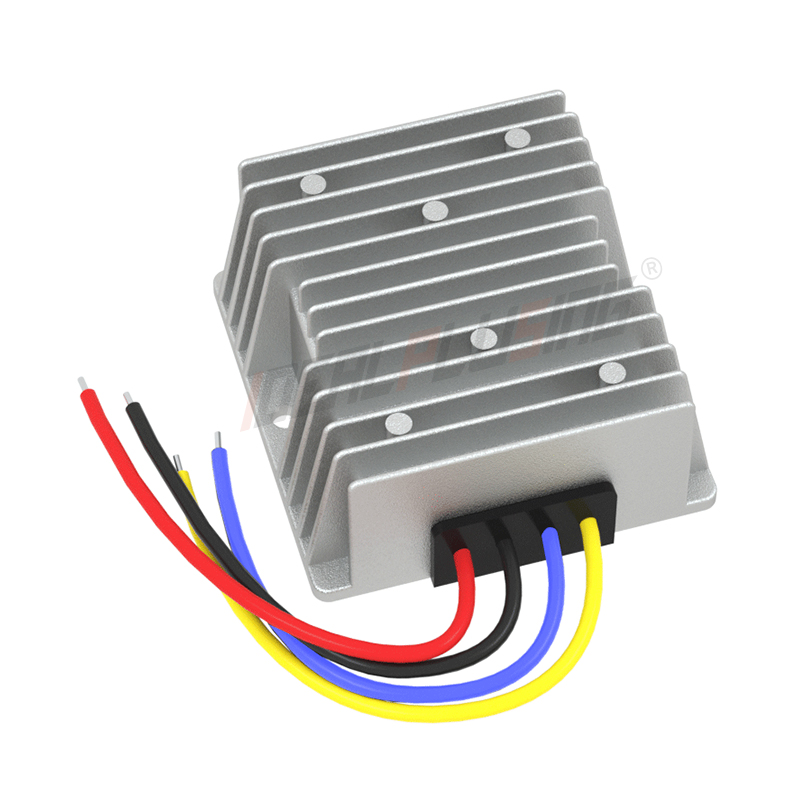

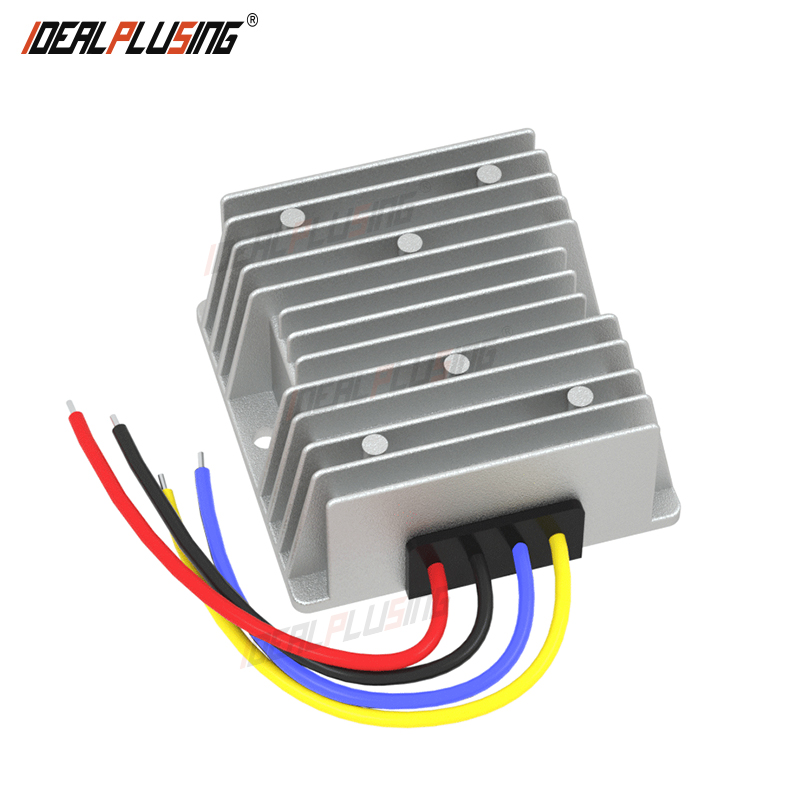

Factory Price 5V 20A Step-down DC DC Converter Car Power Supply with CE RoHS Waterproof
Product Description
Factory Price 5V 20A Step-down DC DC Converter Car Power Supply with CE RoHS Waterproof
Product Overview & Features
Isolation converters play a vital role in the interconnection of electronic devices and systems. These devices achieve electrical isolation, ensuring the safety and stability of signals during transmission by establishing an effective isolation barrier between the input and output ends. They effectively prevent interference between different circuits and damage caused by ground potential differences.
🛡️
High Reliability
Designed for a service life of 15 to 20 years, meeting high requirements for complex working environments.
⚙️
Customization
Available DC-DC solutions from 1V to 1000V DC and 1A to 1000A with professional R&D support.
🌐
Wide Application
Ideal for industrial automation, medical equipment, communication systems, new energy, and marine vehicles.
We provide power solutions since 2001 and have developed more than 5000+ power supply solutions. The power range is from 1 watt to 200 kilowatts and the input voltage is up to 2000 volts. Our team has more than 24 years of experience to ensure the high reliability of products used in China, the United States, Europe, and Japan.
Technical Specifications
| DATASHEET: IPS-DTDYI30-60S520 | |||
|---|---|---|---|
| Name | Isolated DC DC Converter | Model | IPS-DTDYI30-60S520 |
| Product Size | 74*74*32 MM | Design | Input/Output Completely Isolated |
| Net Weight | 0.3KG | Gross Weight | 0.33KG |
| Parameters | |||
| Input Voltage Range | 30 - 60 VDC (Typical: 48) | Output Voltage | 5 VDC |
| Output Current | 20 A | Voltage Regulation | ±1% |
| Ripple and Noise | 200 Mvp-p | Isolation Voltage | 1500 VDC (In to Out) |
| Waterproof Grade | Waterproof | Cooling Method | Self Cooling |
| Protection | Input undervoltage, over-temperature, output overcurrent, short circuit protection | ||
Hot Selling Models
IPS-DTD600-1000S24
600VDC-100VDC to 24VDC 1.05A
IPS-DTD36-72S12
36VDC-72VDC to 12VDC 8.33A
IPS-DTD9-36S24
9VDC-36VDC to 24VDC 4.16A
IPS-DTD400-800S12
400VDC-800VDC to 12VDC 8.33A
IPS-DTD65-154S24
65VDC-154VDC to 24VDC 12.5A
IPS-DTD18-36S24
18VDC-36VDC to 24VDC 20.8A

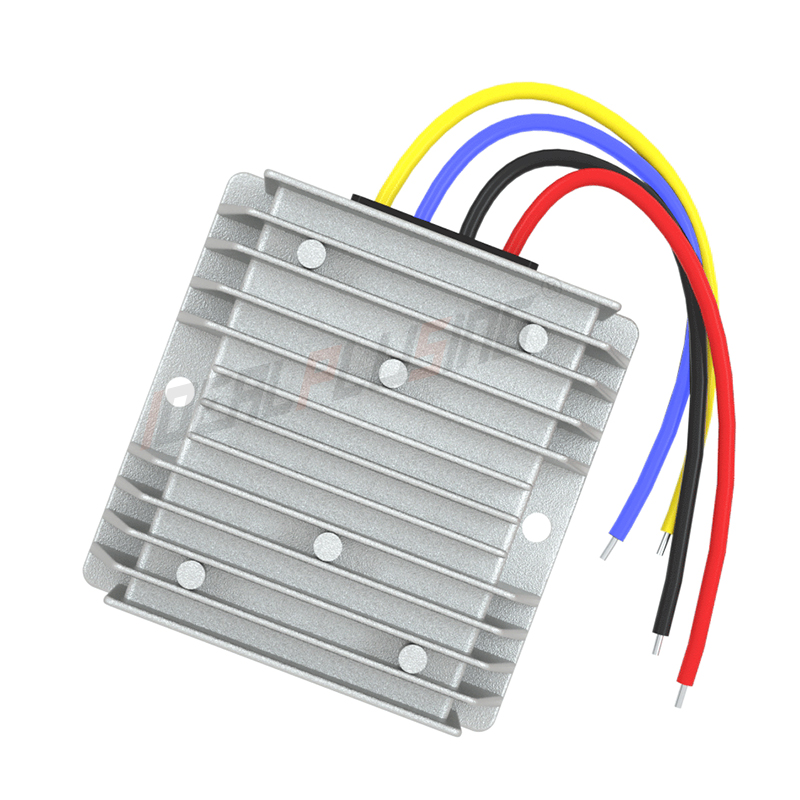

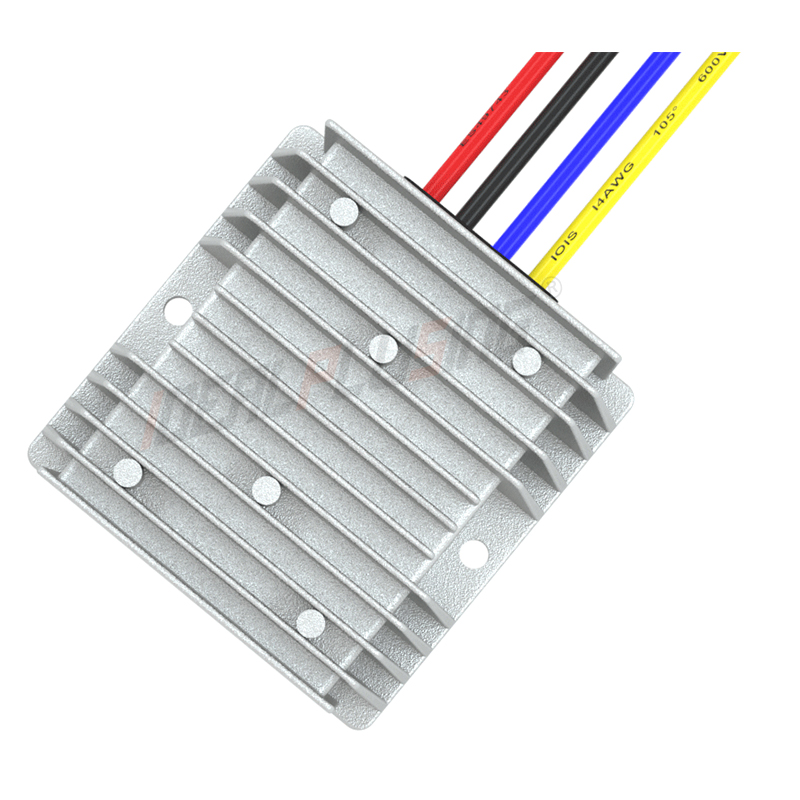

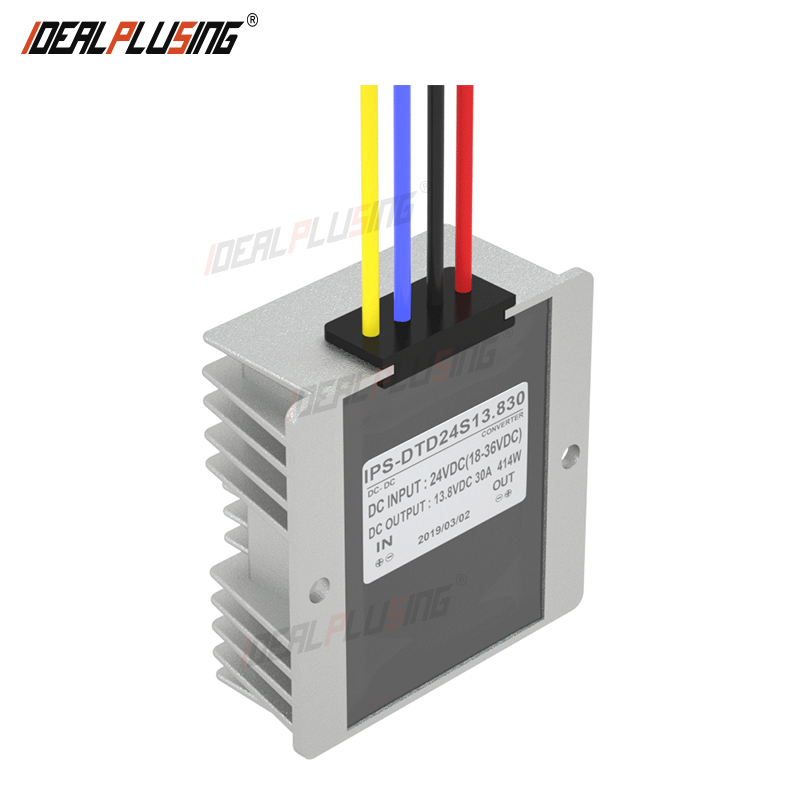

Detailed Product Displays
Technical Application Guide
1
Standard output overcurrent, short-circuit, and undervoltage protection included. Large power supplies feature casing over-temperature protection (~90°C).
2
Step-up series products require external fuses at the input to prevent large current damage during short circuits.
3
For inductive loads (motors, coils, speakers), use a power supply 3-5 times the rated power of the load.
4
Isolated products are strongly recommended when carrying precious loads to prevent high input voltage direct pass.
5
The negative poles (ground) of isolated products cannot be shared; input and output must be used separately.
Frequently Asked Questions
What is the advantage of using an isolated DC-DC converter?
Isolated converters provide an electrical barrier between input and output, preventing interference and protecting sensitive loads from being burned by high input voltage in case of circuit failure.
Can I customize the voltage and current for my specific equipment?
Yes, we specialize in customizing DC-DC converters with input/output ranges from 1V to 1000V and currents from 1A to 1000A.
What should I consider when using these for motor applications?
For inductive loads like motors, we recommend choosing a power supply with a capacity 3 to 5 times the rated power of the motor to handle starting currents.
Do your products support waterproof environments?
Yes, many of our models come with hard gel encapsulation and aluminum casings, making them waterproof and suitable for outdoor or marine applications.
What is the expected design life of these power supplies?
Our products are engineered with high-quality components and perfect test processes, offering a design life of 15 to 20 years.
Can the negative poles of an isolated converter be connected together?
No, the negative poles (ground) of isolated products must remain separate. Sharing them would cause the unit to lose its isolation effect.
