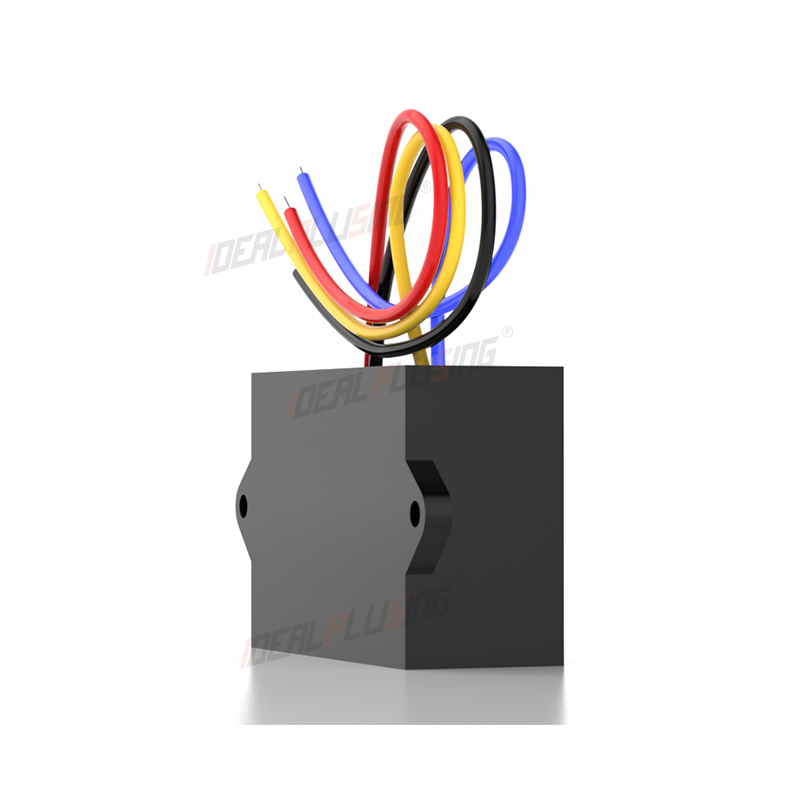

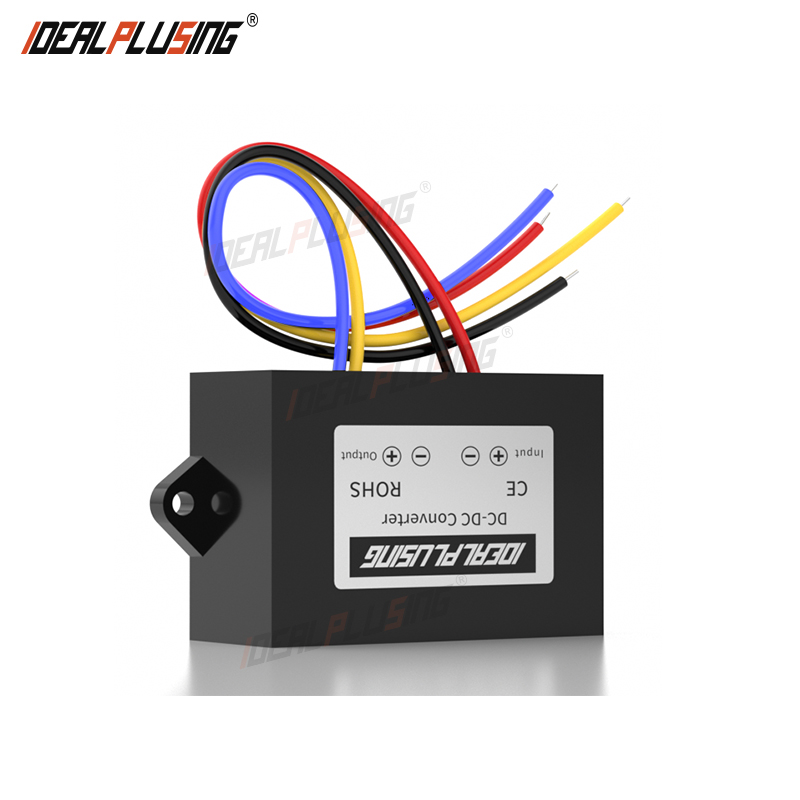

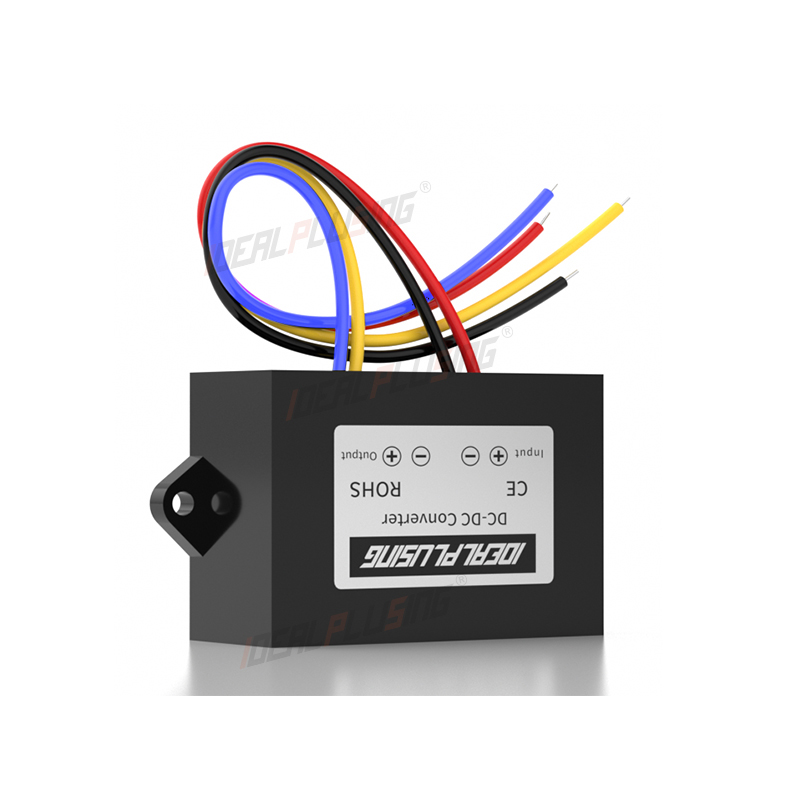

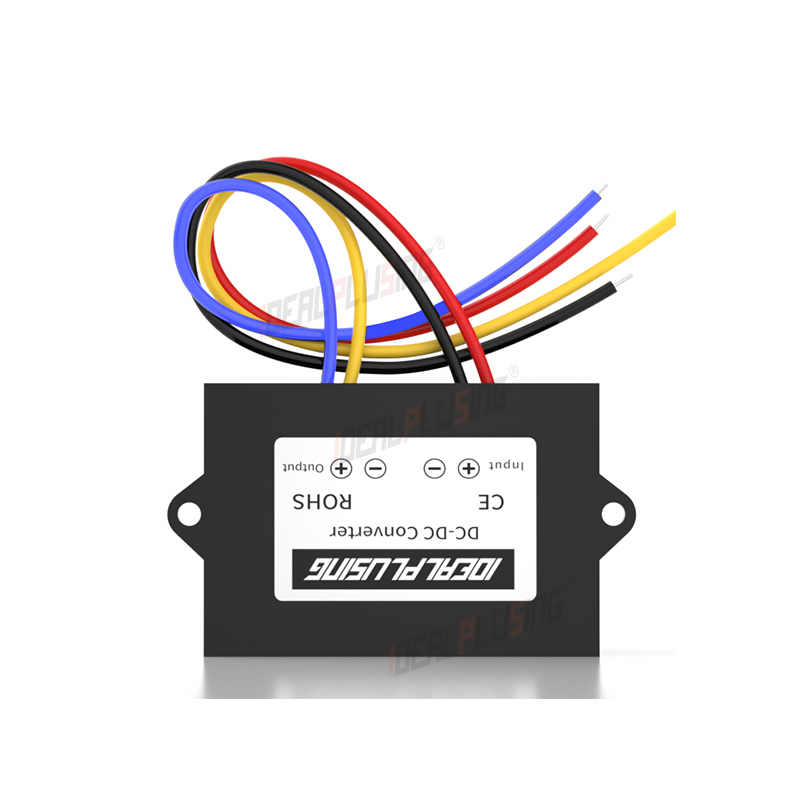

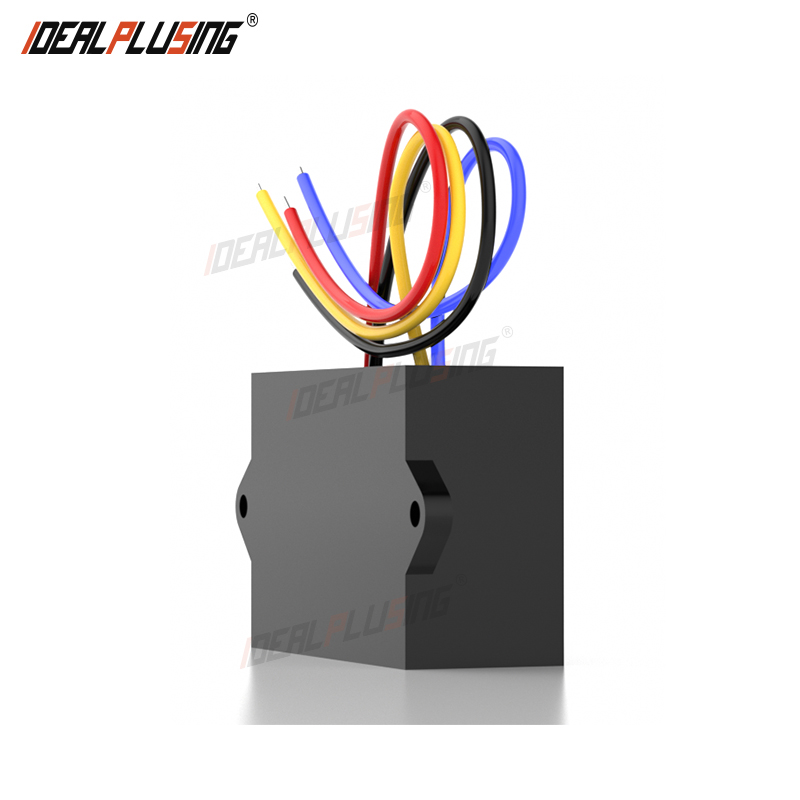

60W Step Down DC DC Converter 36V 48V 52V 60V to 12V 60W Dc Buck Converter
Product Description
60W Step Down DC-DC Converter (36V-60V to 12V)
⚡ Isolation converters play a vital role in the interconnection of electronic devices and systems. These conversion devices achieve electrical isolation, ensuring the safety and stability of signals during transmission by establishing an effective isolation barrier between the input and output ends. This effectively prevents interference between different circuits and damage caused by ground potential differences.
Its unique isolation characteristics make it widely used in industrial automation, medical equipment, communication systems, and new energy, providing a solid guarantee for the reliable operation of various complex circuits. It is one of the indispensable key components in modern electronic technology.
🌟 Power Conversion Capabilities
Specializing in power conversion solutions since 2001, providing high-specification solutions for electric vehicles, marine, communication, and industrial applications.
5000+
Power Supply Solutions
Power Supply Solutions
1W - 200KW
Power Range
Power Range
Up to 2000V
Input Voltage
Input Voltage
Technical Specifications
| DATASHEET: IPS-DTDYI30-60S125 | ||||||
|---|---|---|---|---|---|---|
| Name | Isolated DC DC Converter | Model | IPS-DTDYI30-60S125 | |||
| Product Size | 58*40*22 MM | Design | Input and output are completely isolated | |||
| Net Weight | 0.1KG | Gross Weight | 0.3KG | |||
| Parameters | Minimum | Typical | Maximum | Unit | Condition | Remark |
| Input Voltage | 30 | 48 | 60 | VDC | - | - |
| Output Voltage | - | 12 | - | VDC | - | - |
| Output Current | - | 5 | - | A | - | - |
| Ripple & Noise | - | 200 | - | Mvp-p | - | - |
| Isolation Voltage | - | 1500 | - | VDC | Input to Output | - |
| Waterproof Grade | - | Waterproof | - | - | - | - |
Hot Selling Models
IPS-DTD600-1000S24-1.05
Input: 600V-100VDC
Output: 24VDC 1.05A 25W
IPS-DTD36-72S12-8.33
Input: 36V-72VDC
Output: 12VDC 8.33A 100W
IPS-DTD9-36S24-4.16
Input: 9V-36VDC
Output: 24VDC 4.16A 100W
IPS-DTD400-800S12-8.33
Input: 400V-800VDC
Output: 12VDC 8.33A 100W
IPS-DTD65-154S24-12.5
Input: 65V-154VDC
Output: 24VDC 12.5A 300W
IPS-DTD18-36S24-20.8
Input: 18V-36VDC
Output: 24VDC 20.8A 500W
Product Detailed View
Technical Description & Application Guidelines
🔹
All products come standard with overcurrent, short-circuit, undervoltage, and overheating protection. High power units include casing thermal protection at ~90°C.
🔹
For inductive loads (coils, magnetic valves, motors), we recommend a power supply 3-5 times the rated load power.
🔹
Non-isolated buck converters carry a risk of high voltage pass-through to the load if the unit fails. Isolated products are strongly recommended for precious loads.
🔹
The negative pole (ground) of isolated products must not be shared between input and output to maintain the isolation effect.
🔹
Isolated power supplies support negative voltage input. Connect the 0V line to the red wire and the negative voltage to the black wire.
🔹
Isolated power supplies are considered the safest option, representing over 90% of global power supply products, including mobile phone chargers.
Frequently Asked Questions (FAQ)
Q1: What is the main difference between isolated and non-isolated converters?
A: Isolated converters have no direct electrical connection between input and output, protecting against ground loops and high-voltage pass-through, whereas non-isolated converters share a common ground.
Q2: Can I get a customized DC-DC converter for my specific voltage?
A: Yes, we specialize in customizing input and output ranges from 1V to 1000V DC and currents from 1A to 1000A to meet your specific requirements.
Q3: How do I choose a power supply for motor or inductive loads?
A: For inductive loads like motors or magnetic valves, it is recommended to use a power supply that is 3 to 5 times the rated power of the load to handle starting currents.
Q4: Are these converters suitable for outdoor use?
A: Yes, many of our models feature waterproof grade designs and high-temperature resistant aluminum casings, making them ideal for outdoor and industrial environments.
Q5: What built-in protections are included in these products?
A: Most units include output overcurrent protection, output short-circuit protection, input undervoltage protection, and thermal shutdown protection.
Q6: Can I use isolated converters in parallel?
A: For parallel applications, please specifically choose products designed with parallel current-sharing functions to ensure stable operation.
