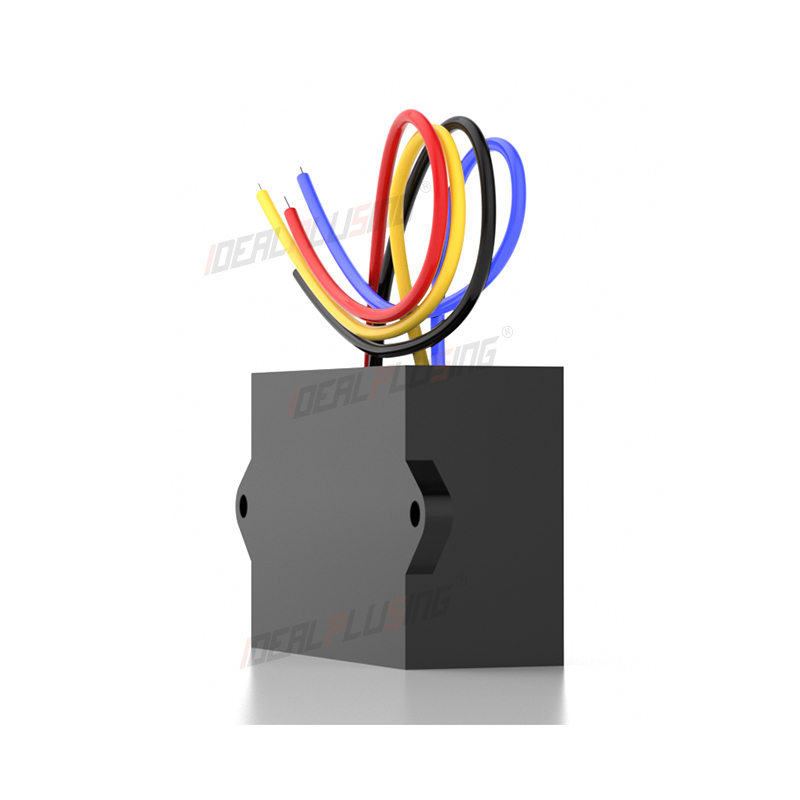

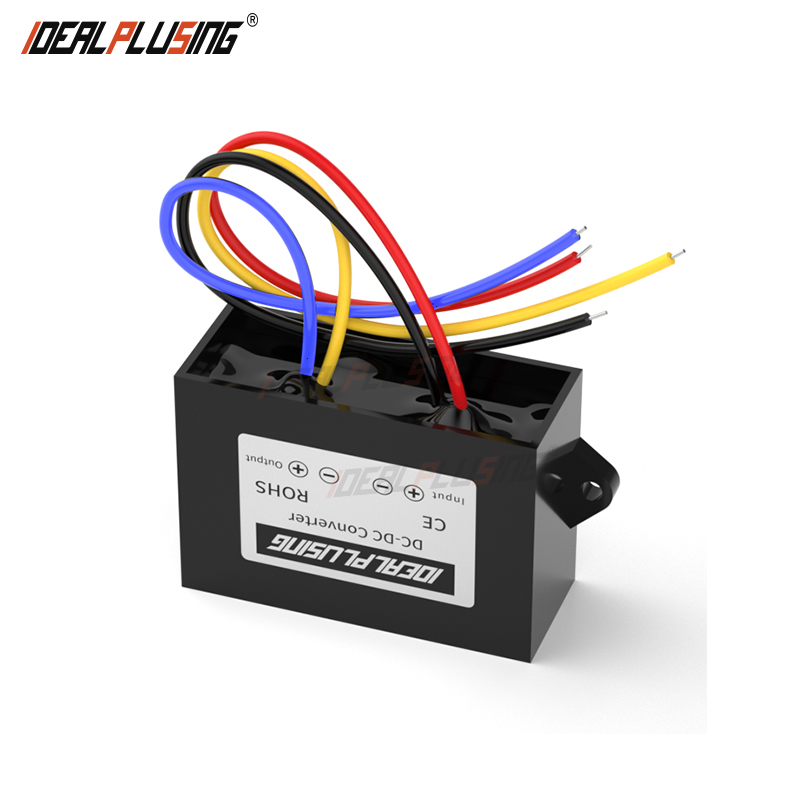

China Factory Direct 36V 48V to 12V 3A 36W New DC DC Buck Power Converter
Product Description
36V 48V to 12V 3A 36W DC DC Buck Power Converter
Isolation converters play a vital role in the interconnection of electronic devices and systems. They ensure the safety and stability of signals during transmission by establishing an effective isolation barrier between the input and output ends, while effectively preventing interference between different circuits and damage caused by ground potential differences.
★
Indispensable Components: Widely used in industrial automation, medical equipment, communication systems, and new energy, providing a solid guarantee for the reliable operation of various complex circuits.
Professional Power Solutions
Specializing in power conversion solutions since 2001, our products are widely used in electric vehicles, automobiles, RVs, marine, communication, and industrial sectors. We have developed more than 5000+ power supply solutions with a power range from 1 watt to 200 kilowatts and input voltages up to 2000 volts.
Our R&D team has more than 24 years of experience, and production management experience of more than 16 years. We utilize perfect test equipment and management processes to ensure high reliability. The design life of the products is 15 to 20 years.
⚡
Customization Available: We specialize in customizing DC-DC converters to meet specific requirements, ranging from 1V to 1000V DC and 1A to 1000A in both isolated and non-isolated designs.
Specification Datasheet
| Technical Parameters | Minimum | Typical Value | Maximum | Unit | |
|---|---|---|---|---|---|
| Model | IPS-DTDYI30-60S123 | - | |||
| Input Voltage Range | - | 30 | 48 | 60 | VDC |
| Output Voltage | - | - | 12 | - | VDC |
| Output Current | - | - | 3 | - | A |
| Product Size | 58*40*22 MM | MM | |||
| Isolation Voltage | Input to Output | - | 1500 | - | VDC |
| Operating Temp | Shell Temp | -25 | - | 85 | ℃ |
Hot Selling Models
IPS-DTD600-1000S24-1.05
Input: 600V-100V | Output: 24V 1.05A
IPS-DTD36-72S12-8.33
Input: 36V-72V | Output: 12V 8.33A
IPS-DTD9-36S24-4.16
Input: 9V-36V | Output: 24V 4.16A
IPS-DTD400-800S12-8.33
Input: 400V-800V | Output: 12V 8.33A
IPS-DTD65-154S24-12.5
Input: 65V-154V | Output: 24V 12.5A
IPS-DTD18-36S24-20.8
Input: 18V-36V | Output: 24V 20.8A
Product Details & Installation
Technical Application Guide
1. Standard Protection: Buck-boost and step-up/down products include overcurrent, short-circuit, undervoltage, and chip overheating protection.
2. Inductive Loads: For motor or coil applications, use a power supply 3-5 times the rated power of the load.
3. Isolation Safety: Isolated products prevent high input voltage from passing to the output, making them the safest choice for precious loads.
4. Wiring Note: The negative pole (ground) of isolated products cannot be shared between input and output to maintain isolation effect.
5. Inductive loads: For motor applications, please recommend that customers use a power supply that is 3-5 times the rated power of the load.
6. Charging & Parallel: For charging, choose products with charging functions. For parallel use, choose parallel current-sharing models.
Frequently Asked Questions
❓ What are the benefits of using an isolated DC-DC converter?
Isolated converters establish an electrical barrier between input and output, preventing noise interference, ground potential differences, and ensuring that high input voltage cannot pass directly to the output end if a failure occurs.
❓ Can the power supply be customized for specific dimensions?
Yes. We can customize external dimensions, pin definitions, rated power, and voltage parameters (ranging from 1V to 1000V DC) to meet your specific equipment needs.
❓ What should I consider when using a converter for a motor load?
For inductive loads like motors, coils, or speakers, it is recommended to use a power supply that is 3-5 times the rated power of the load to handle start-up surges.
❓ What happens if I share the negative pole on an isolated product?
The negative poles of the input and output must be used separately. If they are shared (connected to a common ground), the isolation effect is lost, and the product behaves like a non-isolated converter.
❓ Do your converters come with protection features?
Yes, our buck-boost and step-up/down products include output overcurrent protection, short-circuit protection, input undervoltage protection, and overheating protection as standard.
❓ Why are isolated products recommended for high input voltages?
When the input voltage is significantly higher than the output (e.g., three times or more), isolated products are safer because they prevent the high input voltage from passing to the load in the event of a circuit failure.
