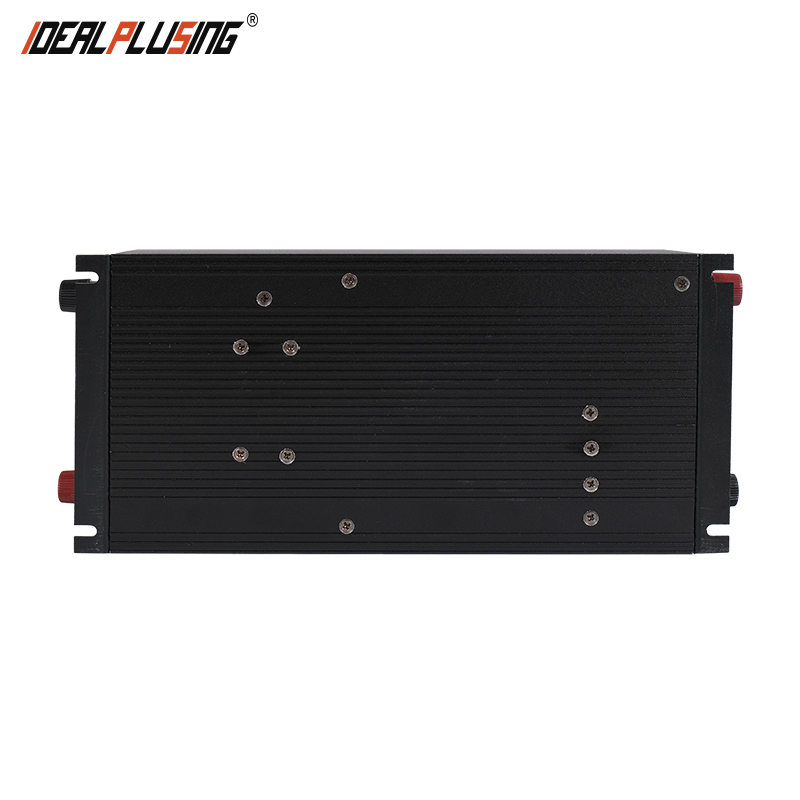

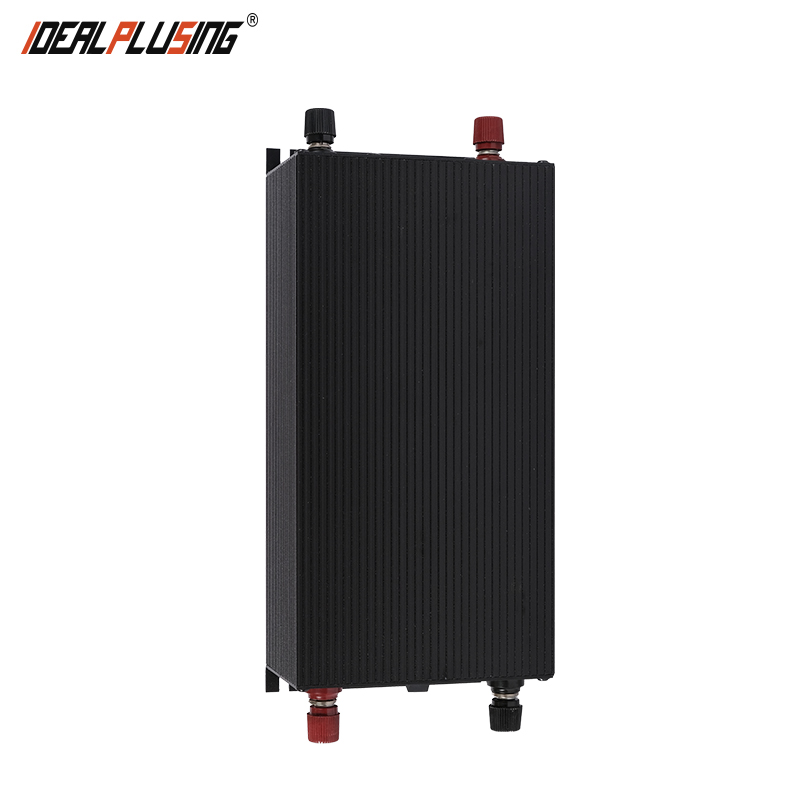

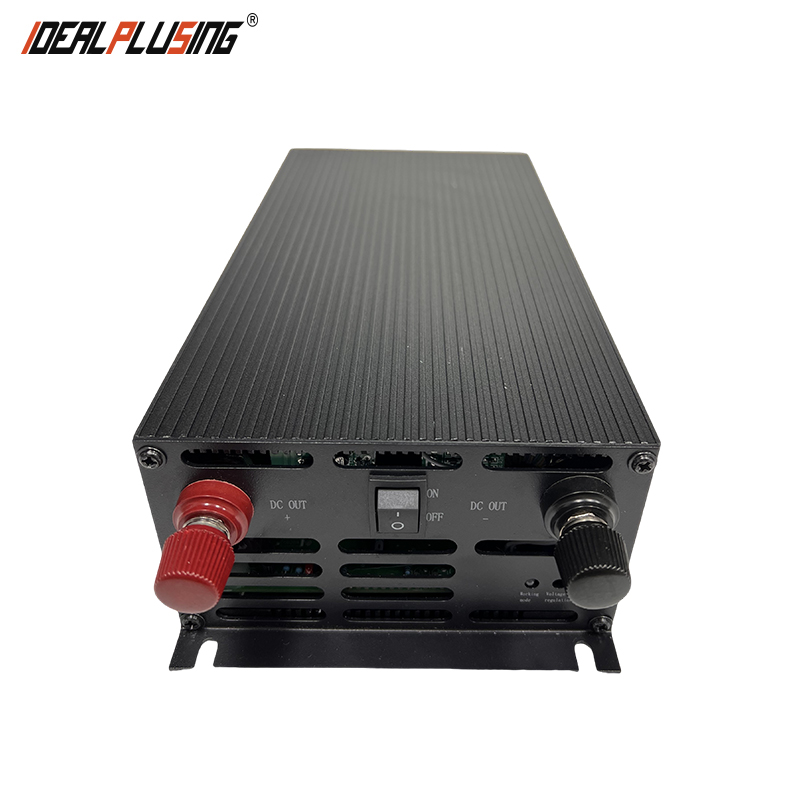

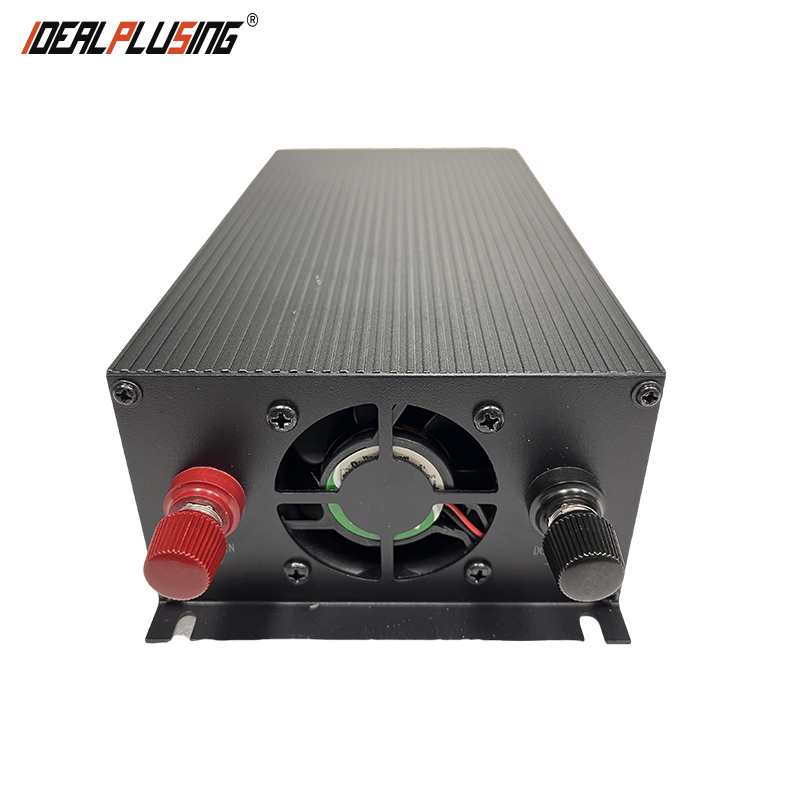

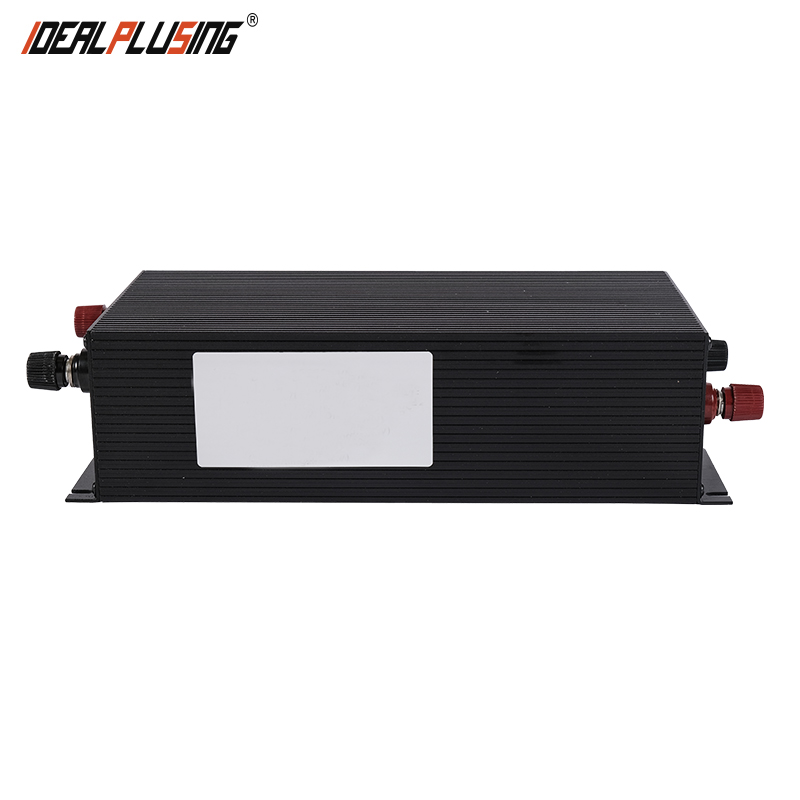

High Efficiency 48V to 60V DC to DC Converter 10A 12A 15A 20A 1200W Isolated Industrial Converter
Product Description
Isolation converters play a vital role in the interconnection of electronic devices and systems. These conversion devices achieve electrical isolation, ensuring the safety and stability of signals during transmission by establishing an effective isolation barrier between the input and output ends. This effectively prevents interference between different circuits and damage caused by ground potential differences.
Its unique isolation characteristics make it widely used in industrial automation, medical equipment, communication systems, and new energy, providing a solid guarantee for the reliable operation of various complex circuits. With a professional team and advanced R&D capabilities, external dimensions, pin definitions, rated power, and other parameters can be customized to meet special needs.
Specializing in power conversion solutions, these products are widely used in electric vehicles, automobiles, RVs, marine, communication, and industrial sectors. Providing power solutions since 2001, more than 5000+ power supply solutions have been developed, with a power range from 1 watt to 200 kilowatts and input voltages up to 2000 volts.
Customization Expertise: We specialize in customizing DC-DC converters to meet specific requirements. Offerings range from 1V to 1000V DC and 1A to 1000A with both isolated and non-isolated design options.
The R&D team brings over 24 years of experience, ensuring high reliability through perfect test equipment and management processes. Product design life typically reaches 15 to 20 years, suitable for complex working environments globally.
| Parameter | Typical Value / Range | Unit / Condition | |
|---|---|---|---|
| Input Voltage Range | Min: 38 / Typ: 48 / Max: 58 | VDC | |
| Output Voltage | 60 | VDC | |
| Output Current | 20 | A | |
| Voltage Regulation | ±1 | % | |
| Load Regulation | ±1 | % | |
| Ripple and Noise | 200 | Mvp-p | |
| Insulation Voltage | 1500 (Input to Output) | VDC | |
| Protection | Undervoltage, Over-temp, Overcurrent, Short circuit | - | |
| Operating Temp | -25 to 85 | ℃ | |
| Cooling / Grade | Self Cooling / Waterproof | - | |
IPS-DTD600-1000S24-1.05
Input: 600V-100VDC | Output: 24V 1.05A
IPS-DTD36-72S12-8.33
Input: 36V-72VDC | Output: 12V 8.33A
IPS-DTD9-36S24-4.16
Input: 9V-36VDC | Output: 24V 4.16A
IPS-DTD400-800S12-8.33
Input: 400V-800VDC | Output: 12V 8.33A
IPS-DTD65-154S24-12.5
Input: 65V-154VDC | Output: 24V 12.5A
IPS-DTD18-36S24-20.8
Input: 18V-36VDC | Output: 24V 20.8A
| Series | Input Rating (VDC) | Output Voltage (VDC) | Max Output Current |
|---|---|---|---|
| IPS-MD* | 18/24/48/110 | 12/24/5&12/12&24 | Up to 8.33A |
| IPS-MDB* | 18 to 800VDC | 12/15/24/48 | Up to 12.5A |
| IPS-MDC* | 18/24/48/110 | 12/24/48 | Up to 12.5A |
| IPS-MDH* | 24/48/110/600 | 12/24/110 | Up to 41.6A |
| IPS-MDI* | 12 to 600VDC | 12/24/48/110 | Up to 66.6A |
1Standard protections include overcurrent, short-circuit, undervoltage, and chip overheating. Large power supplies include casing temp protection at 90°C.
2For inductive loads (coils, motors, speakers), use a power supply 3-5 times the rated load power to handle startup surges.
3Isolated products are recommended for precious loads to prevent high input voltage from passing directly to the output end.
4The negative pole (ground) of isolated products cannot be shared; input and output must be used separately to maintain isolation.
5Isolated power supplies support negative voltage input; 0V connects to the red wire and negative voltage to the black wire.
6Gold-colored aluminum casing models are specifically designed for high-temperature resistance and high-demand outdoor applications.
Q1: Why is an isolated DC-DC converter better for sensitive equipment?
A: Isolated converters prevent high input voltage from passing directly to the output side in the event of a failure, protecting precious loads. They also eliminate ground potential interference.
Q2: Can I customize the voltage and current parameters?
A: Yes, we provide customization for input/output voltages from 1V to 1000V and current from 1A to 1000A, as well as specific pin definitions and dimensions.
Q3: What type of power supply should I use for a motor load?
A: For motor loads or other inductive applications, we recommend a power supply with a rated capacity 3-5 times higher than the load's nominal power.
Q4: Are the isolated converters waterproof?
A: Many of our industrial series models are designed with waterproof encapsulation, making them suitable for harsh or outdoor environments.
Q5: Can I share the negative pole between input and output on an isolated model?
A: No. To maintain the isolation effect, the negative poles of the input and output must be kept separate and not shared.
Q6: Do these converters support negative voltage input?
A: Yes, isolated power supplies support negative voltage input. In such cases, the 0V line connects to the red wire and the negative line to the black wire.
