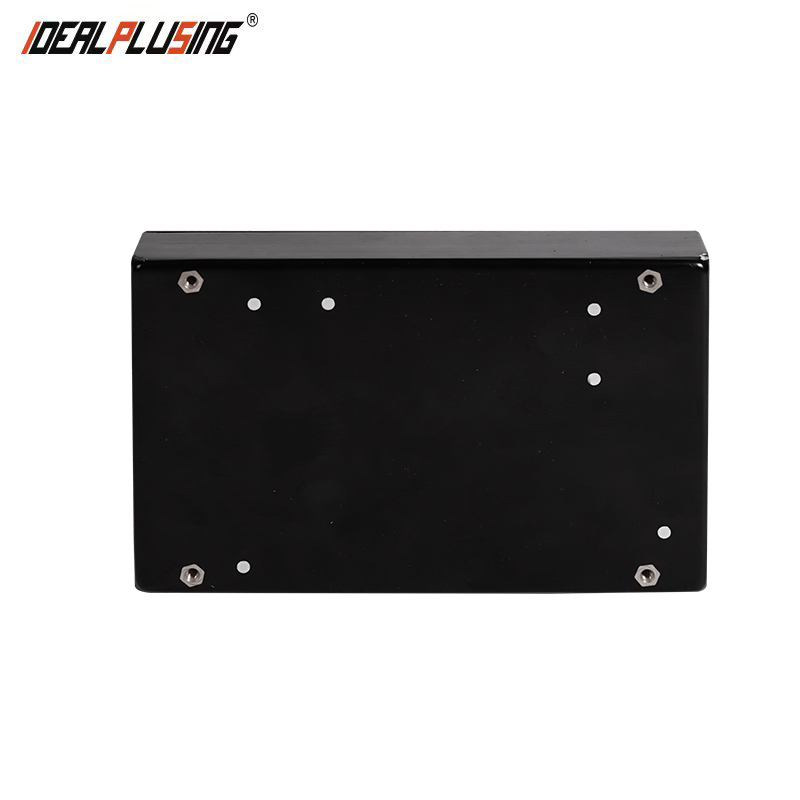

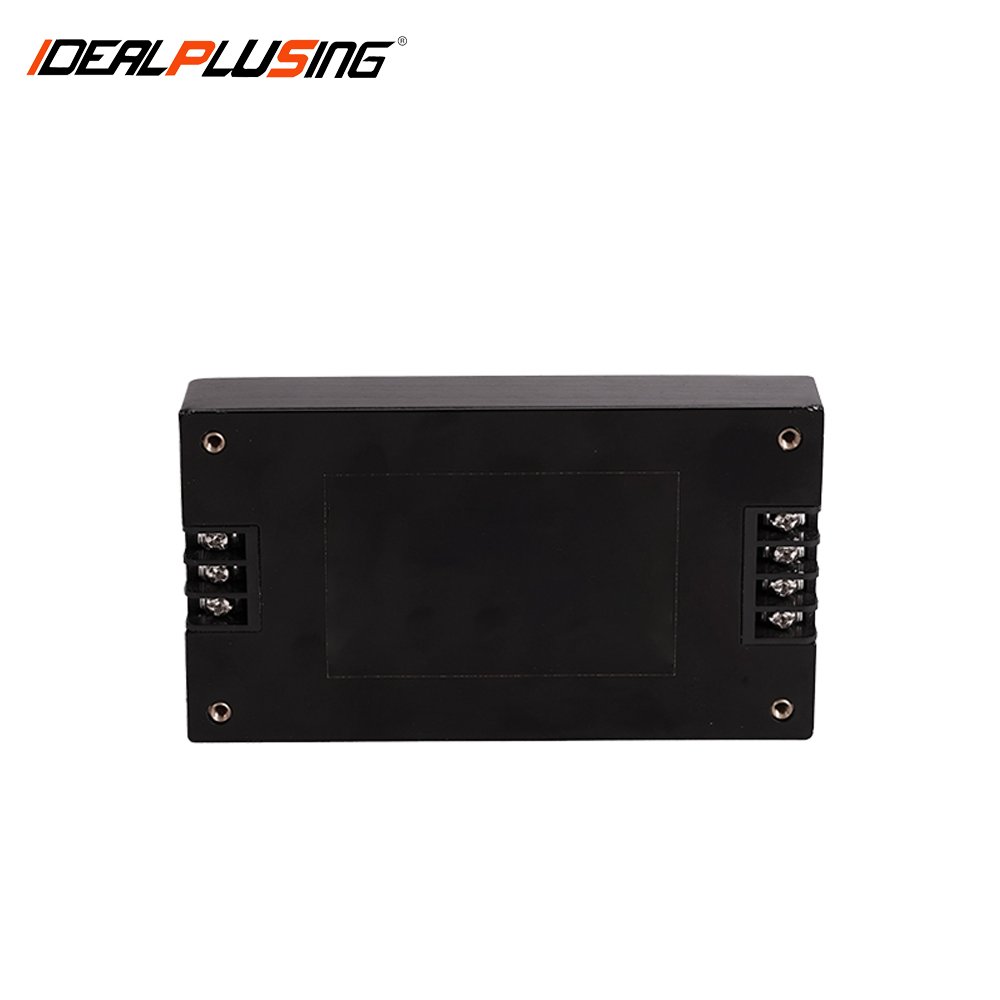

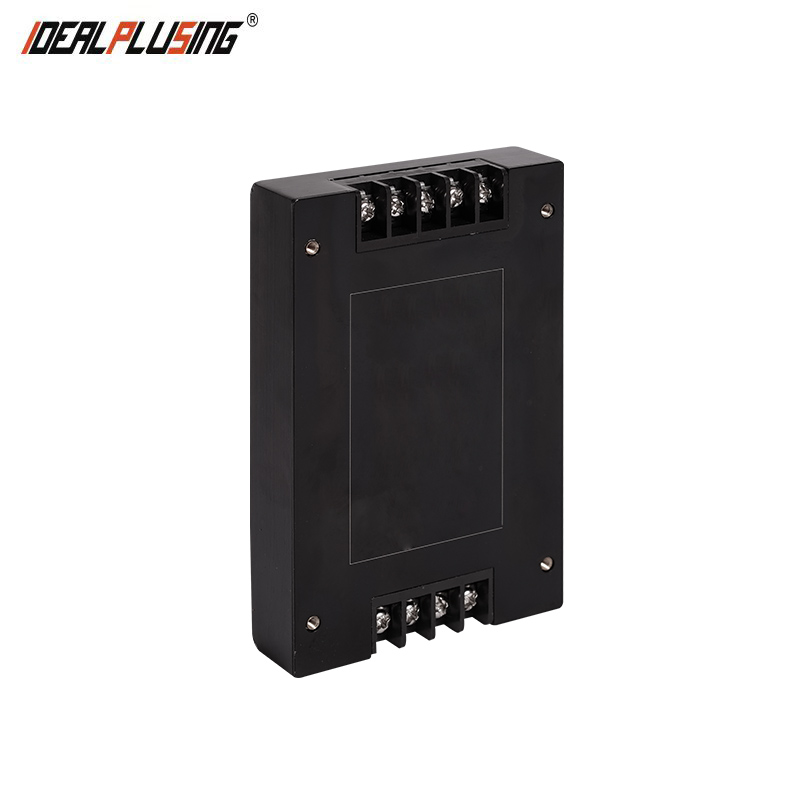

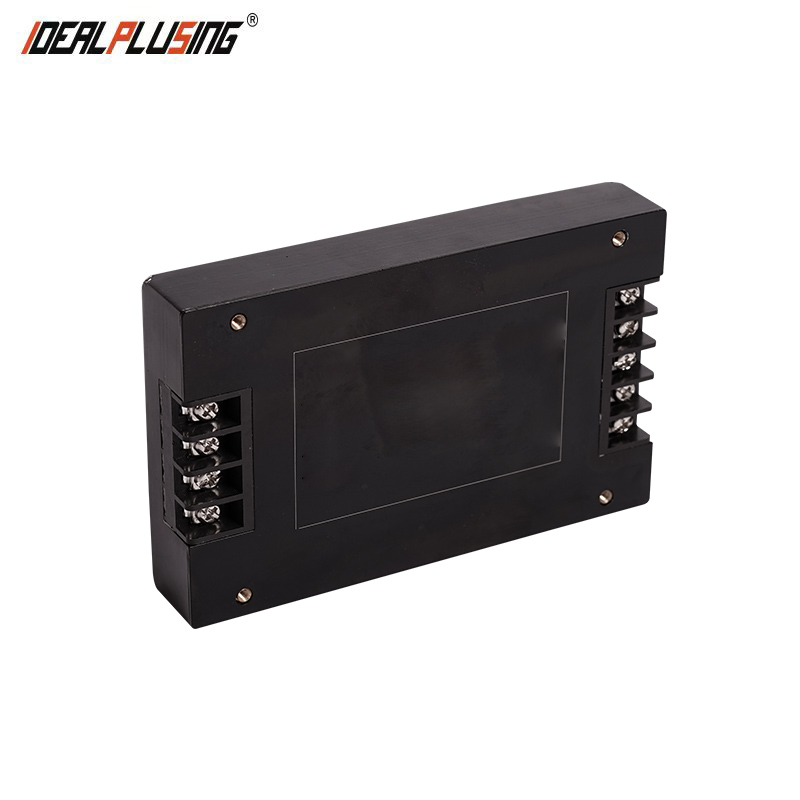

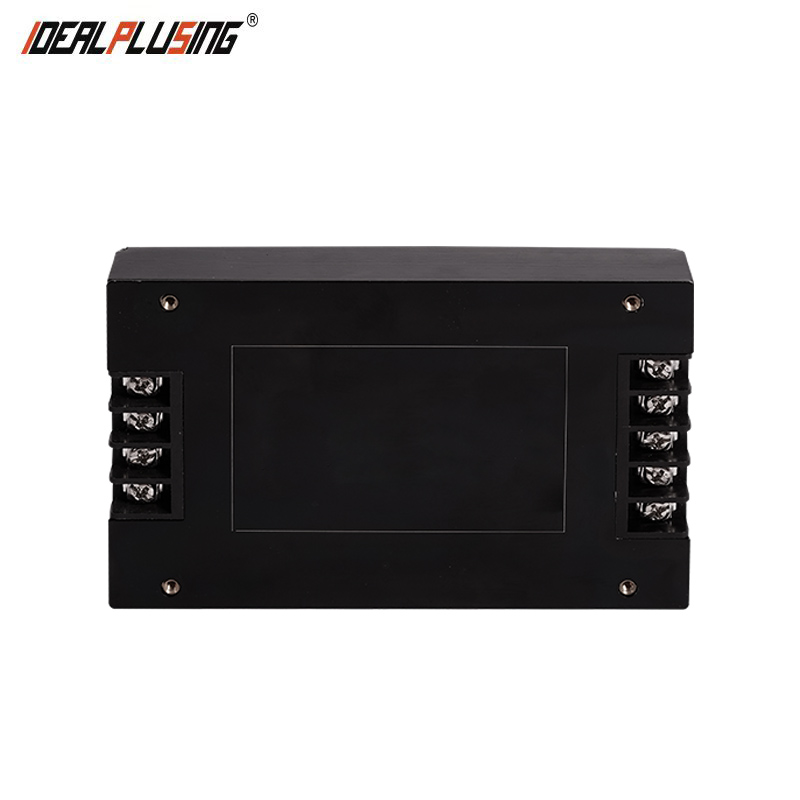

High Precision 36-72V Isolated Converter 12V 24V 75W Dual Output DC-DC Power Converter
Product Description
🚀 High Precision Isolated DC-DC Power Converter
High Precision 36-72V Isolated Converter 12V 24V 75W Dual Output DC-DC Power Converter
Isolation converters play a vital role in the interconnection of electronic devices and systems. These conversion devices achieve electrical isolation, ensuring the safety and stability of signals during transmission. By establishing an effective isolation barrier between the input and output ends, they effectively prevent interference between different circuits and damage caused by ground potential differences.
Its unique isolation characteristics make it widely used in industrial automation, medical equipment, communication systems, and new energy, providing a solid guarantee for the reliable operation of various complex circuits. With a professional team and advanced R&D capabilities, we can customize external dimensions, pin definitions, rated power, and other parameters to meet special needs.
🛠️ Technical Solutions & Expertise
We specialize in power conversion solutions. Our products are widely used in electric vehicles, automobiles, RVs, marine, communication, and industrial sectors. Since 2001, our team has been providing high-specification power solutions.
We have developed more than 5000+ power supply solutions. The power range is from 1 watt to 200 kilowatts and the input voltage is up to 2000 volts.
Our R&D team has more than 24 years of experience, and production management experience of more than 16 years. We have perfect test equipment and management processes to ensure high reliability. The design life of the products is 15 to 20 years, with a warranty of 1-3 years on selected models. We specialize in customizing DC-DC converters to meet your specific requirements (1V to 1000V DC and 1A to 1000A).
📊 Specifications
| DATASHEET: IPS-DTD36-72S12-1.5/24-2 | |||
|---|---|---|---|
| Name | Isolated DC DC Converter | Model | IPS-DTD36-72S12-1.5/24-2 |
| Product Size | 116*65*21.5 MM | Design | Input/output completely isolated |
| Net Weight | 0.25KG | Gross Weight | 0.5KG |
| Technical Parameters | Min | Typical | Max | Unit |
|---|---|---|---|---|
| Input voltage range | 36 | 54 | 72 | VDC |
| Output voltage 1 | - | 12 | - | VDC |
| Output current 1 | - | 1.5 | - | A |
| Output voltage 2 | - | 24 | - | VDC |
| Output current 2 | - | 2 | - | A |
| Ripple and noise | - | 200 | - | Mvp-p |
⭐ Hot Selling Models
IPS-DTD600-1000S24-1.05
Input: 600VDC-100VDC
Output: 24VDC 1.05A 25W
IPS-DTD36-72S12-8.33
Input: 36VDC-72VDC
Output: 12VDC 8.33A 100W
IPS-DTD9-36S24-4.16
Input: 9VDC-36VDC
Output: 24VDC 4.16A 100W
🔍 Product Details
📋 Model List Overview
| Series | Input Voltage (VDC) | Output Voltage (VDC) | Output Current (A) | Application |
|---|---|---|---|---|
| IPS-MD* | 18/24/48/110 | 12/24/5&12/12&24 | Up to 8.33A | Industrial Isolation |
| IPS-MDB* | Up to 800VDC | Multi-output options | Up to 12.5A | Small Power |
| IPS-MDI* | 12 to 600VDC | 12/24/48/110 | Up to 66.6A | High Power |
💡 Application Technical Description
- All products feature output overcurrent, short-circuit, and input undervoltage protection.
- Isolated products negative poles (ground) cannot be shared; input and output must be separate to maintain isolation.
- For inductive loads (coils, motor applications), use a power supply 3-5 times the rated load power.
- Isolated power supplies prevent high input voltage from passing to the output, making them the safest choice for precious loads.
- Suitable for negative voltage input applications (note wiring polarity).
- Over 90% of global power supplies are isolated for safety and reliability.
❓ Frequently Asked Questions (FAQ)
1. Why choose an isolated DC-DC converter over a non-isolated one?
Isolated converters provide an electrical barrier that protects sensitive loads from high input voltage surges and ground loops, significantly improving system safety and reliability.
2. Can I customize the input and output voltage for my project?
Yes, we offer customization for input/output ranges from 1V to 1000V and currents from 1A to 1000A to match your specific requirements.
3. What kind of protections are built into these converters?
Standard protections include output overcurrent, short-circuit protection, input undervoltage protection, and over-temperature protection.
4. Are these converters suitable for electric vehicles (EV) and marine use?
Absolutely. Our power conversion solutions are widely used in EVs, RVs, marine environments, and industrial automation due to their high reliability and robust design.
5. What is the expected lifespan of these power supplies?
Our products are designed for high durability with a design life of 15 to 20 years, making them ideal for long-term industrial applications.
6. How should I choose a converter for motor or inductive loads?
For inductive loads such as motors or coils, it is recommended to select a power supply with a rated power 3 to 5 times higher than the load's rated power to handle startup surges.
