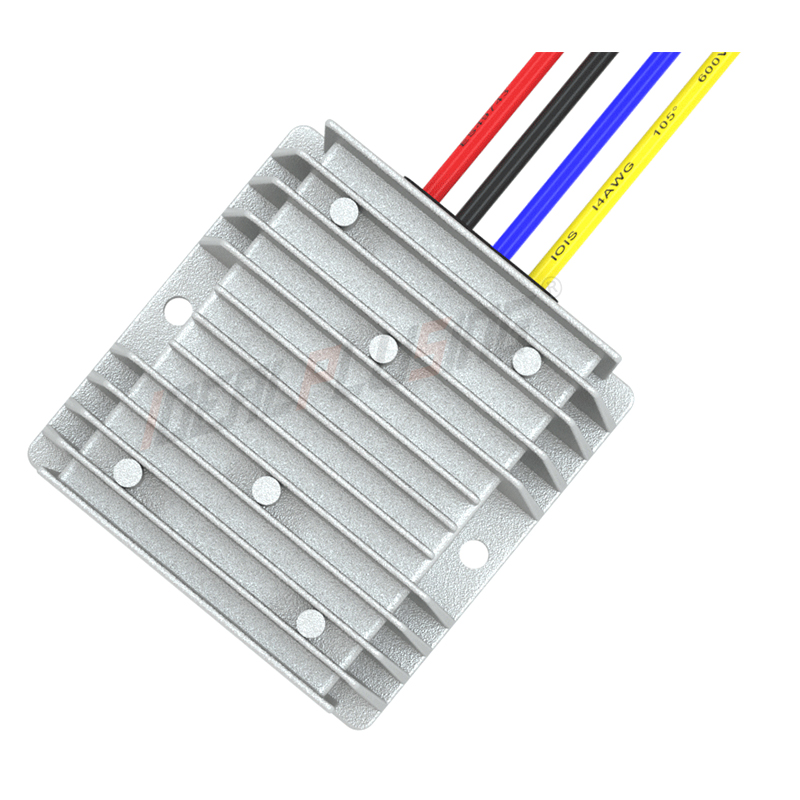

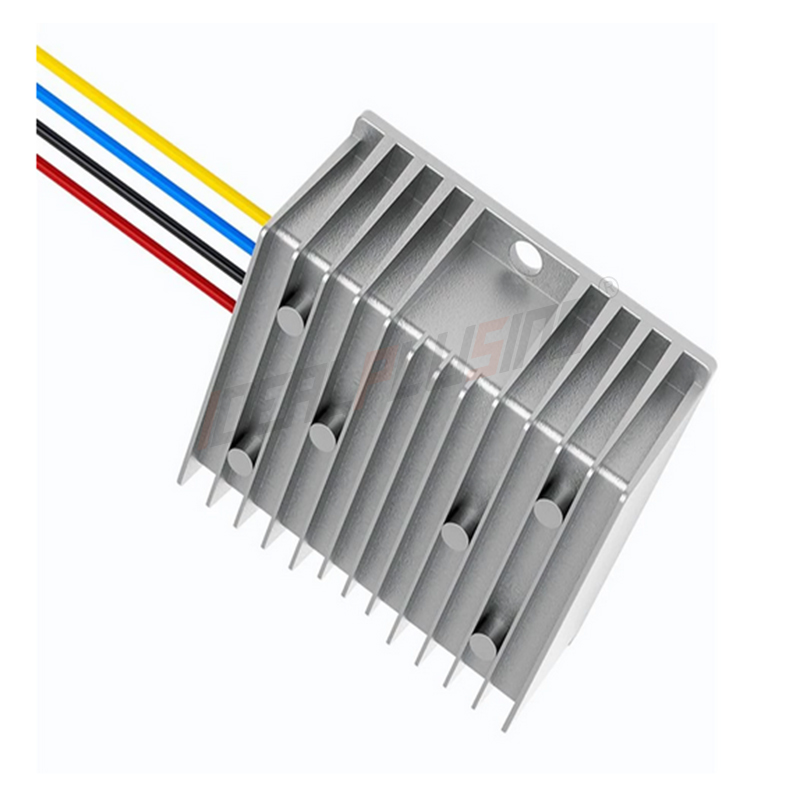

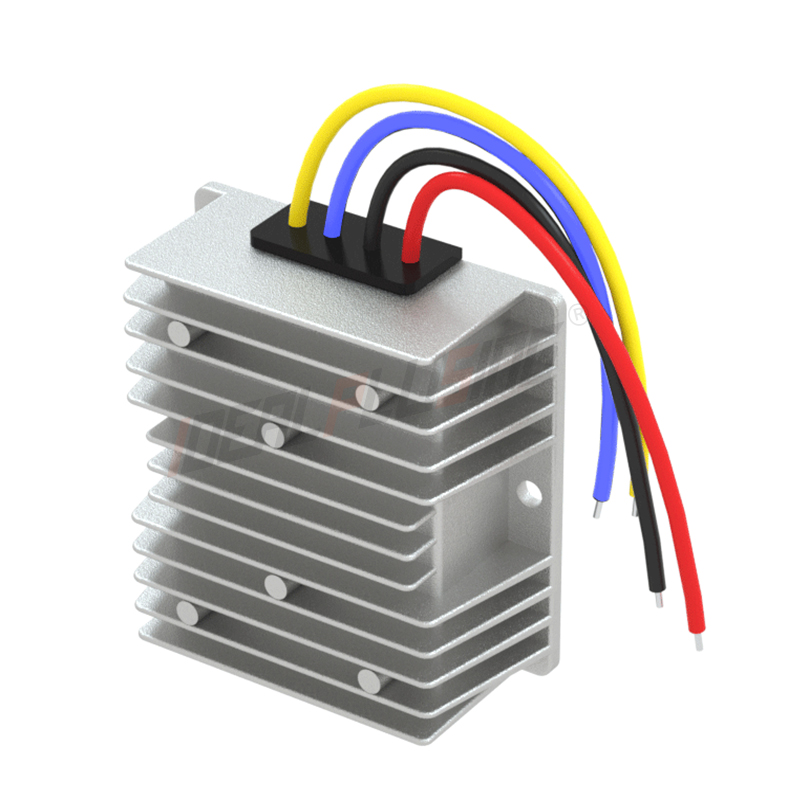

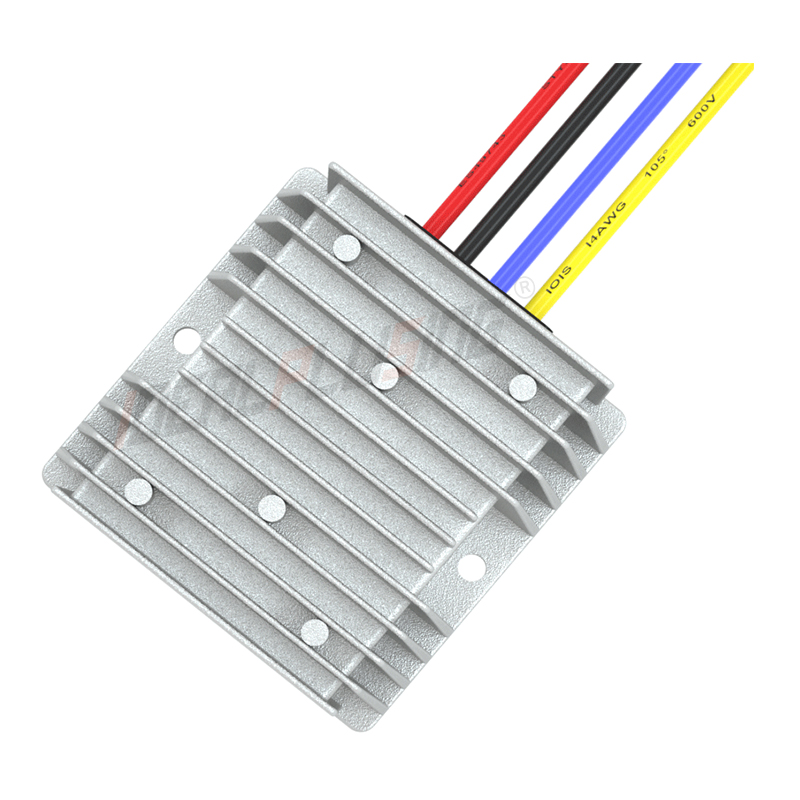

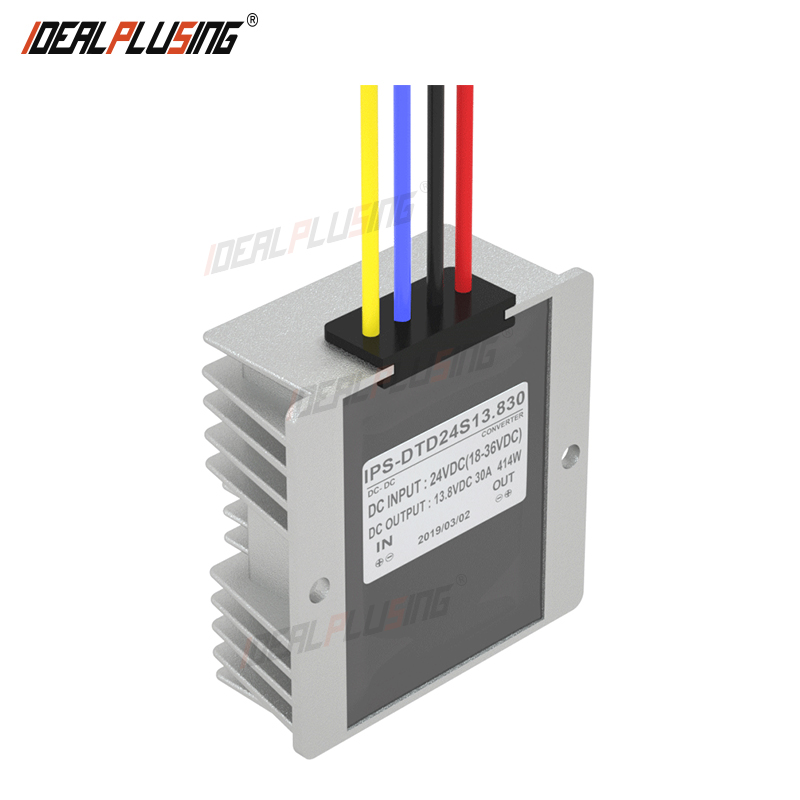

IDEALPLUSING 12v 24v Isolated Dc Dc Converter in Car Audio Buck Reduction Voltage Module Converter Dc Converter
Product Description
Isolation converters play a vital role in the interconnection of electronic devices and systems. These conversion devices achieve electrical isolation, ensuring the safety and stability of signals during transmission. By establishing an effective isolation barrier between the input and output ends, they prevent interference between different circuits and damage caused by ground potential differences.
Wide Application: Widely used in industrial automation, medical equipment, communication systems, and new energy.
High Reliability: Provides a solid guarantee for the reliable operation of various complex circuits.
Customization: Capabilities to customize external dimensions, pin definitions, rated power, and other parameters to meet special equipment needs.
Our solutions are widely used in electric vehicles, automobiles, RVs, marine, and communication industries. With over 5000+ power supply solutions developed, the range covers 1 watt to 200 kilowatts with input voltages up to 2000 volts.
Our R&D team has over 24 years of experience, ensuring high reliability through perfect test equipment and management processes. Products are designed for a life span of 15 to 20 years, meeting high standards for complex working environments globally.
Specialization: Customizing DC-DC converters (Isolated and Non-isolated) ranging from 1V to 1000V DC and 1A to 1000A.
| Technical Parameters (Model: IPS-DTDYI9-36S125) | |||
|---|---|---|---|
| Name | Isolated DC DC Converter | Product Size | 74*74*32 MM |
| Input Range | 9 - 24 - 36 VDC | Output Voltage | 12 VDC |
| Output Current | 5 A | Design | Input and output completely isolated |
| Regulation | ±1% (Voltage/Load) | Ripple & Noise | 200 Mvp-p |
| Isolation Voltage | 1500 VDC (Input to Output) | Protection | Undervoltage, Over-temperature, Overcurrent, Short circuit |
| Operating Temp | -25℃ to 85℃ | Cooling | Self Cooling / Waterproof |

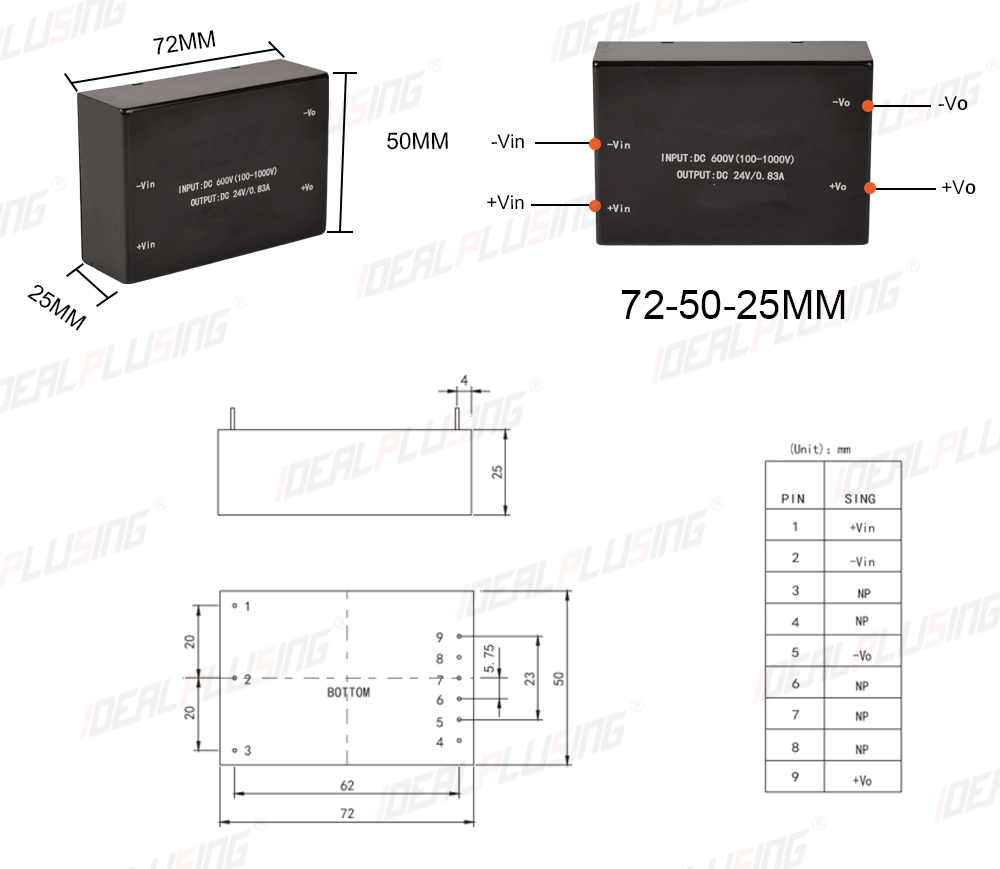

IPS-DTD600-1000S24-1.05
Input: 600V-100VDC | Output: 24V 1.05A
IPS-DTD36-72S12-8.33
Input: 36V-72VDC | Output: 12V 8.33A
IPS-DTD9-36S24-4.16
Input: 9V-36VDC | Output: 24V 4.16A
IPS-DTD400-800S12-8.33
Input: 400V-800VDC | Output: 12V 8.33A
IPS-DTD65-154S24-12.5
Input: 65V-154VDC | Output: 24V 12.5A
IPS-DTD18-36S24-20.8
Input: 18V-36VDC | Output: 24V 20.8A
| Series | Input Rating (VDC) | Output Voltage (VDC) | Output Current (A) |
|---|---|---|---|
| IPS-MD* | 18/24/48/110 | 12/24/05&12 | Up to 8.33A |
| IPS-MDB* | 18 to 800VDC | 12 to 48VDC | Up to 12.5A |
| IPS-MDI* | 12 to 600VDC | 12/24/48/110 | Up to 66.6A |
1
Standard protection includes output overcurrent, short-circuit, input undervoltage, and chip overheating protection.
2
For inductive loads (coils, magnetic valves, speakers) and motors, use a power supply 3-5 times the rated power of the load.
3
Isolated products are recommended when carrying precious loads to prevent high input voltage from passing to the output end.
4
The negative pole (ground) of isolated products cannot be shared between input and output to maintain the isolation effect.
5
Isolated power supplies support negative voltage input. Connect the 0V line to red and negative voltage to black.
6
Isolated power supplies are the safest choice; over 90% of global power supplies (including mobile chargers) use this technology.
What is the main advantage of an isolated DC-DC converter?
The primary advantage is safety and stability. It establishes an electrical barrier between input and output, preventing interference and protecting the load from high input voltage surges or ground potential differences.
Are these converters suitable for motor applications?
Yes, but for motor or inductive loads, it is recommended to choose a converter with 3-5 times the rated power of the load to handle start-up currents.
Can I share the negative pole between input and output?
No. In isolated products, the negative poles must be kept separate. Sharing them would bypass the isolation barrier and negate the isolation effect.
What protection features are built-in?
Most models include input undervoltage protection, over-temperature protection, output overcurrent protection, and short-circuit protection.
Do you support negative voltage input?
Yes, isolated power supplies can support negative voltage input. Proper wiring is required: connect the 0V line to the red wire and the negative voltage line to the black wire.
Is the converter waterproof for outdoor use?
Many of our models, especially those with small gold-colored aluminum casings, are designed to be high-temperature resistant and waterproof, making them suitable for outdoor applications.
