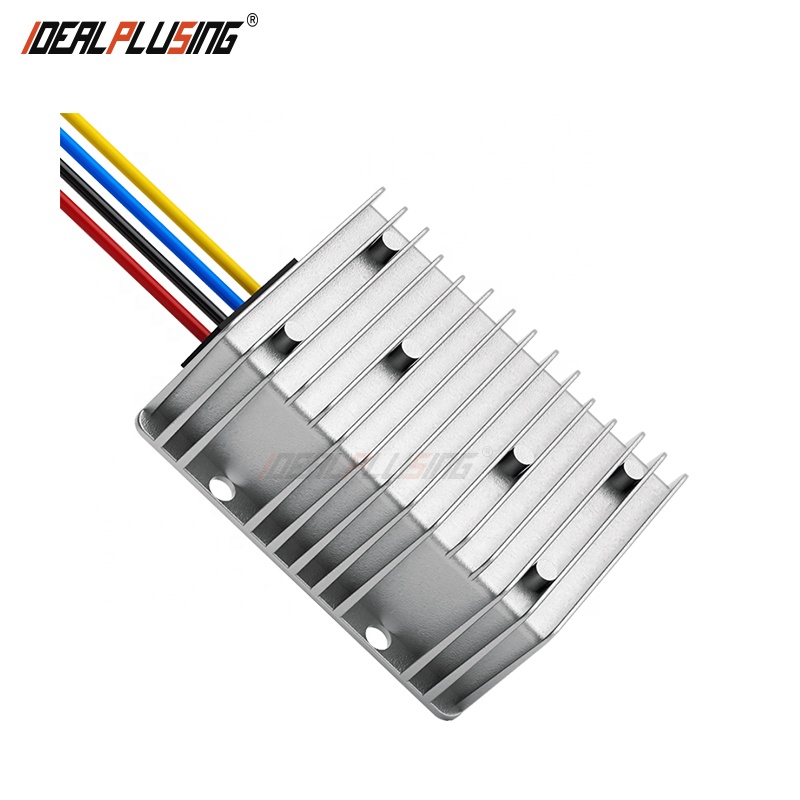

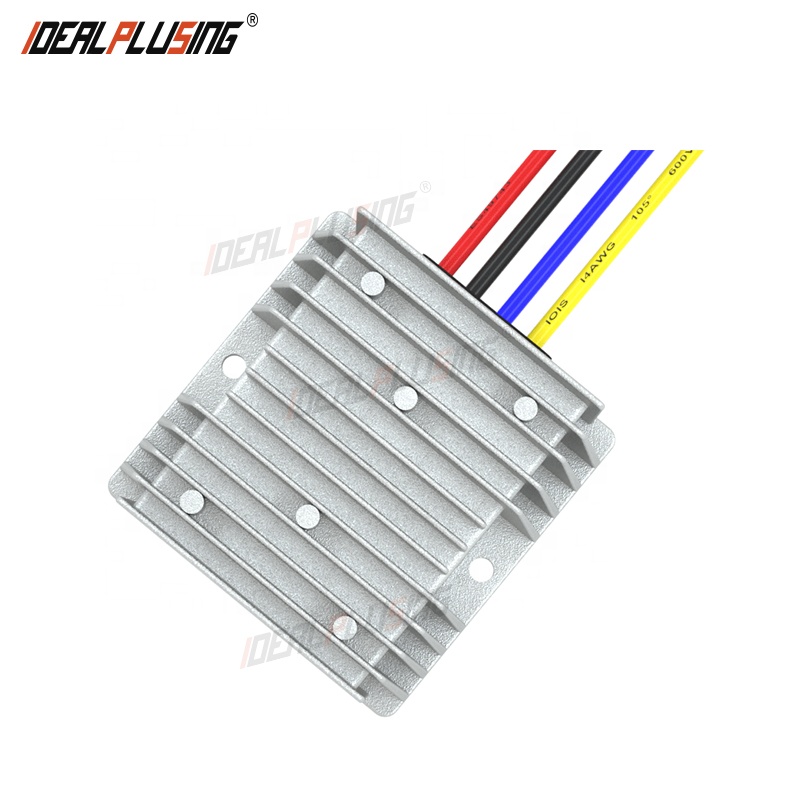

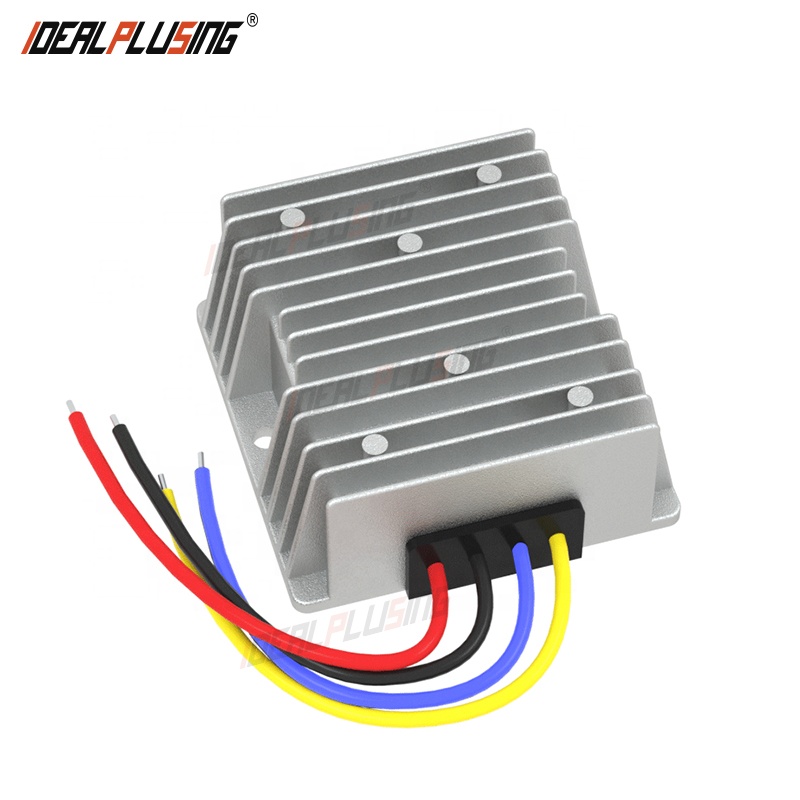

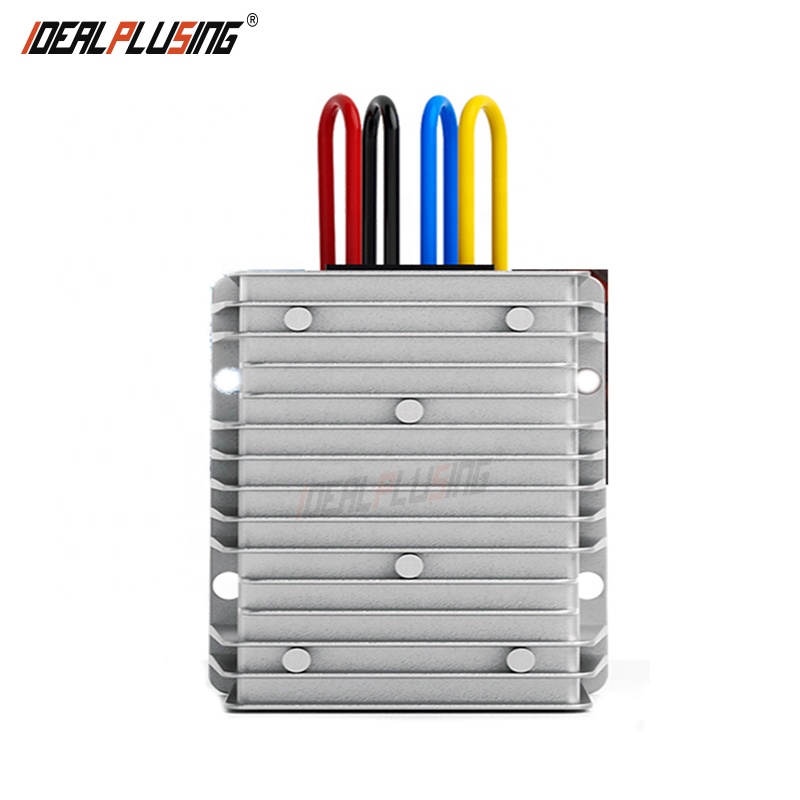

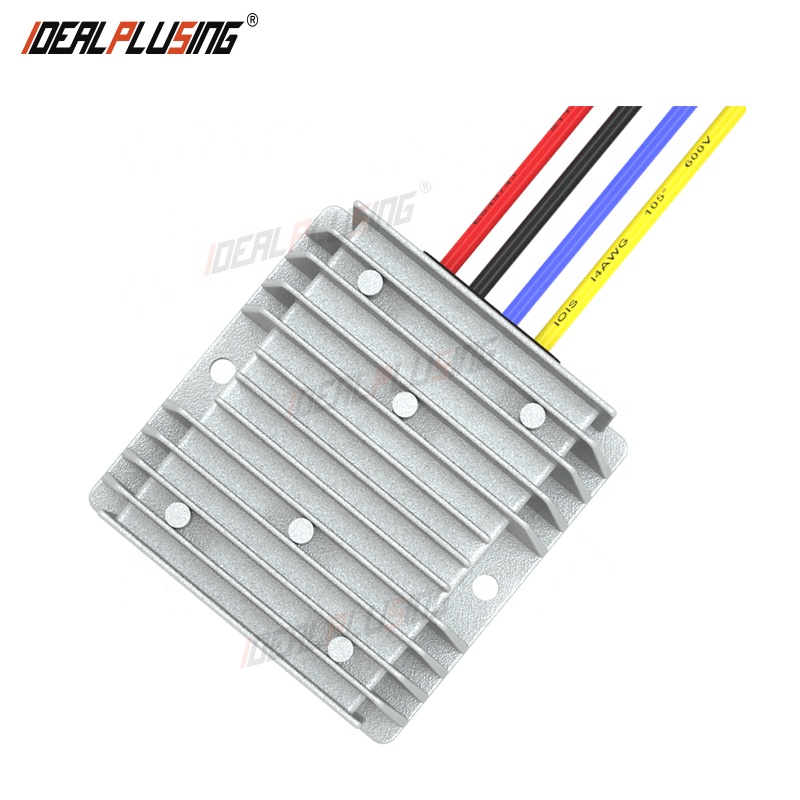

IDEALPLUSING Isolated 9-36V to 12V 5A 6A 8A 10A DC Converter Voltage Regulator 12V24V to 12V Step-down Voltage Transformer CE
Product Description
Isolated DC Converter Voltage Regulator
Features:
Isolation converters play a vital role in the interconnection of electronic devices and systems. Isolation converters are conversion devices that can achieve electrical isolation. They ensure the safety and stability of signals during transmission by establishing an effective isolation barrier between the input and output ends, while effectively preventing interference between different circuits and damage caused by ground potential differences. Its unique isolation characteristics make it widely used in industrial automation, medical equipment, communication systems, and new energy, providing a solid guarantee for the reliable operation of various complex circuits.
Isolation converters play a vital role in the interconnection of electronic devices and systems. Isolation converters are conversion devices that can achieve electrical isolation. They ensure the safety and stability of signals during transmission by establishing an effective isolation barrier between the input and output ends, while effectively preventing interference between different circuits and damage caused by ground potential differences. Its unique isolation characteristics make it widely used in industrial automation, medical equipment, communication systems, and new energy, providing a solid guarantee for the reliable operation of various complex circuits.
Our team specializes in power conversion solutions since 2001. We have developed more than 5000+ power supply solutions with a range from 1 watt to 200 kilowatts and input voltages up to 2000 volts. Our R&D team has more than 24 years of experience to ensure high reliability. The design life of the products is 15 to 20 years.
- We specialize in customizing DC-DC converters: 1V to 1000V DC and 1A to 1000A.
- Isolated and non-isolated converter design options.
- High requirements for complex working environments.
Technical Specifications
| DATASHEET: IPS-DTD12S1210-I | Parameter | |
|---|---|---|
| Name | Isolated DC DC Converter | Design: Fully Isolated |
| Product Size | 74*74*32 MM | Net Weight: 0.3KG |
| Input Voltage Range | 10-14 VDC | Typical: 12 VDC |
| Output Voltage | 12 VDC | Output Current: 10 A |
| Voltage Regulation | ±1% | Load Regulation: ±1% |
| Protection | Input undervoltage, over-temperature, output overcurrent, short circuit protection | |
| Operating Temp | -25℃ to 85℃ | Waterproof Grade: Waterproof |
Hot Selling Models
IPS-DTD600-1000S24-1.05
Input: 600V-1000VDC
Output: 24VDC 1.05A
IPS-DTD36-72S12-8.33
Input: 36V-72VDC
Output: 12VDC 8.33A
IPS-DTD9-36S24-4.16
Input: 9V-36VDC
Output: 24VDC 4.16A
IPS-DTD400-800S12-8.33
Input: 400V-800VDC
Output: 12VDC 8.33A
IPS-DTD65-154S24-12.5
Input: 65V-154VDC
Output: 24VDC 12.5A
IPS-DTD18-36S24-20.8
Input: 18V-36VDC
Output: 24VDC 20.8A
Product Details & Applications
Technical Guidelines
- All buck-boost products come standard with overcurrent, short-circuit, and undervoltage protection.
- Inductive loads (motors, coils): recommend a power supply 3-5 times the rated power of the load.
- Isolated products are the safest: they prevent high input voltage from passing to the output, protecting precious loads.
- Negative pole (ground) of isolated products cannot be shared between input and output.
- Isolated power supplies support negative voltage input (Positive line to red, negative line to black).
Multi-Angle Views
Frequently Asked Questions
Q1: What is the main advantage of an isolated DC-DC converter?
A: Isolated converters establish an electrical barrier between input and output, preventing interference and protecting sensitive loads from high input voltage pass-through or ground potential differences.
Q2: Can I get a customized voltage or current specification?
A: Yes, we provide customization for DC-DC converters ranging from 1V to 1000V DC and 1A to 1000A to meet your specific equipment needs.
Q3: What safety protections are included in these power supplies?
A: Most products include output overcurrent protection, output short-circuit protection, input undervoltage protection, and over-temperature protection.
Q4: How should I choose a power supply for a motor or inductive load?
A: For inductive loads like motors, coils, or speakers, it is recommended to use a power supply that is 3-5 times the rated power of the load to handle start-up surges.
Q5: Can these isolated power supplies support negative voltage input?
A: Yes, they support negative voltage. Connect the 0V line to the red wire and the negative voltage line to the black wire.
Q6: What is the expected lifespan of these converters?
A: Our products are designed with high-quality components for a service life of 15 to 20 years under proper operating conditions.
