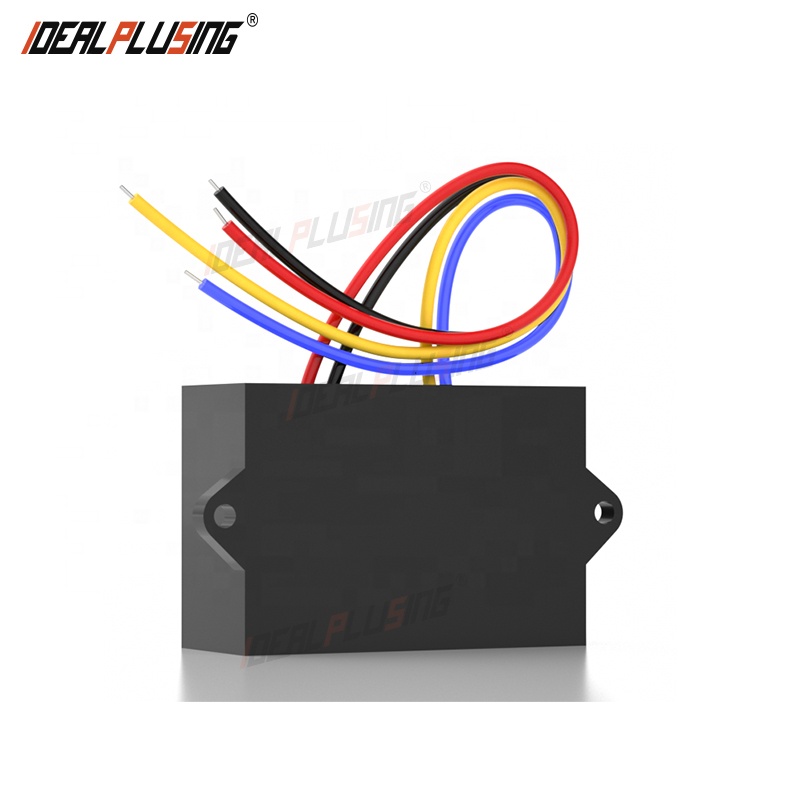

IDEALPLUSING Hot Selling Customized Products Dc-dc Buck Power Converter Module 50-100v to 12v Isolated
Product Description
ā”
Features of Isolated DC-DC Buck Power Converter Module
Isolation converters play a vital role in the interconnection of electronic devices and systems. They are conversion devices that achieve electrical isolation, ensuring the safety and stability of signals during transmission by establishing an effective isolation barrier between the input and output ends. This effectively prevents interference between different circuits and damage caused by ground potential differences.
Its unique isolation characteristics make it widely used in industrial automation, medical equipment, communication systems, and new energy, providing a solid guarantee for the reliable operation of various complex circuits. It is one of the indispensable key components in modern electronic technology. Our team can customize external dimensions, pin definitions, rated power, and other parameters to meet special needs.
š ļø
Power Conversion Solutions
Our products are widely used in electric vehicles, automobiles, RVs, marine, communication, and industrial sectors. Since 2001, our team has been providing specialized power solutions. With factories established in 2008 and 2019, we have developed more than 5000+ power supply solutions.
Capabilities:
- Power range: 1 watt to 200 kilowatts
- Input voltage: up to 2000 volts
- Voltage offerings: 1V to 1000V DC
- Current offerings: 1A to 1000A
- Design options: Isolated and non-isolated converters
Our R&D team has over 24 years of experience, ensuring high reliability with a design life of 15 to 20 years. These products meet high requirements for global markets including the United States, Europe, and Japan.
š
Technical Specifications (Model: IPS-DTDYI50-100S125)
| Parameter | Value | Unit | Condition | |
|---|---|---|---|---|
| Input Voltage Range | Typical | 50 - 100 | VDC | - |
| Output Voltage | Typical | 12 | VDC | - |
| Output Current | Typical | 5 | A | - |
| Voltage Regulation | Max | Ā±1 | % | - |
| Load Regulation | Max | Ā±1 | % | - |
| Ripple and Noise | Max | 200 | Mvp-p | - |
| Isolation Voltage | Input to Output | 1500 | VDC | - |
| Insulation Impedance | - | 200 | MĪ© | - |
| Protection | Input undervoltage, over-temperature, output overcurrent, short circuit | |||
| Operating Temp | - | -25 to 85 | ā | Shell temp |
| Waterproof Grade | - | Waterproof | - | - |
ā
Hot Selling Models
IPS-DTD600-1000S24-1.05
Input: 600-1000VDC | Output: 24V 1.05A
IPS-DTD36-72S12-8.33
Input: 36-72VDC | Output: 12V 8.33A
IPS-DTD9-36S24-4.16
Input: 9-36VDC | Output: 24V 4.16A
IPS-DTD400-800S12-8.33
Input: 400-800VDC | Output: 12V 8.33A
IPS-DTD65-154S24-12.5
Input: 65-154VDC | Output: 24V 12.5A
IPS-DTD18-36S24-20.8
Input: 18-36VDC | Output: 24V 20.8A
š·

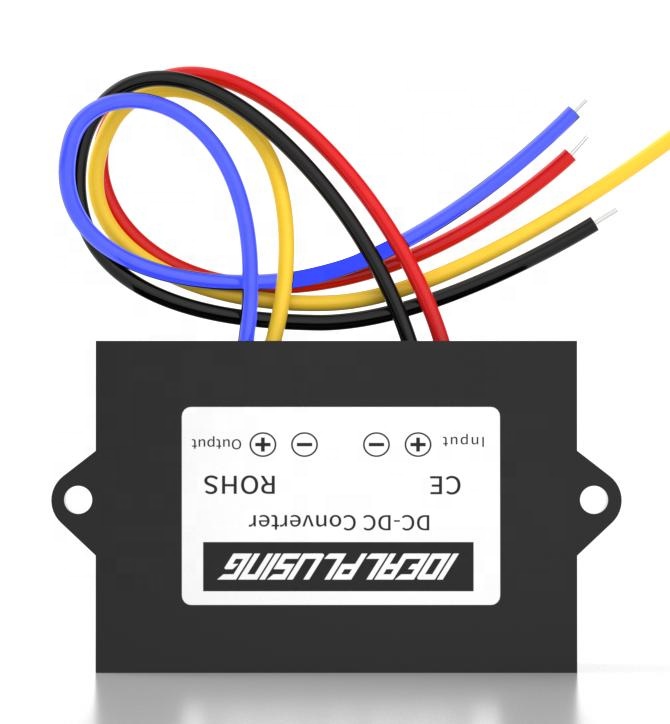

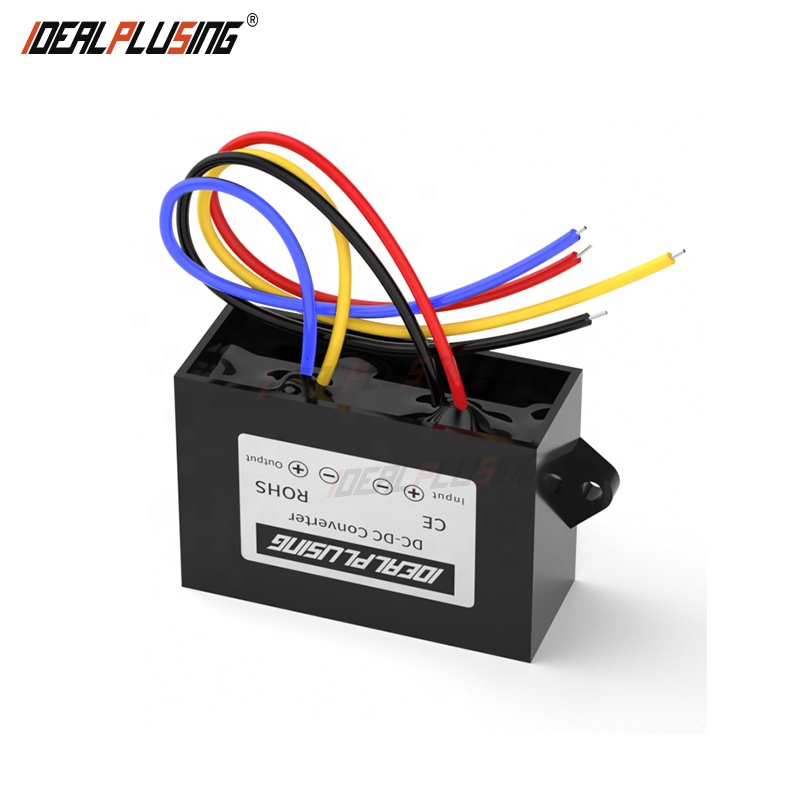

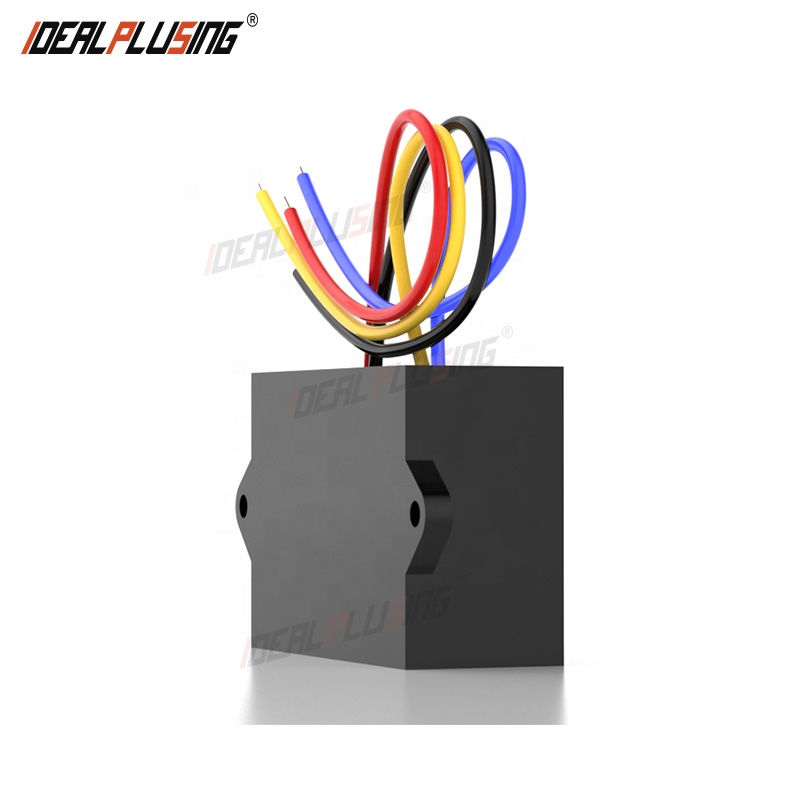

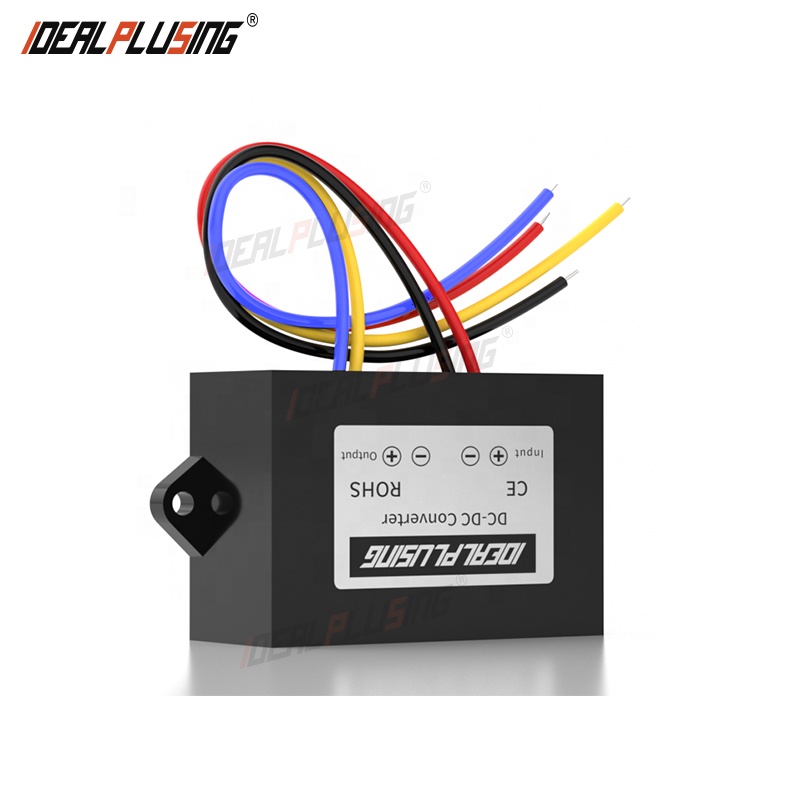

Product Details Display
š
Industrial Isolation Series List
| Series | Rated Input (VDC) | Output Voltage (VDC) | Output Current (A) | Size Note |
|---|---|---|---|---|
| IPS-MD* | 18/24/48/110 | 12/24/05&12 | 3.13 to 8.33 | Based on model |
| IPS-MDB* | 18 to 800 | 12 to 48 | 2.67 to 12.5 | Based on model |
| IPS-MDC* | 18/24/48/110 | 12/24/48 | 4.16 to 12.5 | Based on model |
| IPS-MDG* | 24/48/110/600 | 12/24/05&12 | 12.5 to 25 | Based on model |
| IPS-MDI* | 12 to 600 | 12/24/48/110 | 7.27 to 66.6 | Based on model |
š”
Technical Application Guidelines
Protection: Standard buck-boost products include overcurrent, short-circuit, undervoltage, and overheating protection.
Inductive Loads: For motor applications, use a power supply 3-5 times the rated power of the load.
Safety: Isolated buck converters prevent high input voltage from passing to the output, protecting precious loads.
Isolation: The negative pole (ground) of isolated products must be used separately to maintain isolation effect.
Reliability: For high input voltage applications, isolated products are strongly recommended for safety.
ā
Frequently Asked Questions
What are the main advantages of using an isolated DC-DC converter?
Isolated converters provide electrical isolation between input and output, which prevents interference, eliminates ground loops, and protects the load from high voltage surges at the input side.
Can these modules be customized for specific requirements?
Yes, we can customize parameters such as external dimensions, pin definitions, rated power, and input/output voltage ranges (from 1V to 1000V).
What kind of protection features are included?
Most modules come standard with output overcurrent protection, output short-circuit protection, input undervoltage protection, and overheating protection.
What is the expected design life of these power supplies?
Our products are designed for high reliability with a typical design life ranging from 15 to 20 years.
What precautions should be taken for motor or inductive loads?
For inductive loads like motors, coils, or magnetic valves, it is recommended to use a power supply that is 3-5 times the rated power of the load to handle starting currents.
How does the isolation affect the wiring?
The negative poles (ground) of input and output must be kept separate. Sharing the negative pole will cause the module to lose its isolation effect.
