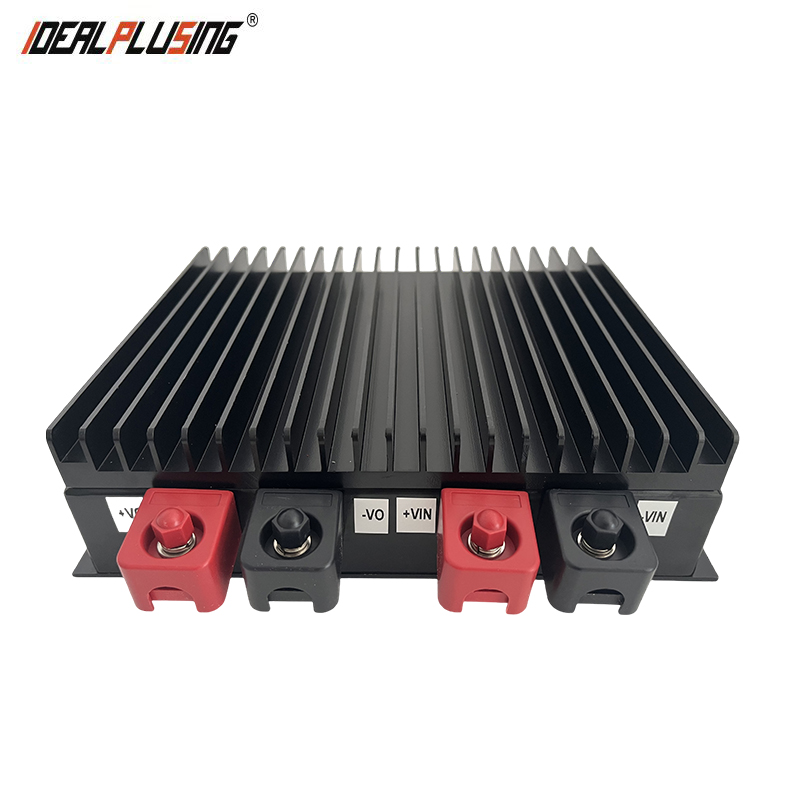

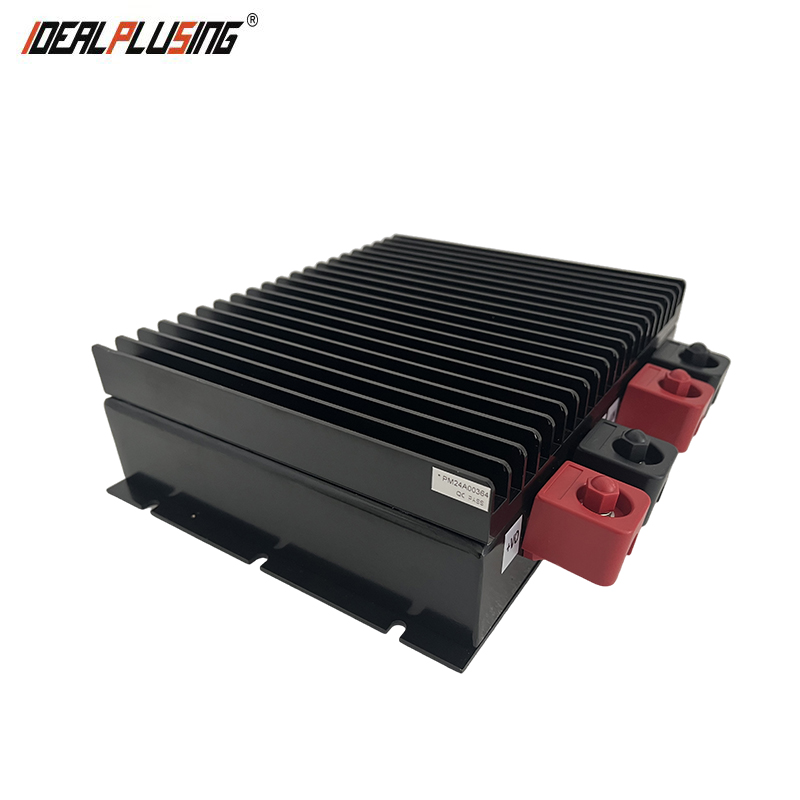

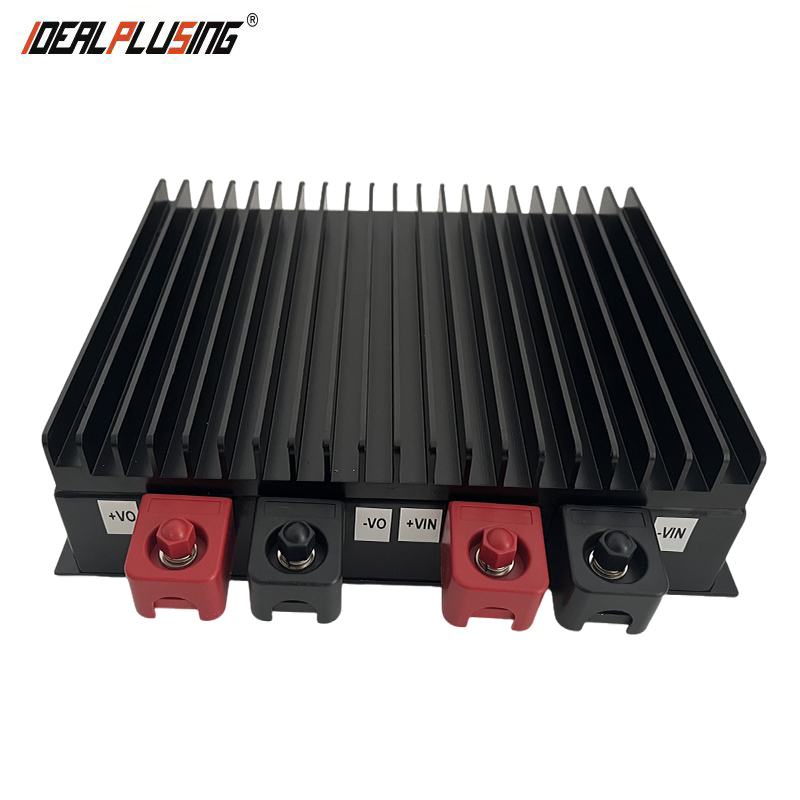

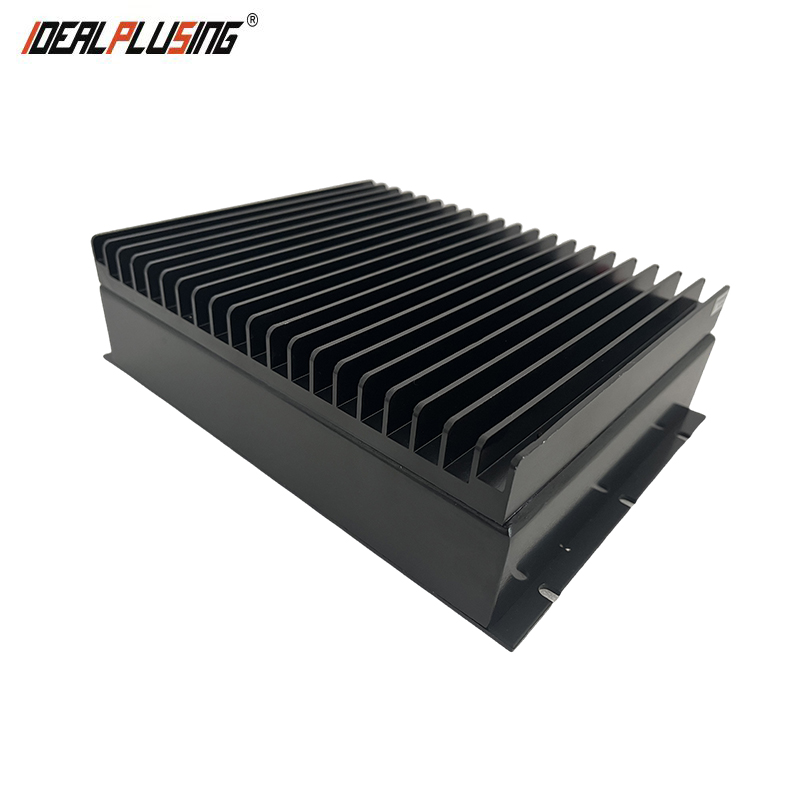

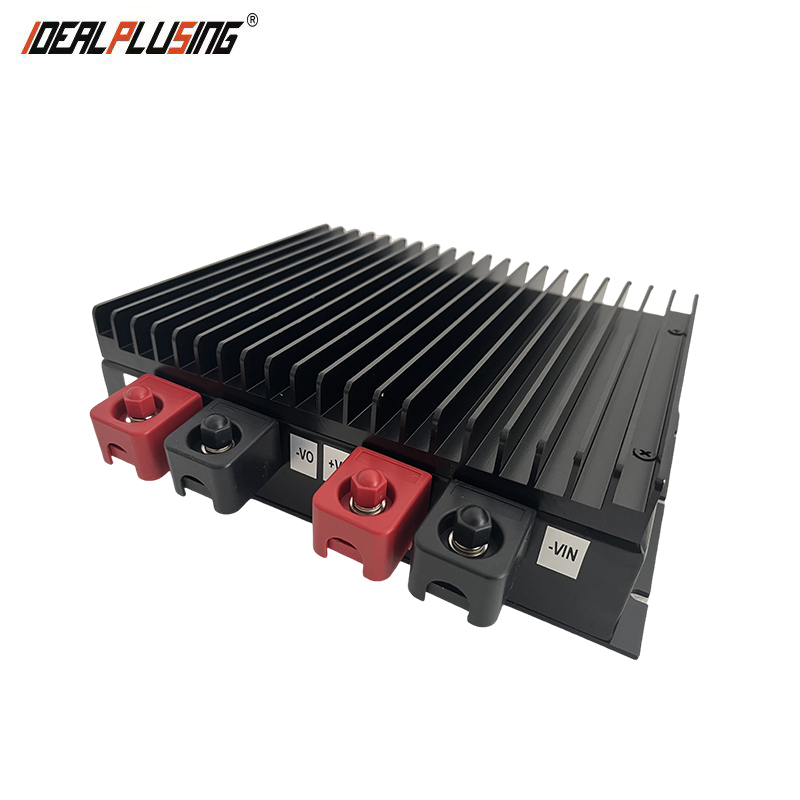

IPS-DTD12-36S2440 24VDC 40A Isolate DC DC Converter
Product Description
IPS-DTD12-36S2440 24VDC 40A Isolate DC DC Converter
🛡️
Features
Isolation converters play a vital role in the interconnection of electronic devices and systems. They are conversion devices that can achieve electrical isolation, ensuring the safety and stability of signals during transmission. By establishing an effective isolation barrier between the input and output ends, they prevent interference between different circuits and damage caused by ground potential differences.
Widely used in industrial automation, medical equipment, communication systems, and new energy, these converters provide a solid guarantee for the reliable operation of complex circuits. Our team offers advanced R&D capabilities to customize external dimensions, pin definitions, rated power, and other parameters to meet special client needs.
⚙️
We specialize in power conversion solutions used in electric vehicles, automobiles, RVs, marine applications, and communication industries. Since 2001, our team has been providing expert power solutions. We have developed over 5000+ power supply solutions ranging from 1 watt to 200 kilowatts with input voltages up to 2000 volts.
Our R&D team has more than 24 years of experience, ensuring high reliability with a design life of 15 to 20 years. We focus on providing the right power supply solution, offering both isolated and non-isolated designs tailored to your specific requirements (1V to 1000V DC and 1A to 1000A).
Specifications
| DATASHEET | Model | IPS-DTD12-36S2440 | ||
|---|---|---|---|---|
| Name | Isolated DC DC Converter | Design | Input and output completely isolated | |
| Product Size | 266*200*74 MM | Net Weight | 5KG | Gross: 6KG |
| Technical Parameters | Minimum | Typical | Maximum | Unit |
| Input voltage range | 12 | 24 | 36 | VDC |
| Output voltage | - | 24 | - | VDC |
| Output current | - | 40 | - | A |
| Voltage/Load regulation | - | ±1 | - | % |
| Ripple and noise | - | 200 | - | Mvp-p |
| General Features | ||||
| Isolation voltage | 1500 (Input to Output) | VDC | ||
| Protection | Undervoltage, Over-temperature, Overcurrent, Short circuit | |||
| Waterproof Grade | Waterproof | Cooling | Self Cooling | |
Hot Selling Models
IPS-DTD600-1000S24-1.05
Input: 600V-100VDC
Output: 24VDC 1.05A 25W
IPS-DTD36-72S12-8.33
Input: 36V-72VDC
Output: 12VDC 8.33A 100W
IPS-DTD9-36S24-4.16
Input: 9V-36VDC
Output: 24VDC 4.16A 100W
IPS-DTD400-800S12-8.33
Input: 400V-800VDC
Output: 12VDC 8.33A 100W
IPS-DTD65-154S24-12.5
Input: 65V-154VDC
Output: 24VDC 12.5A 300W
IPS-DTD18-36S24-20.8
Input: 18V-36VDC
Output: 24VDC 20.8A 500W
Product Details
Technical Application Guide
- 🔸 Protections: Standard buck-boost products include overcurrent, short-circuit, undervoltage, and overheating protection.
- 🔸 Inductive Loads: For motors or coils, use a power supply 3-5 times the rated power of the load.
- 🔸 Safety First: Isolated products are recommended for precious loads to prevent high input voltage from passing to the output.
- 🔸 Isolation: Negative poles of isolated products cannot be shared; input and output grounds must be separate.
- 🔸 Reliability: Isolated power supplies are the safest products, used in 90% of global electronics including mobile chargers.
Frequently Asked Questions
What is the advantage of an isolated DC-DC converter?
Isolated converters provide an electrical barrier between input and output, preventing noise transfer and protecting sensitive loads from high voltage spikes or ground loop issues.
Can these power supplies be used for battery charging?
Yes, but please choose models specifically designed with charging functions to ensure correct voltage and current profiles for your battery type.
How do I choose a power supply for a motor load?
For inductive loads like motors, we recommend selecting a power supply with a rated capacity 3-5 times higher than the motor's rated power to handle startup current surges.
Are the products waterproof?
Many of our models feature high-grade encapsulation making them waterproof and suitable for harsh outdoor environments. Please check the specific model datasheet.
Can I customize the input and output voltages?
Yes, we provide customization for input ranges from 1V to 1000V and output currents from 1A to 1000A to meet specific equipment requirements.
What is the expected lifespan of these converters?
Our products are designed with a high reliability life of 15 to 20 years, depending on the working environment and load conditions.
