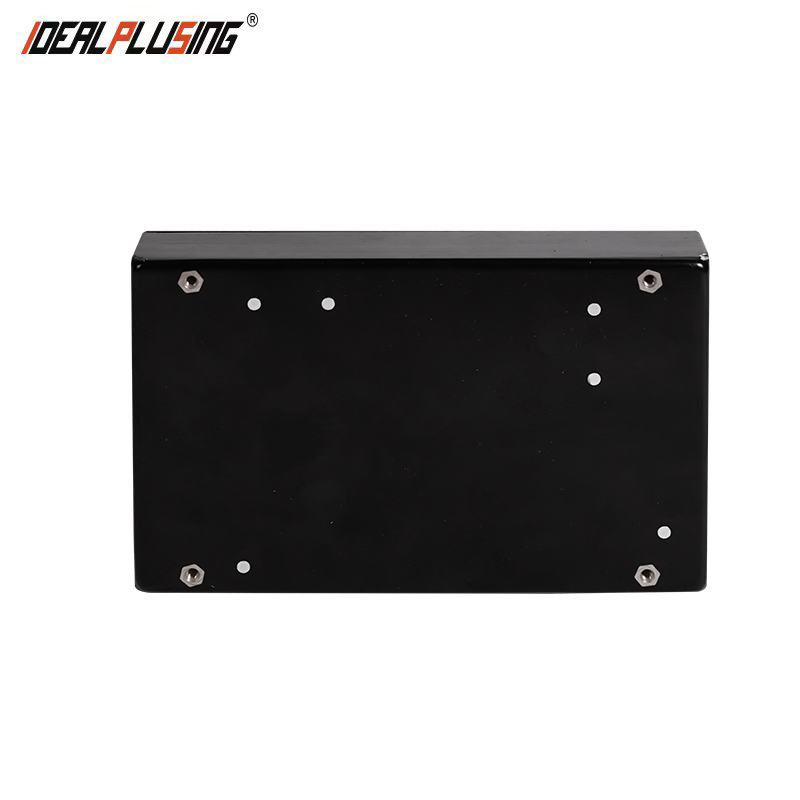

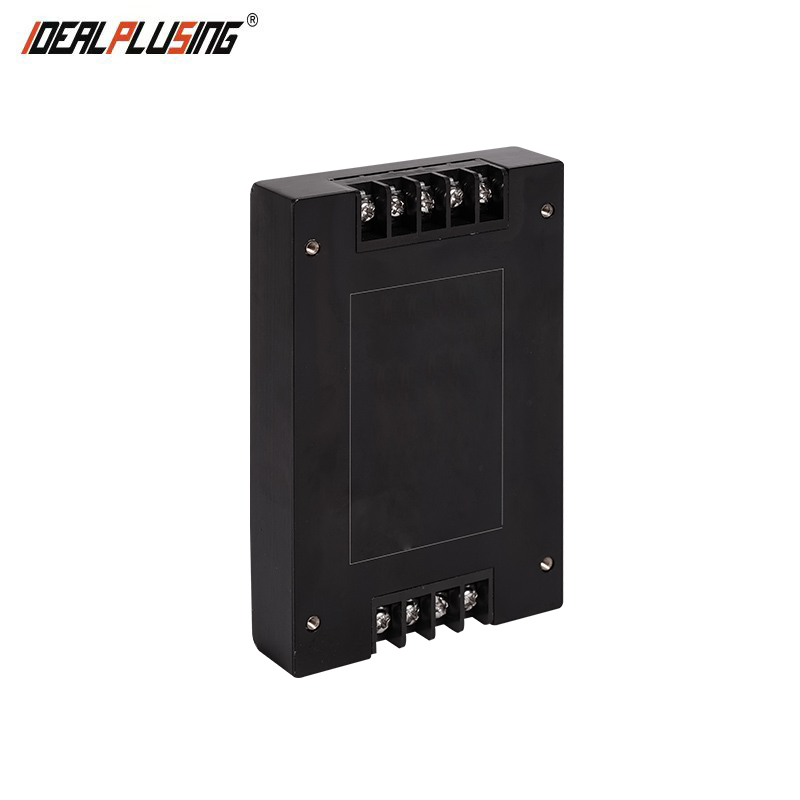

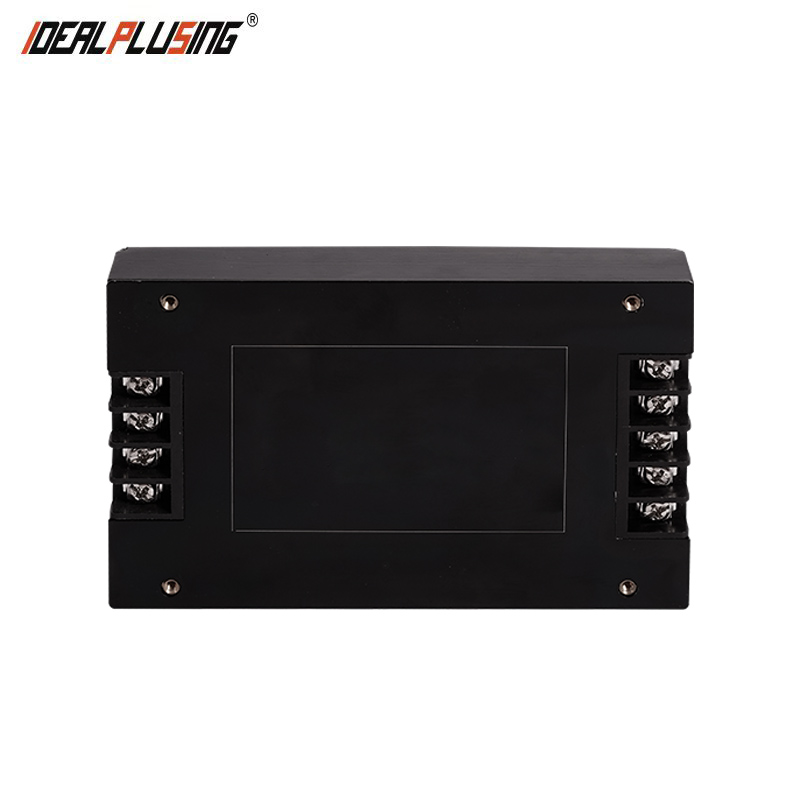

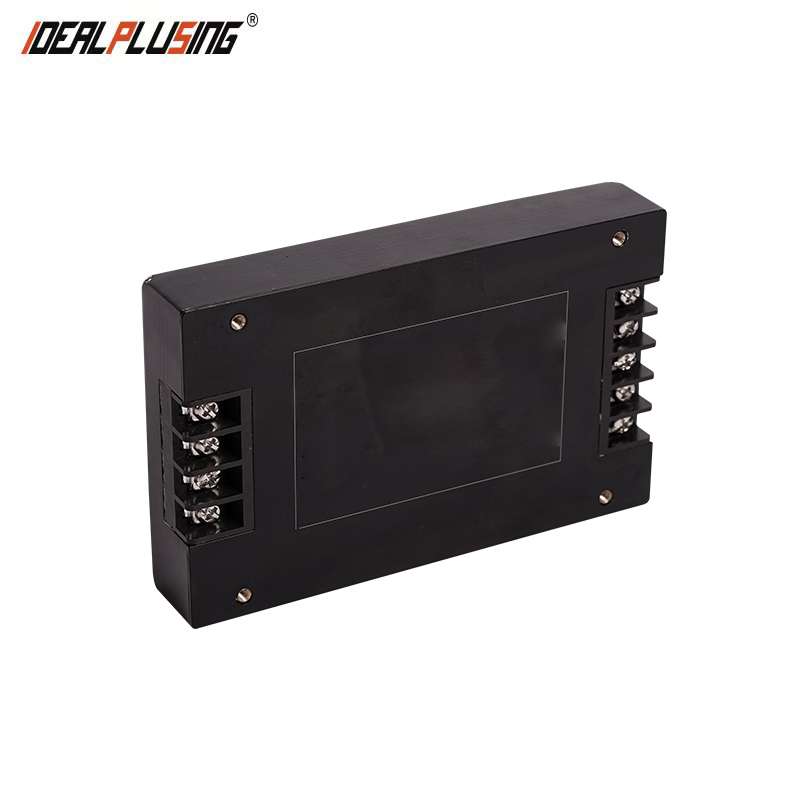

Isolated DC DC 40V 48V 50V 58.4V to 24V Step Down Converter 1A 2A 3A 5A 120W Regulated Industrial Power Converter
Product Description
Isolated DC DC Step Down Converter
40V 48V 50V 58.4V to 24V | 1A 2A 3A 5A 120W | Regulated Industrial Power
⚙️ Core Features
Isolation converters play a vital role in the interconnection of electronic devices and systems. These conversion devices achieve electrical isolation, ensuring the safety and stability of signals during transmission by establishing an effective isolation barrier between the input and output ends. They effectively prevent interference between different circuits and protect against damage caused by ground potential differences.
INDUSTRIAL GRADE
Widely used in industrial automation, medical equipment, communication systems, and new energy applications.
RELIABLE DESIGN
Provides a solid guarantee for the reliable operation of various complex circuits. One of the indispensable key components in modern electronic technology.
CUSTOMIZABLE
Advanced R&D capabilities allow for customization of external dimensions, pin definitions, rated power, and other parameters to meet special needs.
📊 Power Conversion Solutions
Specializing in power conversion solutions, our products are widely utilized in electric vehicles, automobiles, RVs, marine environments, and communication industries. Since 2001, our team has been providing high-quality power solutions globally.
5000+ Power Supply Solutions Developed
1W to 200kW Power Range
Up to 2000V Input Voltage Range
15 to 20 Years Product Design Life
🛠️ Custom DC-DC Converters
We specialize in customizing DC-DC converters to meet your specific requirements. With customized input and output voltage and current, our offerings range from 1V to 1000V DC and 1A to 1000A. We provide both isolated and non-isolated converter design options.
Technical Specification
| Parameter | Value / Condition | |
|---|---|---|
| Model | IPS-DTD40-58.40S24-5 | Regulated Industrial Power |

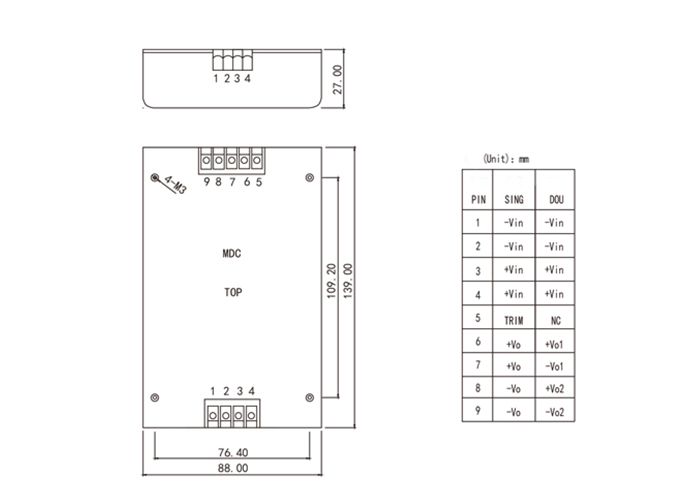

| Product Size | 139*88*27 MM | Terminal Blocks |
| Input Voltage Range | 40V - 58.4V VDC | Typical: 48V |
| Output Voltage | 24 VDC | ±1% Regulation |
| Output Current | 5 A | Continuous |
| Isolation Voltage | 1500 VDC | Input to output |
| Insulation Impedance | 200 MΩ | High reliability |
| Protection | UVLO, OTP, OCP, SCP | Full Protection |
| Operating Temp | -25℃ to 85℃ | Shell Temperature |
| Waterproof Grade | Waterproof | Hard Gel Encapsulated |
Hot Selling Models
IPS-DTD600-1000S24-1.05
Intput:600VDC-100VDC
Output:24VDC 1.05A 25W
IPS-DTD36-72S12-8.33
Intput:36VDC-72VDC
Output:12VDC 8.33A 100W
IPS-DTD9-36S24-4.16
Intput:9VDC-36VDC
Output:24VDC 4.16A 100W
IPS-DTD400-800S12-8.33
Intput:400VDC-800VDC
Output:12VDC 8.33A 100W
IPS-DTD65-154S24-12.5
Intput:65VDC-154VDC
Output:24VDC 12.5A 300W
IPS-DTD18-36S24-20.8
Intput:18VDC-36VDC
Output:24VDC 20.8A 500W
Product Details
Technical Application Notes
1
All buck-boost and step-up/step-down products come standard with output overcurrent, short-circuit, input undervoltage, and chip overheating protection.
2
For inductive loads (coils, magnetic valves, motor applications), it is recommended to use a power supply 3-5 times the rated power of the load.
3
Isolated products ensure that high input voltage is not directly passed to the output end, protecting valuable load equipment.
4
Negative poles (ground) of isolated products must be used separately to maintain the isolation effect.
5
Isolated power supplies support negative voltage input, making them versatile for complex electrical environments.
Frequently Asked Questions
What are the primary benefits of using an isolated DC-DC converter?
Isolation provides an electrical barrier that protects the output load from input-side voltage spikes and noise. It also prevents ground loops and ensures safety in sensitive industrial or medical applications.
Can I request a custom input or output voltage?
Yes, we offer extensive customization. We can design converters with input/output voltages ranging from 1V to 1000V and current capacities up to 1000A.
What protection features are built into these industrial converters?
Our converters typically include input undervoltage protection, output overcurrent protection, output short-circuit protection, and internal over-temperature protection.
Are these products suitable for outdoor use?
Yes, many of our models feature hard gel encapsulation and aluminum casings, providing waterproof capabilities and high resistance to vibration and temperature fluctuations.
How do I choose the right power rating for a motor application?
For motor or inductive loads, it is recommended to select a converter with 3 to 5 times the rated power of the load to handle the high start-up (surge) currents.
What is the expected lifespan of these power converters?
Our industrial-grade converters are designed for a service life of 15 to 20 years, ensuring long-term reliability for critical systems.
