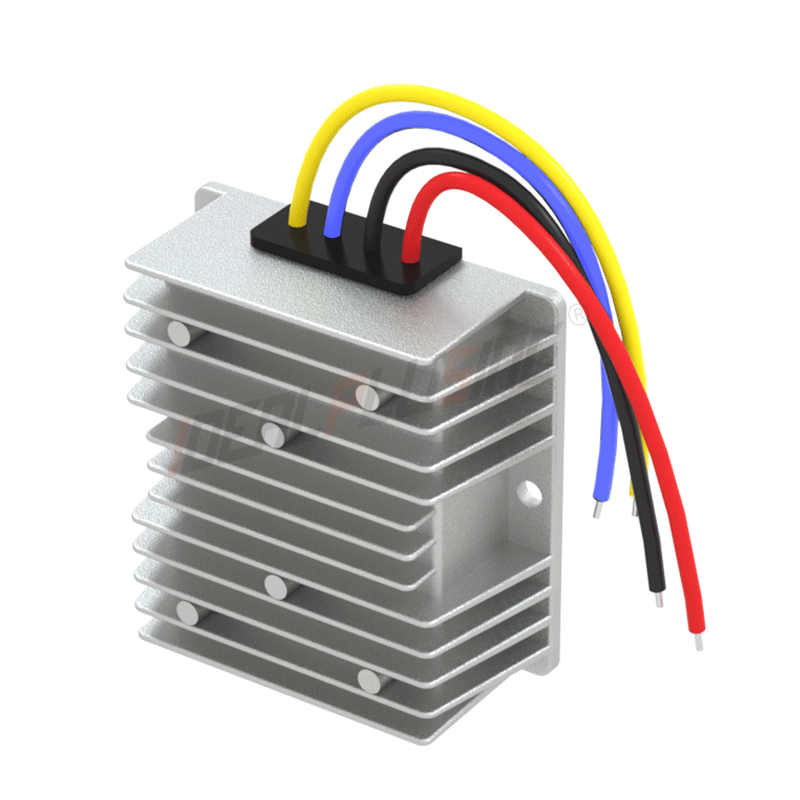

Isolated High Efficiency IDEALPLUSING Dc Voltage Regulator Input 9-36vdc12vdc to 12vdc 5A 8A 96W DC/DC Converter
Product Description
🚀 Isolated High Efficiency DC Voltage Regulator
Isolated High Efficiency DC Voltage Regulator Input 9-36vdc 12vdc to 12vdc 5A 8A 96W DC/DC Converter
Isolation converters play a vital role in the interconnection of electronic devices and systems. They ensure the safety and stability of signals during transmission by establishing an effective isolation barrier between the input and output ends, while effectively preventing interference between different circuits and damage caused by ground potential differences. Its unique isolation characteristics make it widely used in industrial automation, medical equipment, communication systems, and new energy, providing a solid guarantee for the reliable operation of various complex circuits. We can customize external dimensions, pin definitions, rated power and other parameters to meet special needs.
⚙️ Power Conversion Solutions
Specializing in power conversion solutions, these products are widely used in electric vehicles, automobiles, RVs, marine, communication, and various industries. With over 5000+ power supply solutions developed, the range covers from 1 watt to 200 kilowatts with input voltages up to 2000 volts.
The design life of the products is 15 to 20 years, meeting high requirements for global standards and suitable for complex working environments. We specialize in customizing DC-DC converters to meet your specific requirements, ranging from 1V to 1000V DC and 1A to 1000A.
📊 Product Specifications
| Technical Parameter | Value / Range | Unit / Condition | |
|---|---|---|---|
| Name | Isolated DC DC Converter | IPS-DTD12S128 | Model |
| Product Size | 74*74*32 MM | 0.3KG / 0.5KG | Net/Gross Weight |
| Input Voltage Range | 9 - 36 | 12 (Typical) | VDC |
| Output Voltage | 12 | ±1% | VDC / Regulation |
| Output Current | 8 | ±1% | A / Load Regulation |
| Ripple and Noise | 200 | Mvp-p | - |
| Isolation Voltage | 1500 | VDC | Input to Output |
| Protection | Input undervoltage, over-temperature, output overcurrent, short circuit protection | ||
| Operating Temp | -25 to 85 | ℃ | Shell Temperature |
| Waterproof Grade | Waterproof | Self Cooling | Cooling Method |
🔥 Hot Selling Models
IPS-DTD600-1000S24
600V-100V to 24V 1.05A
IPS-DTD36-72S12
36V-72V to 12V 8.33A
IPS-DTD9-36S24
9V-36V to 24V 4.16A
IPS-DTD400-800S12
400V-800V to 12V 8.33A
IPS-DTD65-154S24
65V-154V to 24V 12.5A
IPS-DTD18-36S24
18V-36V to 24V 20.8A

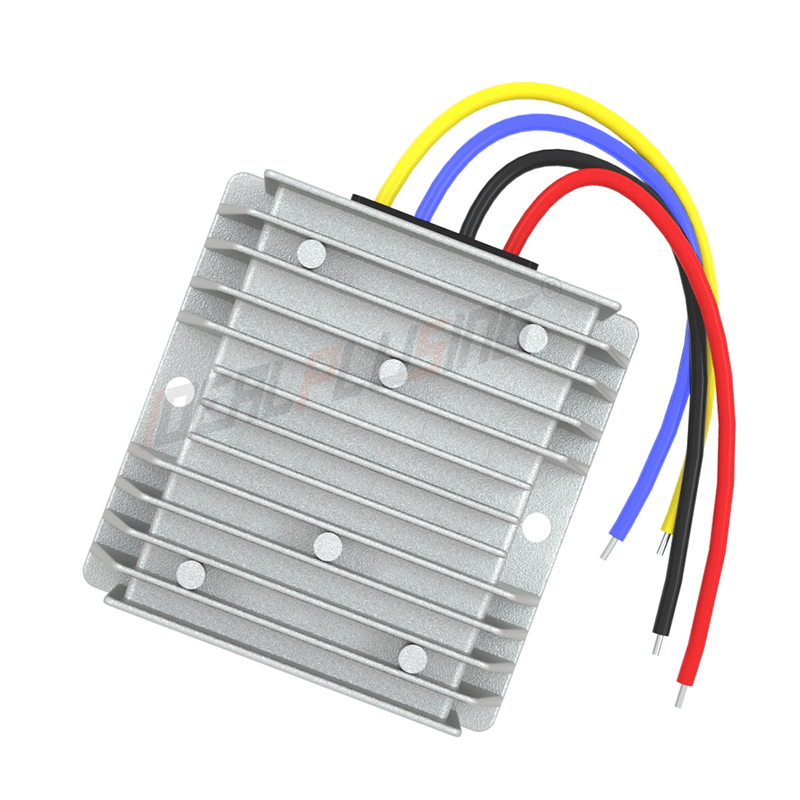

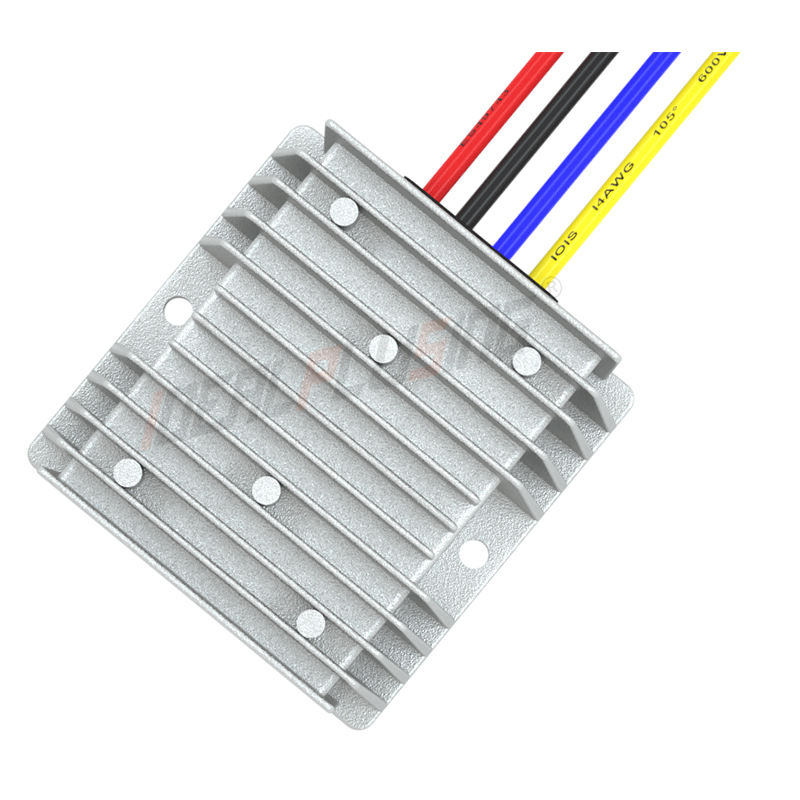

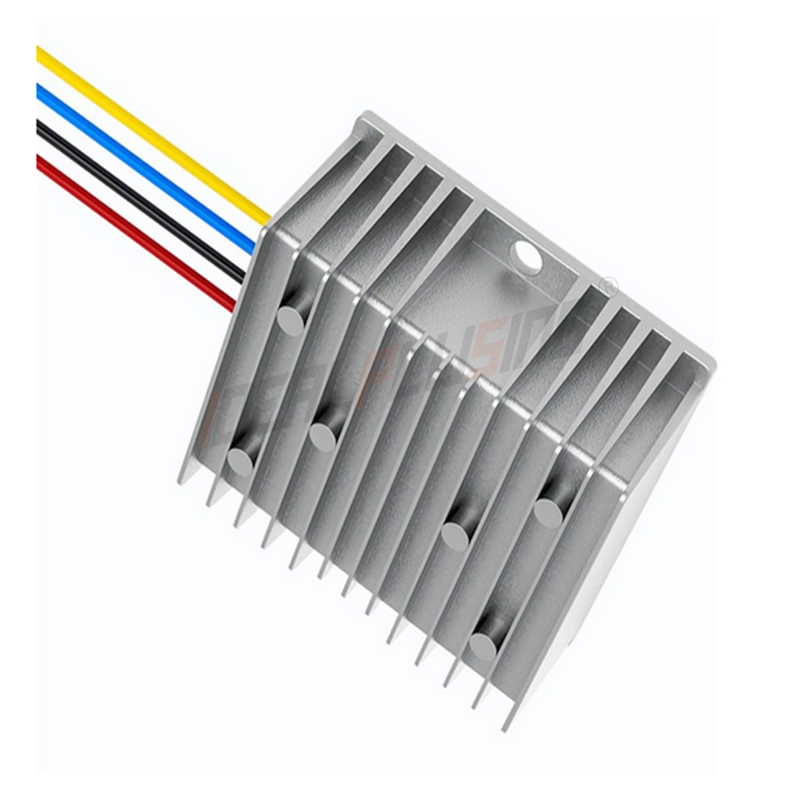

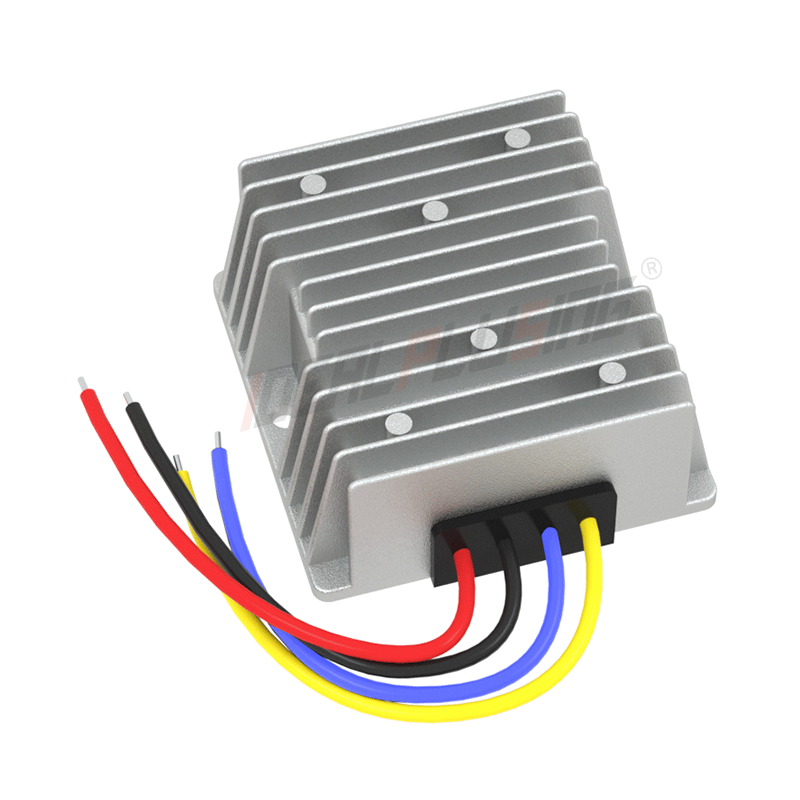

📸 Product Gallery
💡 Technical Application Notes
- Standard protection includes output overcurrent, short-circuit, input undervoltage, and chip overheating (board/casing protection ~90°C).
- Inductive loads (motors, magnetic valves): Power supply should be 3-5 times the rated power of the load.
- Isolated converters are highly recommended for precious loads to prevent high input voltage passing to the output.
- The negative pole (ground) of isolated products cannot be shared; input and output negatives must remain separate.
- Isolated power supplies support negative voltage input (Red wire to 0V, Black wire to negative voltage).
- Isolated units are safer as there is no direct path between input and output, making them the standard for over 90% of global power supplies.
❓ Frequently Asked Questions
Why should I choose an isolated DC-DC converter over a non-isolated one?
Isolated converters provide an electrical barrier that prevents high input voltage from reaching the output in case of failure. This protects precious loads and eliminates ground loop interference, making it much safer for sensitive equipment.
What power capacity should I use for motor-based applications?
For inductive loads such as motors, coils, or magnetic valves, we recommend choosing a power supply with a capacity 3 to 5 times the rated power of the load to handle starting currents.
Can I share the negative ground between input and output on an isolated unit?
No. The negative poles of the input and output must be used separately. If they are shared, the isolation effect is lost, defeating the purpose of the isolated design.
Are these power supplies suitable for outdoor use?
Yes, models with high-temperature resistant aluminum casings and hard gel encapsulation are designed for high reliability in outdoor and demanding industrial environments.
What protections are standard in these converters?
Most products include output overcurrent protection, short-circuit protection, input undervoltage protection, and overheating protection (typically triggered at approximately 90°C).
Does the converter support negative voltage input?
Isolated power supplies can support negative voltage input. In such cases, the 0V line connects to the red wire and the negative voltage line connects to the black wire.
